TILTA MB-T16-LS 15mm LWS Support Instruction Manual
\
\TILTA MB-T16-LS 15mm LWS Support

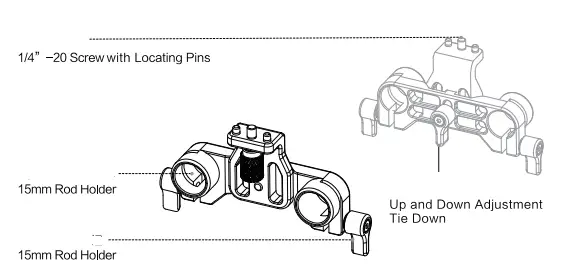

1 SMM LWS SUPPORT

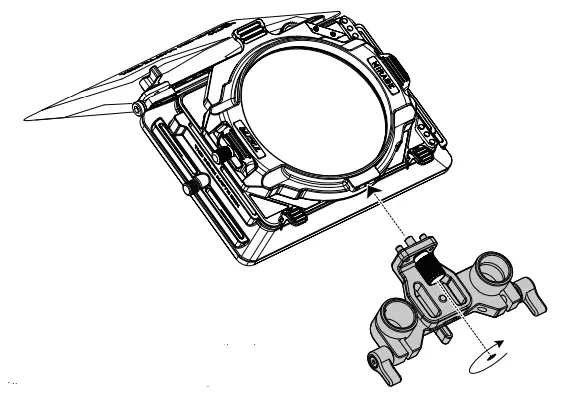

- Align the 1/4″ -20 screw with locating pins on the 15mm LWS support with the 1/4″ -20 screw hole under the Tilta Mirage matte box. Tighten the screw.

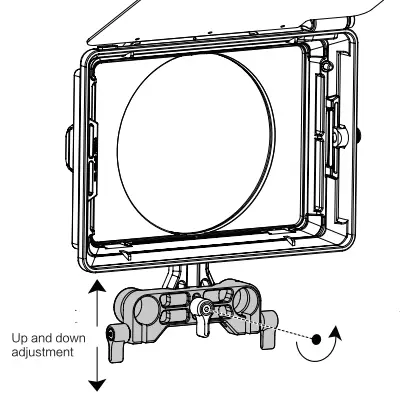

- Adjust the 15mm LWS support vertically to balance the center of gravity for your setup’ s needs. (Loosen the tie down screw to adjust vertically.)
