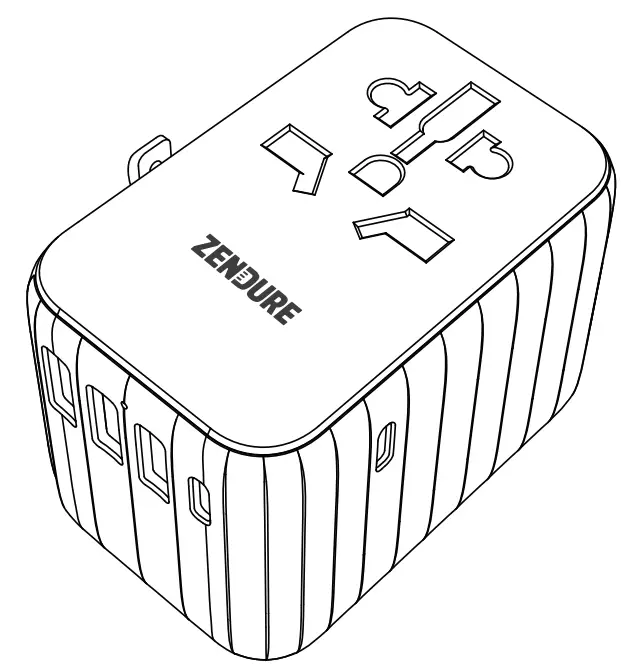

Passport II Pro
61WPD Fast Charge Global Travel Adapter
User Manual

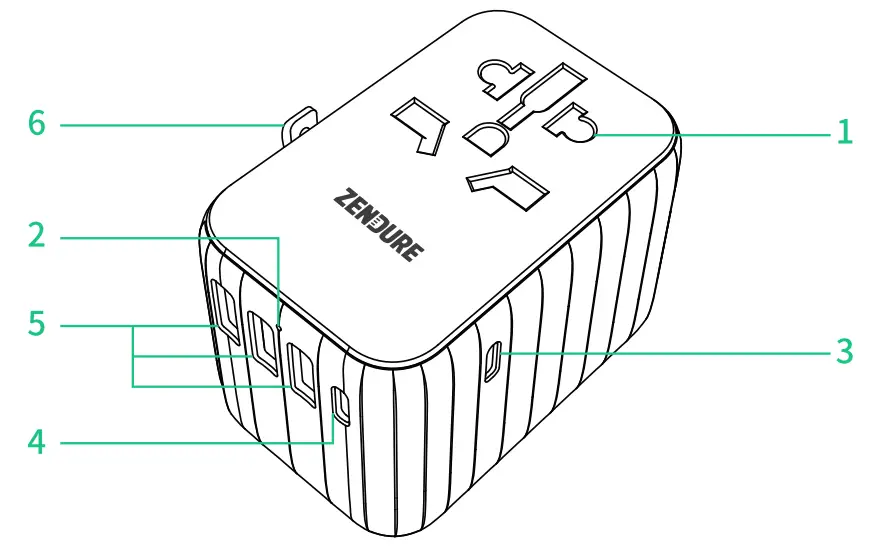

Product Overview
- Universal AC Socket
- LED Indicator Light
- USB-C1 Port (61W PD)
- USB-C2 Port (ZEN+)
- USB-A1/2/3 Ports (ZEN+)
- US/AU/UK/EU Plugs
Using Your Travel Adapter
- Select an Suitable Plug
Press and slide out an appropriate plug for your destination country or region. - Charge Your Device via USB Ports

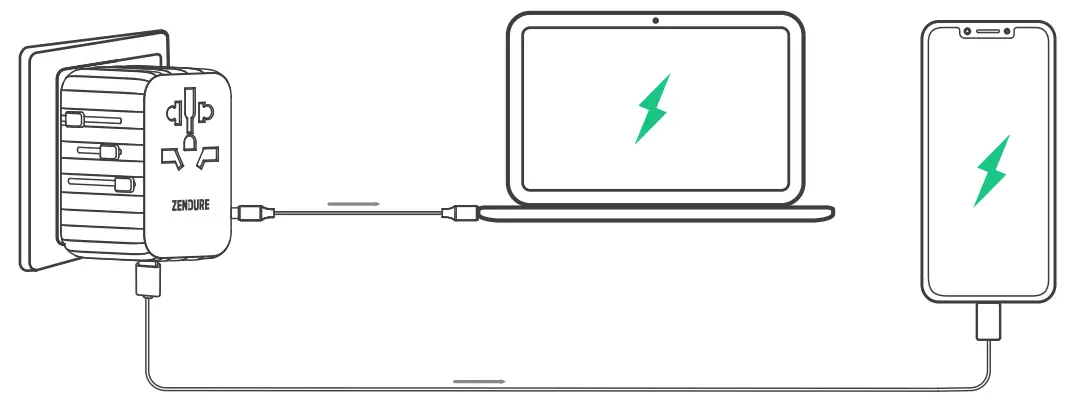

Connect your devices to USB-C or USB-A ports via a USB cable. - Charge Your Devices via AC Socket . . . .
Connect your device to the universal AC socket.
Press and slide out an appropriate plug for your destination country or region.
Connect your devices to USB-C or USB-A ports via a USB cable.
Connect your device to the universal AC socket.Safety Instructions
- THIS PRODUCT IS NOT A VOLTAGE CONVERTER. Use this adapter set with devices rated from 100-250 volts only.
- Always disconnect Passport from the outlet when not in use.
Applicable Sockets Type
- Passport II Pro can accept Type Al B, C, E, F, G, I, J, K, L and N plugs
Passport II Pro can plug into Type A, B, C, D, E, F, G, H, I, J, K, L, M, N and 0 outlets
Caution
 | Do not disassemble or attempt to re-purpose or modify it in any manner. |
 | Storage in a cool and dry place. Recommend storage temperature: -20°C to 55°C; Operating temperature: -10°C to 45°C. |
 | Use origin or certified cables. |
 | Avoid strenuous vibration, impact, extrusion on transportation, and keep the product away from intense sunlight and rain. |
 | Do not expose to moisture or submerge it in liquid. |
 | Stop using and contact manufacturer if the product is excessively hot, is emitting odor, deformed or any other abnormalities. |
 | Please dispose of discarded products properly according to local regulations. |
 | Be cautious of drops. bumps, abrasions, or other impacts. |
 | Keep it away from children under 3 years old for safety. |
 | Do not clean with harmful chemicals or detergents. |
Specifications
| Model | ZDG2PP2 |
| Input | AC 100V-250V-50/60Hz 1.5A |
| AC Output | 10A Max (1000W at 100V or 2500W at 250V) |
| DC Output | USB-C(1): 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20.3V=3A, 61W Max USB-C(2): 5V=2.4A, 12W Max USB-A(1)/(2)/(3): 5V=2.4A, 12W Max |
| Dimensions | 2.0″ x 3.1″ x 2.1″ 51mm x 78mm x 53mm |
| Weight | 5.9oz / 168g |
http://www.zendure.com
Zendure USA Inc.
Phone: (800) 219-0960 (US)
Office Hours: Mon – Fri 9:00 – 17:00 PST
Support / Contact: www.zendure.com/support
Website: www.zendure.com
® and © 2020 Zendure USA Inc. All Rights Reserved. Printed on recycled materials. MADE IN CHINA
