ONEPLUS LOGONord CE 3 Lite 5G Smartphone
User Guide

Nord CE 3 Lite 5G Smartphone

Whoa! We can’t believe you’ve put down your mind-blowingly awesome new OnePlus Nord CE 3 Lite 5G to thumb your way through our Quick Guide.
But now that you’re here, how about unfolding this miniature literary masterpiece and learning a few things about your new phone?
You might have heard that we’ve added a bit of new Nord magic to this model, so put on your magic hats, and let’s jump in.

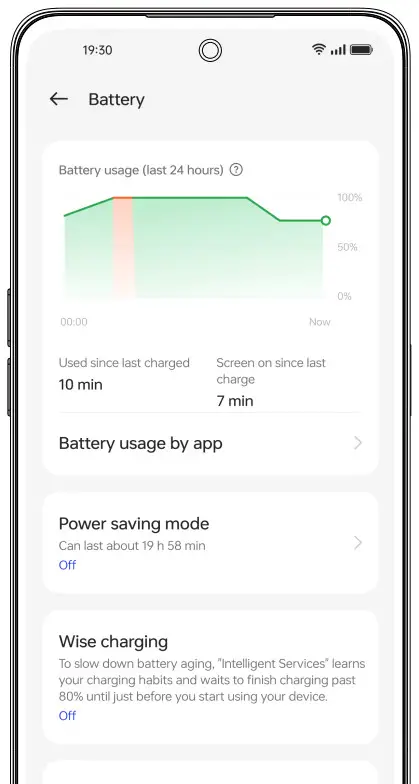

Take charge of your battery life

Battery Health Engine keeps your battery young and running smooth by intelligently learning your charging habits and matching your sleep schedule to prevent overcharging and help your phone stay Fast and Smooth for longer.

ONEPLUS Nord CE 3 Lite 5G Smartphone - battery life

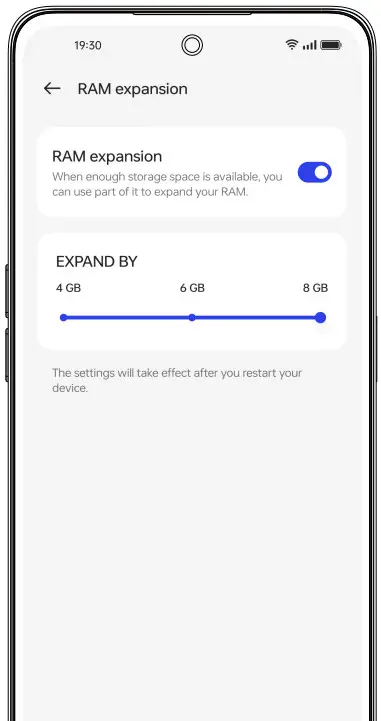

RAM-ing speed!

Turn on your expandable virtual RAM to shift your Fast and Smooth new OnePlus phone into overdrive. This feature takes some of your unused storage and converts it into up to 8GB of extra RAM to keep your multi-tasking and swiping lightning quick.

ONEPLUS Nord CE 3 Lite 5G Smartphone - RAM

Pump up the volume

When you absolutely need to rock the socks off everyone in the room, check out 200% Ultra Volume mode. It works with the hefty dual speakers to turn your phone into a portable boombox so you can hear your favorite songs and videos loud and clear.

ONEPLUS Nord CE 3 Lite 5G Smartphone - Contacts

Must Know

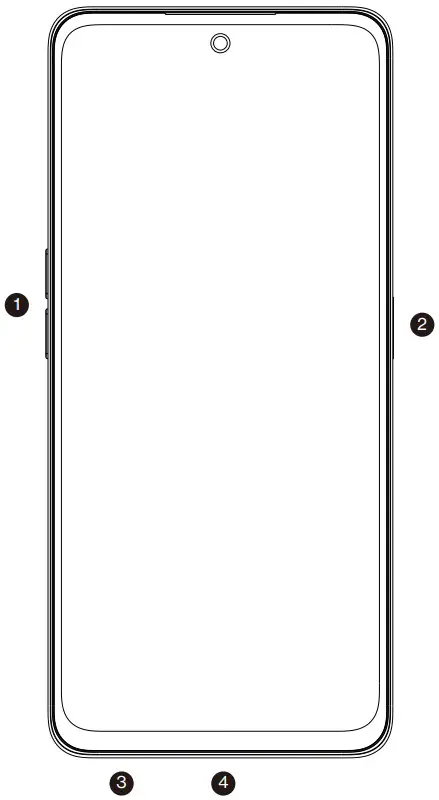

ONEPLUS Nord CE 3 Lite 5G Smartphone - Pump

  1. Volume buttons
  2. Power button/Side Fingerprint sensor
  3. 3.5mm headphone jack
  4. USB Type-C port

Power button
POWERADD T18 Wireless Earbuds - icon Tap to wake/sleep
ONEPLUS Nord CE 3 Lite 5G Smartphone - ICON Press and hold Voice Assistant (By default) or Power Menu

Probably good to know
Press and hold the power 2 button and volume up button 1 simultaneously to turn off the device.
Press and hold the power button 2 and volume down button 1 simultaneously to take a screenshot.
Tap the power button 2 three times to call the local emergency number (Default setting in India only. Set preferences in Settings – Safety & emergency).
Welcome
Welcome to the OnePlus family! We’re thrilled you’ve chosen OnePlus. This guide will help you get the most out of your new device. Read through this quick guide carefully to ensure safe and proper use of your device.
Get Support
Please visit the oneplus.com/privacy-and-legal page to find more information on our warranty and return policy. You can also reach out to OnePlus Customer Support by visiting oneplus.com/support.
Accessories and Software Information
You are provided with the following standard accessories:
1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide,
1 Welcome Letter, 1 SIM Ejector Tool, 1 Protective case, 1 Red Cable Club Membership Card.
The product software version is: OxygenOS 13.1
For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at https://service.oneplus.com/global/user-manual
Regulatory
Steps to search Regulatory : Go to Settings – About device – Regulatory

Radio Waves Specifications

RadioFrequencyOutput Power. Max
GSM850MHz/ 900MHz33.5 dBm
1800MHz/1900MHz30 dBm
WCDMABand 124.6 dBm
Bands 2/423.8 dBm
Bands 5/6/1924 dBm
Band 824.8 dBm
LTE FDDBands 1/8/2024.6 dBm
Band 223 dBm
Band 324.4 dBm
Band 423.3 dBm
Bands 5/6623.6 dBm
Bands 7/2623.7 dBm
Bands 12/13/17/18/1923.8 dBm
Band 2824.8 dBm
LTE TDDBand 3824 dBm
Band 3923.2 dBm
Band 4023.7 dBm
Band 4123.9 dBm
5G NRn1/n3/n7/n38/n40/n7824.2 dBm
n524 dBm
n8/n20/n2825.2 dBm
n4124.6 dBm
n66241 dBm
n7724.4 dBm
Bluetooth2.4-2.4835GHz15.5 dBm(EIRP)
2.4G Wi-Fi2.4-2.4835GHz17.5 dBm(EIRP)
5G Wi-Fi515-5.25GHz18 dBm(EIRP)
5.25-5.35GHz, 5.47-5.725GHz16.5 dBm(EIRP)
5725-5.85GHz11.5 dBm(EIRP)
NFC13.56MHz42 dBpA/m ©10m

SAR Values
The SAR values below are the highest values reported for this device:
Head: 0.865 W/kg(10g), Body: 1.245 W/kg(10g), Limbs: 2.687 W/kg(10g)
Learn More
For more information, please download the complete guide on https://service.oneplus.com/global/user-manual.
This manual is for reference only, the actual product shall prevail.
The information is subject to change without notice.
Model: CPH2465

©2023 OnePlus All Rights ReservedONEPLUS Nord CE 3 Lite 5G Smartphone - QR CodeHasselblad
Version 12.2
