Sharkoon NIGHT SHARK User Manual
Specifications
| General: | RGB | Red / Blue | Lite |
| Form Factor | ATX, E-ATX | ATX, E-ATX | ATX, E-ATX |
| Expansion Slots | 7 | 7 | 7 |
| Interior Painting | ü | ü | ü |
| Cable Management System | ü | ü | ü |
| Side Panel Tempered Glass 3 mm | ü | ü | ü |
| Dimensions (L x W x H) | 50.3 x 21.0 x 47.5 cm | 50.3 x 21.0 x 47.5 cm | 50.3 x 21.0 x 47.5 cm |
| I/O: | |||
| USB 3.0 (Top) | 2 | 2 | 2 |
| USB 2.0 (Top) | 2 | 2 | 2 |
| Audio (Top) | ü | ü | ü |
| Max. Drive Bays: | |||
| 5.25″ | 1 | 1 | 1 |
| 3.5″ | 3 | 3 | 3 |
| 2.5″ | 5 | 5 | 5 |
| Fan Configuration: | |||
| Front Panel | 2x 120 mm RGB Fans | 2x 120 mm LED Fans | Optional |
| Side Panel | Optional* | Optional* | Optional* |
| Rear Panel | 1x 120 mm RGB Fan | 1x 120 mm LED Fan | Optional |
| Bottom Panel | Optional** | Optional** | Optional** |
| Compatibility: | |||
| Mainboard | Mini-ITX, Micro-ATX, ATX, | E-ATX, SSI CEB, SSI EEB | |
| Max. Length Graphics Cards | 42 cm*** | 42 cm*** | 42 cm*** |
| Max. Height CPU Cooler | 16 cm | 16 cm | 16 cm |
| Max. Length Power Supply | 29.5 cm | 29.5 cm | 29.5 cm |
Package Contents:
NIGHT SHARK, Accessory Set, Manual, Addressable RGB Control (only NIGHT SHARK RGB)
- If HDD/SSD mounting cover is removed, 2x 120 mm fans or 240 mm radiator can be installed.
- Internal USB 3.0 connection to mainboard may conflict with space for radiator. Check before installation.
- 30 cm if radiator is installed on side panel.

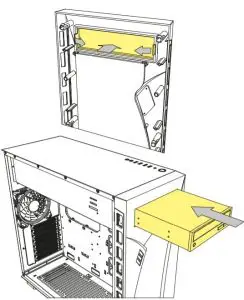

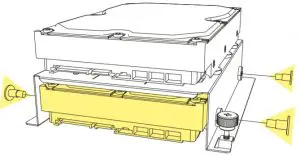

5.25″ Device Installation

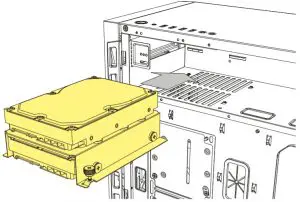

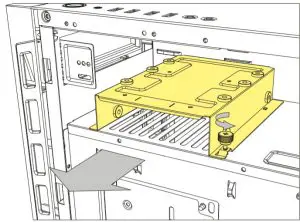

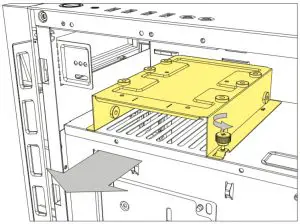

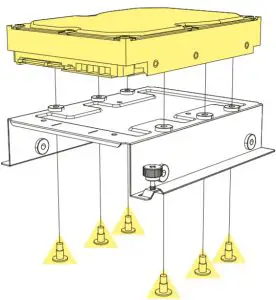

3.5″ HDD Installation

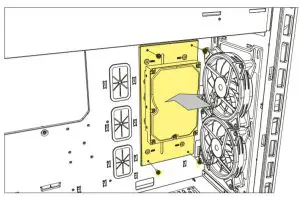

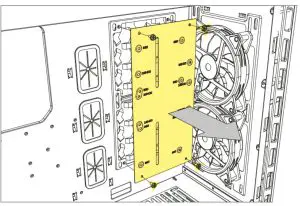

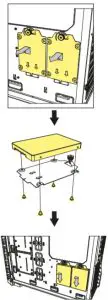

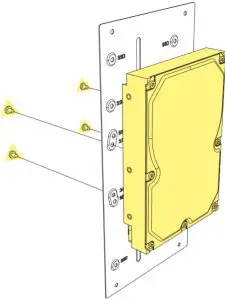

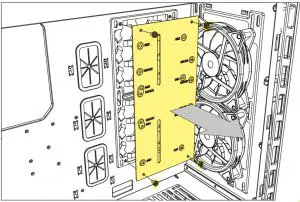

2.5″ HDD/SSD Installation

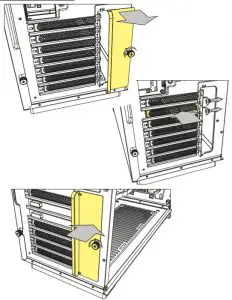

Add-On Cards Installation

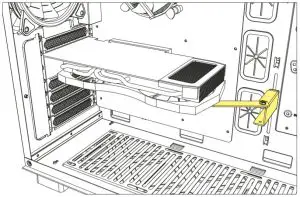

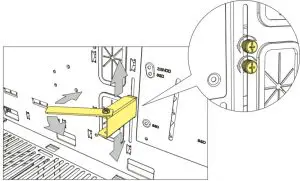

Extra Graphics Card Support

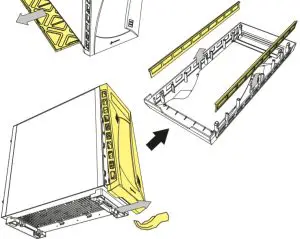

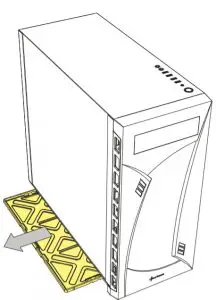

Detachable Dust Filter

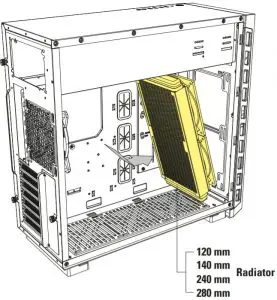

Front Panel Radiator Installation

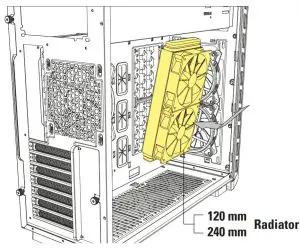

Side Panel Radiator Installation
If HDD/SSD mounting cover is removed, 2x 120 mm fans or 240 mm radiator can be installed on side panel.

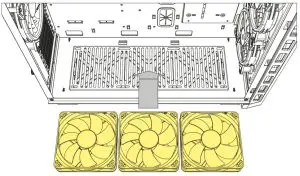

Bottom Panel Fan/Radiator Installation
Internal USB 3.0 connection to main board may conflict with space for radiator. Check before installation.

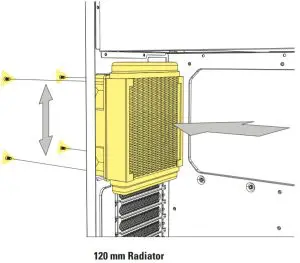

Rear Panel Radiator Installation

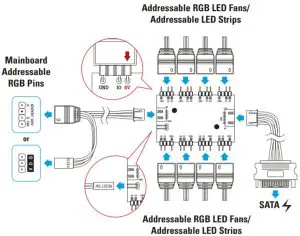

Addressable RGB Hub

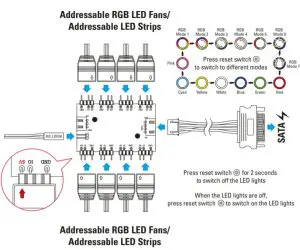

Manual LED Control
Additional Information
