EarFun Free Pro ANC Wireless Earbuds User Manual

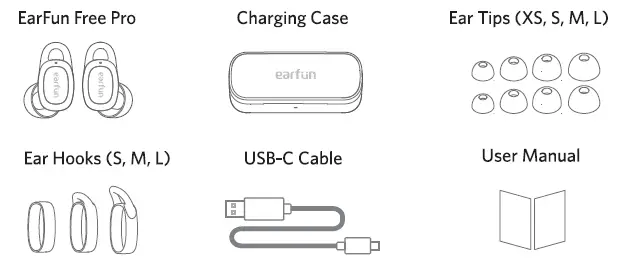

1. What’s in the Box

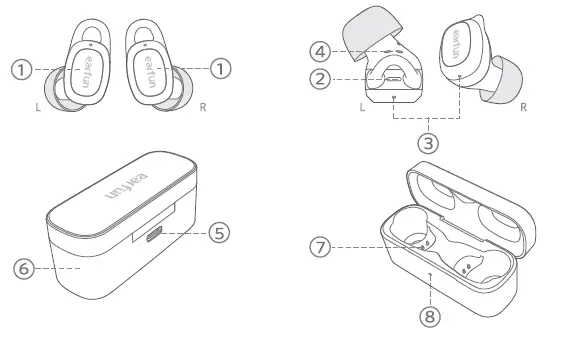

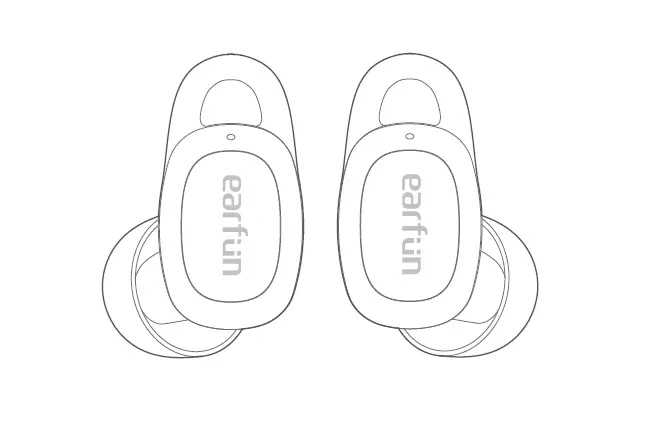

2. Product Diagram

1. Touch multifunction control
2. LED indicator
3. Microphone
4. Charging contactor
5. USB-C charging port
6. Charging case
7. Charging dock
8. Charging case indicator

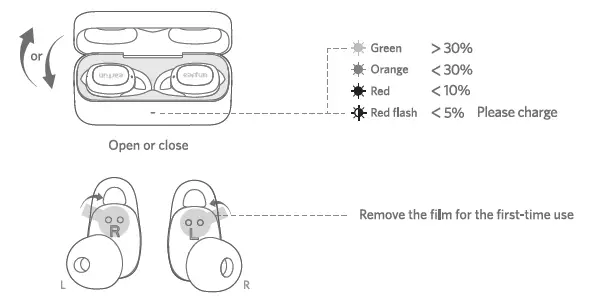

3. Charging

1. Open or close the charging case to activate the LED battery indicator.
2. Remove the film on the earbuds when taking them out of the charging case for the first time.
3. Fully charge both the earbuds and the charging case before the first-time use.
4. The charging case must be closed that earbuds can start charging.
5. Fully dry off the earbuds and the USB port before charging.

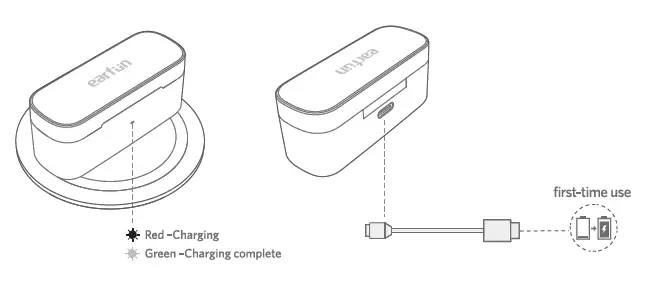

1. Use wireless charging pad(not included) for charging.
2. Connect USB-C cable for charging.

4. Specifications

Bluetooth version	VS.2
Bluetooth frequency	2.402GHz-2.48GHz
Bluetooth profile	A2DP, AVRCP, HFP, HSP
Maximum working range	15m(without obstacle)
Battery capacity	SOmAh x 2(earbuds); 400mAh(charging case)
Charging time	1 hour(for earbuds); 2 hours(for charging case via USB-C); 3.5 hours(for charging case via wireless charger)
Playtime	ANC OFF–Up to 7 hours, Totally 32 hours with the charging case; (varies by volume level and audio content) ANC ON– Up to 6 hours, Totally 27 hours with the charging case; (varies by volume level and audio content)
Input	DC SY /lA
Dimentions	67mm x 25mm x 31mm
Weight	42g

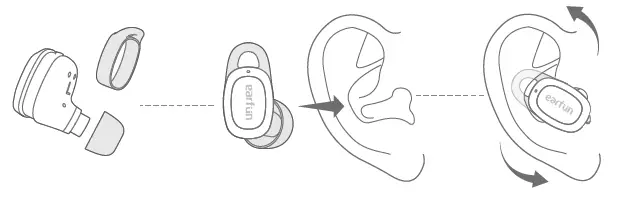

5. How to Fit

Note: If the earbuds is not worn correctly, it may affect the noise cancelling effect.

Choose the ear tips and ear hook that fit you the best. If you couldn’t use the ear hook, please choose the one without the wing.
Identity the left and the right earbuds.
Insert the earbuds into the canal of your ears, the ear hook should also be inserted into the upper canal of your ears.
Turn and find the most confortable position.

6. Pairing Your Earbuds

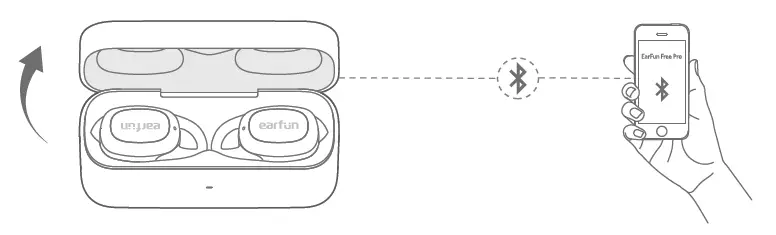

1. First time pairing with device

Step 1: Open the charging case, earbuds will automatically power on and enter into pairing mode.
Step 2: Activate Bluetooth on your Bluetooth-enabled device and search for other Bluetooth devices.
Step 3: Select “EarFun Free Pro” from the list of Bluetooth devices shown (if a password is needed, type ‘0000’).

Notes:

The earbuds will automatically connect with the device they were last paired with when the case is opened.
Each earbud could be used independently.

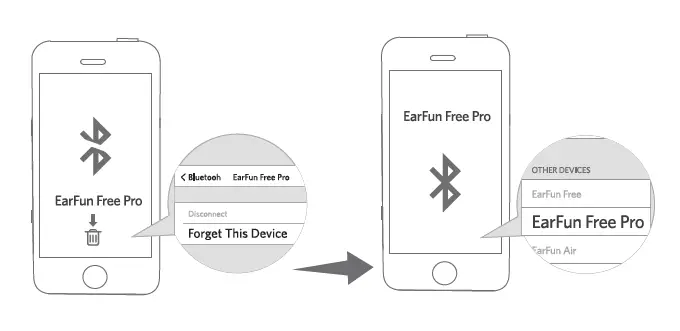

2. Connect to a New Device

Option A
Step 1. Unpair the earbuds from the Bluetooth-enabled device that’s connected. The earbuds will disconnect from the current device and enter into pairing mode for another pair.

Step 2. Search on the new device and connect.

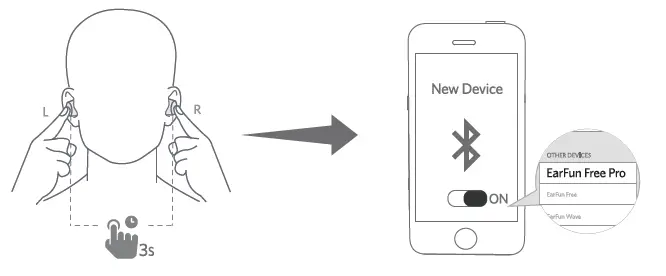

Option B
Step 1. Make sure the earbuds are powered on, and then touch and hold the both earbuds button at the same time for at least 3 seconds until they flash in blue light, after that the earbuds will enter into pairing mode.

Step 2. Search the new device and connect.

7. Functions

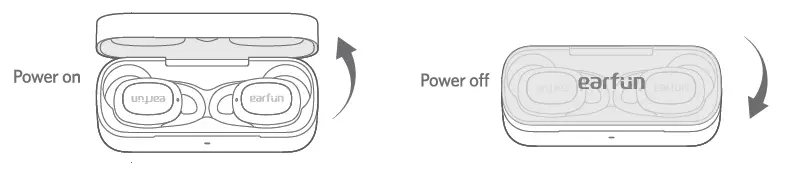

Power on/off

Open the charging case, the earbuds will automatically power on.
Place the earbuds back into the charging case. Close the case and the earbuds will automatically power off.

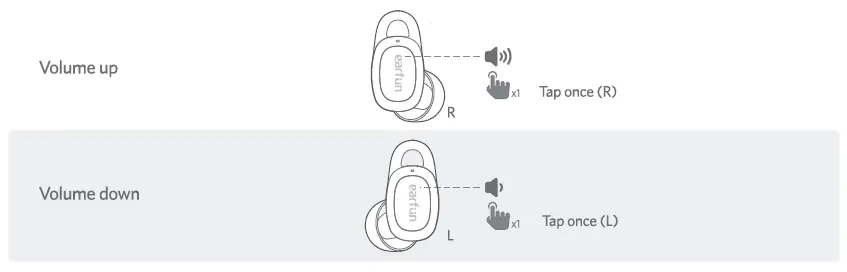

Playing music

Hands free conversation

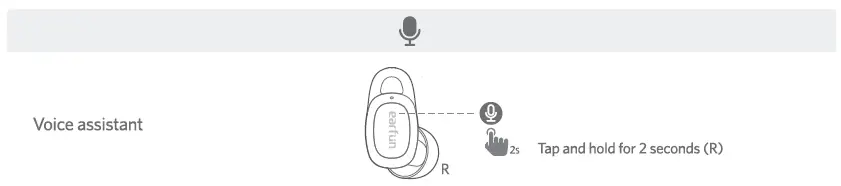

Activate the voice assistant

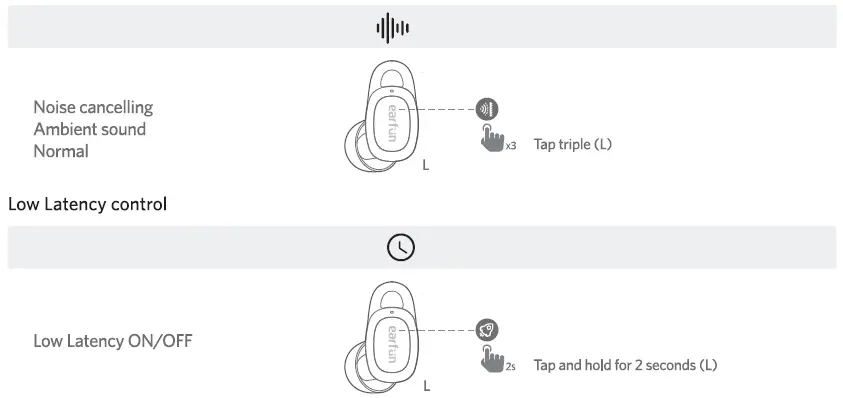

Noise cancelling control

Notes:

Turn on the low latency mode will provide latency within 100ms and improve the movie and video experience, but it will shorten the connection distance. We suggest you turn off the low latency mode when you use the earbuds for music.
The normal mode provide latency about 200ms.
Bluetooth technology can’t eliminate latency.

8. Earbuds LED Indicator

Power on	Blue indicator flashes 1 second
Power off	Red indicator flashes 1 second
Pairing mode	Indicator flashes blue
Successfully connected	Indicator goes out
Factory reset	Indicator flashes in purple

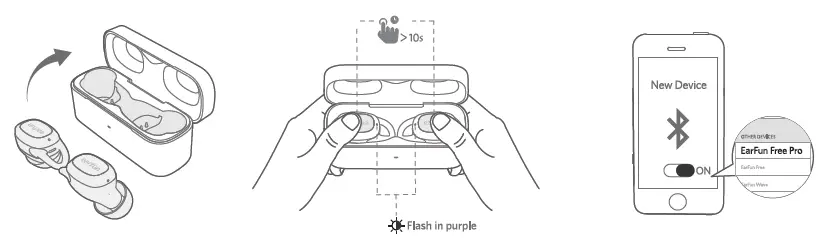

9. Reset and Reconnecting

If you fail to build connection between two earbuds, or between earbuds and Bluetooth device, please try the following steps:

Place both earbuds into the charging case.
Keep the charging case open, then touch and hold the button on each earbud at the same time for at least 10s until they flash in purple then earbuds have been reset successfully.
Delete the old connection from the Bluetooth device and reconnect “EarFun Free Pro”.

10. Troubleshooting

Q: Can I use both earphones separately?

A: Yes, each earbud could be used independently.

Q: The earphones are turning on, but it doesn’t connect to my device?

A: To connect the earbuds to your device, please check if the Bluetooth of the device is on at first, then select ‘EarFun Free Pro’ on the Bluetooth list to get paired. If the earbuds still can’t connect to your device, please try to reset it, or contact our customer support.

Q: Why the connection is not stable and cuts out intermittently?

A: Please make sure there are no objects between the earphones and your Bluetooth device, and make sure there is no radio or WIFI interference nearby.

Q: What is the range of Bluetooth earphones?

A: Bluetooth earphones have maximum range of 49 feet (15m, no obstacle). However, the actual range will depend on usage and environment.

Q: Is there volume control on the earphones?

A: Yes, touch L earbud once decreases the volume and touch R once could increase it.

Q: My earphones will not switch on.

A: Please recharge it and make sure it has enough battery power. If it is fully charged and still nothing happens or if you are not able to charge the unit, please contact our customer support for warranty cover.

Q: Is the charging case waterproof?

A: No, the earbuds are IPXS sweat & waterproof, but the charging case is not waterproof.

Q: Will the earbuds shut off automatically?

A: The earbuds will remain on as long as they are connected to a device. If no audio is in use, they will enter power-saving mode and wake up once audio is played. If the earbuds are not connected with any devices, they will automatically shut off in 30 minutes.
