Maxi-cosi Titan Pro I-size Premium Reclining Car Seat With Airprotect Owner's Manual

Titan Pro i-Size/Titan Plus i-Size
76cm – 150cm
15 M – 12 Y
Owner’s Manual

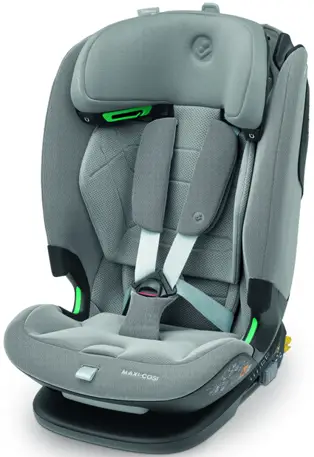

Titan Pro i-Size Premium Reclining Car Seat with Airprotect

i-Size compliant

The quick start guide is intended to provide only an overview. For the maximum protection and comfort of your child, it is essential that you read through the entire manual carefully and follow all instructions.Quick start guide The Maxi-Cosi Titan Pro/Plus i-Size has been approved in accordance with the latest European safety standards (ECE R129/03) and is suitable for children from 76 to 150 cm (from approx. 15 months to 12 years).
Category of your car seat: R129 i-Size from 76-105cm (max 18kg). i-Size booster from 100-150 cm.
Position of your car seat: forward facing.

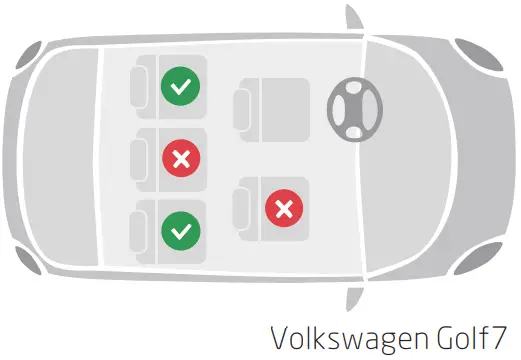

The Maxi-Cosi Titan Pro/Plus i-Size must be installed with ISOFIX and Top Tether when your child’s height is from 76 cm to 105 cm. You can use vehicle belt only, or vehicle belt and ISOFIX to install the Maxi-Cosi Titan Pro/Plus i-Size car seat when you child’s height is 100-150cm (max. 36kg). Consult the vehicle manual to find the location of ISOFIX anchorages and more information about installing the car seat in the vehicle. This child restraint is classified for “Universal” use and is suitable for fixing into the seat position of the following cars:
IMPORTANT:
For a complete list of cars, please visit www.maxi-cosi.com/car-fitting-list
Before installing your child car seat with the ISOFIX anchorages system you must read the instruction manual of the vehicle. This manual will indicate the places compatibles with the class size of the car seats.

INSTRUCTIONS FOR USE

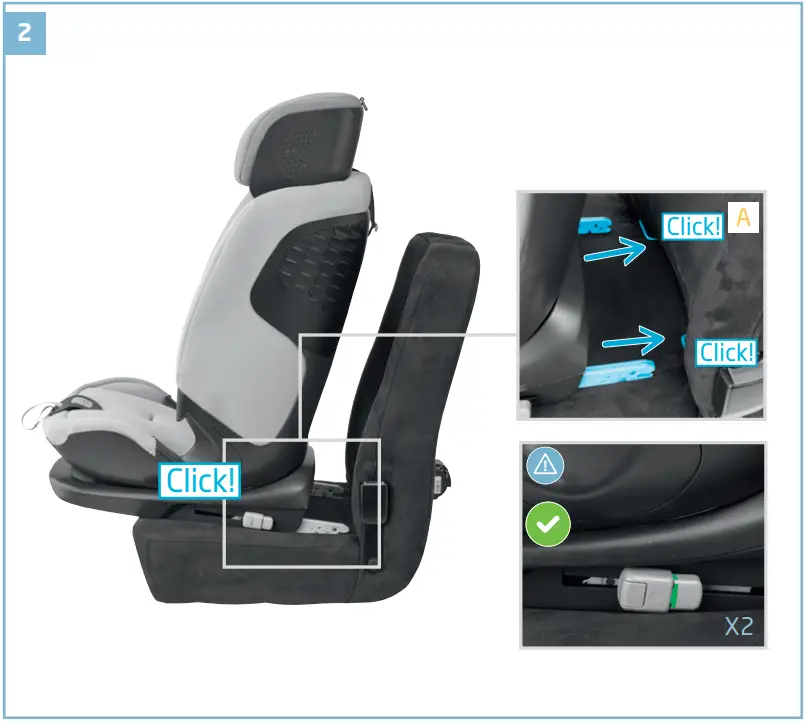

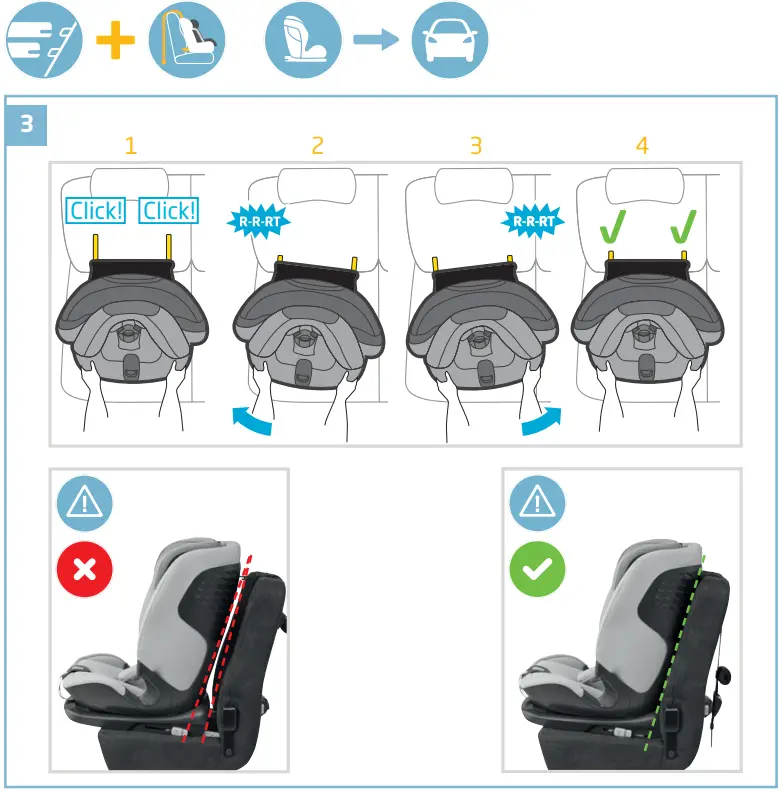

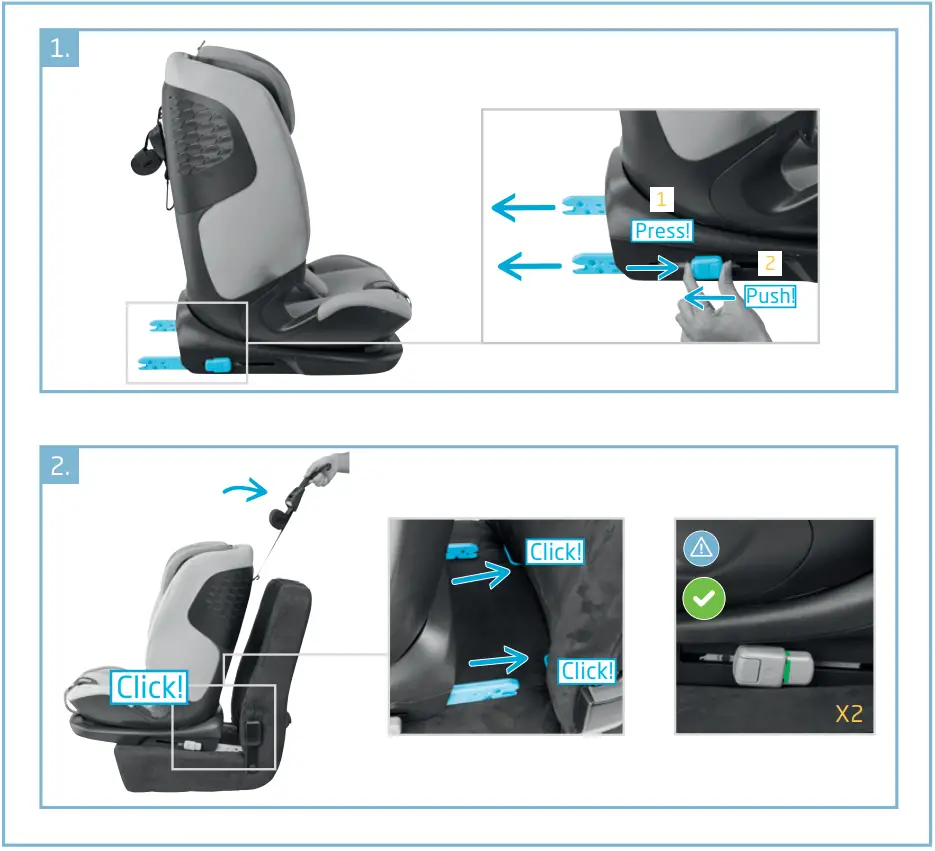

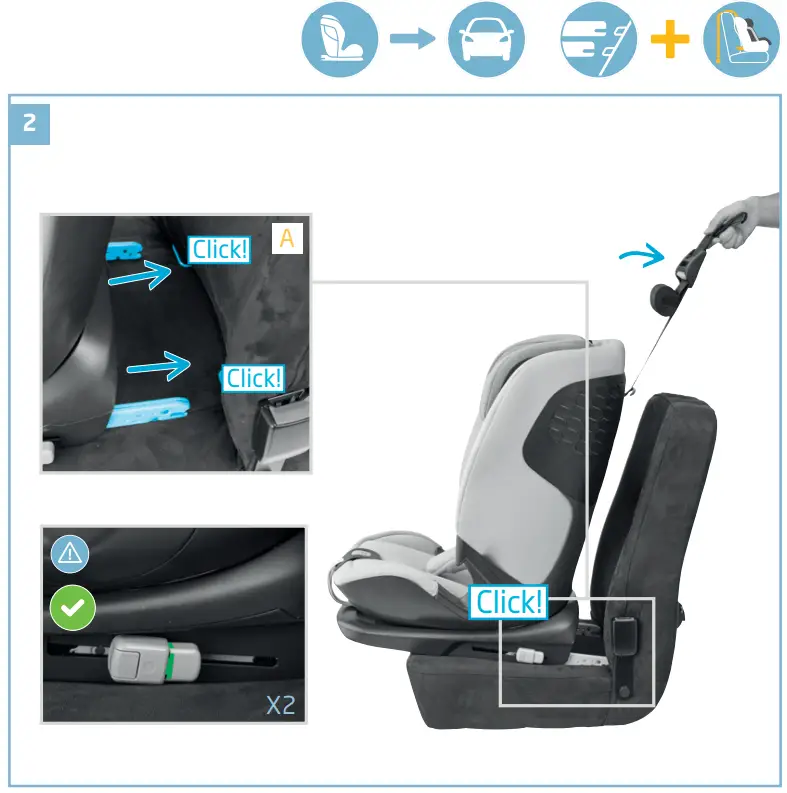

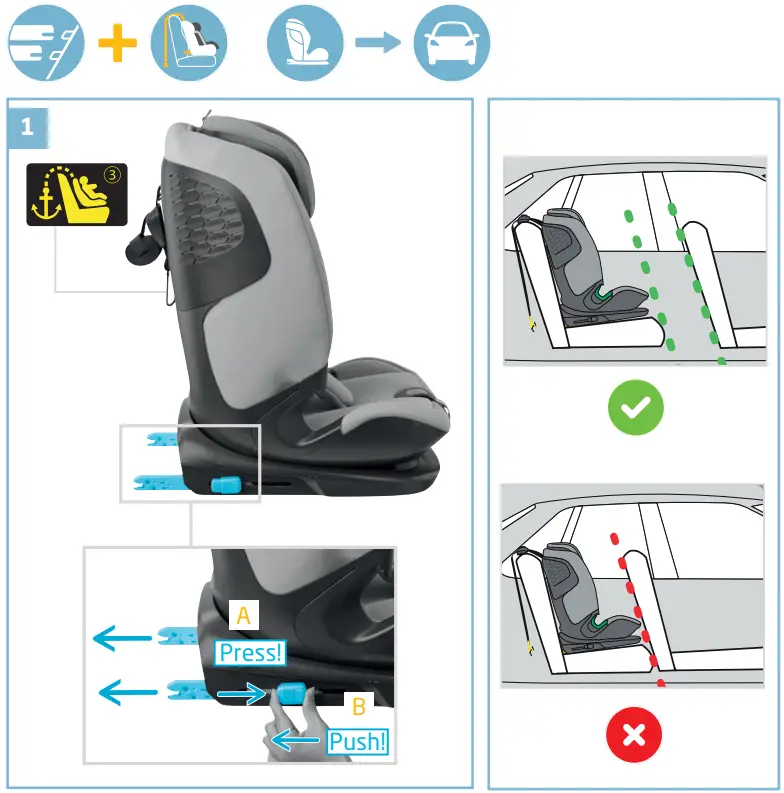

ISOFIX + Top Tether76 – 105 cm

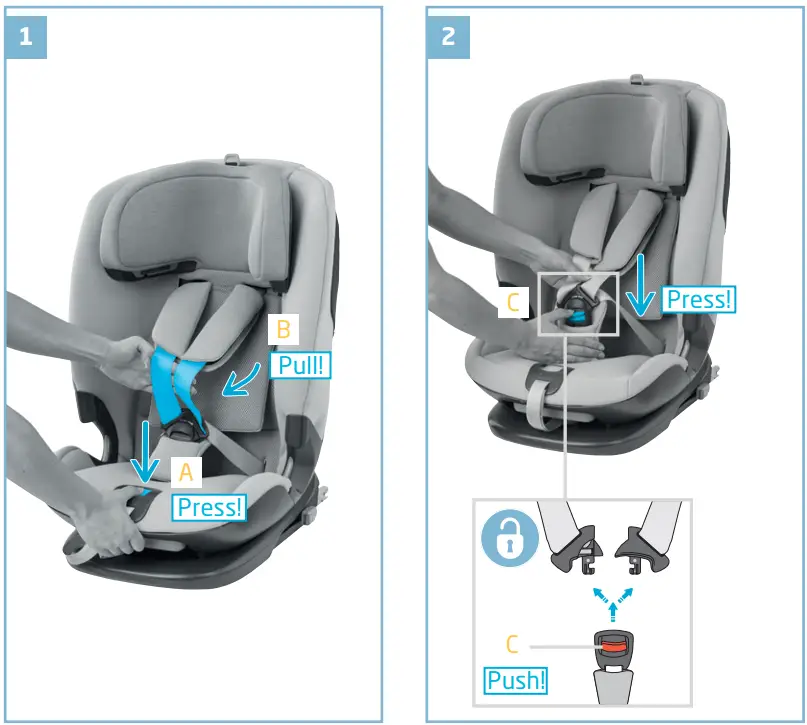

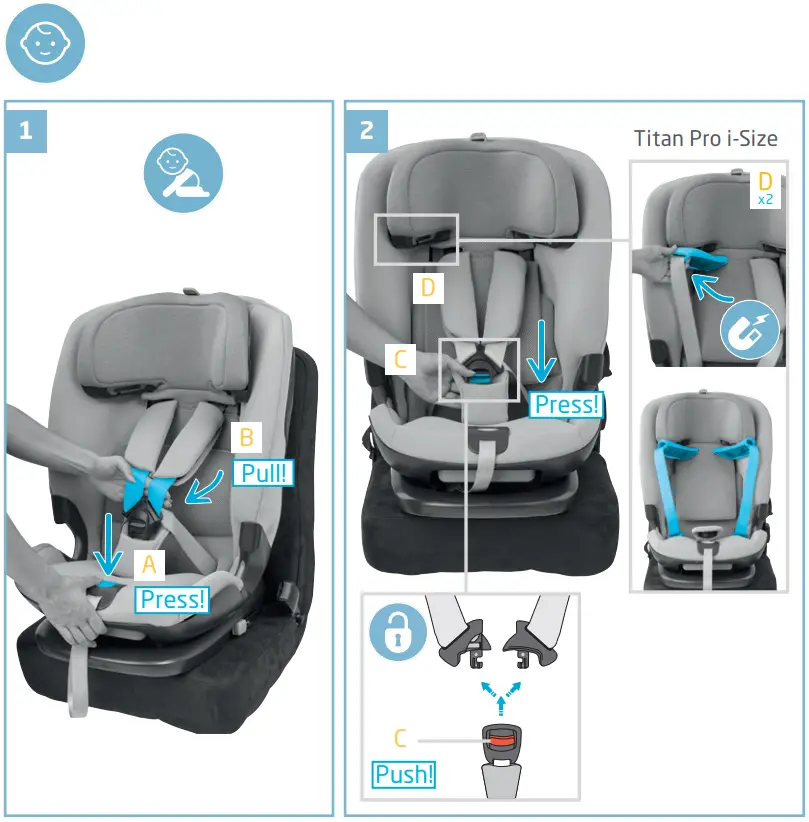

Child installation

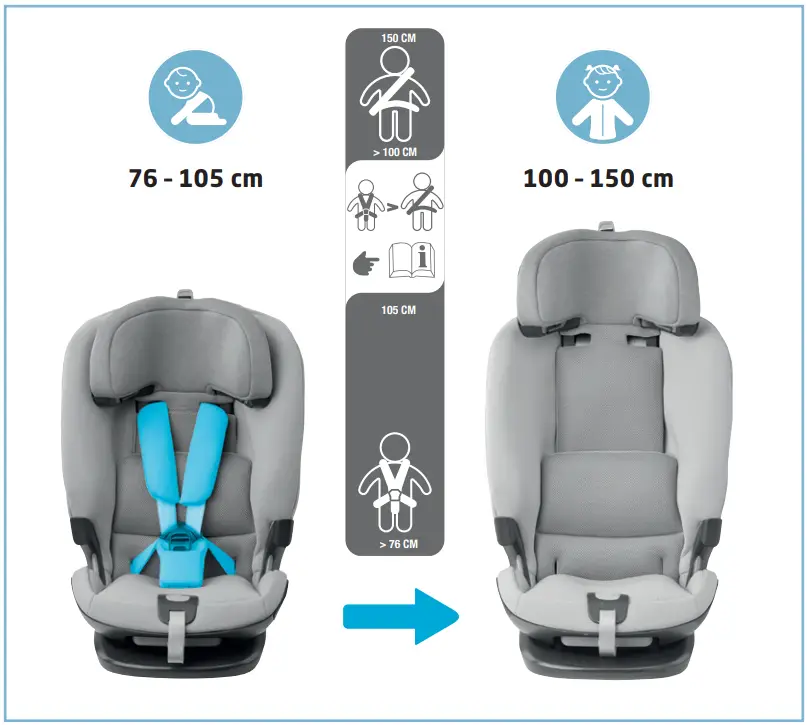

76-105cm → 100-150cm100 – 150 cm

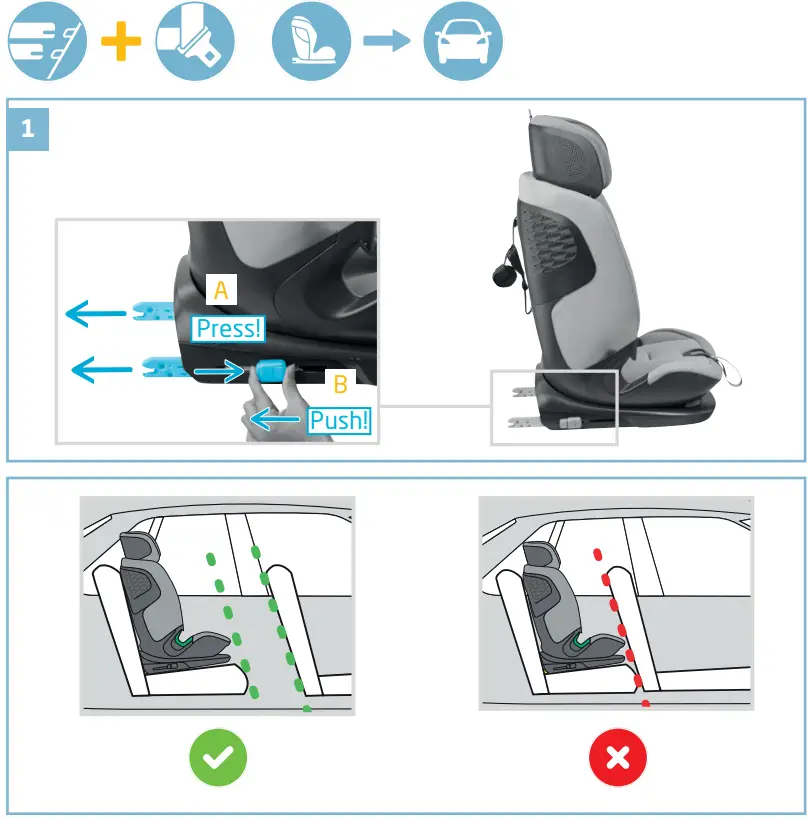

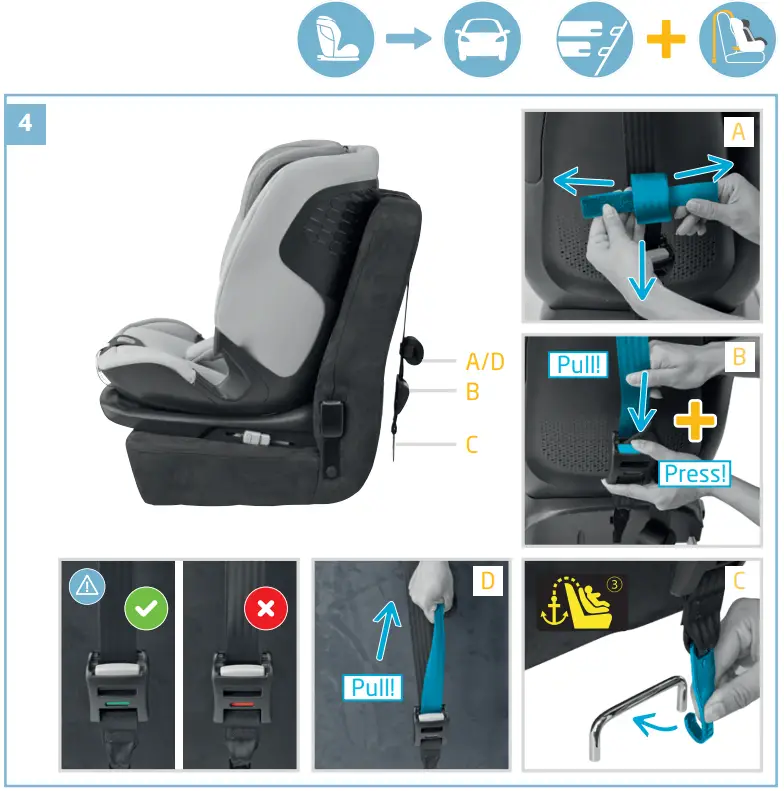

ISOFIX + Belted

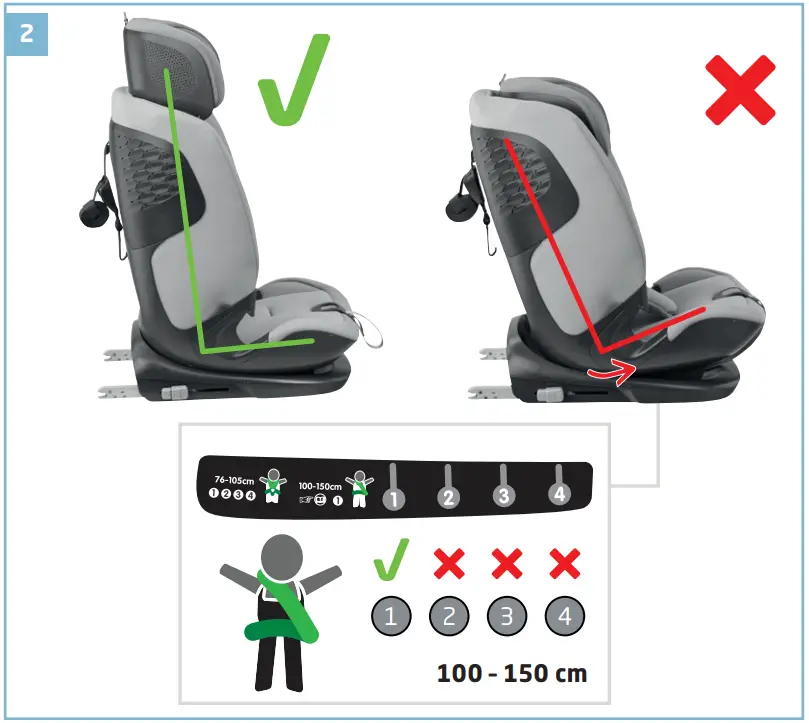

100 – 150 cm

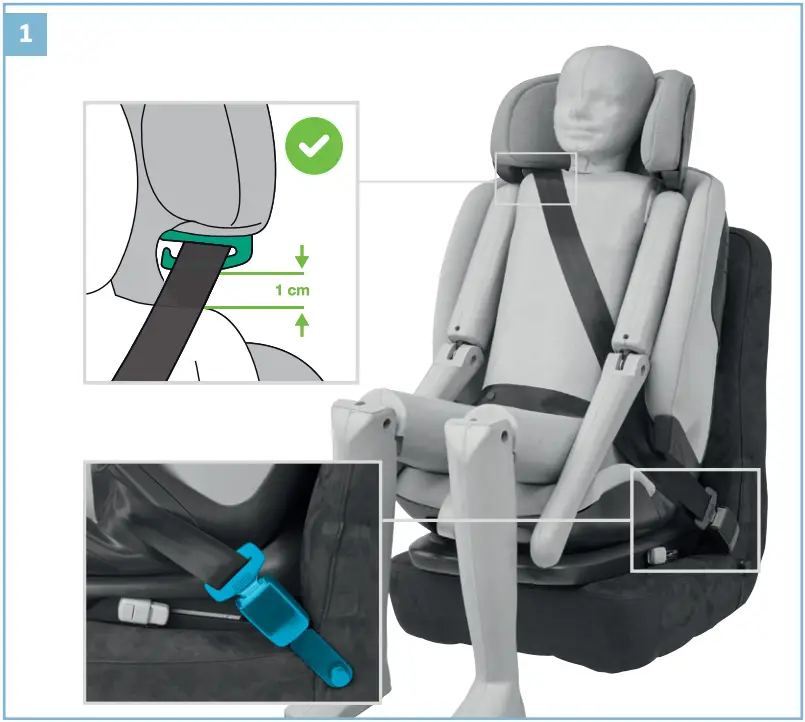

Child installation

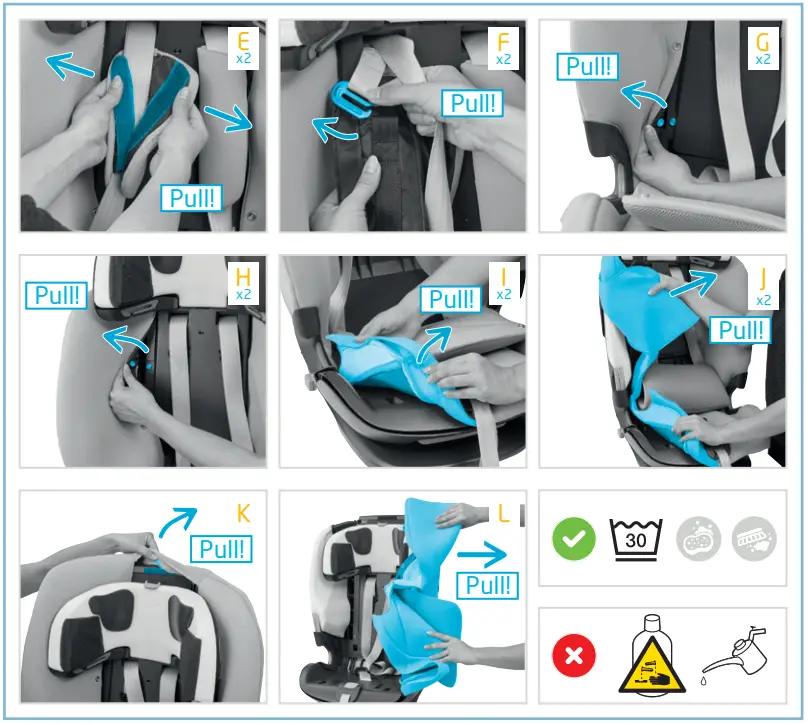

Washing

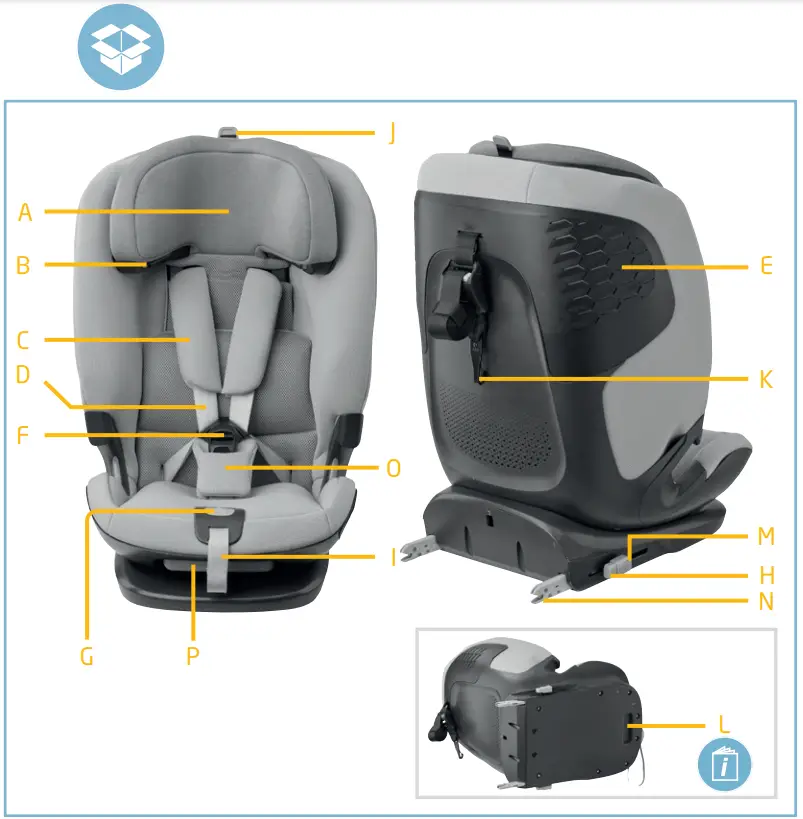

A – Adjustable headrest
B – Shoulder belt slot
C – Shoulder pads
D – 5-point Harness
E – G-CELL
F – Harness buckle
G – Harness adjuster button

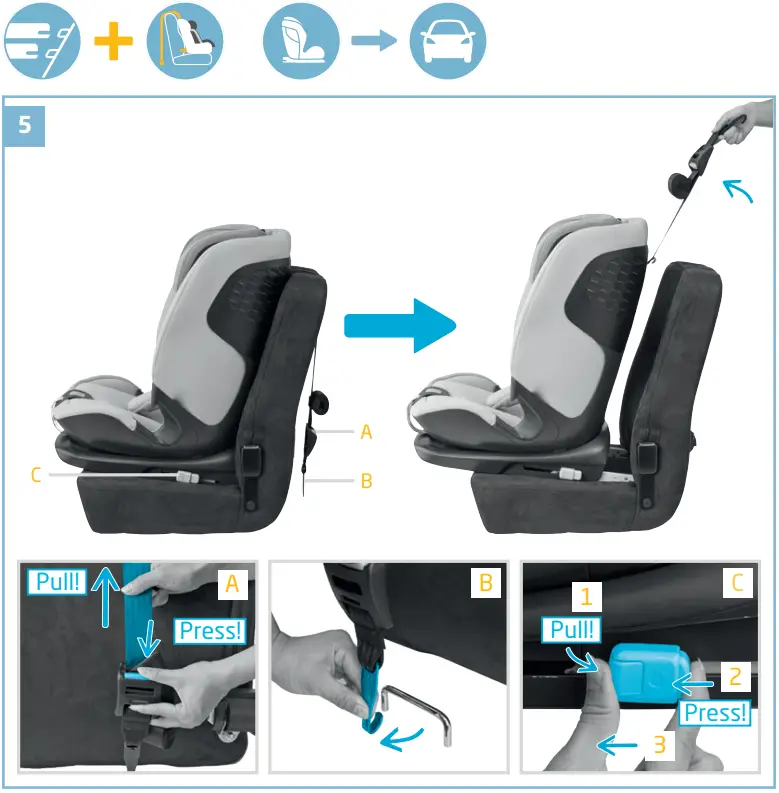

H – ISOFIX release handle
I – Harness adjuster strap
J – Headrest adjustment handle
K – Top Tether
L – Storage compartment for the manua
M – ISOFIX connectors release button
N – ISOFIX connectors
O – Crotch pad

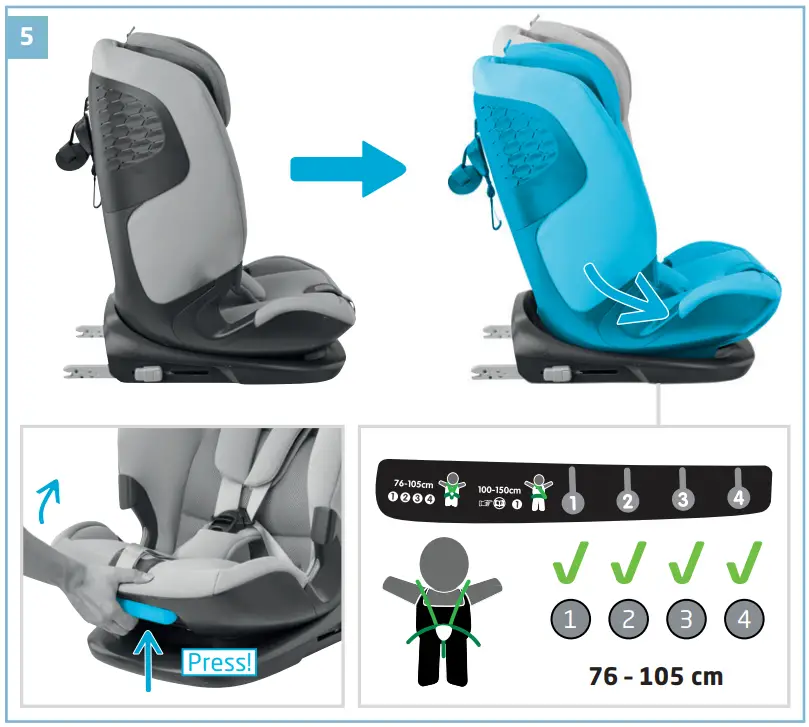

P – Recline handle

SAFETY

The Maxi-Cosi Titan Pro/Plus i-Size is intended for car use only.

• The car seat is developed for an intensive use of approximately 12 years.
• Do not use any load bearing contact points other than those described in the instructions and marked in the child restraint.
• Do not use before the child’s age exceeds 15 months.

Maxi-Cosi Titan Pro/Plus i-Size in the car

• Before buying this product make sure the car seat is compatible with the vehicle it is to be used in.
• After purchasing, install the seat in your vehicle. If you encounter any installation problems, contact your distributor immediately (prior to use).
• Remove the car seat headrest if it stops you from adjusting the headrest of the car seat to the desired height.
• Make sure to replace the headrest of the back seat of your vehicle when you remove the car seat.

WARNING:

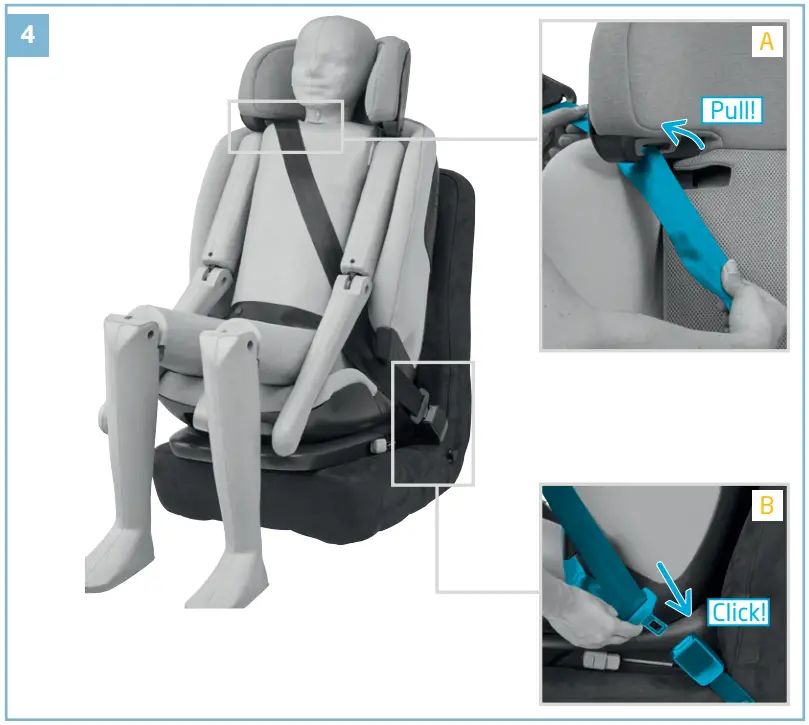

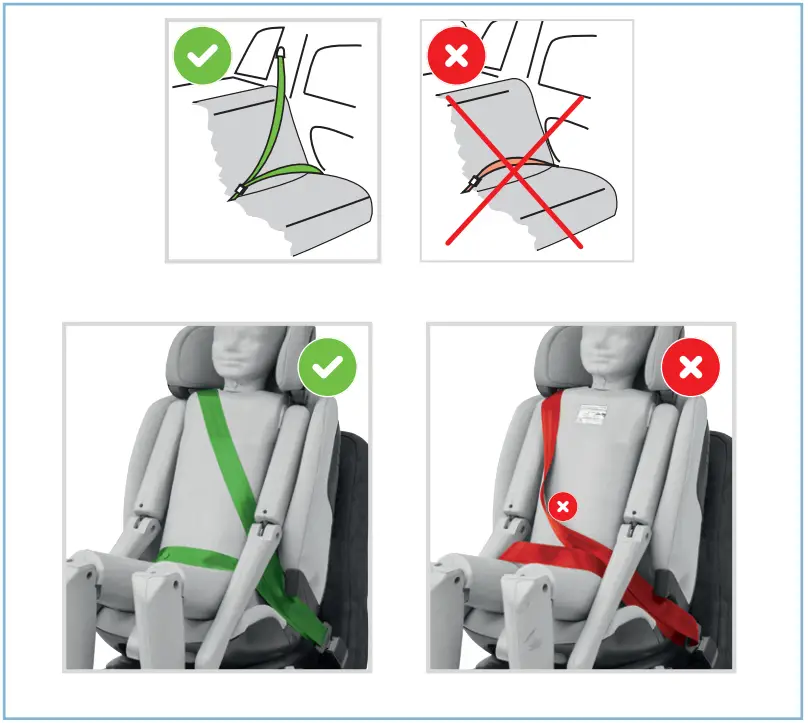

• Check that the child seat is properly installed. It is important for your child’s safety that you fit the belt correctly. The vehicle belt must be fixed along the appropriated markings/positioning points on the seat. Please also read the label on the side of the car seat. Never fit the belt in any way other than as shown.
• When the car seat is installed on the front passenger seat, we recommend to switch off the front passenger airbag and place the passenger seat in the rearmost position.
• Use the car seat only on a front-facing seat that is fitted with an automatic or static 3-point belt that has been approved according to the ECE R16 standard or similar. Do NOT use a 2-point belt.

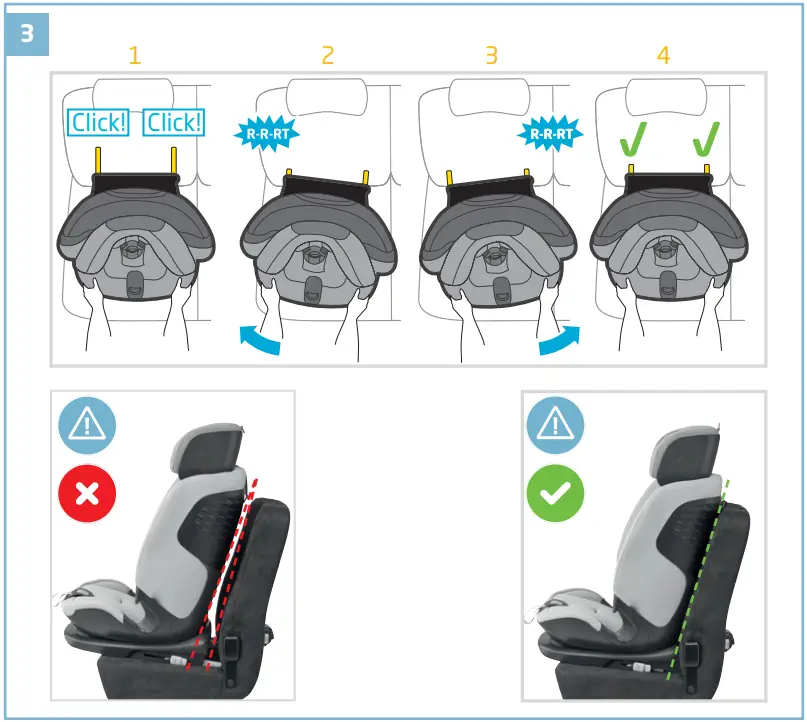

• When installing the car seat, spaces between the base of the car seat and the vehicle seat are possible depending on the position of the anchorage points within the vehicle.

ATTENTION:

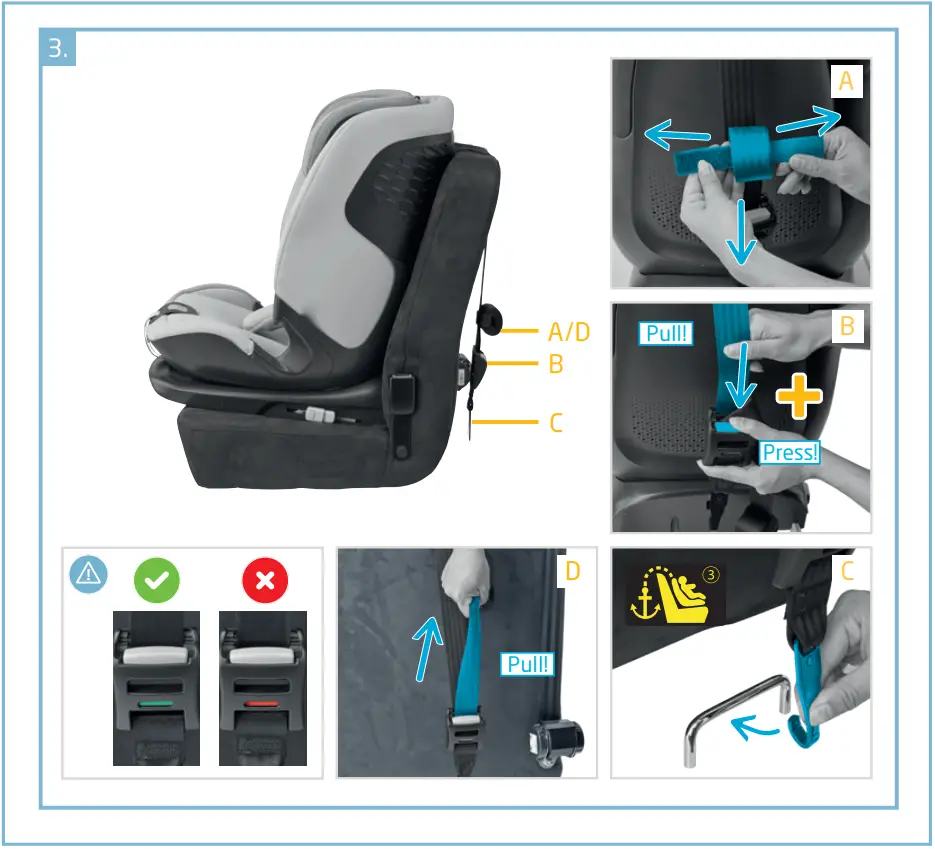

• For usage in ISOFIX use the fitting clips for lower anchorage to the vehicle are not sufficient. It is essential to fix the “TOP TETHER” to the upper anchorage point recommended by the car manufacturer.
• The ISOFIX anchors have been developed to obtain a safe and easy fixation of the child safety systems inside the car. Not all cars are equipped with these anchors although they are standard on more recent models.
• If in any doubt about the correct installation or use of the system, the user is advised to contact the distributor or the manufacturer of the child restraining device system.

Your child in the Maxi-Cosi Titan Pro/Plus i-Size

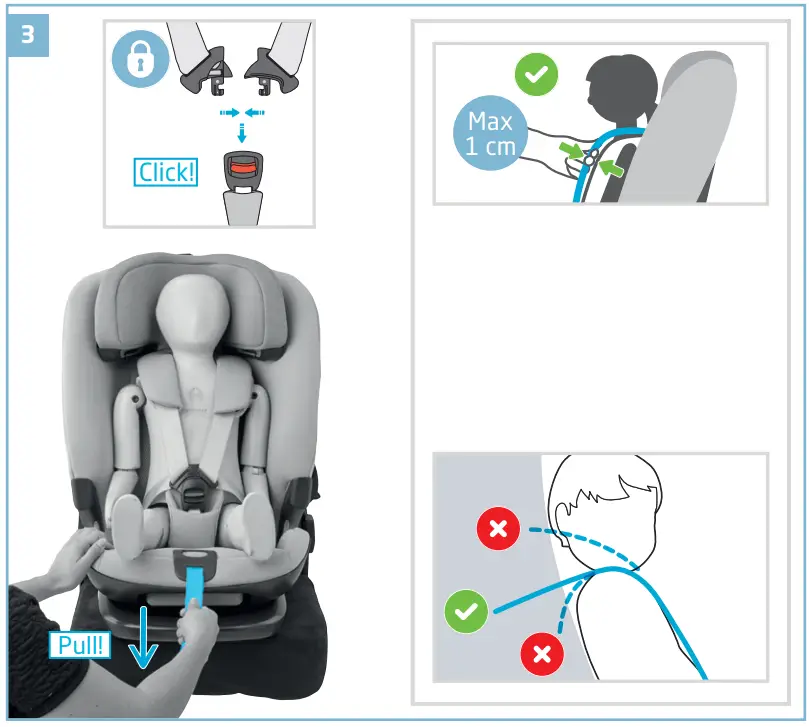

• Make sure you can fit no more than one finger between the harnesses and your child (1cm). If there is more space than 1 cm, tighten the harness belt further.

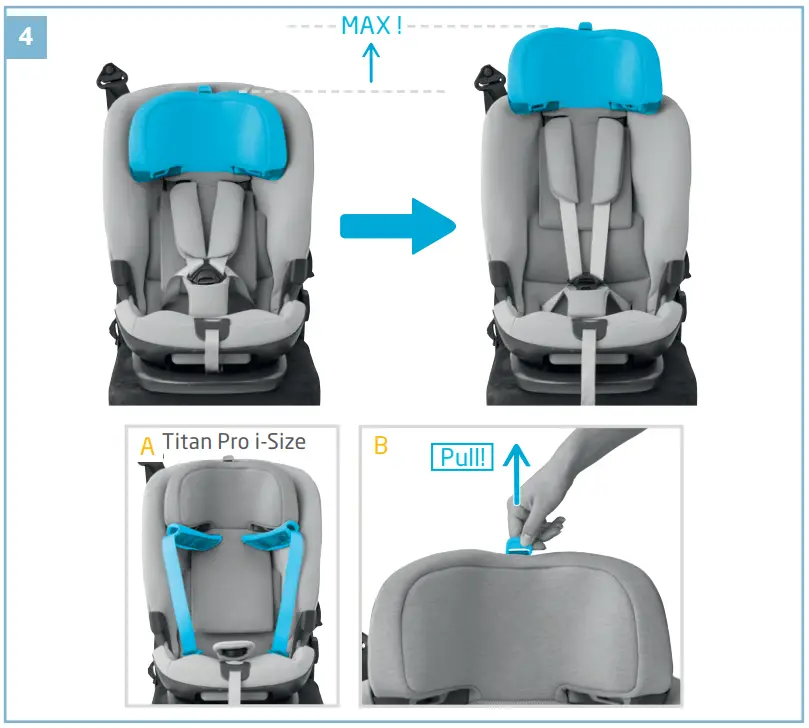

• Make sure the headrest is adjusted to the proper height.

Care Fabric:

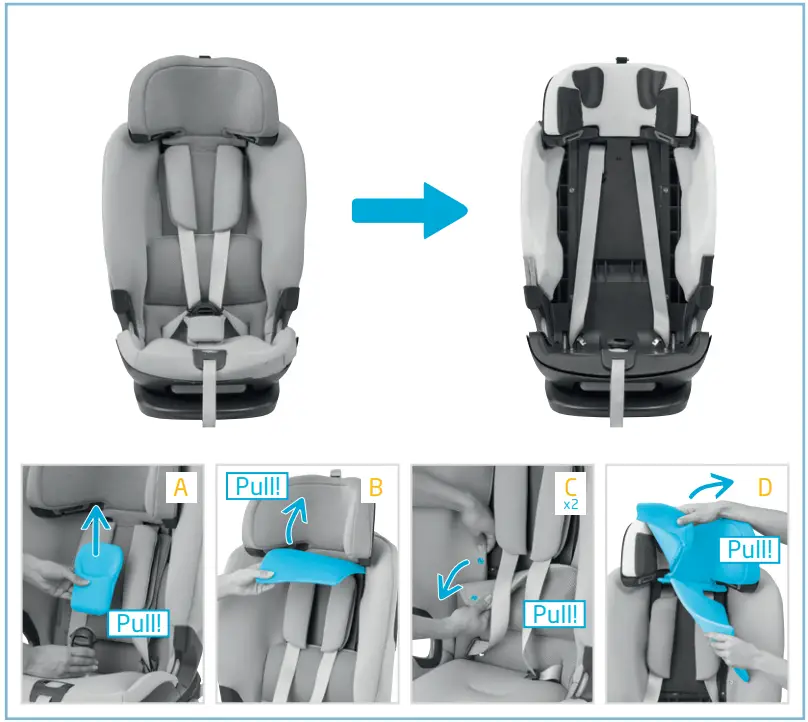

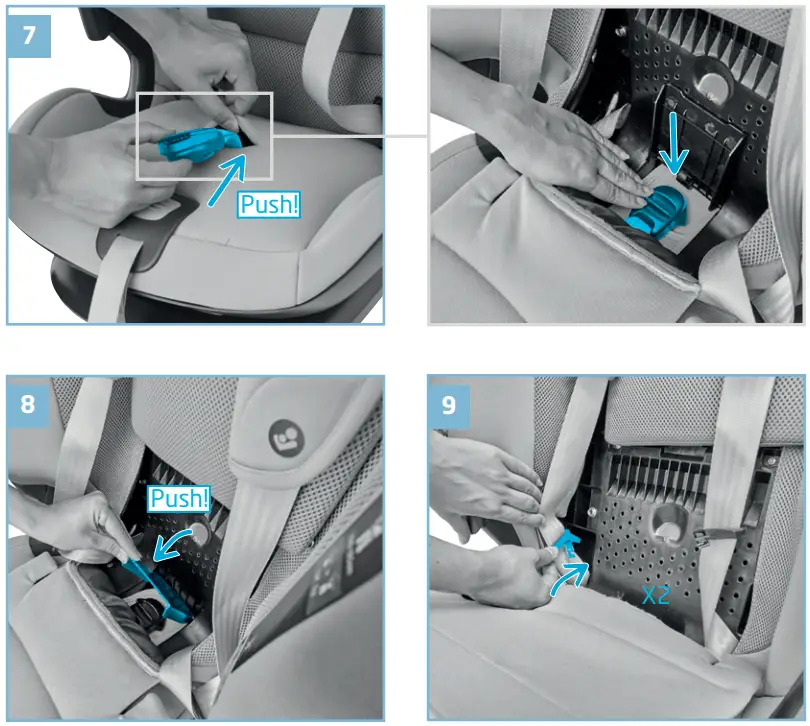

• The cover and crotch pad can be removed for washing. If the cover needs to be replaced at any time, only use official Maxi-Cosi cover because it constitutes an integral part of the restraint performance.

Non-contractual photos
014861805
maxi-cosi.com
