Skyline Automate Motors Installation Guide (+ PDF)

The motorized Skyline roller shade system offers a range of six Automate motors with three tube diameters to suit a variety of applications. Featuring ARC (Automate Radio Communication), the 45mm Skyline Automate system provides an intelligent, Li-ion battery or a DC powered solution.

AESTHETIC FEATURES

Slim motor head for minimal light gap
Motor cap to color match with brackets

ASSEMBLY / PRODUCTION FEATURES

Greater flexibility with installation with spring loaded pin end
Crown, drive and adaptors available to suit variety of tube sizes

FUNCTIONAL BENEFITS

Leveling control
Simple limit setting and adjustment
Favorite position
3 operational speed settings
2-way RF communication
ARC protocol for simple programming

COLOR RANGE

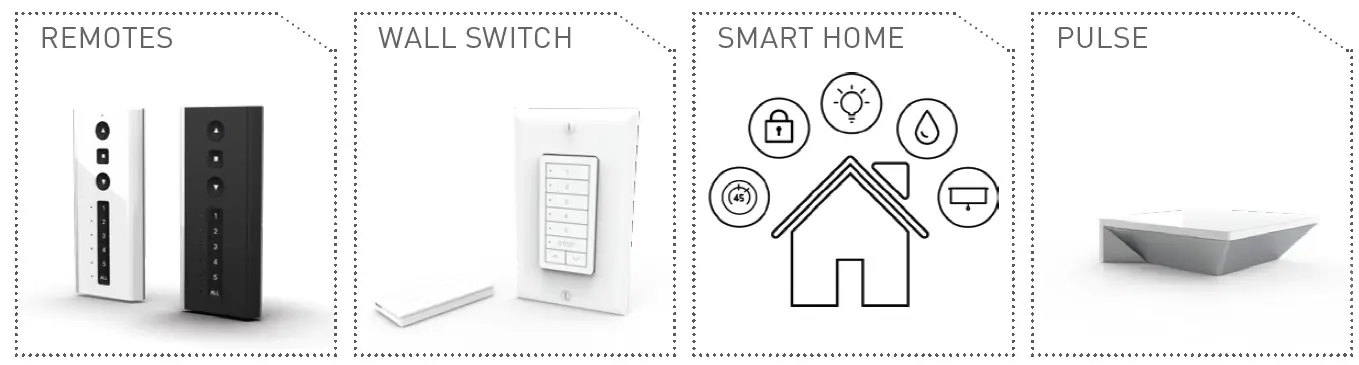

CONTROL OPTIONS

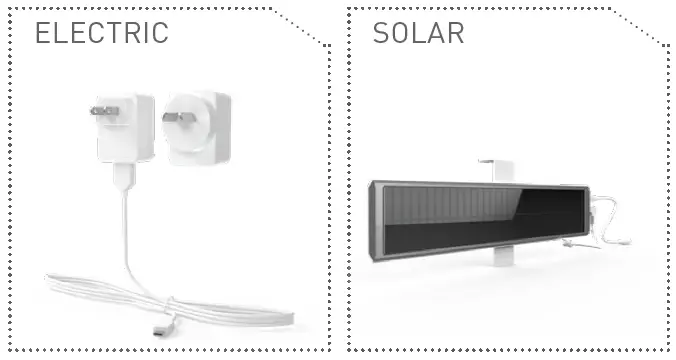

CHARGERS

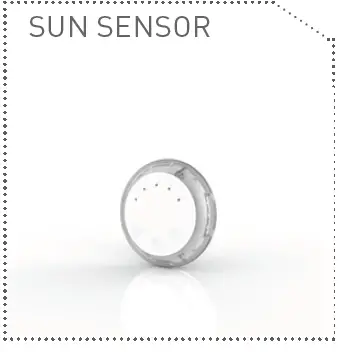

OPTIONS

SPECIFICATIONS

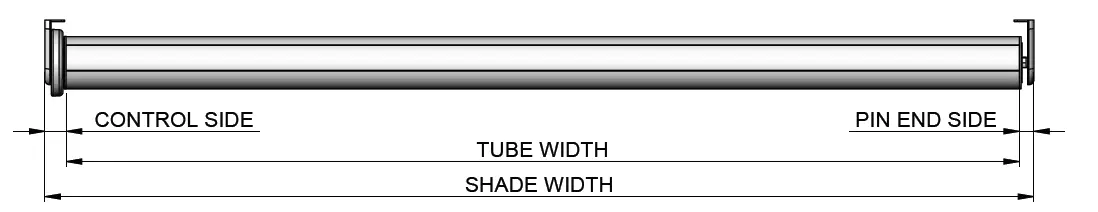

DEDUCTION CHART

MINIMUM SHADE WIDTH
MT01-1345-06900x	3.07′ [0.935m]
MTDCBRFQ45-3	3.07′ [0.935m]
MTDCBRF45-10	3.07′ [0.935m]
MTDCRFQ45-3	2.71′ [0.825m]
MTDCRF45-10	2.71′ [0.825m]
MTACQRF45-10	2.87′ [0.875m]
MTACRF45-15	2.54′ [0.775m]

MOTOR	TUBE	BRACKETS	LIGHT GAP
MOTOR	TUBE	BRACKETS	CONTROL END	PIN END	OVERALL
MTDCBRFQ45-3 MTDCBRFQ45-10 MTDCRFQ45-3 MTDCRFQ45-10 MTACQRF45-10 MTACRF45-15	2″	With Covers	0.91″ [23mm]	0.59″ [15mm]	1.50″ [38mm]
	2″	No Covers	0.83″ [21mm]	0.55″ [14mm]	1.38″ [35mm]
	21/2	With Covers	0.87″ [22mm]	0.67″ [17mm]	1.56″ [39mm]
	21/2	No Covers	0.79″ [20mm]	0.63″ [16mm]	1.42″ [36mm]
	31/4	With Covers	0.87″ [22mm]	0.67″ [17mm]	1.56″ [39mm]
	31/4	No Covers	0.79″ [20mm]	0.63″ [16mm]	1.42″ [36mm]

MAX ROLL

BRACKET	MAX ROLL SIZE
SLNBxx650xx	2-3/8″ [59mm]
SLxx660xx	3″ [76mm]
SLxx680xx	4″ [102mm]
SLxx690xx	5″ [128mm]

TUBE SPECS.

MAX LIFTING CAPACITY				MAX DROP*
MOTORS	2″ TUBE	2-1/2″ TUBE	3-1/4″ TUBE	MAX DROP*
3.0Nm	26.4lbs [12.0kg]	20.7lbs [9.4kg]	16.1lbs [7.3kg]	13.1′ [4m]
10.0Nm	88.1lbs [40.0kg]	69.1lbs [31.4kg]	53.5lbs [24.3kg]
15.0Nm	132.2lbs [60.0kg]	103.7lbs [47.0kg]	36.4lbs [80.3kg]
