CEILING FANS
Instruction Manual

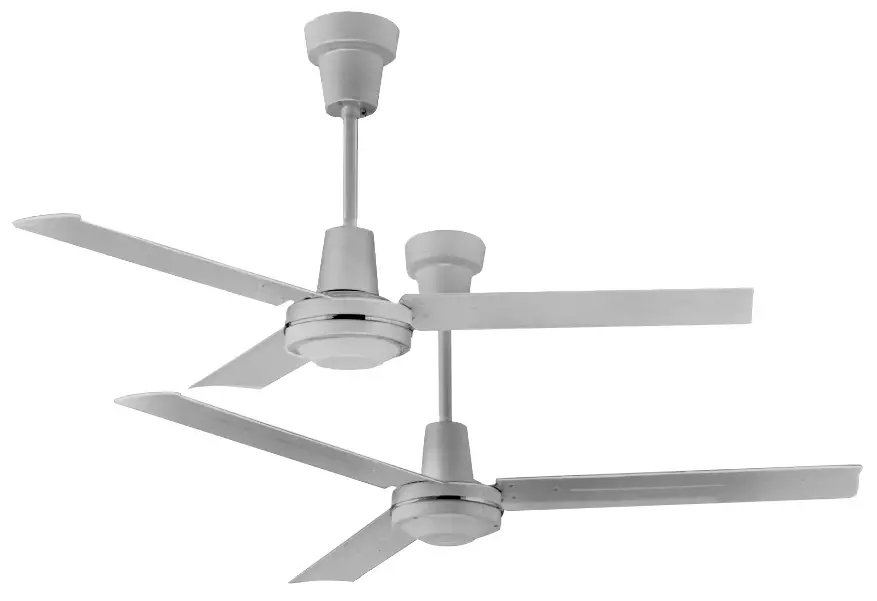

QMark DOE Commercial Ceiling Fans
IHD SERIES
INDUSTRIAL HIGH-EFFICIENCY CEILING FAN
Industrial fans circulate large volumes of air from above the floor to keep occupants, workstations and machinery at comfortable temperatures during both hot and cold weather seasons. These fans use powerful, heavy-duty motors for ceiling installation up to 45 feet (56″ fans)–75 feet (60″ fans) in height. These fans are ideal for large spaces where sound is not a primary concern.
Summer Usage
- Keep occupants and machinery cooler in hot summer months by running the fan in a clockwise direction to create a mild windchill effect
- Open up floor space by removing the need for multiple fans and cords at user-level and creating a safer work environment for occupants
Models & Specifications:
| CATALOG NO. | UPC | FAN TYPE | VOLTAGE | FAN SIZE (WIDTH) | CFM/ WATTS | CFM | WATTS | EYEC** | |
| FAN & CONTROLLER KIT | FAN ONLY | ||||||||
| 56001HPK | 56001HP | 00685360174464 | High Performance Industrial | 120 | 56” | 102 | 6561 | 64.3 | $18.00 |
| 56001BRNHPK | 56001HP-BRN | 00685360174488 | High Performance Industrial | 120 | 56” | 102 | 6561 | 64.3 | $18.00 |
| 56007HPK | 56007HP | 00685360174563 | High Performance Industrial | 277 | 56” | 85.3 | 8959 | 105 | $20.00 |
| 60001HPK | 60001HP | 00685360174501 | High Performance Industrial | 120 | 60” | 86.5 | 6090 | 70.4 | $18.00 |
| 60001BRNHPK | 60001HP-BRN | 00685360174525 | High Performance Industrial | 120 | 60” | 86.5 | 6090 | 70.4 | $18.00 |
All products with the suffix “K” include a speed control. 12003 is used for 120V applications and 27708 is used for 277V applications.
All above products include 24” downrod.
* Effective amount of air volume moved past a plane 20ft. from fan. All specifications subject to change and improvement.
Optional Accessories
| CATALOG NO | DESCRIPTION | SHIP WT. |
| 9B24BW | Downrod 24″—White | 2 lbs |
| 9B24BB | Downrod 24″—Brown | 2 lbs |
| 9D08 | Downrod 8″—White | 1 lbs |
Secondary Control Options for New Construction Applications:***
| CATALOG NO | DESCRIPTION | VOLTAGE | AMPE RAGE | SHIP WT. | QTY OF FANS CONTROLLED PER MODEL # | |||
| 36201C | 48201C | 56001LCC | 56201CLS | |||||
| 12003 | Speed Control | 120 | 3 | 2 lbs | 3 | 2 | 2 | 2 |
| 12006 | Speed Control | 120 | 6 | 2 lbs | 7 | 5 | 5 | 5 |
| 12008 | Speed Control | 120 | 8 | 2 lbs | 10 | 6 | 6 | 6 |
| 12012 | Speed Control | 120 | 12 | 2 lbs | 12 | 10 | 10 | 10 |
| 12001N | Speed Control, Noiseless | 120 | 1 | 2 lbs | — | 1 | — | — |
| 12005N | Speed Control, Noiseless | 120 | 5 | 2 lbs | — | 2 | 2 | — |

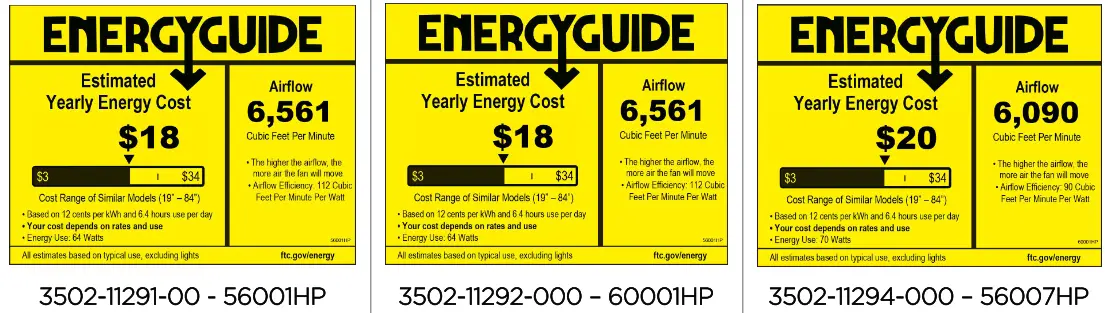

Before purchasing this appliance, read important information about it’s estimated annual energy consumption, yearly operating cost, or energy efficiency rating that is available from your retailer at MarleyMEP.com/Resource-Library
IDEAL SPACES
| • Classrooms | • Lobbies |
| • Offices | • Gyms |
| • Retail | • Factories |
| • Restaurants | • Warehouses |
COLORS
• White
• Brown
(Select Models)
DIMENSIONS
- 36–60″ wide
TECHNICAL SPECIFICATIONS
- Motor:
– 18 pole, 120V and 277V
– Permanently sealed double ball bearing - Blades: White, epoxy finished steel
– Included Accessories for installation: Locking J-Hook 3/8″ x 7″ x 1/4″
QMarkMEP.com
For Technical Services, Call 800-642-4328
QFLY_IHD-FAN_1221
