Dragonfish Standard
Quick Start Guide
Item list
 | Aircraft body x 1 |  | 9.7-inch ground station x 1 |
 | Base station x 1 |  | Battery x4 (the actual quantity is subject to the purchased set) |
 | Charger + AC line x 1 |  | Propeller blades x 2 |
 | Base station antenna x 2 |  | Base station feeder x 2 |
 | Base station tray x 1 |  | Base station tripod x 1 |
 | Base station charger x 1 |  | USB Type-C cable x 1 |
 | Repair tool kit x 1 |  | Gimbal Camera x 1 (The gimbal model is subject to the actual set purchased) |
 | Wing set x 1 |  | Ground station lanyard x 1 |
 | Tail x 1 |  | Propeller holder x 1 |
 | Airspeed indicator cover x 1 |  | TF card x 1 |
 | Documentation x 1set (includes Drgonfish Standard, Base station, Charger, Battery quick guide, Disclaimer) | ||

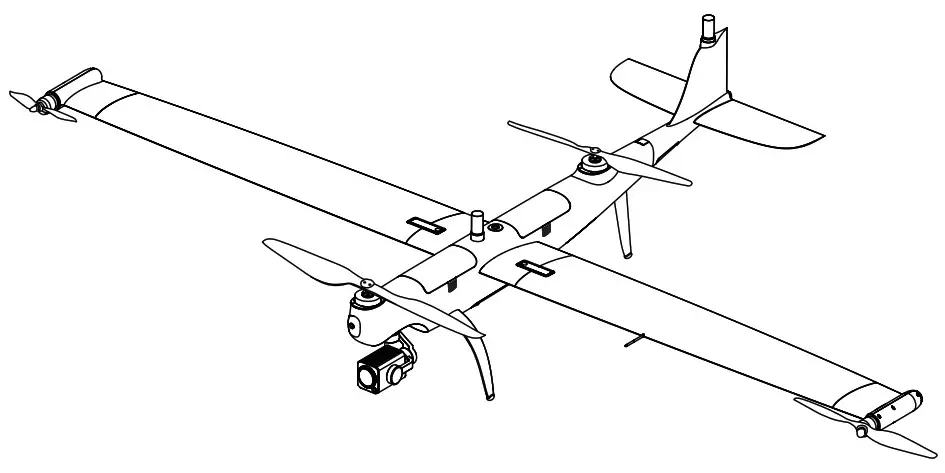

Getting to know the aircraft
The Drgonfish Standard aircraft integrates Autel Robotics’ intelligent and superior flight control technology, gimbal technology, and imaging technology. The aircraft boasts a new tilt rotor design that combines the efficiency of fixed-wing aircraft endurance with the takeoff convenience of traditional multi-rotor drones. A 5 second self-check system ensures the aircraft is safe and ready for operation. It can be assembled quickly, enabling set up and take-off in a matter of minutes. The Drgonfish Standard offers a maximum flight time of up to 120 minutes and a video transmission range of 30 km. It comes built in with a range of intelligent features such as automatic take-off and landing, intelligent tracking, terrain follow, and more.
Tough and reliable, the Drgonfish Standard has an IP43 protection rating to enable operations across a variety of terrains. It also features a modular payload mount with an integrated quick release function that enables operators to mount a dual sensor, a triple sensor, or a multispectral payload effortlessly to suit mission needs. Alongside the aircraft is a GNSS Base Station and the integrated, Dual RTK modules that equip the aircraft with additional redundancy. This allows the Drgonfish Standard to fly confidently in complex environments while capturing precise, centimeter-accurate data.

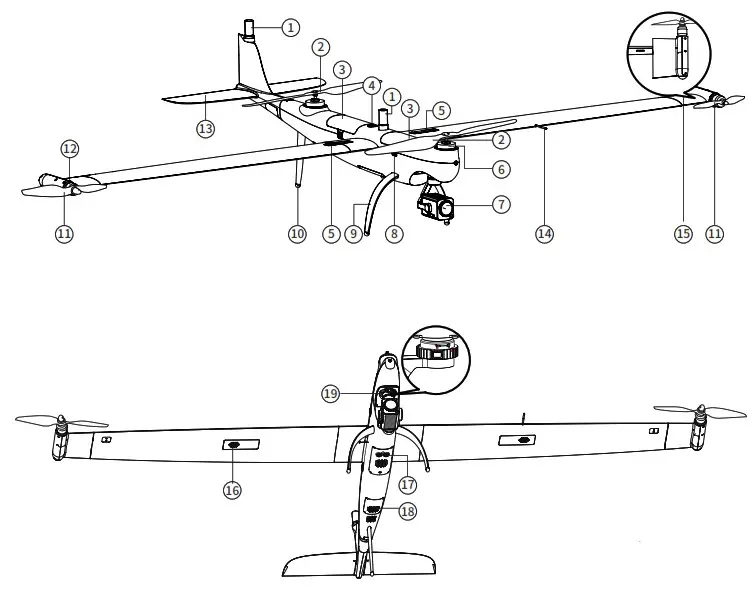

| 1. RTK antenna 2. Propeller blades 3. Smart battery 4. Power button/indicator 5. Wing lock 6. Body motor 7. Gimbal camera | 8. Battery release button 9. Front landing gear 10. Rear landing gear 11. Wingtip propellers 12. Wing motor 13. Horizontal stabilizer | 14. Airspeed sensor 15. Tilting wingtip 16. GPS module 17. Ultrasonic Positioning Sensors 18. Dust Net 19. PTZ installation interface |

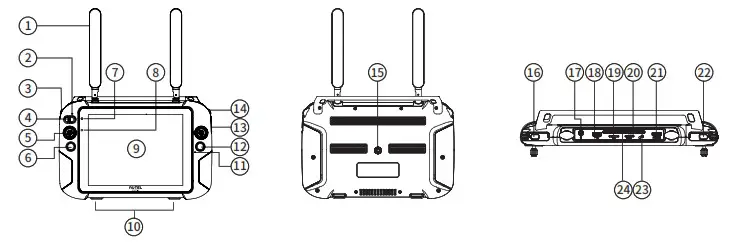

Getting to know the portable ground station
The Drgonfish Standard is equipped with a 9.7-inch TFT-LCD touch screen (2048*1536). It offers a brightness of 1000 cd/m2, making it almost twice as bright as typical mobile devices. The screen can display images clearly even in direct sunlight, and a built-in 256G memory makes it convenient for storing all your critical data. With an image transmission range of 30km[1] and a battery life of 4.5 hours, the ground station guarantees optimal performance and reliability.
| 1. Antenna 2. Mode switch indicator 3. Gimbal pitch control wheel 4. Manual/Auto mode switch key 5. Joystick 6. Home button 7. Power status indicator 8. Light perception sensor | 9. Touch screen 10. Hooks (for lanyard support) 11. Microphone 12. Photo/Video button 13. Zoom button 14. Gimbal level control dial 15. Tripod mounting interface 16. Power button | 17. Charging port 18. USB port 19. SD card slot 20. SIM card slot 21. HDMI port 22. Custom buttons 23. Headphone jack 24. Air outlet |

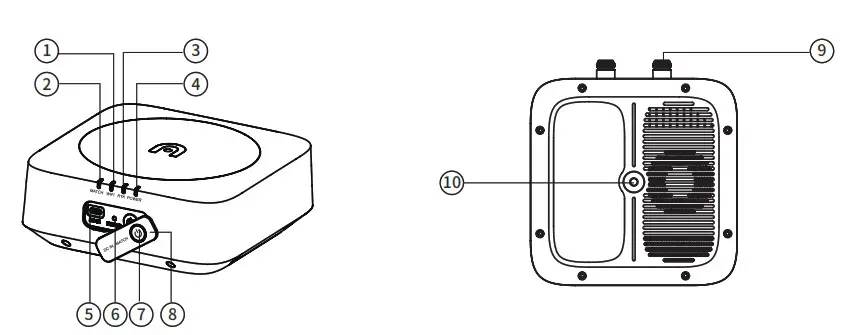

Getting to know the base station
The Dragonfish base station is a high-precision satellite signal receiver that supports GPS, Beidou, Galileo, and GLONASS navigation systems. It can be used across a variety of applications and environments. The Dragonfish base station and the integrated Dual RTK modules equip the aircraft with additional redundancy and positioning accuracy to provide precise, centimeter accurate data. It also enables the Drgonfish Standard to withstand signal interference in strong magnetic environments such as power lines and near buildings.
[1] The experimental data were measured in a non-interference environment
| 1. WiFi indicator 2. Linking indicator 3. RTK indicator 4. Power indicator 5. Charging port | 6. Frequency button 7. Power button 8. Port cover 9. Antenna interface 10. Tripod interface |
Using the Drgonfish Standard
Charging

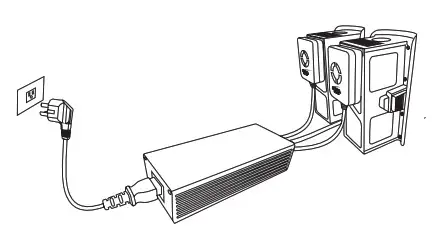

- Charging the Intelligent flight battery

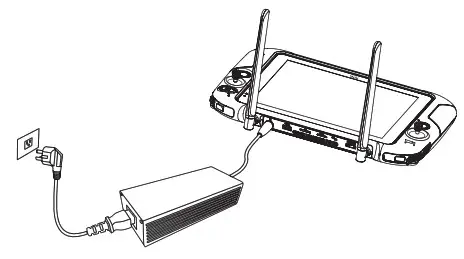

- Charging the ground station

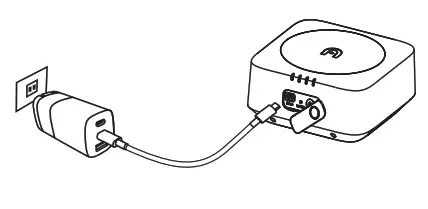

- Charging the base station
Setting up the base station
- Unfold the tripod, install the base station tray, and lock the tray.
- Install the base station body to the tray and tighten the lock on the tray nut. Ensure that the base station is level and stable.

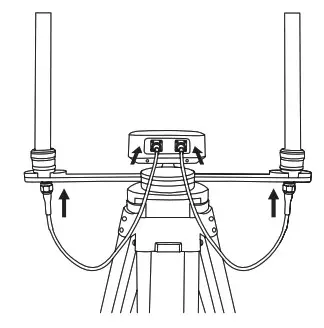

- Install the antenna on the tripod and connect the antenna feeder to the base station antenna port.
Assembling the aircraft

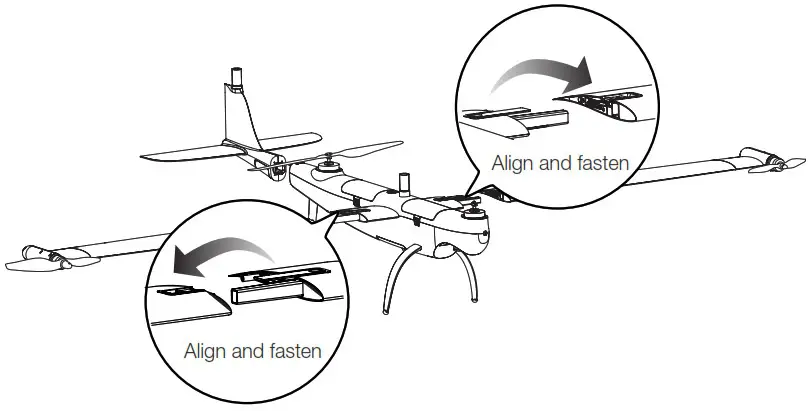

- Install the left and right wings

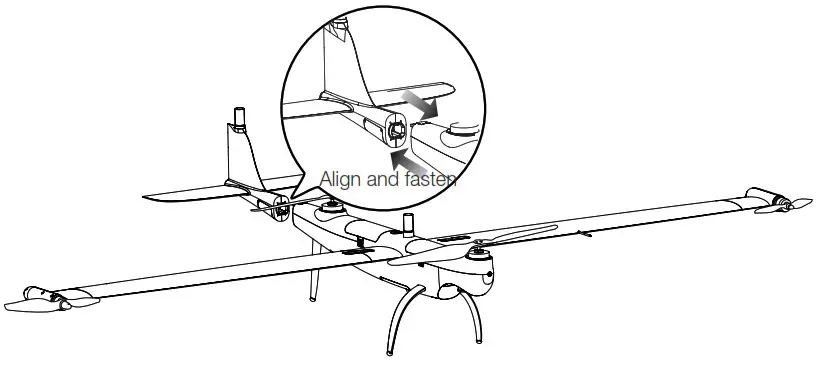

- Install the tail

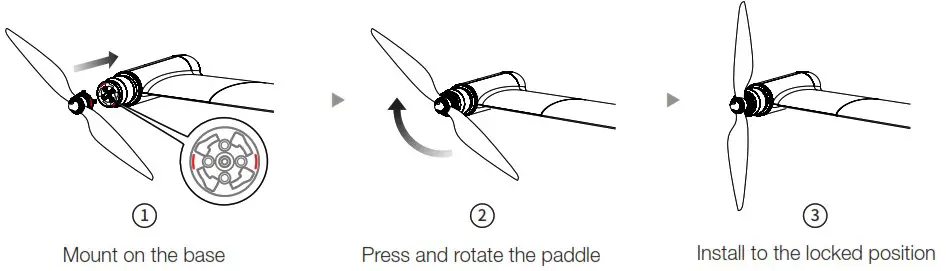

- Install the wingtip propeller
Before installing or removing the propeller, power off the aircraft (as shown in the illustration).
Locking direction: Press and Rotate in the indicated direction to lock the propeller.
Unlocking direction: Press and Rotate the propeller in the opposite direction to unlock it.
The marked propeller is to be mounted on the marked motorUnmarked propeller is to be mounted on the unmarked motor - Mounting

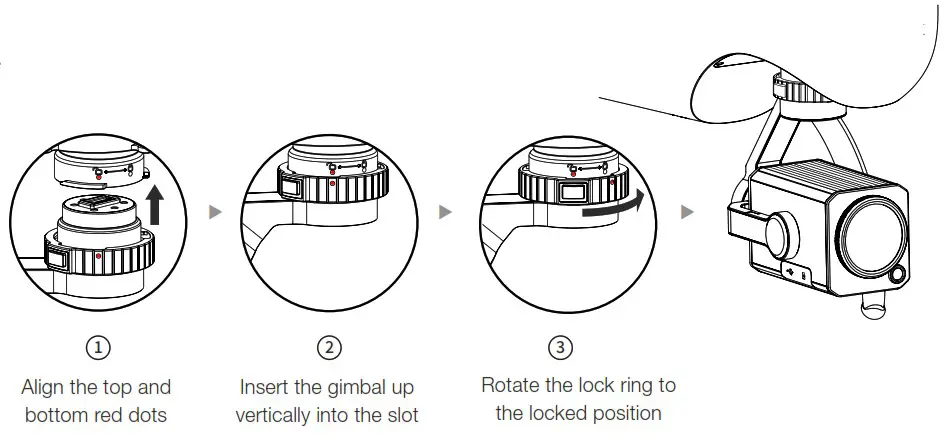

Align the red dots on the mount with the red dots of the gimbal interface of the fuselage, and rotate the lock ring to the locked position.
- Unlock mount

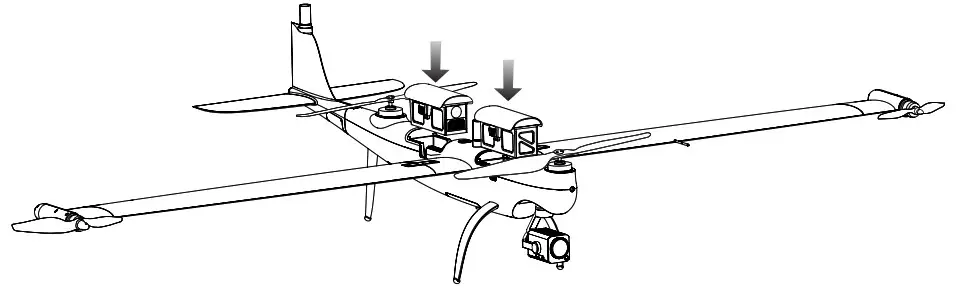

- Installing the Intelligent Flight Battery
When installing or removing the aircraft battery, be sure to power off the aircraft.
Locking direction: Press and Rotate in the indicated direction to lock the propeller.
Unlocking direction: Press and Rotate the propeller in the opposite direction to unlock it.
The marked propeller is to be mounted on the marked motor
• Align the battery to the battery interface on the fuselage and install it.
Powering on / Activating the aircraft

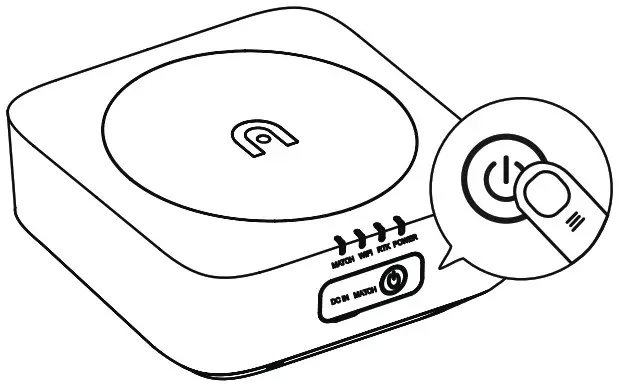

- Powering on the base station
Short press the power button for 1 second to turn on the base station.

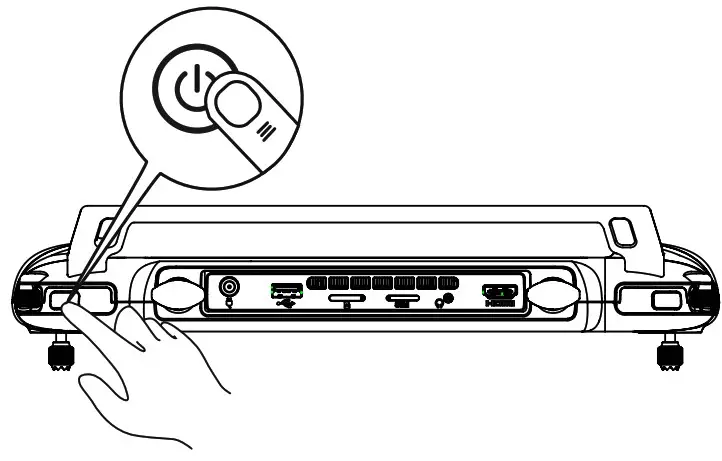

- Powering on the ground station
Short press the power button for 1 second to turn on the ground station.
- Powering on the aircraft
Press the power button on the aircraft body for 3 seconds to power on the aircraft.

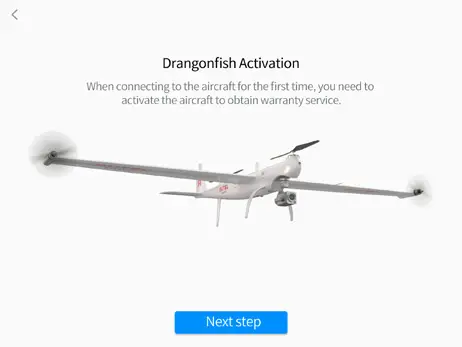

- Activating the aircraft
Open Autel Voyager and click the activation button to activate the aircraft.
Flight
Enter the Autel Voyager safe flight interface. Before taking off, please place the aircraft on a flat surface with the tail facing towards you.
Manual takeoff

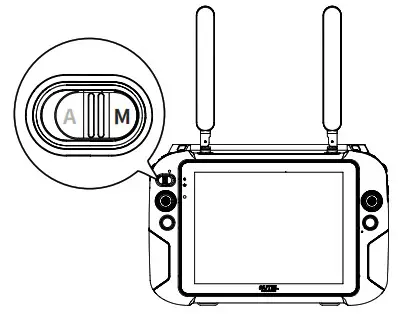

- Switch the ground station gear to M gear.
- Check the aircraft system status.

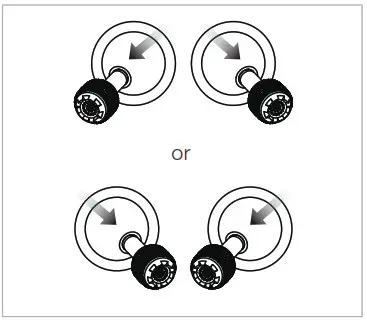

- Simultaneously move the joystick in inwards or outwards and hold for 2 seconds to arm the motors.

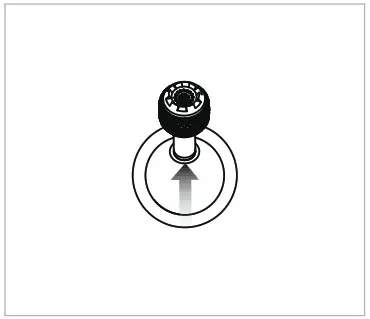

- Push up the left stick (mode 2) to take off.
*Non-professionals are not recommended to use manual mode
*Non-professionals are not recommended to use manual modeEnter the Autel Voyager safe flight interface. Before taking off, please place the aircraft on a flat surface with the tail facing towards you.
Automatic takeoff

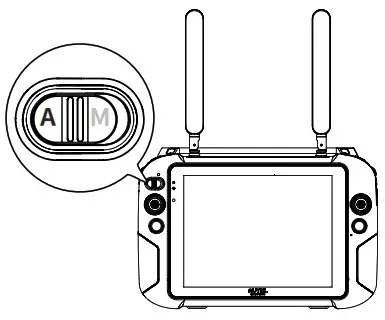

- Switch the ground station gear to A gear

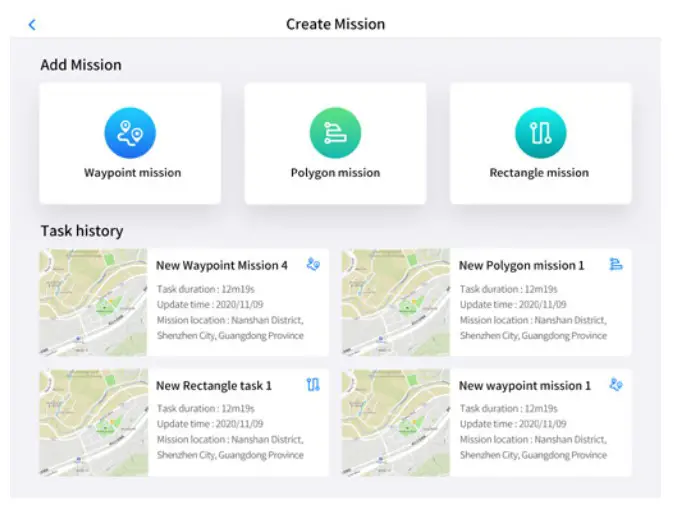

- Click the Create Mission button to plan the mission

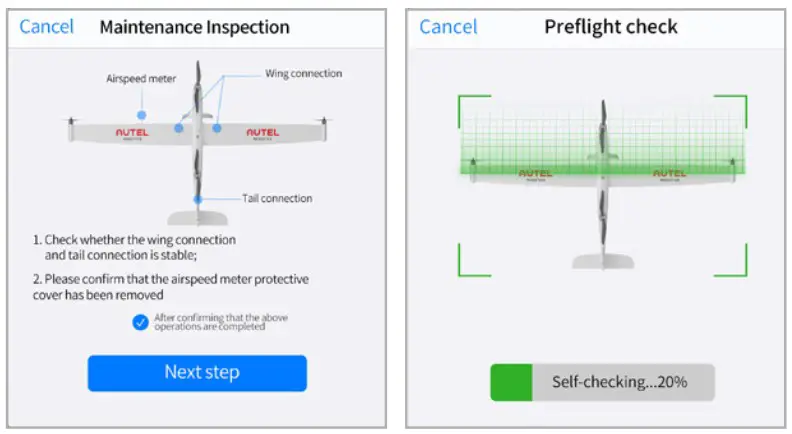

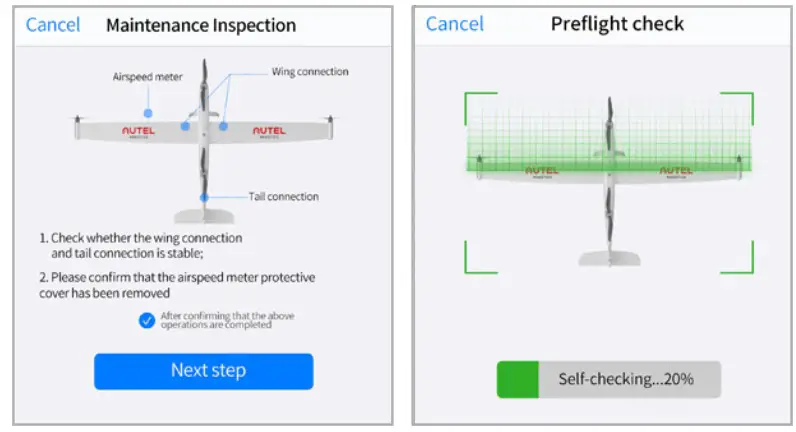

- Aircraft system status check

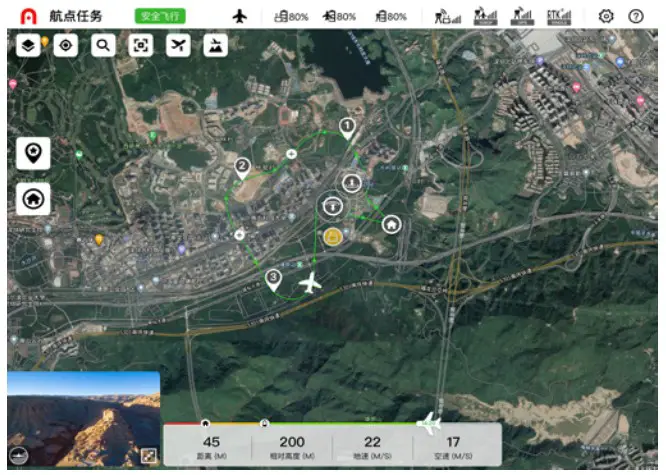

- Flight interface display
Specifications
Aircraft
| Size | 2.3*1.29*0.46 m |
| Weight (including two batteries, without gimbal） | 7 kg |
| Single battery weight | 1.3 kg |
| Maximum load | 1.5 kg |
| Maximum take-off weight | 8.5 kg |
| Working frequency | 902-928 MHz,2.4000-2.4835 GHz,5.725-5.755GHz |
| EIRP (Equivalent radiated power) | 900 MHz FCC: <30 dBm 2.4 GHz FCC: <30 dBm SRRC/CE/MIC: <20 dBm; 5.8 GHz SRRC/FCC: <22 dBm CE: < 14 dBm hovering accuracy (P-GPS) |
| Hovering accuracy (P-GPS) | Vertical: ±0.1 m (when the visual positioning is working normally) ±0.5 m (when GPS is working normally) ±0.1 m (when RTK positioning is working normally) Horizontal: ±0.3 m (when visual positioning is working normally) ±1.5 m (when GPS is working normally) ±0.1 m (when RTK positioning is working normally) |
| RTK positioning accuracy | During RTK FIX Mode: 1 cm + 1 ppm (horizontal) 1.5 cm + 1 ppm (vertical) |
| Maximum rotational angular velocity | Pitch axis: 180° /s Yaw axis: 60° /s |
| Maximum pitch angle | 20° |
| Maximum roll angle | 35° |
| Maximum ascent speed | Vertical flight mode: 4 m/s Fixed-wing flight mode: 5 m/s |
| Maximum descent speed (vertical) | Vertical flight mode: 3 m/s Fixed-wing flight mode: 5 m/s |
| Maximum horizontal flight speed | 30 m/s |
| Maximum service altitude | 6000 m |
| Maximum wind resistance | During fixed-wing flight: 15 m/s (level 7 wind) Vertical take-off and landing: 12 m/s (level 6 wind) |
| Maximum flight time | 120 min |
| Supported Payloads | DG-Z2, DG-T3, DG-T3H, DG-L20T, DG-M1 |
| Supported Gimbal Configurations | Fast Disassembly |
| Ingress Protection Rating | IP43 |
| GNSS | GPS+GLONASS+BeiDou+Galileo |
| Working temperature | -20° C to 50° C |
9.7-inch ground control station
| Image transmission parameters: | Maximum transmitting distance (unobstructed, free of interference) | 902-928 MHz; 2.4-2.4835 GHz FCC:10 km CE / MIC:5 km SRRC:5 km |
| Digital transmission | Working frequency | 5.725 – 5.755 GHz |
| Wi-Fi parameters: | Protocol | Wi-Fi Direct, Wi-Fi Display, 802.11a/g/n/ac Supports 2 x 2 MIMO Wi-Fi |
| Working efficiency | 2.400 – 2.4835 GHz 5.150 – 5.250 GHz 5.650 – 5.755 GHz 5.725 – 5.850 GHz | |
| Other parameters: | Battery | Name: Lithium polymer Battery Capacity: 8200mAh Voltage: 11.4 V Battery type: Li-Po Energy: 93 Wh Charging time: 120 minutes |
| Battery life | Approximately 3 hours (maximum brightness) Approximately 4.5 hours (50% brightness) | |
| Storage | ROM 256GB + expandable (support TF card) | |
| Video output interface | HDMI interface | |
| USB-A interface supply voltage/current | 5V / 500 mA | |
| Working temperature | -20°C to 40°C | |
| Storage temperature | -20°C to 60°C (within one month) -20°C to 45°C (within three months) -20°C to 30°C (within one year) | |
| Charging environment temperature | O°C to 45°C | |
| Satellite positioning module | GPS+GLONASS+Galileo | |
| Size | 319x233x74 mm (antenna folded) 319x398x74 mm (antenna expanded) | |
| Weight | 1987 g |
Base station
| GNSS receiver | Satellite receiving frequency | Simultaneously receive: GPS: L1, L2, L5 BeiDou: B1, B2, B3 GLONASS: F1, F2 Galileo: E1, E5A, E5B |
| Positioning accuracy | Single Point Horizontal: 1.5 m (RMS) Vertical: 3.0 m (RMS) RTK Horizontal: 1 cm+1 ppm (RMS) Vertical: 1.5 cm + 1 ppm (RMS) 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station. | |
| Positioning update rate | 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20Hz | |
| Cold start | < 40 s | |
| Hot Start | < 10 s | |
| Recapture Initialization reliability | < 1 s | |
| Initialization reliability | > 99.9% | |
| Differential data transmission format | RTCM 2.X/3.X | |
| Communication | Data link | Image transmission, Wi-Fi |
| Image transmission parameters: | Working efficiency | 2.4000-2.4835 GHz; 902-928 MHz |
| EIRP (Equivalent radiated power) | 902-928 MHz FCC: < 30 dBm 2.400-2.4835 GHz FCC: < 30 dBm SRRC/CE/MIC: < 20 dBm | |
| WIFI parameters: | Working efficiency | 2.400-2.4835 GHz 5.125-5.25 GHz 5.650-5.755 GHz 5.725-5.850 GHz |
| EIRP (Equivalent radiated power) | 2.400-2.4835 GHz FCC: < 26 dBm SRRC/CE/MIC: < 20 dBm 5.125-5.25 GHz FCC/SRRC: < 26 dBm 5.650-5.755 GHz MIC: < 20 dBm 5.725-5.850 GHz SRRC/FCC: < 26 dBm; CE: < 14 dBm SRRC/CE/MIC: < 20 dBm | |
| Communication distance | Base station and aircraft: 30km (FCC) Base station and ground station: 200m (FCC) (Unobstructed and free of interference, when the mobile station is used as a base station and the distance from the mobile station antenna to the bottom of the tripod is 2 m, and when the difference in height between the remote controller and mobile station is less than 10 m, and when the remote controller is 1.2 m from ground level) | |
| Power consumption | 7.5 W | |
| Power supply | 5 to 20V DC | |
| Battery | Type: Lithium polymer battery Capacity: 4950 mAh Energy: 57.1 WH | |
| Runtime | >7.5 h | |
| Physical properties | Dimensions (base station body + extension pole) | 193 mm×177 mm×73 mm |
| Weight | 1275 g | |
| Ingress protection | IP64 | |
| Working temperature | -20°C to 50°C |
DG-Z2
| Zoom camera | Effective Pixels | 3840×2160 8M |
| Zoom | 20x zoom, 12x digital zoom, 240x total magification | |
| Aperture | F2.0 (wide) to 3.8 (tele) | |
| Photo Resolution | 3840×2160 8M | |
| Photo | JPEG | |
| Video Resolution | 3840×2160 8M; 1920×1080 20M | |
| Video | MP4 | |
| Wide-angle camera | Effective Pixels | 4000×3000 12MP |
| Zoom | 1-8x digital Zoom | |
| Photo Resolution | 4000×3000 12MP | |
| Photo | JPEG | |
| Video Resolution | 3840×2160 8M; 1920×1080 20MP | |
| Video | MP4 |
DG-T3
| Zoom camera | Effective Pixels | 3840×2160 8M |
| Zoom | 20x zoom, 12x digital zoom, 240x total magification | |
| Aperture | F2.0 (wide) to 3.8 (tele) | |
| Photo Resolution | 3840×2160 8M | |
| Photo | JPEG | |
| Video Resolution | 3840×2160 8M; 1920×1080 20M | |
| Video | MP4 | |
| Wide-angle camera | Effective Pixels | 4000×3000 12M |
| Zoom | 1-8x digital zoom | |
| Photo Resolution | 4000×3000 12M | |
| Photo | JPEG | |
| Video Resolution | 3840×2160 8M; 1920×1080 20M | |
| Video | MP4 | |
| Thermal Camera | Infrared camera sensor | Uncooled VOx Microbolometer |
| Sensor Resolution | 640*512 | |
| Zoom | 1-8x digital Zoom | |
| Pixel Pitch | 12um | |
| Spectral Band | 8-14um | |
| Lens | 25mm F1.0 | |
| FOV | 17°x14° | |
| Photo Resolution | 640*512 | |
| Photo | JPEG | |
| Video Resolution | 640*512 | |
| Frame Rate | 30HZz | |
| Video | MP4 | |
| Accuracy | +3°C or +3% of reading (whichever is greater) @ambient temperature -20°C ~60°C | |
| Scene Range | High Gain: -20° to +150°C Low Gain: O°to +550°C |
NOTE:
This content may be updated without prior notice. You can check the latest version on the official website of Autel Robotics at www.autelrobotics.com
WWW.AUTELROBOTICS.COM
2021-2022 Autel Robotics Co., Ltd. All Rights Reserved
