Deepcool Ice Blade 200m Cost Effective Thermal Solution For 130w Cpus User Guide

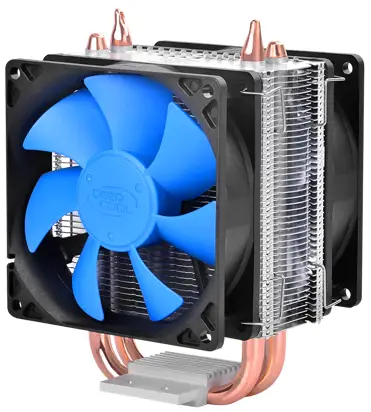

ICE BLADE 200 M Cost Effective Thermal solution for 130W CPUs
User GuidePRODUCT SCHEMATIC DRAWING

For further information, please consult www.deepcoolglobal.com

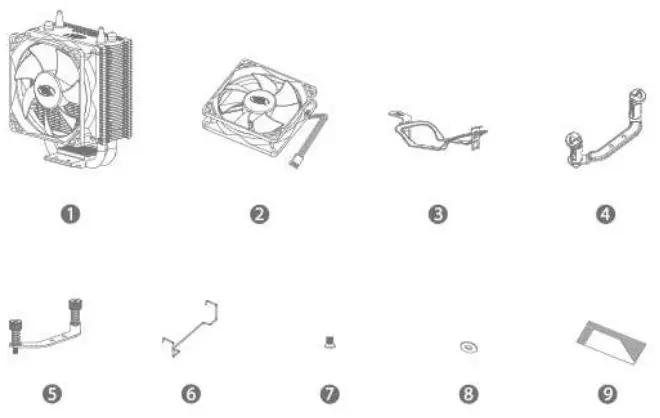

COMPONENTS LIST

1. Heatsink x 1
2. Fan x 1
3. AMD Metal Clip x 1
4. INTEL Push-pin Clip x 2
5. LGA2011 Bracket(Intel) x 2
6. Wire Clip x 2
7. Screw x4
8. De-vibration Buffer x 4
9. Thermal Grease x 1

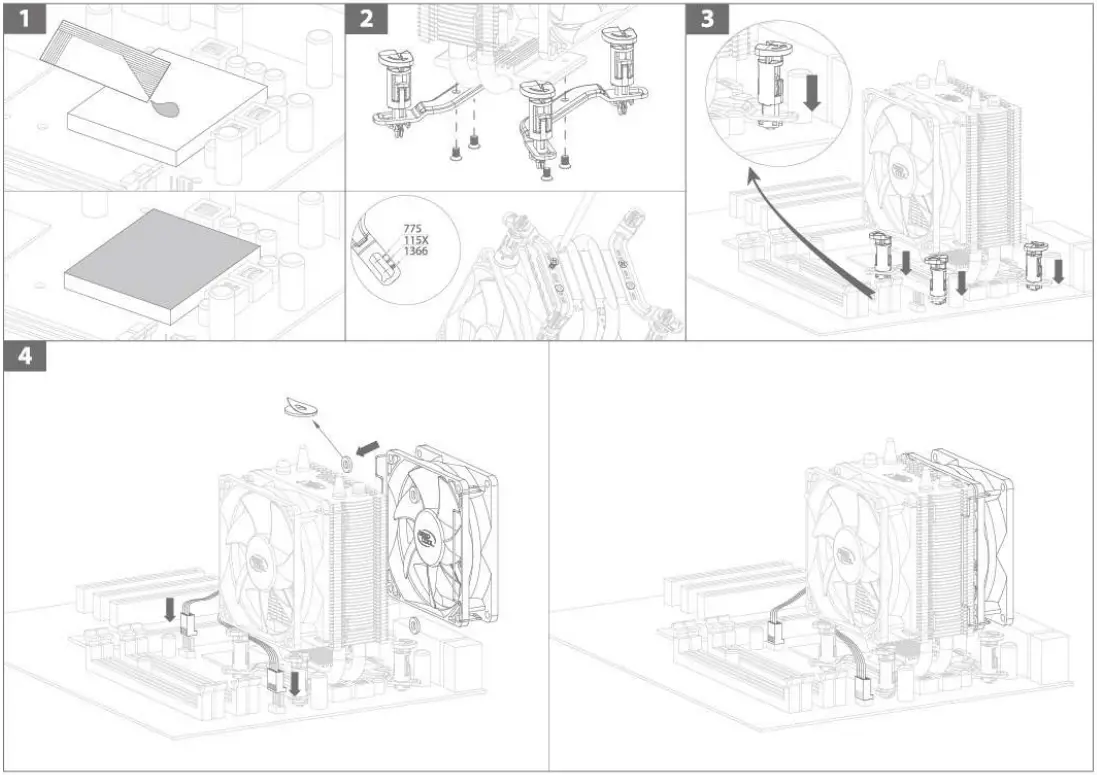

INTEL LGA1366/LGA115X( 1156/ 1155/1150)/ LGA775 INSTALLATION

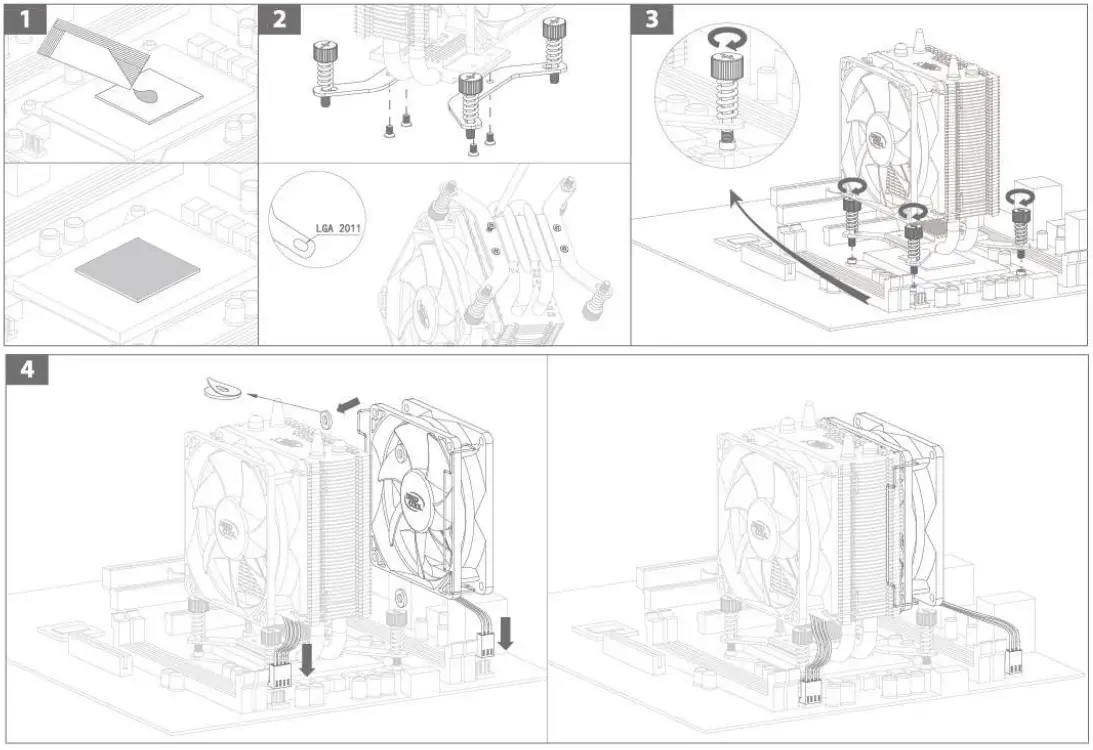

INTEL LGA2011 INSTALLATION

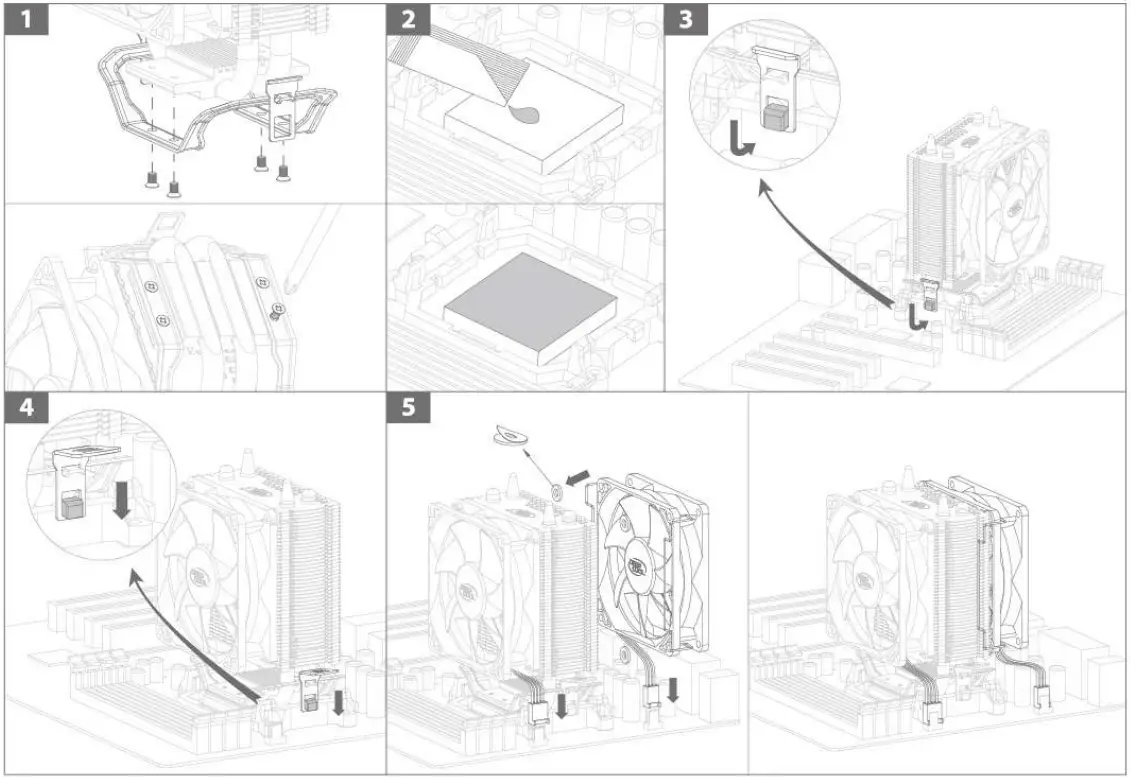

AMD FM2/FM1/AM3+/AM3/AM2+/AM2/940/939/754 INSTALLATION

Beijing Deepcool Industries Co., Ltd
www.deepcoolglobal.com
MADE IN CHINA
