APS401W
12124V Wireless Parking Sensor System

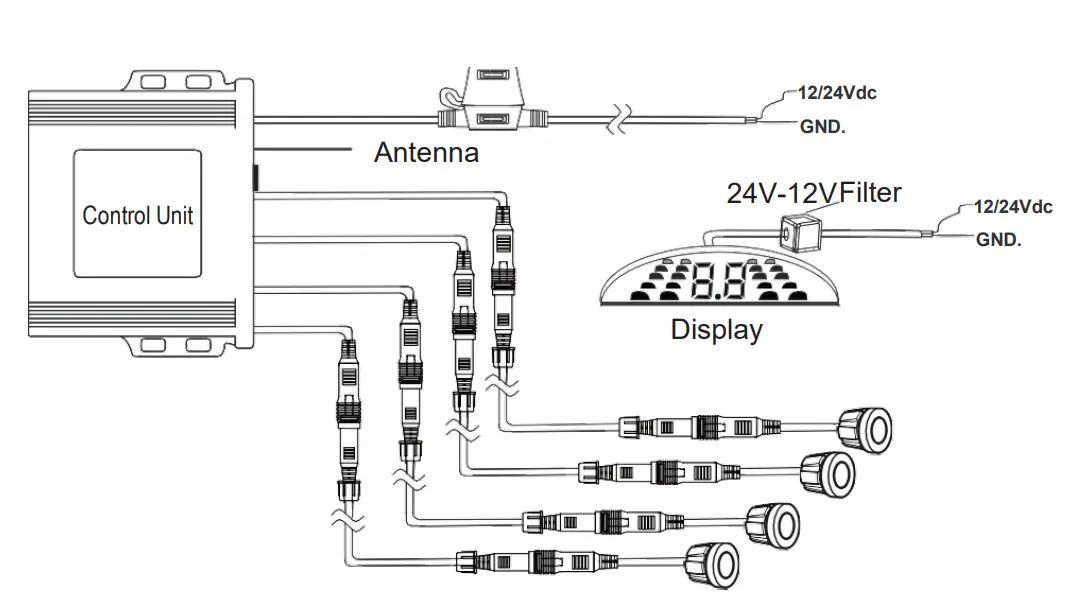

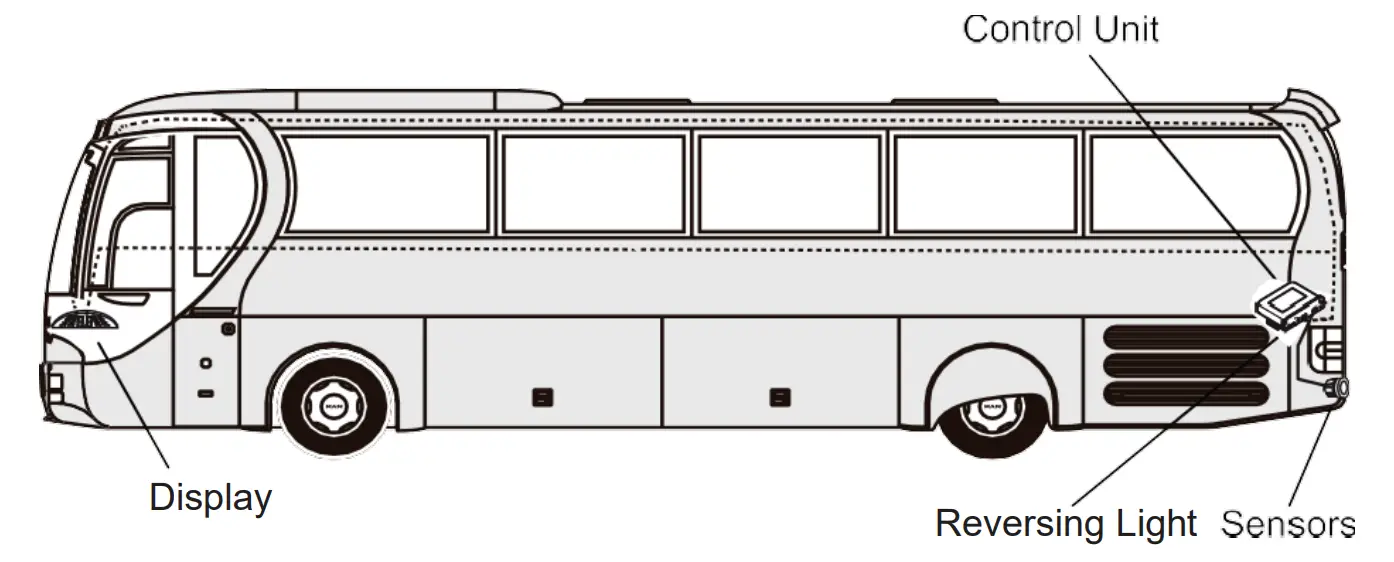

WIRING DIAGRAM
The two outer sensors start detecting at Zone B.
TECHNICAL SPECIFICATION
| DESCRIPTION | MIN | SPEC | MAX |
| Power voltage (V DC) | 10 | 35 | |
| Operating current (mA) | 150 | ||
| Operating temperature °C | -20 | 80 | |
| Operating frequency (kHz) | 39.3 | 40.7 | |
| Horizontal detection angle | 120° | ||
| Vertical detection angle | 60° | ||
| Distance detection accuracy (cm) | 10 | ||
| Detection range (m) | 0.05 | 2.5 | |
| Buzzer sound volume (dB) | 75 | 105 |
DETECTION ZONES
| DISPLAY | SOUND |
| ZONE A: 1.5 – 2.5m | ZONE A: 1.5 – 2.5m |
| Number Only | None |
| ZONE B: 1 – 1.5m | ZONE B: 1.2 – 1.5m |
| Green | 2 beeps per second |
| ZONE C: 0.5 – 1m | ZONE C: 0.9 – 1.2m |
| Amber | 3 beeps per second |
| ZONE D: 0 – 0.5m | ZONE D: 0.6 – 0.9m |
| Red | 4 beeps per second |
| ZONE E: 0.3 – 0.6m | |
| 5 beeps per second | |
| ZONE F: 0 – 0.3m | |
| Constant tone |

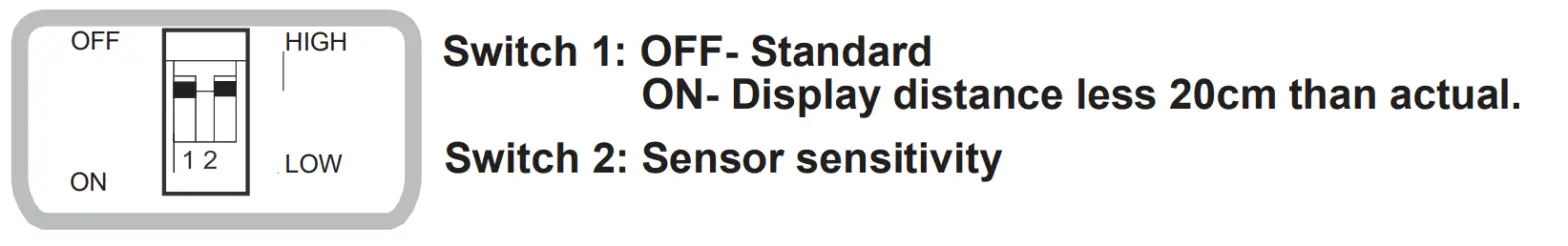

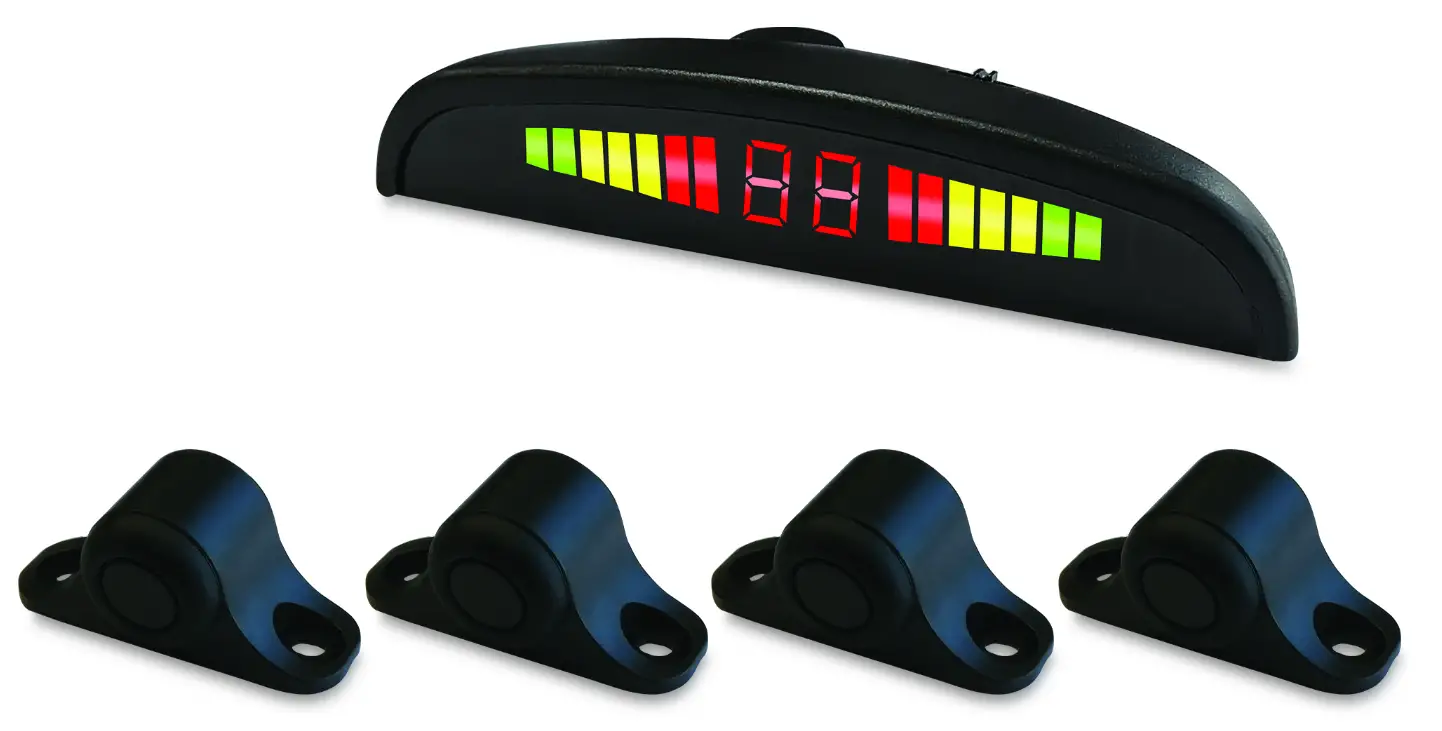

SENSOR

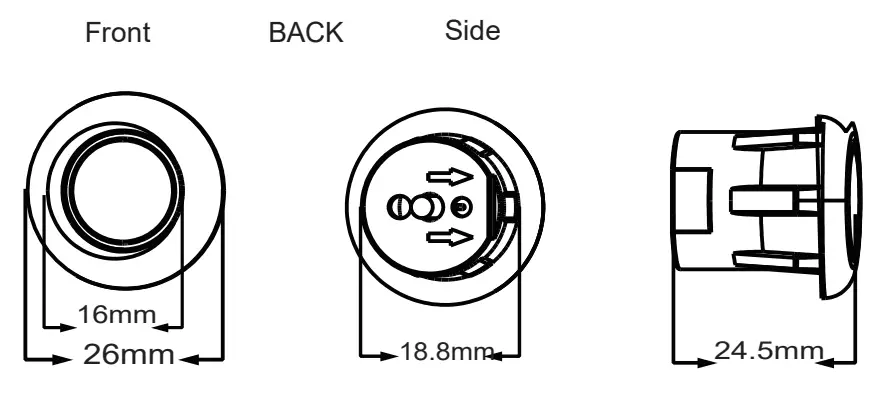

18.8mm Rubber Angled Sensor

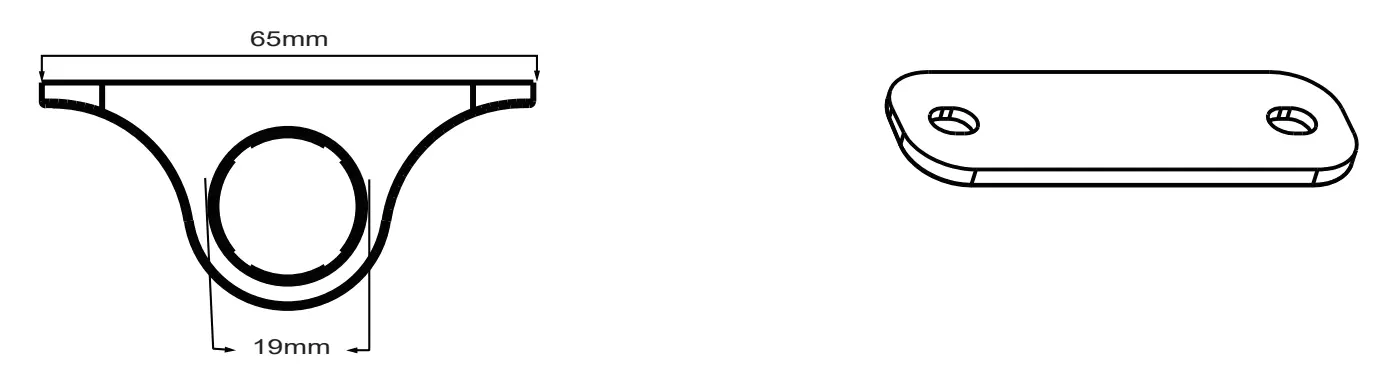

UNDER MOUNTS
Under-Mount Brackets and Spacers

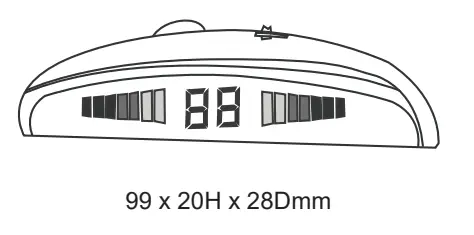

DISPLAY
FEATURES
- Wireless range up to 30m.
- Towbar / Spare Wheel detection zone.
- Suitable for flush mounting into metal bumpers and underbody/tray mounting.
- System Self-Checking Function – On start-up, the system will beep twice;
If there is any faulty sensor, the system will beep once. - IP69K Control Box & IP68 Sensors and Connectors.
- E-Mark certified.
TROUBLE-SHOOTING GUIDE
| PROBLEM | CAUSE | SOLUTION |
| The system fails to start when the reverse gear is engaged | Wrong connection of power lead | Check the power lead |
| Wrong jack connection | Check the connectors | |
| The system always detects the same distance | The sensor detects the ground | Check and adjust the vertical sensor angle |
| The system fails to detect the obstacles | Wrong sensors connection | Check and reset the system |
| False alarm | The sensor detects the ground | Check and adjust the vertical sensor angle |
SPECIAL NOTES

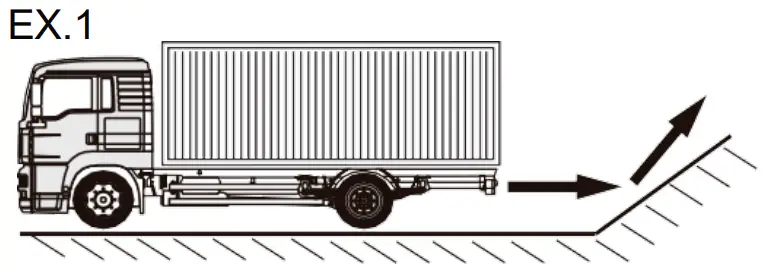

 | When the car approaches a smooth slope, the slope may not be detected. |

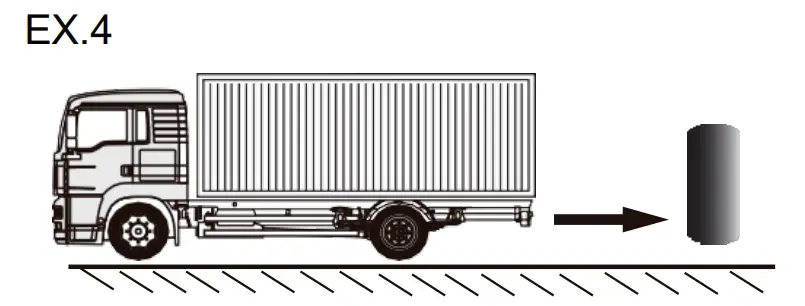

 | The sensors may not detect a small or smooth round pole. |

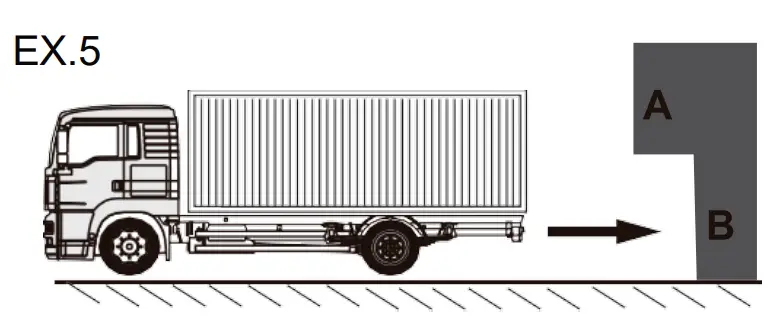

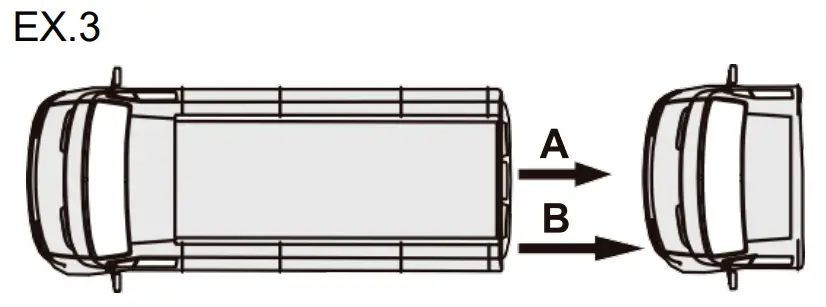

 | Point A will be detected prior to point B, as it comes closer. |
 | However, point A may fall into the sensors’ blind zone, and point B cloud is misjudged as the closest point. |
 | The sensors may not detect any sponge-like material obstacle as the ultrasonic wave was absorbed. |

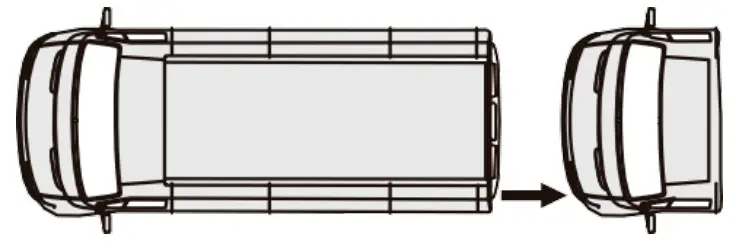

 | Complex situation: point A may not be detected. |
SPECIFICATIONS
| GENERAL | |
| – Detection Range: | 0.05- 2.5m |
| – Rated Voltage: | 12/24V DC |
| – Operating Range: | 9-32V DC |
| – Operating Current: | 150mA@ 12V |
| LED DISPLAY | |
| #NAME? | Visual Direction & Indicators |
| – Audiable Buzzer: | Yes |
| – Mute Function: | Yes |
| – Buzzer Cable Length: | 1.5m |
| – Dimensions: | 99Wx 20H x 28Dmm |
| CONTROL BOX | |
| #NAME? | IP69K |
| – Wireless Range: | Wireless Range: Up to 30m |
| – Ignore Function: | Towbar / Spare Wheel |
| – Power Leads: | 1.4m |
| SENSORS | |
| – Sensor Type: | Angled Rubber |
| – Sensor Size: | 18.8mm |
| – Sensor Dimensions: | 26W x 26H x 24.5Dmm |
| – Sensor Cable Length: | 2.5m |
| – Sensor Installation: | Under Mount or In-Bumper Mount |
| – Detecting Distance: | 0.05-2.5m |
| – Ultrasonic Frequency: | 40KHz |
| – Working Temperature: | -20° to +80C |
| #NAME? | IP68 |
| – Under Mount Dimensions: | 65W x 30H x 24.5Dmm |
| INCLUDES | |
| Control Box | |
| 4xSensors | |
| 4 x Bracket with Pads | |
| 4 x 2.5 Sensor Cable | |
| Wireless Display | |
| Drill Bit | |
