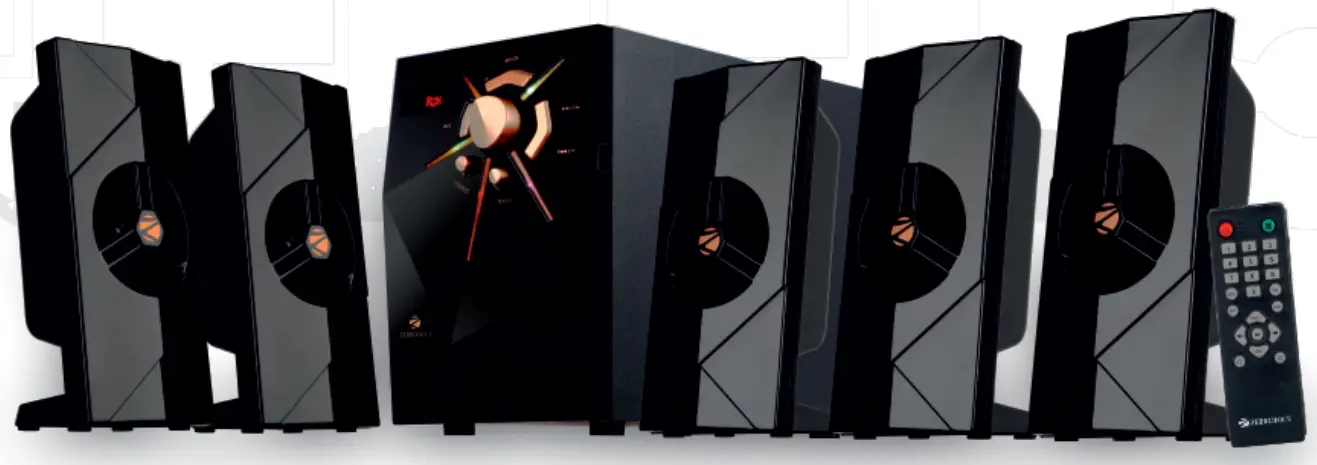

5.1 Speaker
ZEB FEEL 5
User Manual
www.zebronics.com
Thank you for purchasing Zebronics Speaker. Please read this user manual carefully before Operation & save it for future reference.
Note:
- Avoid the use of this speaker in a high temperature and high humidity environment.
- Avoid self-disassembly of the speaker, or it will result in the failure of the warranty.
Features
5.1 Channel Speaker
Wireless BT/USB/FM/AUX
LED Display
Remote control
10.16cm Subwoofer
Volume, Treble & Bass adjustment
RGB Lights
Stylish Design
Wall Mountable
Specifications
| Output Power (RMS) | |
| Subwoofer | : 30 Watts |
| Satellite | : 10 Watts x 5 |
| Total | : 80 Watts |
| Driver Size | |
| Subwoofer | : 10.16 cm x 1 |
| Satellite | : 7.62cm x 5 |
| Impedance | |
| Subwoofer | : 4Ω |
| Satellite | : 6Ω |
| Frequency Response | : 20Hz – 20kHz |
| S/N Ratio | : ≥80dB |
| Separation | : ≥45dB |
| File Format Support | |
| (USB) | : MP3 |
| Line Input | : 2ch RCA |
| Max. Supported | |
| Memory Size (USB) | : 32GB |
| FM Frequency Range | : 87.5 MHz – 108 MHz |
| BT Name | : ZEBRONICS |
| BT Version | : 5.0 |
| Product dimension (W x D x H) | |
| Subwoofer | : 150 x 278 x 213 mm |
| Satellite | : 95 x 75 x 205 mm |
| Net.weight | |
| Subwoofer | : 2.72kg |
| Satellite | : 309g x 5 |
| Total | : 4.26kg |

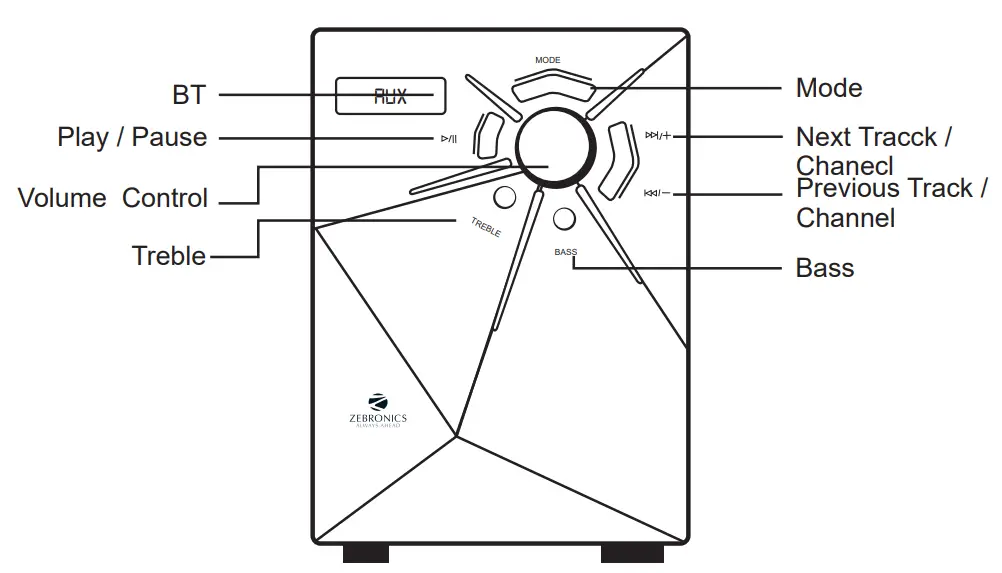

Control Description

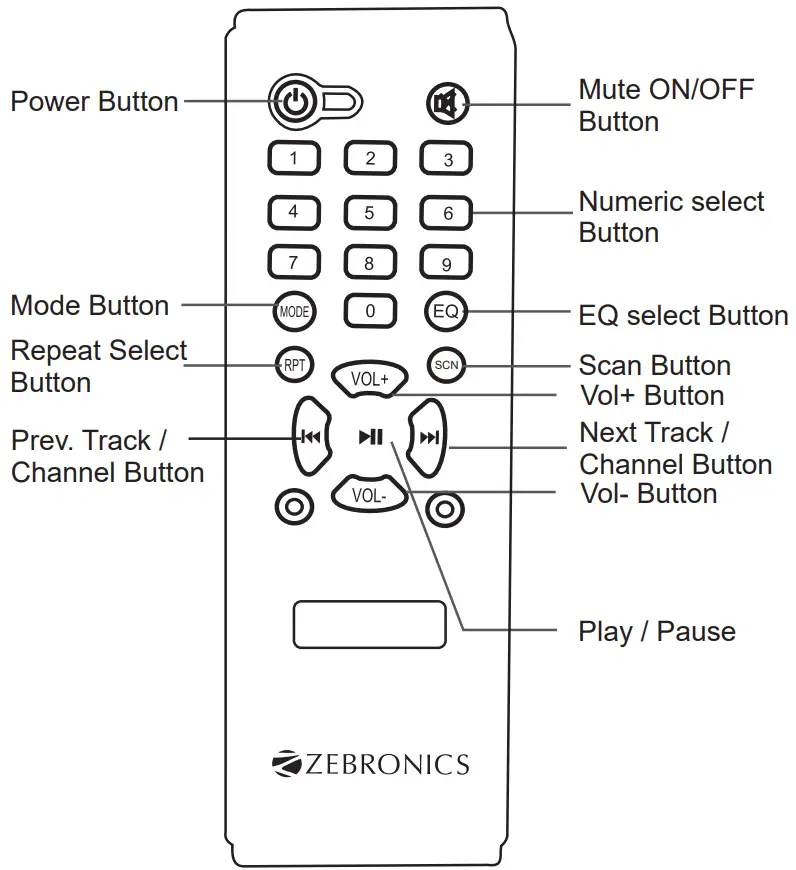

Remote control
General instruction
Bluetooth connectivity
Switch the Speaker to BT mode, and Scan for nearby BT devices on your mobile. Tap on BT name “ZEBRONICS” to connect.
USB mode
Insert the USB pen drive to the speaker.
The speaker will detect the USB & audio from it will be played automatically.
FM Radio
Switch the speaker to FM mode. In FM Mode, Long press the Play / Pause key to scan the available FM channels. Once the scanning is done, the speaker will start playing the first scanned channel. The next and Prev. buttons can be used to change the FM channels.
AUX-IN
The speaker can be connected to an audio device using an RCA to 3.5mm cable. Connect one end of the cable to the speaker & connect the other end of the cable to an audio source. The songs from the audio source can be heard through the speaker.
