Therabody Airbdl-mp2-pkg-us Recoveryair Pneumatic Compression System User Guide

Therabody AIRBDL-MP2-PKG-US RecoveryAir Pneumatic Compression System

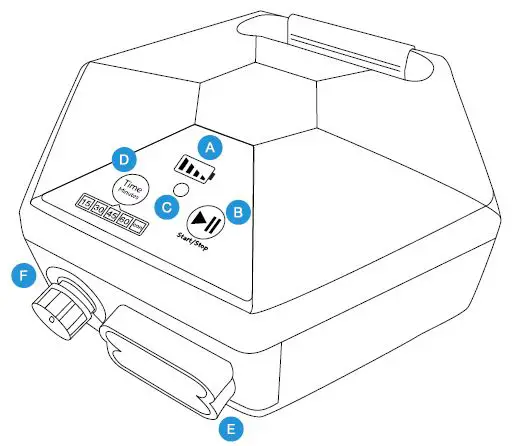

Get the most out of your RecoveryAir Pneumatic Device

• Battery Status
• Start/Stop button
  Use to start or stop a massage. To pause a massage, press start/stop and hold for 3 seconds. Press start/stop again to resume.
• Status indicator
  • Power is on
  • Massage in progress
  • Error indication
• Time button
• Air outlet
• Pressure knob
  Light – 20 to 30 mmHg Medium – 40 to 60 mmHg Intense – 70 to 100 mmHg

Using the RecoveryAir Pneumatic Device

1. Place the RecoveryAir Pneumatic Device on a flat stable surface and insert the DC power adapter cable into the DC adapter socket on the device.
2. Put on the garment.

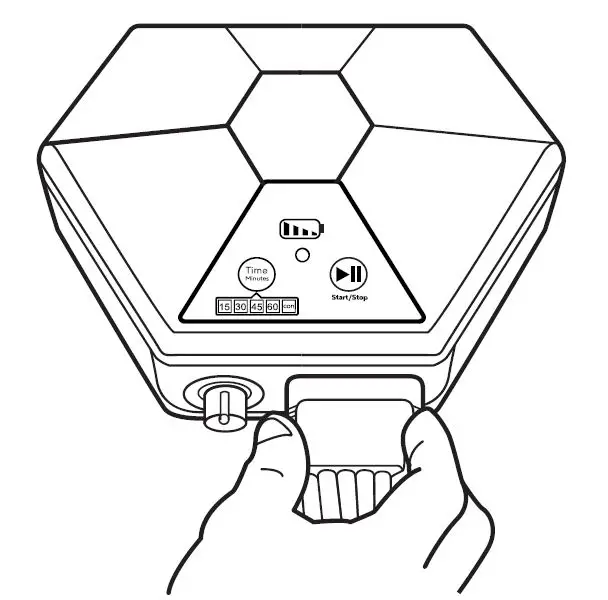

3. Connect the garment hoses to the RecoveryAir Pneumatic Device by holding the device handle with one hand while connecting or disconnecting the hose bundle with your other hand.
4. Set massage pressure by pressing and holding the Pressure Knob while setting the desired pressure. The recommended pressure for first-time users is 40mmHg.
5. Press the Time button to set the massage time by 15min, 30min, 45min, 60min or continuous mode.
6. Select the Hold Time by holding down the Time button
   • Shorthold – press for three sec. (1 beep)
   • Medium hold – press for three more secs. (2 Beeps)
   • Long hold – press for three more secs. (3 Beeps)
7. Start the massage

Charging the RecoveryAir Pneumatic Device

• Turn On the Power Switch to enable charging the battery
• Turn Off the Power Switch to conserve battery power when not charging or not using the RecoveryAir Pneumatic Device
• Battery level is continuously displayed by the battery status indicators

Air Outlet
Connects the garment hoses to the RecoveryAir Pneumatic Device.

Blocker Plug
Use Blocker Plug when only one garment is in use.

Storage and Transportation

1. Keep the RecoveryAir Pneumatic Device, hoses and garments away from direct sunlight.
2. Store in a dry, shaded place.
3. Do not twist or fold the garment hoses.
4. Store the power cord lightly wrapped and secured.

Cleaning Instructions

1. Wipe clean using a slightly damp cloth.
2. Do not allow any moisture or liquids to enter the RecoveryAir Pneumatic Device.
