ZEALOT logoS53-Black Portable Bluetooth Speaker
User Manual

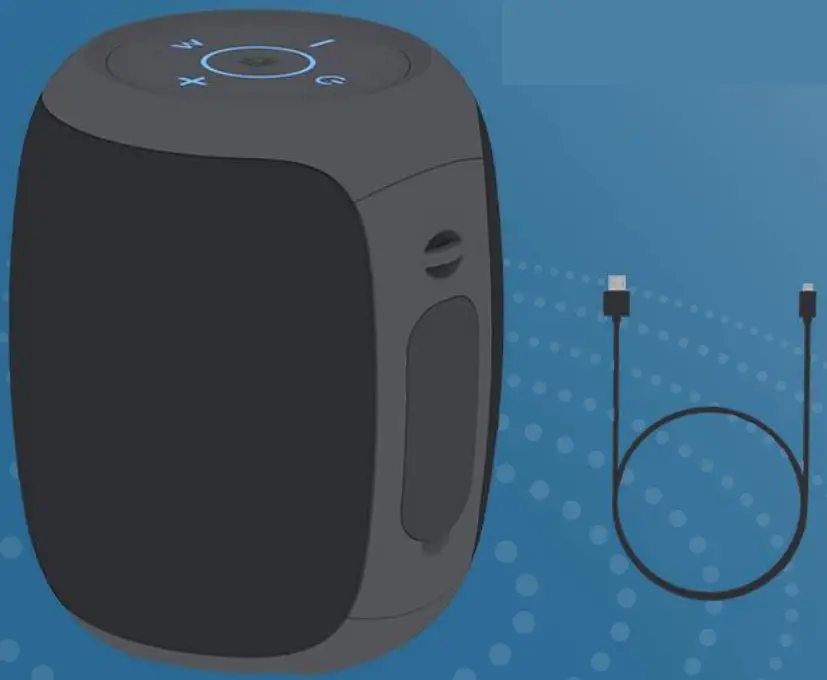

WHAT’S IN THE BOX

ZEALOT S53-Black Portable Bluetooth Speaker

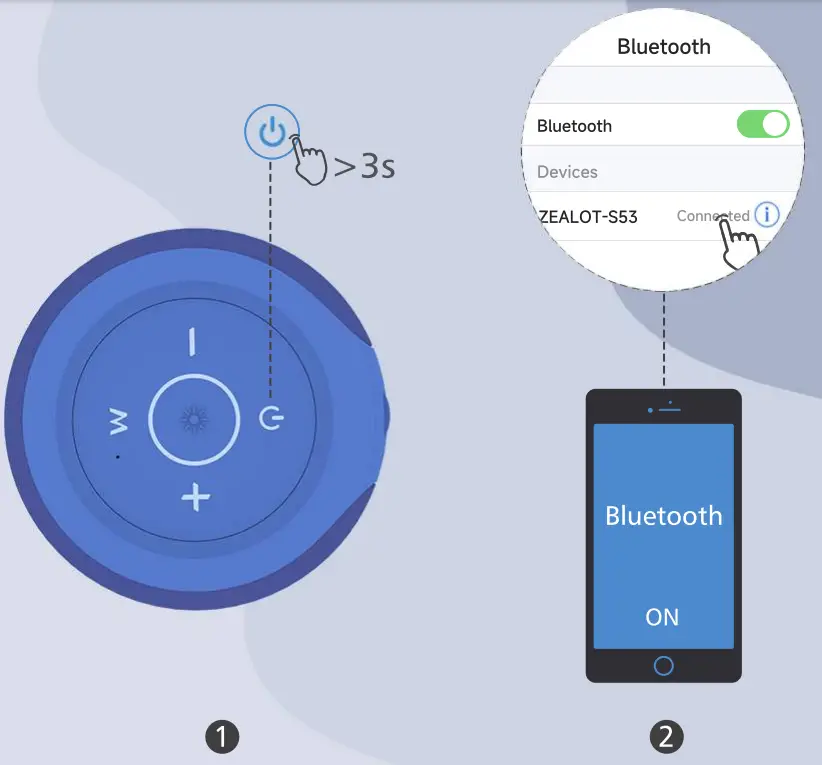

BLUETOOTH PAIRING

ZEALOT S53-Black Portable Bluetooth Speaker - fig 1

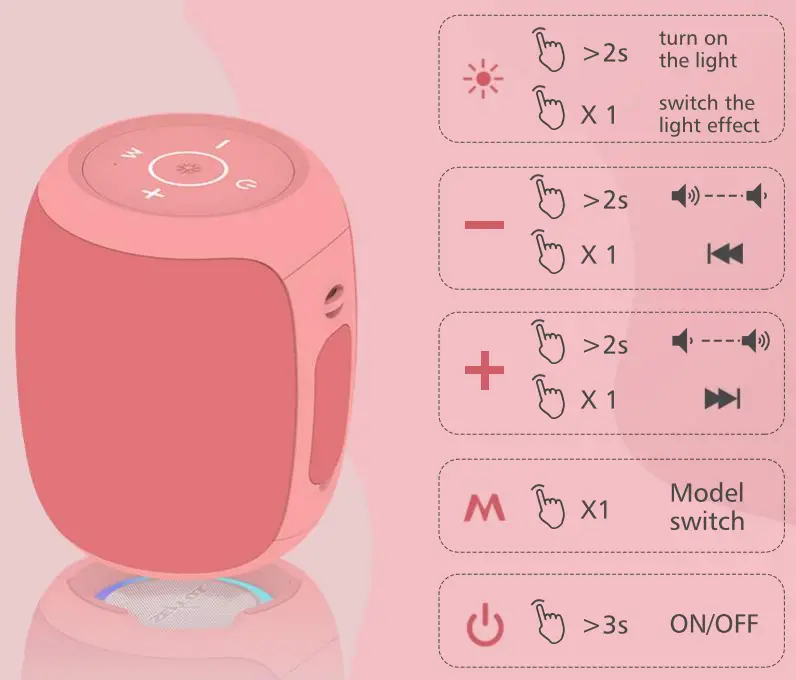

PLAY

ZEALOT S53-Black Portable Bluetooth Speaker - fig 2

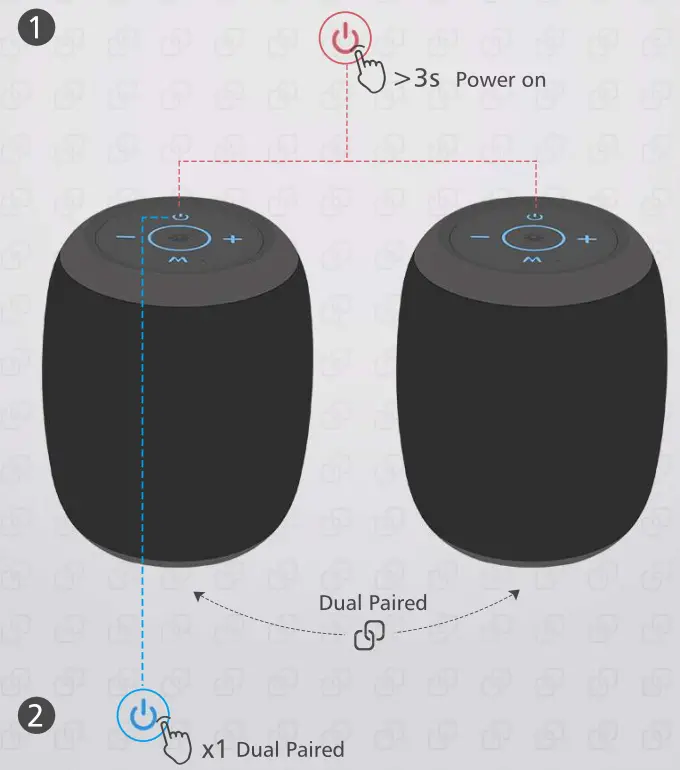

WIRELESS STEREO PAIRING

ZEALOT S53-Black Portable Bluetooth Speaker - fig 3

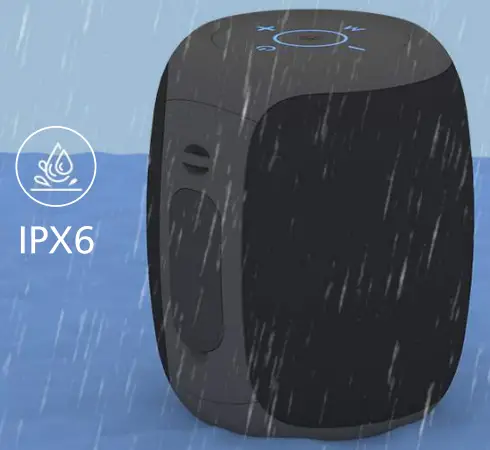

IPX6 WATERPROOF

ZEALOT S53-Black Portable Bluetooth Speaker - fig 4

TECH SPEC

Input voltage: DC5V
Operating voltage: 3.7V
Speaker: 4Ω
Transmission range: 10M/33ft
SNR: ≥85dB
Frequency response:
Frequency response: 100Hz-20KHz
Distortion: < 1%
Charging interface: Type-C
Dimension: 95*95*116mm/3.74×3.74×4.57”
W eight: 540g/1.19lbs
WarningDo not throw this product into fire or water.
Do not modify, repair or disassemble the speaker.
Do not make it contact with combustible materials directly.
Please keep the device away from damp and dusty environments.
Before charging please check whether the charger model is suitable for this product.
Do not use the product when charging.
Do not use the product when charging.
To protect battery lifespan, fully charge at least once a month. Battery life will vary due to usage patterns and environmental conditions.ZEALOT logoZEALOT S53-Black Portable Bluetooth Speaker - icon 1
