ASSEMBLY INSTRUCTIONS
MODEL : TERRA DINING TABLE
TERRA5 Terra Modern Black Round Wood Dining Set
Please read the instructions carefully
Remove all wrapping materials, staples, and packing straps from the carton. Refer to Parts List and Hardware List and ensure they arc complete before you start assembling. Place all wooden parts on a clean, flat, and soft surface (e.g carpet or mg) to prevent parts from being scratched.
CAUTIONS:
- DO NOT FULLY TIGHTEN BOLTS AND NUTS UNTIL ALL PARTS HAVE BEEN ASSEMBLED.
- DO NOT OVER-TIGHTEN BOLTS AND NUTS UNTIL ALL PARTS HAVE BEEN ASSEMBLED.
- KEEP ALL HARDWARE PARTS OUT OF THE REACH OF CHILDREN.

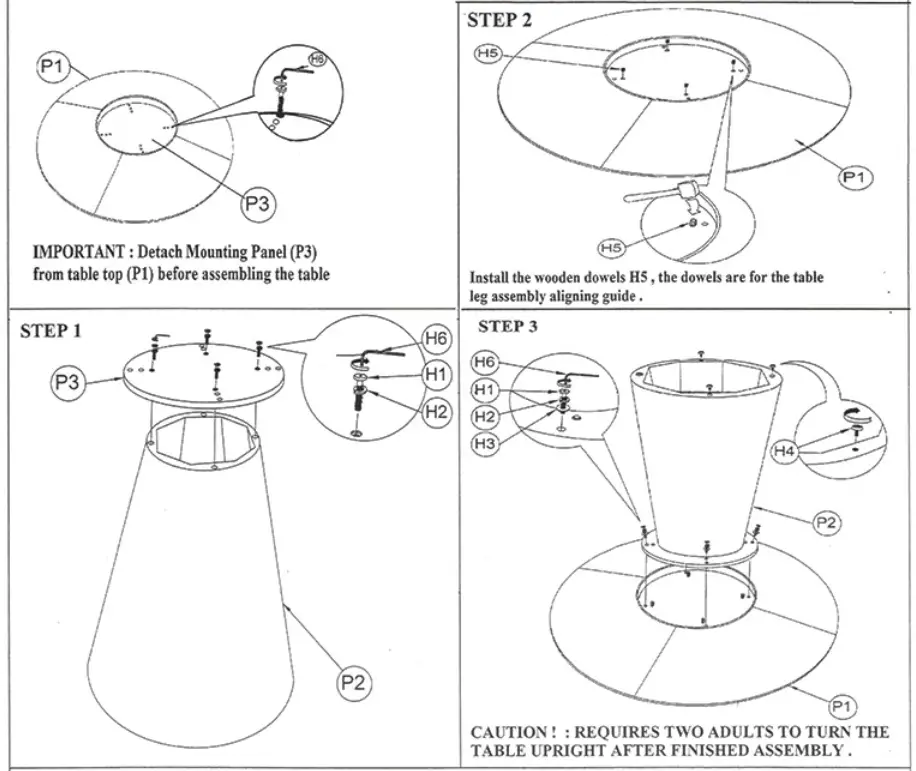

PARTS LIST (FOR I NOS. OF TABLE)
| NO. | COMPONENT | QTY. |
| P1 | TABLE TOP | I |
| P2 | PEDESTAL LEG | 1 |
| P3 | MOUNTING PANEL | 1 |
HARDWARE LIST (FOR 1 NOS. OF TABLE)
| NO. | DESCRIPTION | QTY. |
| HI | M6 x 35 JCBC SCREW _ | 8 |
| H2 | SPRING WASHER | 8 |
| H3 | FLAT WASHER | 4 |
| H4 | LEG ADJUSTABLE GLIDE | 4 |
| H5 | WOOD DOWEL M8X3OMM | 4 |
| H6 | ALLEN KEY | I |
COMPLETE ASSEMBLY

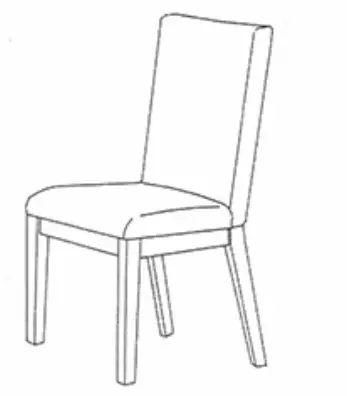

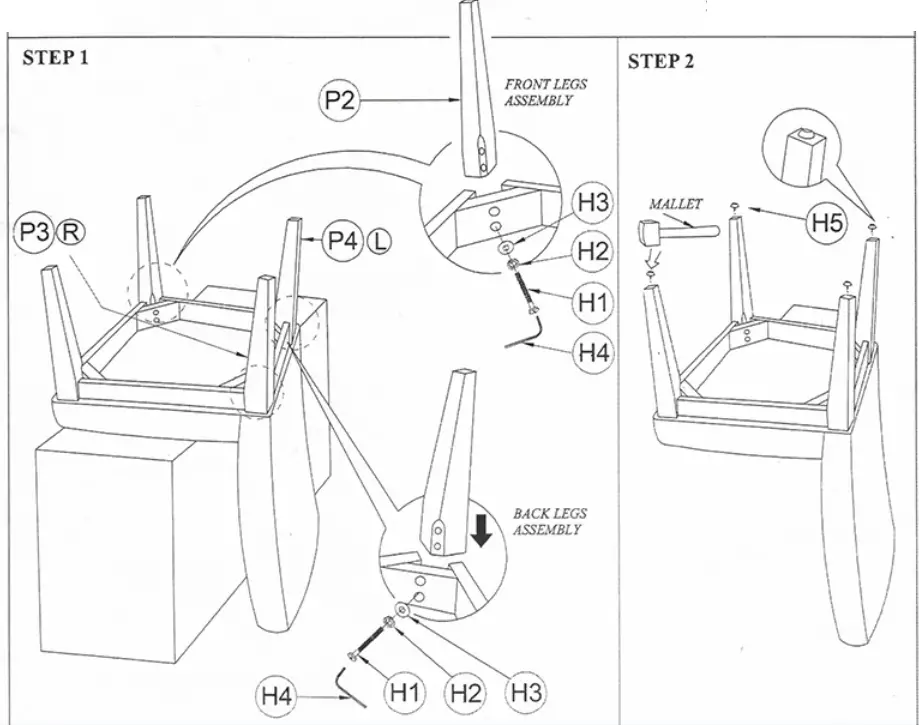

PARTS LIST (FOR 2 NOS. OF CHAIR)
| NO. | COMPONENT | QTY. |
| P1 | CHAIR SEAT | 2 |
| PZ | FRONT LEGS | 4 |
| P3 | BACK LEGS with sticker (R) | 2 |
| P4 | BACK LEGS with sticker (L) | 2 |
HARDWARE LIST (FOR 2 NOS. OF CHAIR)
| NO. | DESCRIPTION | QTY. |
| HI | NI6 x 60 JCBC SCREW | 16 |
| H2 | SPRING WASHER | 16 |
| H3 | FLAT WASHER | 16 |
| H4 | ALLEN KEY | 1 |
| H5 | NAIL LEG | 8 |
