QUICK REFERENCE GUIDE > RF522BRXFDU5
Freestanding Refrigerator
Freezer, 79cm, 494L, Ice &
Water/Series 7 | Contemporary
Stainless Steel | Right Hinge

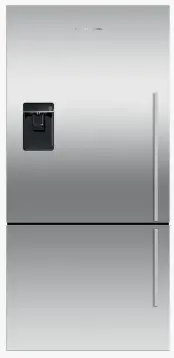

RF522BRXFDU5 Freestanding Refrigerator Freezer, 79cm, 494L, Ice & Water
Large capacity in stylish stainless steel, you’ll have plenty of room for your chilled and frozen food.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Door water dispenser and internal ice maker
- The spacious bottom freezer with a full extension drawer gives easy access to frozen goods.
- Choose which side you’d like your door hinge on to suit your kitchen layout

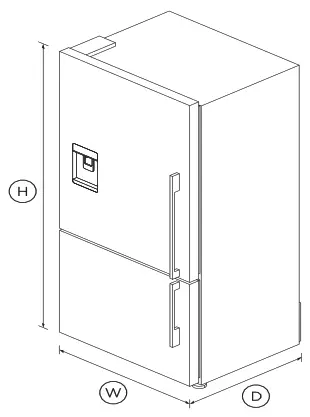

DIMENSIONS
| Height | 1715 mm |
| Width | 790 mm |
| Depth | 695 mm |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ food care adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel and solid glass for shelving as well as in our wine cabinet doors.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Simple Storage
This refrigerator is designed to make it simple for you to store, access, and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
Clever energy
Your fridge adapts to daily use by cooling and defrosting only when needed. This means your fridge uses the energy it needs without compromising on food care.
SPECIFICATIONS
Accessories (sold separately)
| Joiner kit | Part number 819264 |
| Matching Replacement Water | Models 24xxx = part no. |
| Surround Kit (Joined left/right | Part number 23988 |
| Surround Kit (Left Hand) | Part number 23986 |
| Surround Kit (Right Hand) | Part number 23987 |
Capacity
| Freezer | 146L |
| Refrigerator | 348L |
| Total net volume | 494L |
Consumption
| Energy consumption | 369kWh/year |
| Energy rating | F |
Freezer features
| Bottle chill | • |
| Built-in ice maker | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| Large plastic bins | • |
| Small plastic bins | 2 |
Performance
| ActiveSmart™ Foodcare | • |
| ActiveSmart™ technology | • |
| Adaptive defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| Sabbath mode | • |
Product dimensions
| Depth | 695 mm |
| Height | 1715 mm |
| Minimum air clearance – each | 20 mm |
| Minimum air clearance – on top | 50 mm |
| Width | 790 mm |
Refrigerator features
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front leveling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Full-width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
Warranty
| Parts and labor | 5 years |
| Sealed system parts only | 5 years |
| SKU | 25978 |
TEST The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User GuideService & Warranty BookletInstallation Guide Resources (zip) Resources (zip)
