Street Aero Acm Side Splitters Instructions

INSTRUCTIONS
ACM Side Splitters

ACM Side Splitters

Includes: Screws (16x)

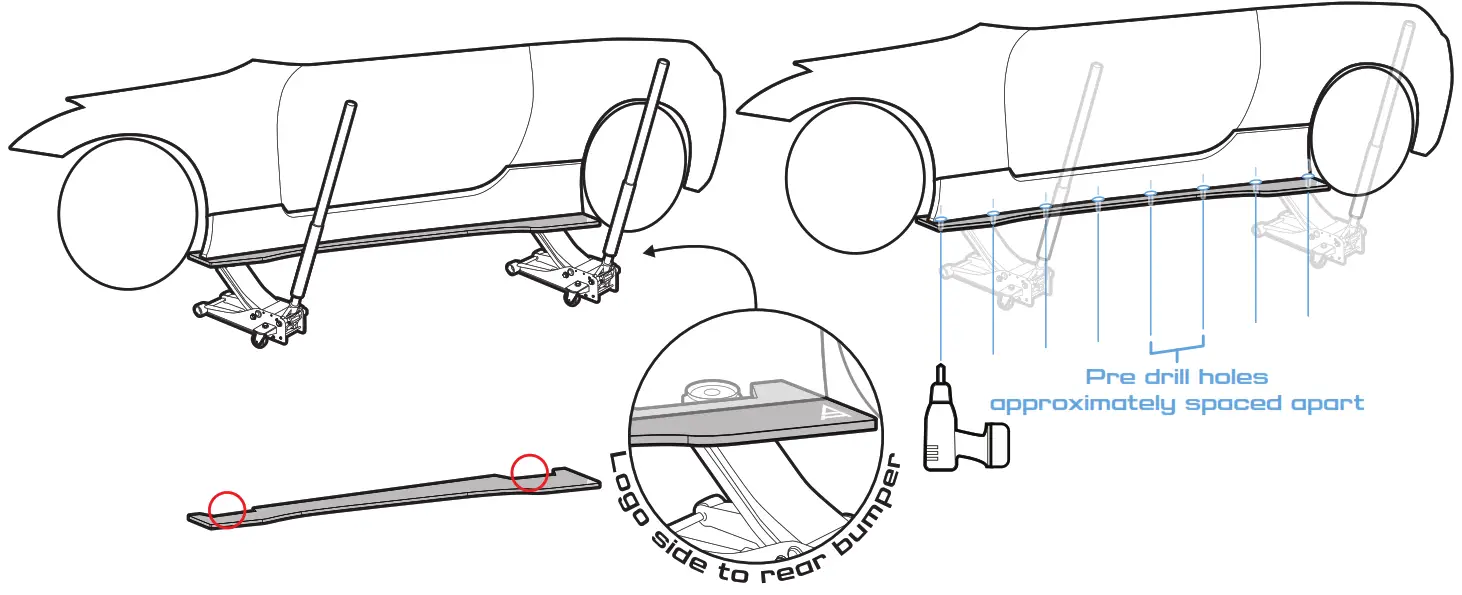

STEP: 1
Position the jack stand near the back and front of the side skirt Position the Side Splitter to the side skirt Street Aero Logo towards the rear bumper Side Splitter should reach from one end to the other
STEP: 2
Pre-drill the side skirt and Side Splitter with 3/32” or smaller bit size See the chart below for the recommended spacing of the screws

NOTE: Spacing may differ based on your side skirt

NOTE: Position the jack stand at the Side Splitter’s pinch welds

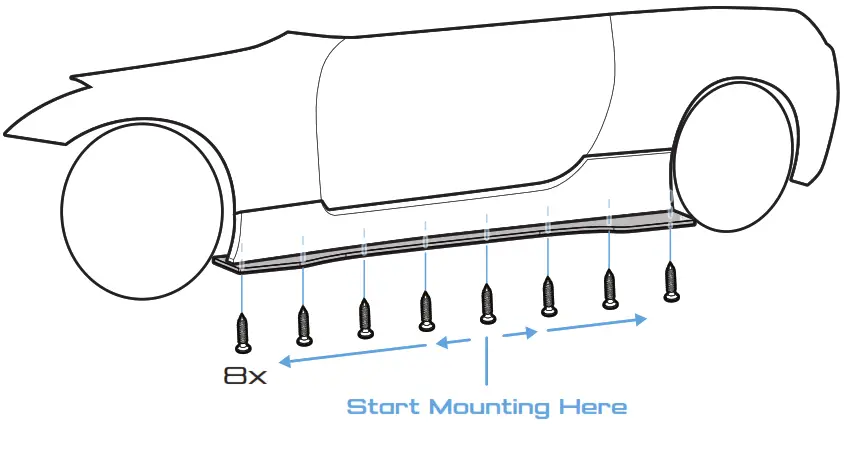

STEP: 3
Secure the Side Splitter to the side skirt with provided screws Starting from the center outwards Use extra hardware if needed

www.streetaero.com
[email protected]
