5695 Classic Watch
Instruction Manual
You can also find information about operational procedures on the CASIO website.
https://support.casio.com/global/en/wat/model/5695/
- Your watch may differ somewhat from the one shown in the illustration.
Stopwatch functions
To adjust the time setting
| When the second hand is at 12 o’clock, pull the Crown out to Click 2. |
 |
| Rotate the Crown to change the time setting. |
|
| Push the Crown back in on a time signal to resume timekeeping. |
Note
- Take care that you set the correct AM or PM time.
- When changing the time, move the minute hand four or five minutes past your final set, and then back it up to the setting you want.
To change the day indicator setting
| Pull the Crown out to Click 1. |
|
| Rotate the Crown towards you to set the day. |
|
| Push the Crown back in. |
Note
- The day indicator setting uses a 31-day month. Make adjustments for months of shorter lengths.
- Avoid changing the day indicator setting between the hours of 9 p.m. and 1 a.m. Otherwise, the day indicator may not change correctly at midnight.

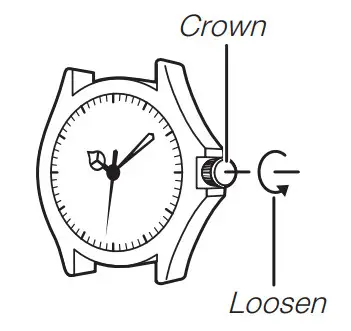

Crown Operations
Some water-resistant models (10BAR, 20BAR) have a screw-in crown. When you need to perform a crown operation, rotate it towards you to unscrew it. Then pull the crown out. Avoid applying undue force when pulling. The watch loses its water resistance while the crown is unscrewed. After performing a crown operation, fully screw the crown back in.

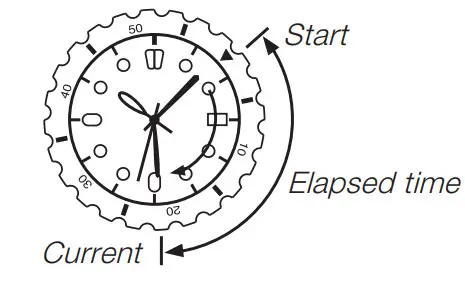

If your watch has a rotary bezel…
You can rotate the bezel to align its ▼ mark with the minute hand. Then you will be able to tell how much time has elapsed since aligning the ▼ mark.

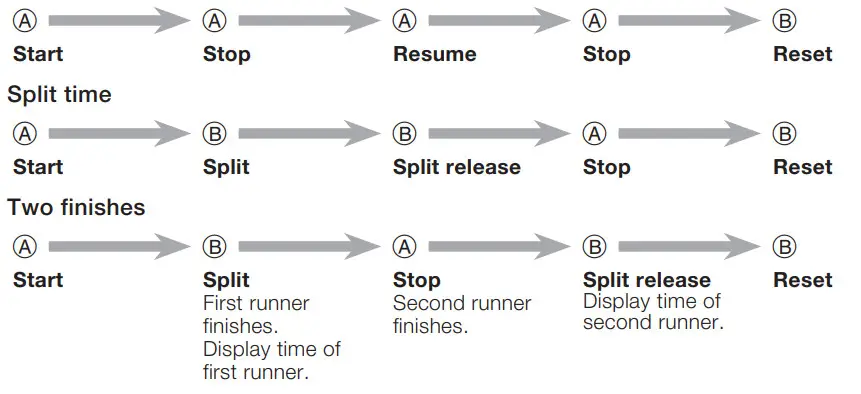

Using the Stopwatch
The stopwatch measures elapsed time in 1-second increments up to 9 minutes, 59 seconds.
Elapsed time
Important!
- Do not operate the stopwatch with the crown pulled out.
Note
- An elapsed time operation will stop automatically at the end of 10 minutes.
Correcting the 0 Positions of the Hands
Perform the following procedure if the stopwatch hands do not return to their 0 (zero) positions when you reset the stopwatch.
| Pull the Crown out to Click 2. |
|
| Use A (clockwise) and B (counterclockwise) to move the Stopwatch Second Hand to 12 o’clock and the Stopwatch Minute Hand to 0. • Holding down either button will move the second hand at high speed until you release the button. • The Stopwatch Minute Hand is synchronized with the Stopwatch’s Second Hand. |
|
| After all of the hands are the way you want, push the Crown back in |
Important!
- Timekeeping stops while the crown is pulled out. Correct the current time setting after performing the above operation.
Specifications
Accuracy at normal temperature: ±20 seconds a month
Stopwatch: Measuring Capacity: 9’59” (10 minutes)
Measuring Unit: 1 second
Measurements: Elapsed time; split time; two finishes
Battery: One silver oxide battery (Type: SR920SW)
Battery Life: Approximately 3 years Specifications are subject to change without notice.
