Technology Pte GZR02 Gravio Zigbee Receiver 2
Instruction Manual
Product overview

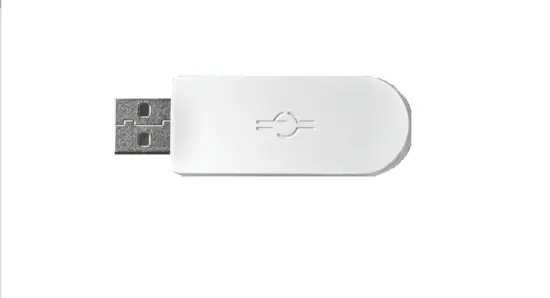

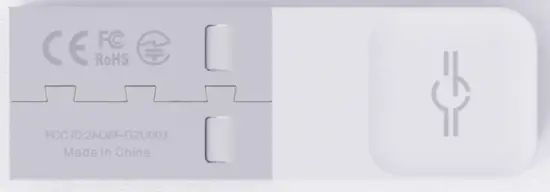

Gravio Zigbee Dongle 2gen is a wireless command transmitter based on the ZigBee protocol. It can interact with the wireless sensor in hex code based on the serial protocol and issue commands. This device supports operating systems such as windows10/mac/Linux. Gravio Zigbee Dongle 2gen adopts a USB forward and reverse insertion design, and can be inserted into the USB interface on either side for normal use. You can send and receive information by using serial port software such as com. Complete the instructions.
Gravio Zigbee Dongle 2gen is based on the certification-free protocol of organizations such as well. It can be used without a driver on windows10/mac/Linux, just plug in the USB-A interface.

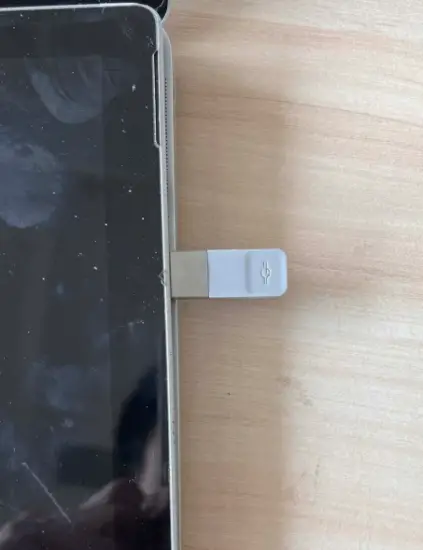

Plug

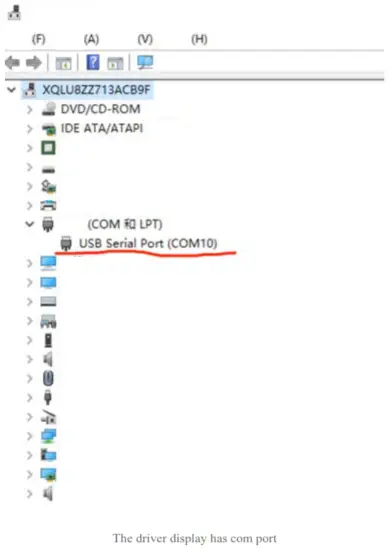

After inserting the device, windows10 will automatically load the driver and open the hardware manager. This interface appears. This means your device is ready to go.
Instructions for use

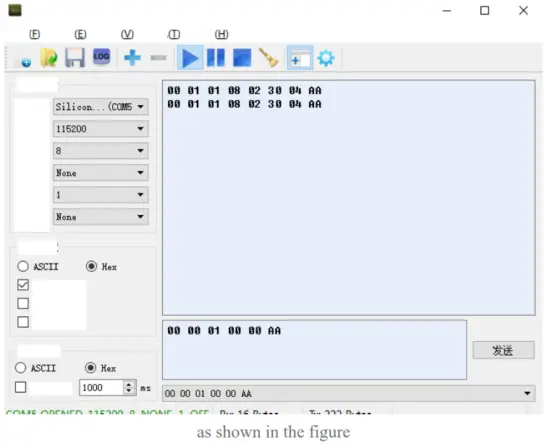

First open the serial debugging assistant, such as sitcom, set the baud rate to 115200, and open the serial port after 8N1. Send the command in hex:
>> send : 00 00 01 00 00 AA
>>receive : 00 01 01 08 02 00 03 AA
Scan to build a zigbee network
>> send : 00 00 03 00 00 AA >> receive : 00 01 03 08 01 00 AA
Read current network information
>> send : 00 00 04 00 00 AA
>> receive : 00 01 04 08 0E 36 3F 32 FE FF 9F FD 90 01 01 C0 76 0F 13 AA
Open to allow devices to access the network
>> send : 00 00 10 00 01 FF AA >> receive : 00 01 10 08 01 00 AA
Sensor support ：

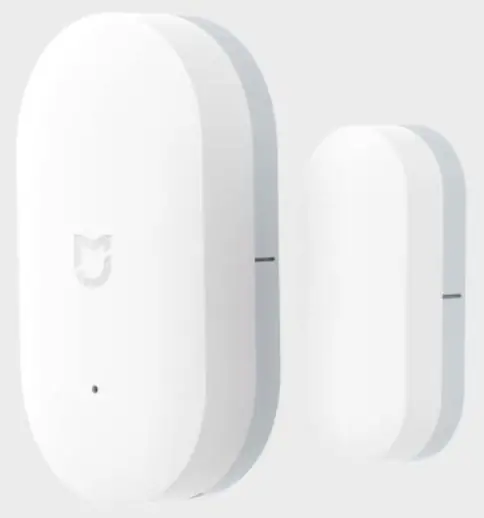

Door and Window Sensor
near >> 00 1C 01 18 10 F9 68 04 02 00 8D 15 00 01 06 00 01 00 00 10 00 AA
Far away>> 00 1D 01 18 10 F9 68 04 02 00 8D 15 00 01 06 00 01 00 00 10 01 AA

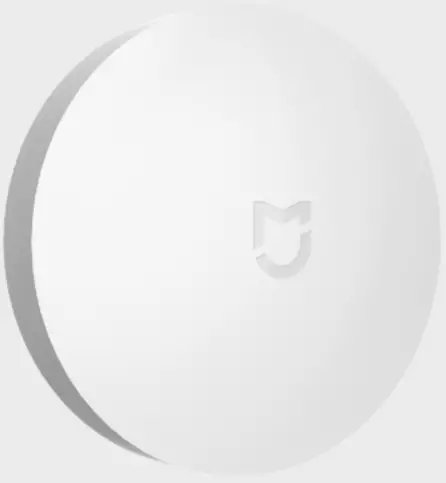

Wireless Mini Switch
press : 00 38 01 18 11 09 67 B0 02 00 8D 15 00 01 12 00 01 55 00 →21 01 00 AA
>> long press : 00 39 01 18 11 09 67 B0 02 00 8D 15 00 01 12 00 01 55 00 21 10 →00 AA
>> Long press release : 00 3A 01 18 11 09 67 B0 02 00 8D 15 00 01 12 00 01 55 00 21 11 →00 AA

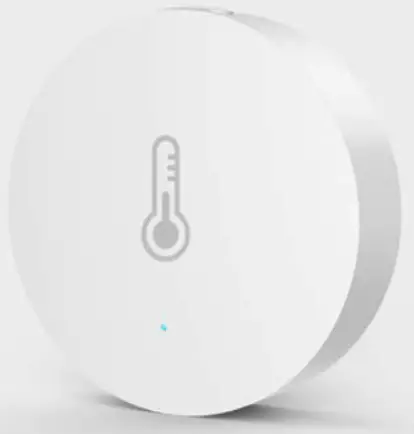

Temperature and Humidity Sensor
This temperature and humidity sensor supports reporting temperature values, relative humidity, and atmospheric pressure, so there are three types of reported data:
>> send : 00 40 01 18 11 6F FA 3C 02 00 8D 15 00 01 02 04 01 00 00 29 BD 0A AA
>> send : 00 41 01 18 11 6F FA 3C 02 00 8D 15 00 01 05 04 01 00 00 21 02 22 AA
>> send: 00 42 01 18 1A 6F FA 3C 02 00 8D 15 00 01 03 04 03 00 00 29 F2 03 14
→00 28 FF 10 00 29 7D 27 AA
Temperature and Humidity Sensor
(model: WSDCGQ01LM) >> send : 00 5A 01 18 11 06 AF 39 02 00 8D 15 00 01 02 04 01 00 00 29 B3 0A AA
>> send : 00 5B 01 18 11 06 AF 39 02 00 8D 15 00 01 05 04 01 00 00 21 3C 21 AA

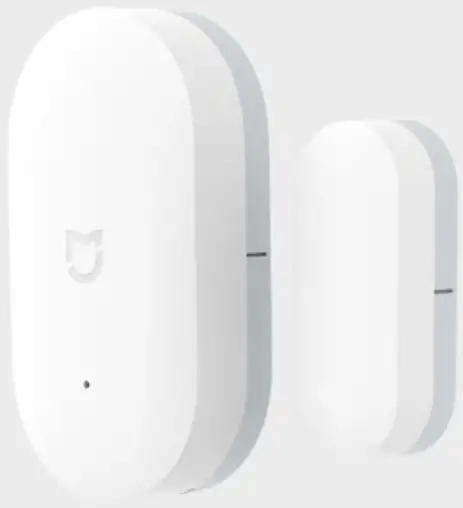

Door and Window Sensor
(model: MCCGQ11LM)
>> near send : 00 33 01 18 10 F9 68 04 02 00 8D 15 00 01 06 00 01 00 00 10 00 AA
>> far away : 00 34 01 18 10 F9 68 04 02 00 8D 15 00 01 06 00 01 00 00 10 01 AA

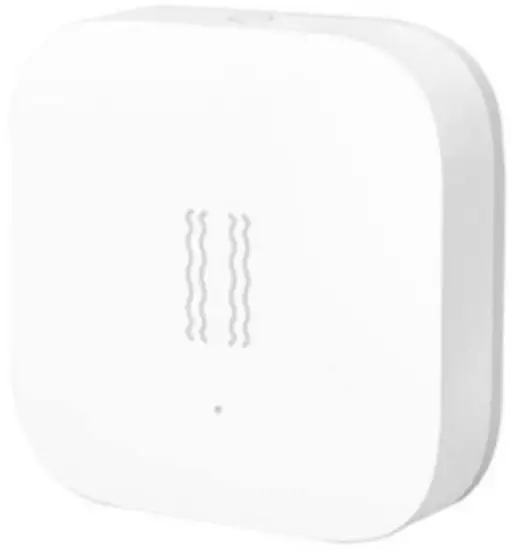

static post：
There are three types of data reported by the static post, as follows:
>> send data : 00 7A 01 18 15 FB 3B B2 02 00 8D 15 00 01 01 01 01 08 05 25 8A FF →1A 04 F9 00 AA
>> send data : 00 7C 01 18 16 FB 3B B2 02 00 8D 15 00 01 01 01 02 55 00 21 02 00 →03 05 21 06 00 AA
>> send data : 00 7E 01 18 11 FB 3B B2 02 00 8D 15 00 01 01 01 01 55 00 21 01 00 →AA
