SYMMONS IM600 IceMate Valve

Operation & Maintenance

Model Numbers

☐

IM600

IceMateTM Supply Box with Valve

Options/Modifications

☐	A	Water Hammer Arrestor Size AA
☐	P1	Crimp PEX
☐	P2	Cold Expansion PEX

Note: Append appropriate -suffix to model number.

Compliance

ASME A112.18.1/CSA B125.1
NSF 61.9, NSF 372
ASSE 1010 (IM600A only)

Feature Highlights

• Installation straps for 16″ O.C. stud mounting or direct-to-stud mounting.
• Ice Maker Valve.
• 1/2-14 NPSM with 1/2″ Sweat Inlets 1/4″ Outlet.
• Valve can be installed as bottom or top supply.
• Accommodates 1 layer of 1/2″ drywall up to 2 layers of 5/8″ drywall.
• Mounting straps.

Warranty

Limited Lifetime – to the original end purchaser in consumer/residential installations.
10 Years – for commercial/industrial installations. Refer to www.symmons.com/warranty for complete warranty information.

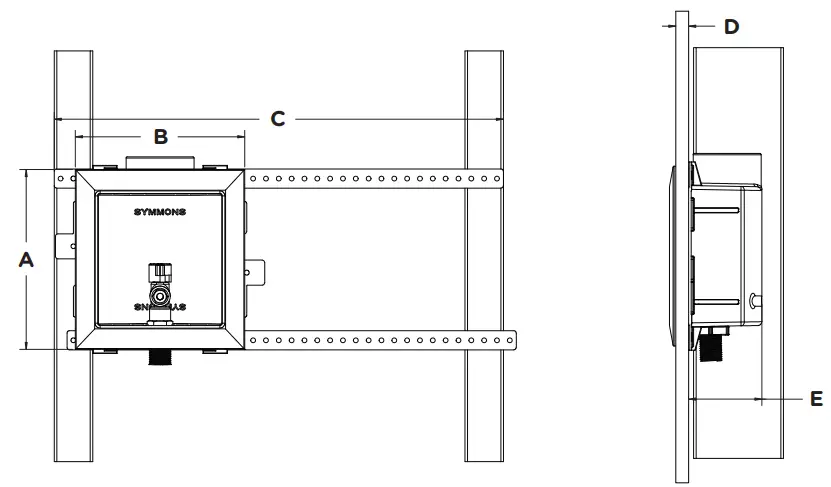

Dimensions

Measurements
A	7″, 178 mm
B	6-5/8″, 168 mm
C	17-1/2″, 445 mm
D	Min. 1/2″, 13 mm Max. 1-1/4″, 32 mm
E	2-7/8″, 72 mm

Note: Dimensions subject to change without notice.

Installation

Section A: (Steps 1-7)

Slide straps in mounting tabs
Attach strap to studs with user provided screws
Insert provided screws through tabs to secure box in place

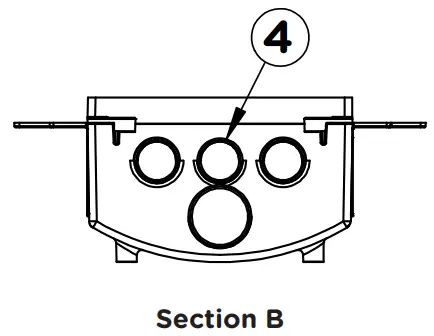

Section B: (Step 4)
Knockout inside hole of supply box for water supply
Secure valve to box with supplied nut
Connect supplies to valves with either:
- a. Sweat connect
- b. P1 Option – Crimp PEX or
  P2 Option – Cold Expansion PEX
Check for leaks

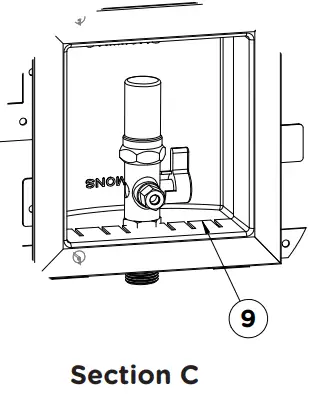

Section C (Steps 8 & 9)
Complete finish wall
Press on covers
- a. If finish wall is 1/2’’ thick, break tabs from cover off
- b. If 2 layers of 5/8” drywall leave tabs on

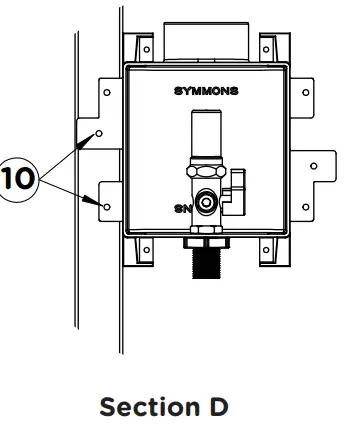

  Section D (Step 10) Direct Stud Installation:
Mount box on adjacent side of wall stud with provided tabs

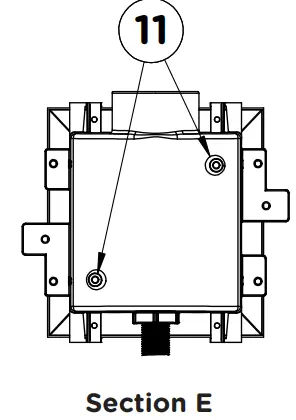

Section E (Step 11) Surface Mount Installation:
Drill holes out of box and use user provided screws to attach to wall
