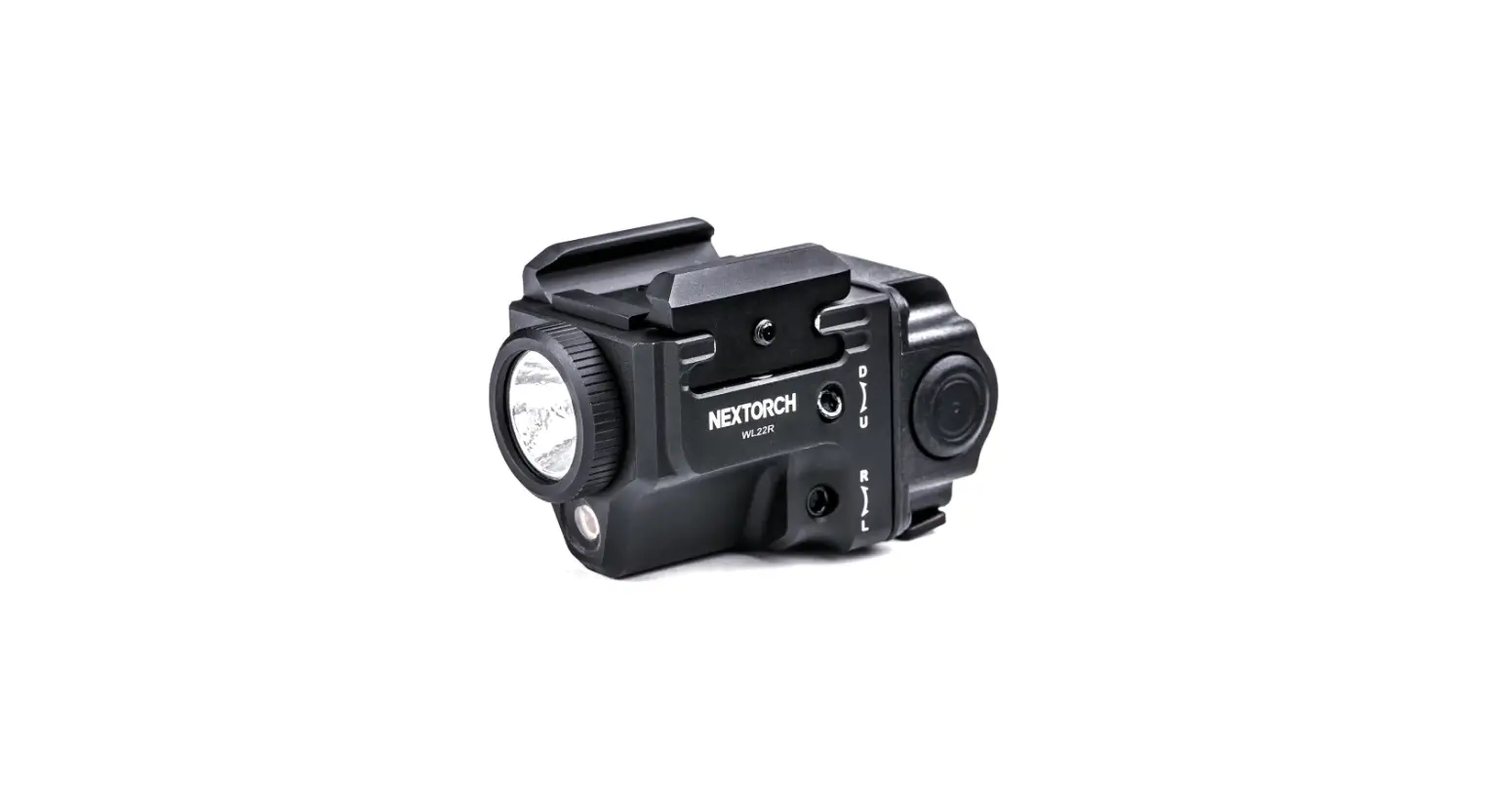

Nextorch Wl22 650 Lumens Sub-compact Rechargeable Tactical Light Instruction Manual

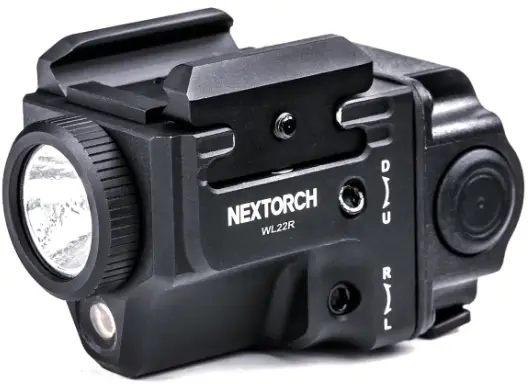

NEXTORCH WL22 650 Lumens Sub-Compact Rechargeable Tactical Light

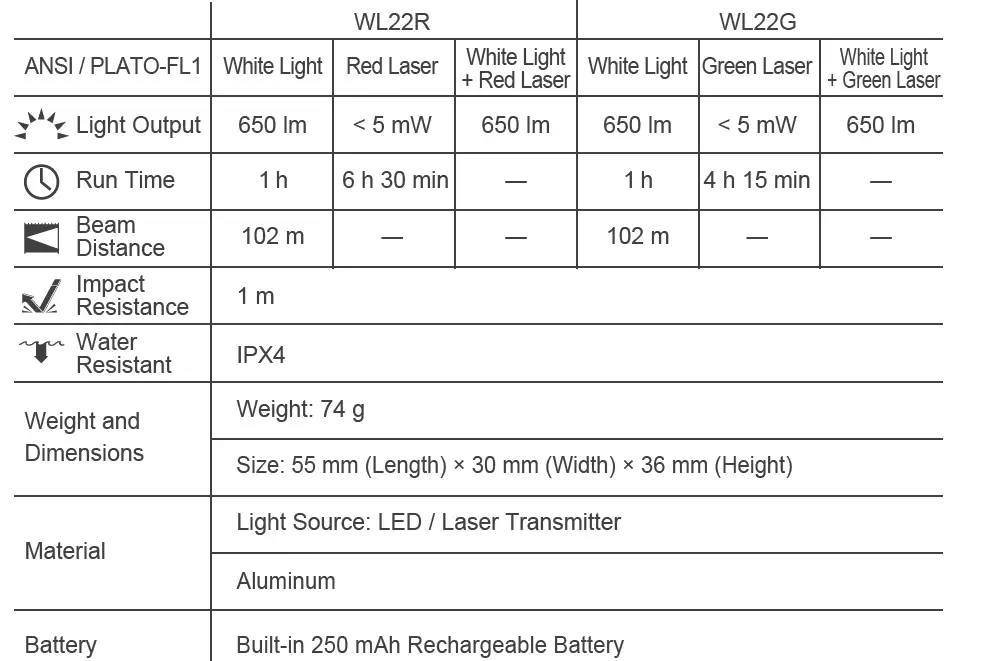

SPECIFICATIONS

Above tested specifications are strictly based on the standard of ANSI / PLATO-FL1. We tested WL22 with built-in 250 mAh rechargeable battery in 22 °C ± 3 °C. The specifications might be different when using a different battery or testing in a different environment.

FEATURES

• Compact and lightweight.
• Type-C rechargeable design.
• Attaches securely to MIL-STD-1913 and Glock-style Rails.
• Features laser calibration function for accurate sight.

INSTRUCTION

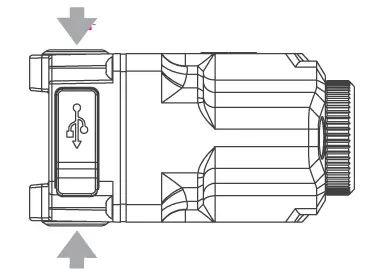

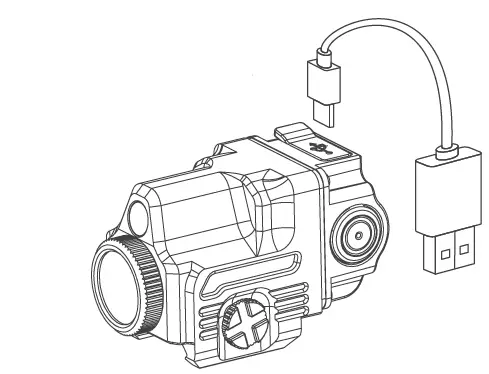

• Charge
  Charging time about 1h 15 min

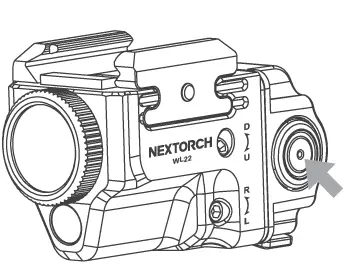

• ON / OFF
  Press the left or right side switch

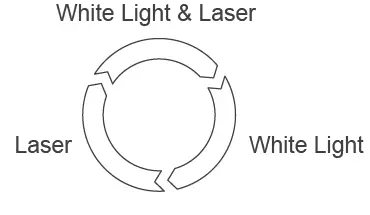

• Mode Switch
  Press the left and right switches at the same time when the light is on.

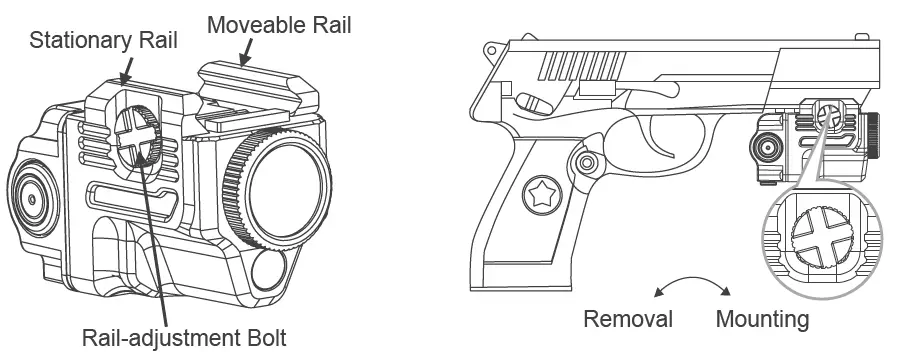

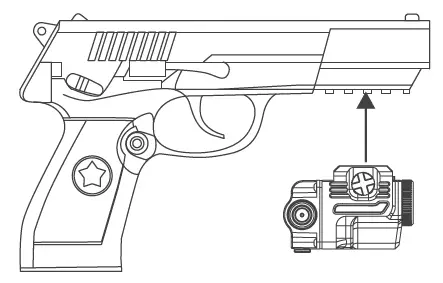

Mounting

1. Loosen Rail-Adjustment Bolt by hexagonal wrench or screwdriver.
2. Push the Rail-Adjustment Bolt forward to loosen the Moveable Rail.
3. Make the WL22 with the laser apertures facing in the direction of the muzzle of the weapon, and put it in the desired recoil groove of the rail.
4. Turn the Rail-Adjustment Bolt clockwise as tightly as fingers allow. Then use a screwdriver to tighten the screws.

WARNING

Confirm that weapon is unloaded and on safe prior to installation.

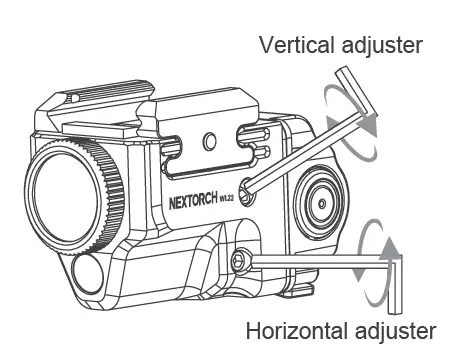

Laser Sight Zeroing
If you need to zeroing target, you must adjust the horizontal laser first to make the laser sight on the same vertical line with the target, then adjust the vertical laser to zeroing. Each 1/2 turn of the laser adjuster will move the laser point by 17 cm at 10 meters.

WARNING

Never look directly into the laser beam, use the laser sight only for its intended purpose.

MAINTENANCE

1. Being infected with seawater or any corrosive chemicals, please rinse immediately with clean water.
2. Please use high quality batteries; Remove batteries when not working for a long time, and then store in a cool dry place.
3. Replace waterproof O-ring immediately when considering of the damage with use.

WARRANTY

1. NEXTORCH warrants our products to be free from any defects in workmanship and/or materials for a period of 15-day from the date of purchase. We will replace it. NEXTORCH reserves the right to replace an obsolete product with a current production, like model.
2. NEXTORCH warrants our products to be free of defects for 5 years of use. We will repair it.
3. The warranty excludes other accessories, but rechargeable batteries are warranted for 1year from the date of purchase.
4.  In the event that any issue with a NEXTORCH product is not covered under this warranty, NEXTORCH can arrange to have the product repaired for a reasonable fee.
5. You could access to NEXTORCH website (www.nextorch.com) to gain warranty service information by scanning the following QR code. You could also: Email us at [email protected]
   Call us: 0086-400-8300-799 OR contact your local dealer/distributor

CONTACT WITH NEXTORCH DESIGNER

In order to improve NEXTORCH, we appreciate you could offer our designers your after-use feedback and creative suggestions by scanning the following QR code. Thank you!
