DO22 Control USB BT MIC Mixer
User Guide
Thanks for buying NewHank DO 22, this guide will take you to know how to use this product.
Product Introduction
This product is applied to the audio system field to realize the analog audio signal and Dante network audio signal conversion function. The power supply for this product must be provided by Ethernet (PoE) switch or router.
Product Feature
- Function Introduction: Convert the received Dante network audio signal to the analog audio signal output
- Input & Output: Support two Dante network audio signal access, two analog audio signal output
- Hardware interface type: Two XLRs are used to input analog audio signals
One RJ45 port connection switch is used to output Dante network audio signal
Technical Parameters
| Model No. | Newark DO 22 |
| Product Type | Audio signal adapter |
| Function | DANTE audio signal conversion to the analog audio signal |
| 3-pin XLR F/M | 2 |
| RJ45 Port | 1 |
| Analog audio interface | XLR |
| Dante Network audio interface | RJ45 |
| Sampling | 48kHz |
| Frequency response | 20Hz to 20kHz (-/+0.5dB) |
| Maximum signal level (balanced) | +18dBu / +4dBu / 0dBu |
| Dynamic range | > 100dB |
| SNR(Signal Noise Ratio) | > 100dB |
| THD (total harmonic distortion) | < 0.01%（+4dBu） |
| Power consumption | <1W |
| Operating temperature | 0-40℃ |
| Size (LxWxH) | 652mm x 32mm x 22mm |
| Weight | 0.2kg |

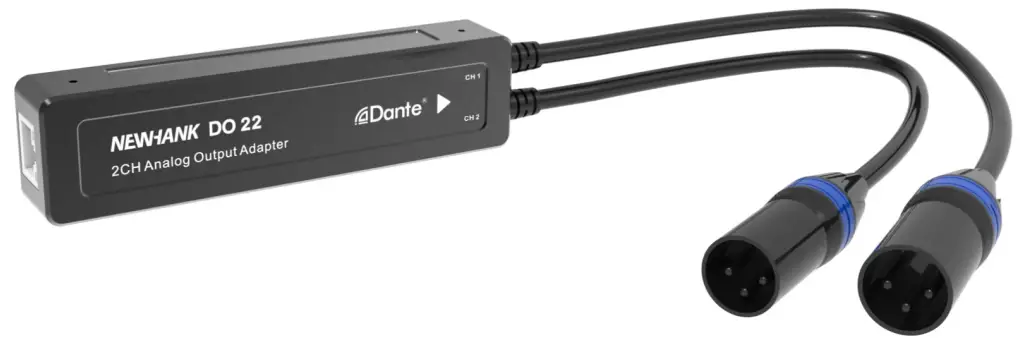

Product Overview
Product Connect
Follow the below steps to set up a Dante network for controlling.
- Download and install the Dante Controller from the Audinate website (www.audinate.com).
- Connect the device to the switch using the Dante network audio system with a network cable
- The analog audio transmission device is connected through the XLR interface

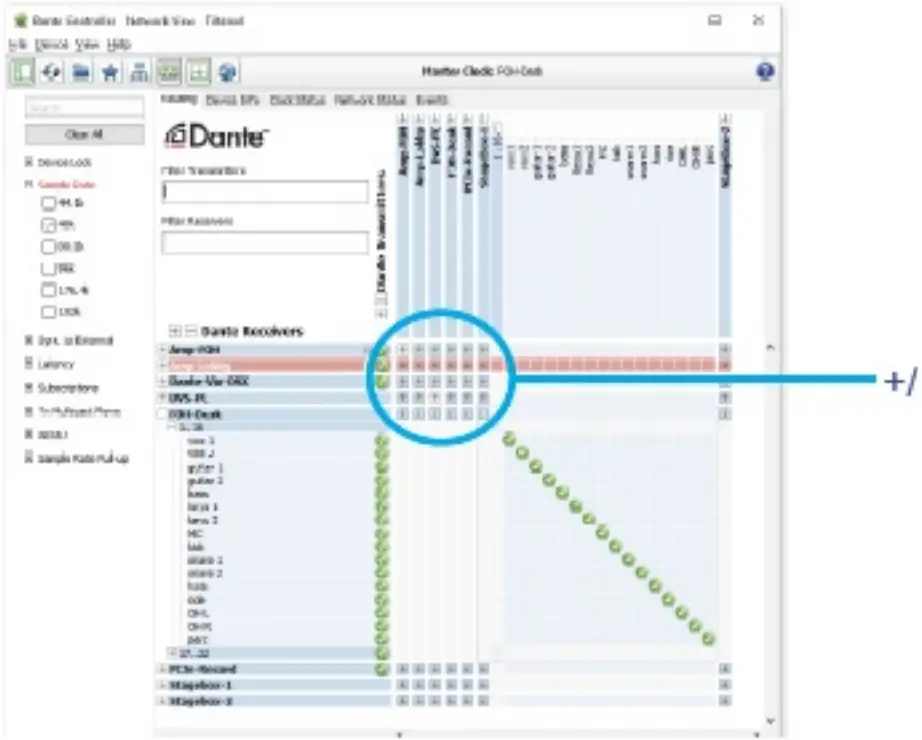

- Search for devices in Dante Controller software, and Select and open the devices to be configured, On the Routing page, match the input row with the output column with a custom check..
- Once set up and configured the audio routing between the audio devices, the audio device will remember and save the settings.
Packing List
| DO 22 | QC Card |
| 1 Piece | 1 Piece |
Notes
In order to ensure the reliable use of the equipment and the safety of personnel, please follow the below details when installing, using, and maintaining:
- Keep the working environment well-ventilated, so that the heat generated by the equipment can be discharged in time, so as not to damage the equipment due to high temperatures.
- Non-professionals without permission, do not dismantle the equipment without authorization, so as to avoid the risk of electric shock. Do not repair, so as not to increase the damage to the equipment.
- Do not spill any corrosive chemicals or liquids on or near the equipment.
Warranty Card
Date of production: ————————————
Model No.: ———————————————–
Serial No.: ————————————————
Audinate - Maker of Dante, Pro AV's Leading Networking Technology
