D652N, D652NL Chromebook Tab
User Guide
GETTING STARTED
Turn on your Chromebook
On the Chromebook, press the power button. A “Welcome” screen will appear when the Chromebook first boots up.
Select your language settings
Use the “Language” drop-down list to choose your default language setting. If there is more than one way to type in your language, you may be prompted to select a keyboard input method as well.
Connect to a network
Select a network from the “Connect to network” list to connect to the Internet. If network access is protected, you will need an access password to connect to it.
Accept the Terms of Service
Once connected to a network, accept the Terms of Service. Your Chromebook will then download any available system updates, so you automatically get the latest Chrome OS features.
First-time sign-in
Create a new Google Account
You can create a new Google Account if you don’t already have one.
Select Create a Google Account to set up a new account. A Google Account gives you access to useful web services developed by Google, such as Gmail, Google Drive, and Google Calendar.
Browse as a guest
You can also use the Chromebook without a Google Account by selecting Browse as a Guest.
YOUR ACER CHROMEBOOK TOUR

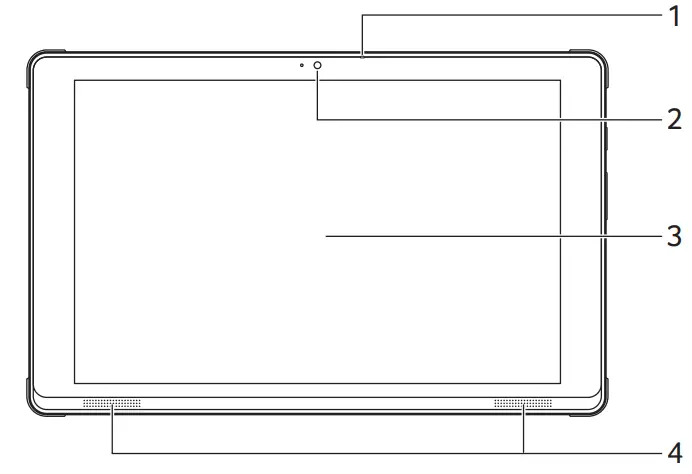

Front view
| # | Item | Description |
| 1 | Microphone | Internal microphone for sound recording. |
| 2 | Webcam | Web camera for video communication. A light next to the webcam indicates that the webcam is active. |
| 3 | Touchscreen | Displays computer output, supports multi-touch input. |
| 4 | Speakers | Deliver stereo audio output. |

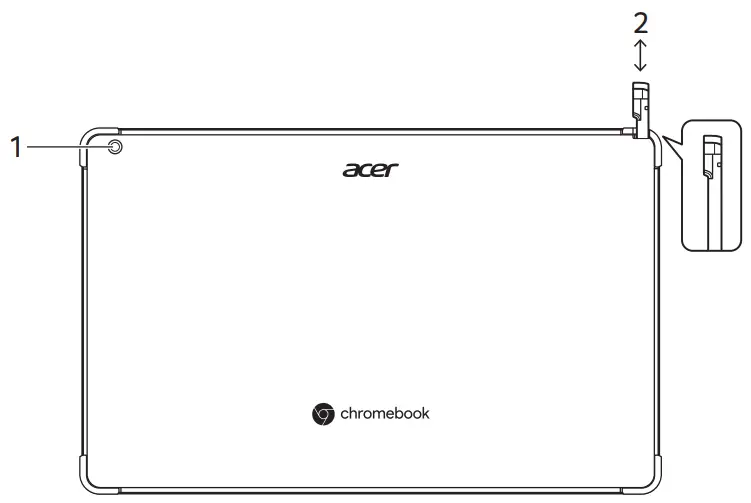

Rear view
| # | Item | Description |
| 1 | Rear camera | Camera for video communication or taking photos. |
| 2 | Stylus pen | Remove the pen from the slot and perform touch actions on the screen. |

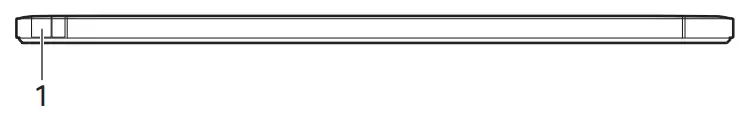

Top view
| # | Item | Description |
| 1 | Stylus slot | Holds the stylus pen. |
Bottom view
| # | Item | Description |
| 1 | Keyboard connector | Connects to the keyboard. |

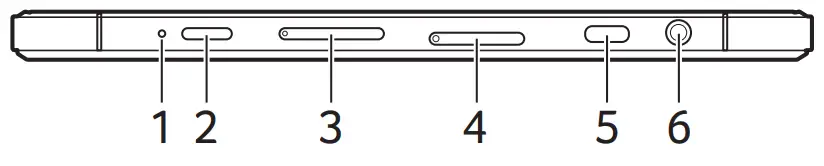

Right view
| # | Item | Description |
| 1 | Battery indicator | Indicates the computer’s battery status. Charging: The light shows amber when the battery is charging. Fully charged: The light shows blue when in AC mode. |
| 2 | Power button | Turns the computer on and off. |
| 3 | Volume control key | Adjusts the system volume. |
|

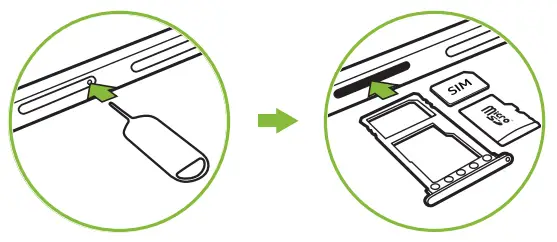

4 | SIM card slot and microSD card slot (optional) | Accepts a Nano SIM card and a microSD card. Function varies depending on configuration. |
Note: The SIM ejection tool diagram is for reference only, actual product accessories may vary by specifications. | ||
| 5 | USB Type-C port with DC-in | Connects to the provided USB Type-C power adapter and to USB devices with a USB Type-C connector. Supports DisplayPort™ over USB-C™. |
| 6 | Headset/speaker jack | Connects to audio devices (e.g., speakers, headphones), or a headset with microphone. |
USB Type-C information
- Supports DisplayPort™ audio/video output.
- Delivers up to 3 A at 5 V DC for USB charging.
- DC-in: requires power adapter or power source providing 45 W at 5~20 V.
For optimal performance, please use a certified Acer power adapter or USB Power Delivery device.
Keyboard view (optional)
| # | Item | Description |
| 1 | Clasps | For securing the computer into place. |
| 2 | Keyboard connector | Connects to the computer. |
| 3 | Keyboard | For entering data into your computer. |
| 4 | Touchpad / click button | Touch-sensitive pointing device which functions like a computer mouse. Pressing down anywhere on the pad functions like the left button of a mouse. Pressing down anywhere with two fingers functions like the right button of a mouse. |
Function keys
The Chromebook uses function keys or key combinations to access some hardware and software controls, such as screen brightness and volume. The dedicated function keys each have a specific function.
| Icon | Function | Description |
 | Previous | Go to the previous page. |
 | Next | Go to the next page. |
 | Reload | Reload the current page. |
 | Full-screen | Open the page in full-screen mode. |
 | Next window | Switch to the next window. |
 | Brightness down | Decreases the screen brightness. |
| Brightness up | Increases the screen brightness. |
 | Mute | Turns off audio output. |
 | Volume down | Decreases the volume. |
 | Volume up | Increases the volume. |
 | Search | Search from the Apps panel. |
Common keyboard shortcuts
You can use shortcuts to complete some tasks more quickly.
| Keyboard shortcuts | Description |
| Ctrl + | Takes screenshot. |
| Alt + | Toggles caps lock. |
| Alt + | Projects your screen. |
Touchpad
The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your fingers across the surface of the touchpad.Action Gesture Click Press down on any part of the touchpad. Two-finger tap (or alt-click) Tapping the touchpad with two fingers or pressing (and holding) Alt on the keyboard and tapping the touchpad with one finger both equal a “right-click” on a computer mouse. Two-finger swipe Place two fingers on the touchpad and move them up and down to scroll vertically, left and right to scroll horizontally. Drag and drop Select the item you want to move with one finger.
With a second finger, move the item. Release both fingers to drop the item. (This gesture works for files, not windows or icons.)

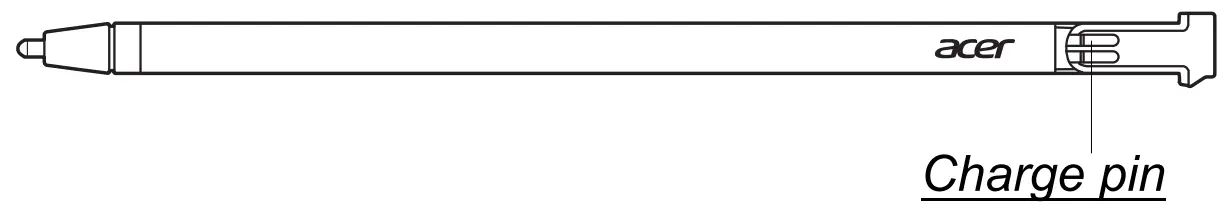

RECHARGEABLE ACTIVE STYLUS
Charge pin
Insert the stylus into the slot completely to start charging.
15 minutes charging: provide 4 hours of usage.
- If you feel that the function is unstable, please insert the stylus into the slot to charge it.
- The pen will enter power-saving mode.
Idle: After 2 minutes, move the tip over the touchscreen to wake the pen.
Note
Function may differ depending on apps
FREQUENTLY ASKED QUESTIONS
Question / Answer
– Chromebooks use apps from the Google Play Store and on the web. There are apps to be productive, get creative, enjoy movies and shows, play games and more.
– You can get more apps from the Google Play Store
or the web.
– Chromebooks work with Microsoft Office.® Whether it’s Word, Excel® or PowerPoint , you can easily find the apps on the web.
– All your files are stored in the Files app
.
– Find the app by clicking the Launcher icon
and searching “Files”.
– Transfer your local files using a compatible storage device. Your Chromebook works with most external storage devices (e.g.: USB thumb drives, removable hard drives).
– You can also upload your files, photos, and videos to Google Drive. After setting up your Chromebook with your Google Account, you’ll be able to access your files on Drive.
– You’ll use your Google Account to sign in to your Chromebook. It is the same account you use for Google services such as Gmail and Drive. Your Chromebook uses your account information to automatically sign you into apps and services.
– If you want to set up parental controls for your child, it’s important that you sign in using your child’s personal Google Account. If they don’t already have one, you can create one during the sign-in process on your Chromebook. You will be able to add your child’s school account after you complete device onboarding.
Get help or more information
| For information on: | Refer to: |
| Chromebook Help | Open the Explore app on your Chromebook. |
| Chrome OS | google.com/support/chromebook/ |
© 2022. All Rights Reserved. Acer Chromebook Tab 510 Covers: D652N / D652NL This revision: February 2022
Important
This manual contains proprietary information that is protected by copyright laws. The information contained in this manual is subject to change without notice. Images provided herein are for reference only and may contain information or features that do not apply to your computer. Acer Group shall not be liable for technical or editorial errors or omissions contained in this manual.
Register your Acer product
Go to www.acer.com/register-product, and sign in or sign up your Acer ID to register your product.
Once it is done, you can review it under “My Products” page.
Model number: ______________
Serial number: _______________
Date of purchase: ____________
Place of purchase: ____________
