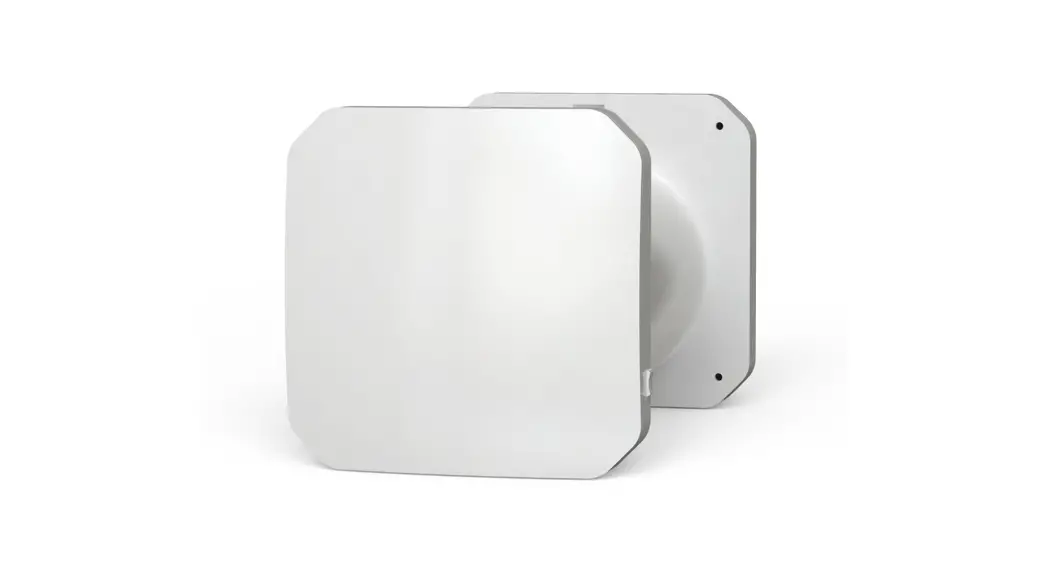

REC Duo 100 Decentralized Heat Recovery Unit
Product Information
The REC Duo 100 is a decentralized heat recovery unit with
double flow and heat recovery. It can be installed in a single room
or two separate rooms, and complies with ErP Directive 2009/125/CE
and EU Regulation 1253/2014 Classification: Residential Ventilation
Unit. The unit has an energy class A (with humidity sensor) and
comes with an external grille with a net that can be installed from
the inside. It also has a telescopic duct and wireless technology
(REC duo 100 PLUS RC) for easy installation. The REC Duo 100
provides a drastic solution to humidity and condensation problems
and is ideal for use in noble rooms such as bedrooms and living
rooms.
Features:
- Push-pull HRU with reverse flow
- Ceramic heat exchanger that accumulates heat from extracted air
during pull cycle and releases it to new fresh air during push
cycle - 24-hour running in push-pull modality at low speed (selectable
between 2 at installation) - Switches to extraction operation modality when speed boost is
activated through remote control switch or RLS controller - Maximum speed provided with a timer (adjustable from 0 to 30
minutes) - Overrun via timer, the fan automatically switches back to the
push-pull operation modality at low speed
Installation Examples:
The REC Duo 100 can be installed in a single room or two
separate rooms as shown in the following examples:
Coupled installation in a single room:
This involves wireless communication between the master and
slave units. The REC Duo 100 PLUS RC is supplied with a remote
controller to select the speed and activate various operation
modalities.
Coupled installation in two separate rooms:
This involves wireless communication between the master and
slave units. The REC Duo 100 PLUS RC is supplied with a remote
controller to select the speed and activate various operation
modalities.
Principle of Operation:
The REC Duo 100 is a push-pull HRU with reverse flow. During the
pull cycle, it extracts air from the room and accumulates heat in
the ceramic heat exchanger. During the push cycle, it releases the
accumulated heat to the new fresh air coming into the room. This
ensures efficient heat recovery and prevents the formation of mold
on walls caused by insufficient natural ventilation.
Performance:
The REC Duo 100 has a duct size of 107 mm and produces a noise
level of Lp(A) measured at 3 m in open field 230V-50Hz.
Product Usage Instructions:
- Select the installation location based on the installation
examples provided in the user manual. - Install the external grille with net from the inside of the
room. - Install the telescopic duct for easy installation.
- Select the speed mode (low speed or high speed) at
installation. - Activate the speed boost through the remote control switch or
RLS controller to switch to extraction operation modality. - Adjust the maximum speed timer as required.
uo
100
Decentralized Heat Recovery Unit Double flow with heat recovery
Coupled installation in a single room or 2 separate rooms
Comply with ErP Directive 2009/125/CE and EU Regulation 1253/2014 Classification: Residential Ventilation Unit.
Energy class A
(with humidity sensor)
Thermal efficiency up to 90% Ø100 Easy Installation and maintenance: – Magnetic coupling/uncoupling
of the unit – External grille with net, installable from
the inside – Telescopic duct Wireless technology (REC duo 100 PLUS RC) Drastic solution to humidity and condensation problems
DESCRIPTION
· Very high efficiency decentralized HRU with heat recovery up to 90%. · Ideal for residential applications and in any environment where it is necessary to
ensure a constant thermal comfort both in summer and in winter. · Suitable for any kind of room. · A coupled installation is recommended to optimize the system’s efficiency, in a
single room or in separate rooms. · Direct exhaust through walls with thickness from 300 to 500 mm (adaptable to
other wall thicknesses from 220 to 1000 mm: see section Dimensions). · Suitable for conveying air to a max. temperature of 40°C.
FEATURES
· Stylish and ultra-slim front cover. Very compact dimensions. · High efficiency ceramic heat exchanger. · Provided with G3-class filters both in intake and in extract, easily removable and
washable. · Free-cooling function. · EC brushless motor. · Complies with EN 60335-2-80, LVD 2014/35/EU, EMC 2014/30/EU. · IPX4 · CE marked
INSTALLATION EXAMPLES
Ideal in noble rooms such as bedrooms and living rooms. Maximum benefit with coupled installation.
Bedroom
PRINCIPLE OF OPERATION
REC duo 100 is a “push-pull” HRU with reverse flow. It is provided with a ceramic heat exchanger that accumulates the heat from the extracted air during the “pull” cycle and releases it to the new fresh air during the “push” cycle.
INSIDE
OUTSIDE INSIDE
OUTSIDE
60 REVERSE FLOW
SECONDS
Living room
Coupled installation in 2 separate rooms
OPERATING SCHEME
REC DUO 100 PLUS RC
MASTER
Coupled installation in a single room
Wireless communication
BEFORE
AFTER
Heat Recovery ventilation systems effectively contribute to preventing the mould forming on the walls when this is caused by insufficient natural ventilation.
SLAVE
As far as 6 appliances
SLAVE
SLAVE
MODELS AND OPERATION
REC DUO 100 Cod. 2RC1100
24 hours running in push-pull modality at low speed (selectable between 2 at installation). The unit switches to the extraction operation modality when speed boost is activated through remote control switch or RLS controller (available as accessory). The maximum speed is provided with a timer (adjustable from 0 to 30 minutes). Once concluded the overrun via timer, the fan automatically switches back to the push-pull operation modality at low speed.
REC DUO 100 MHY
Cod. 2RC1200
24 hours running in push-pull modality at low speed (adjustable by the end-user). Boost speed is available in push-pull modality and turns on automatically via humidistat (adjustable from 40 to 90% of R.H) and increases/decreases progressively according to the detected humidity level. In case of a persistent and high concentration of humidity, the unit automatically switches to the extraction operation modality. It then switches back to the push-pull operation modality at low speed when the humidity level goes below the pre-selected threshold. The unit is supplied with a remote controller for the selection and activation of advanced comfort ventilation functions.
RLS Cod. 2RV4158
Available upon request as accessory for REC DUO 100 and REC DUO 100 MHY
– On-Off – Boost speed
RC
REC DUO 100 PLUS RC Cod. 2RC1300
REC DUO 100 PLUS RC is supplied with a remote controller, to select the speed and activate the following operation modalities:
24 hours running in push-pull modality at low speed (selectable between 2 at installation). The unit switches to the extraction operation modality when speed boost is activated, manually or automatically: Manually via control switch or RLS controller (available as accessory). The maximum speed is provided with a timer (adjustable from 0 to 30 minutes). Once concluded the overrun via timer, the fan automatically switches back to the push-pull operation modality at low speed. Automatically via humidistat (adjustable from 40 to 90% of R.H). The fan speed increases/decreases according to the humidity level detected above the pre-selected threshold. It then switches back to the push-pull operation modality at low speed when the humidity level goes beneath the pre-selected threshold.
0 On/off
1 – Push-pull operation modality 24 hours reverse flow running at the selected speed
2 – Speed 1 Low speed set up
3 – Speed 2 Low speed set up
4 – Boost speed with timer (extraction mode only)
5 – Sleep mode the operation at low speed is frozen for 8 hours to ensure high acoustic comfort during the night. The function can be unblocked at any time by pressing any button (except button 0).
6 – Flow control operation in intake or extract mode only. Press once: extraction mode. Press twice: intake mode
7 – Free-cooling mode: air exchange without heat recovery. No reverse flow. Press once: the reverse flow stops and the fans go on running at the current flow. Press twice: all fans reverse their flow and go on running at the new selected flow.
Led signal: any time a button is pressed, a led switches on the remote controller to indicate that the signal has been received.
PERFORMANCE
CODE
MODEL
DUCT
Ø (mm)
2RC1100 REC Duo 100
107
2RC1200 REC Duo 100 MHY
107
2RC1300 REC Duo 100 PLUS RC
107
*Lp(A) measured at 3 m in open field 230V-50Hz
WALL THICKNESS
min-max (mm) 300 – 500 300 – 500 300 – 500
AIRFLOW min / max / only exhaust
m3/h 12 / 30 / 40 12 / 30 / 40 12 / 30 / 40
l/s 3,3 / 8,3 / 11 3,3 / 8,3 / 11 3,3 / 8,3 / 11
W min / max / only exhaust
1 / 2,8 / 3,5 1 / 2,8 / 3,5 1 / 2,8 / 3,5
dB (A)*
Lp 15 / 29 15 / 29 15 / 29
160 Ø 98 Ø 107 Ø 170
DIMENSIONS (mm)
External grille installable from the inside
160 38 13
300 – 500 220 – 1.000 ( I )
14,50
(I) For walls with thickness > 500 mm: It is necessary to use the telescopic duct available as accessory Cod. 2KT0014
For wall thickness between 220 and 300 mm: it is necessary to cut the duct and to use the external grille MFE, available as accessory Cod. 2GE2002
