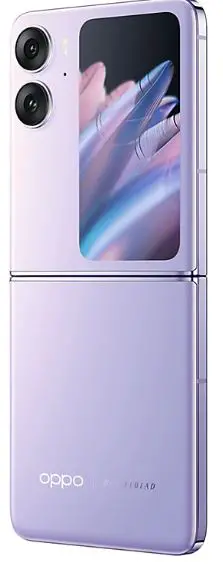

oppo CPH2437 N2 Flip 5G Dual SIM Smartphone
Product Information
The OPPO Mobile phone is a feature-rich device that offers various functions and capabilities. It has a front camera, rearcamera, NFC support, a secondary screen, and multiple sensors such as light sensors. The phone also comes with standard accessories including a USB data cable, safety guide, quick guide, SIM ejector tool, protective case, and wipes.
Here are some key specifications of the phone:
- Main screen: 17.27cm (6.8″)
- Second screen: 8.28cm (3.26″)
- Main battery: DC3.89V 2685mAh/10.44Wh (Min), DC3.89V 2740mAh/10.65Wh (Typ)
- Second battery: DC3.89V 1735mAh/6.74Wh (Min), DC3.89V 1780mAh/6.92Wh (Typ)
- Rear camera: 50 Megapixels + 8 Megapixels
- Front camera: 32 Megapixels
The phone complies with CE SAR values for radiation safety.
Product Usage Instructions
To reboot the phone, follow these steps:
- Press and hold the Power Button and Volume Up Button simultaneously.
- Continue holding both buttons until the OPPO boot animation is displayed on the screen.
- The phone will then reboot.
If you are migrating from an iPhone, you can use the Clone Phone feature to transfer your data. Here’s how:
- On your new OPPO phone, run the Clone Phone app.
- Follow the onscreen instructions to initiate the migration process.
- Select the option to migrate data from your iCloud account.
For more detailed information about the phone and its functions, you can visit the official OPPO website here.
Greetings from OPPO Mobile
This guide will show you how to use the phone and its important functions. You may also visit OPPO’s offcial website to get more information about the phone.

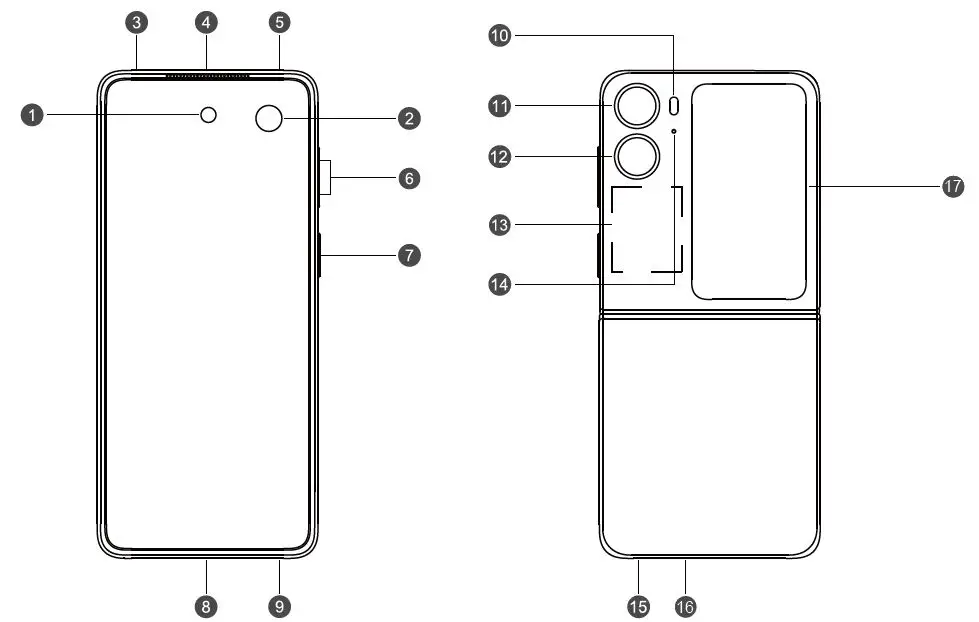

- Front Camera
- light Sensor
- Upper Speaker
- Receiver
- Sub MIC
- Volume Key
- Power Key & Screen Lock Key
- USB & Earphone Jack
- Lower Speaker
- Flash
- Sub camera
- Rear camera
- NFC
- Secondary screen light Sensor
- SIM card tray
- Main MIC
- Secondary screen display area
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
How to Transfer Old Mobile Content to a New Mobile
You can use OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan the QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
https://i.clonephone.coloros.com/download. - If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
Standard accessories
You are provided with the following standard accessories: 1 Phone, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool, 1 Protective Case, 1 Wipes.
Specification
| Product | CPH2437 | |
| Main screen parameter | Main screen: 17.27cm(6.8”) Second screen: 8.28cm(3.26”) | |
| Dimension | Fold: 85.5×75.2×16.02 Expansion: 166.2×75.2×7.45(mm) | |
| Battery | Main battery: DC3.89V 2685mAh/10.44Wh(Min) DC3.89V 2740mAh/10.65Wh(Typ) Second battery: DC3.89V 1735mAh/6.74Wh(Min) DC3.89V 1780mAh/6.92Wh(Typ) | |
| Camera | 50Megapixels+8Megapixels Rear 32Megapixels Front | |
| Operating temperature | 0°C-35°C | |
| SAR Values | CE SAR | <2.0W/kg(Head) <2.0W/kg(Body) |
Radio Waves Specifications
| Radio | Frequency | Max. Output Power |
| GSM | 850MHz | 34dBm |
| 900MHz | 34dBm | |
| 1800MHz | 30dBm | |
| 1900MHz | 30dBm | |
| WCDMA | Bands 1 | 24.5dBm |
| Bands 5/6/8/19 | 25dBm | |
| Bands 2/4 | 24dBm | |
| LTE FDD | Bands 1/3 | 24.5dBm |
| Bands 2/4 | 23.5dBm | |
| Bands 5/8/12/13/17/18/19/20/26/28 | 25dBm | |
| Band 7/25/66 | 24dBm | |
| Bands 38/39/40/41 | 24.5dBm | |
|
5G NR | Bands n1/n5/n77 | 24.7dBm |
| Bands n2/n25/n66/n38/n40 | 24.2dBm | |
| Band n3 | 24.4dBm | |
| Band n7 | 23.7dBm | |
| Bands n8/n12/n20 | 25dBm | |
| Bands n28/n41/n79 | 25.2dBm | |
| Band n78 | 26.2dBm | |
| Bluetooth | 2.4-2.4835GHz | 15.6dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 19.5dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.25GHz | 18.5dBm(EIRP) |
| 5.25-5.35GHz; 5.47-5.725GHz | 17.5dBm(EIRP) | |
| 5.725-5.85GHz | 13.6dBm(EIRP) | |
| NFC | 13.56MHz | 42dBµA/m @10m |
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. Some content may differ from your device depending on the region, service provider, or software
version, and is subject to change without prior notice.
Copyright © Guangdong OPPO Mobile Telecommunications Corp., Ltd. 2022. All rights reserved.
i.clonephone.coloros.com/download
