DAE AS200U-75P
3/4” Water Meter with Pulse Output, Measuring in Gallon + Couplings
[Specification]
| Model | AS200U-75P |
| Type | 5/8″*3/4″ Water Meter with Pulse Output, Measuring in Gallon + 3/4″ NPT Couplings |
| Couplings | Included |
| Pulse Output | 1 pulse per 1 gallon |
| Unit | Totalizer Measuring in Gallon, GPM |
| Accuracy | +/1.5% within normal flow as per AWWA Standard |
| Certification | AWWA C712 and ISO4064. |
| Max Water Temperature | 104˚F (40˚C) |
| Max. Working Pressure | 150 psi, the requirement from AWWA standard |
| Meter Body | Bronze |
| Size | Length without couplings: 5.12 inches Length with couplings: 9.31 inches Item dimension: 5.12″ length, 3.4″ wide, 3″ height |
| Weight | 4 lbs. |
| Flow Rate | Maximum Flow Rate: 20 GPM Normal Flow Rate: 10 GPM Minimum Flow Rate: 0.25 GPM |
| Pressure Drop | at 5 GPM: 0.638 psi at 10 GPM: 2.15 psi |
| Mount | Horizontal Inline mount with dial facing upward |
[Feature]

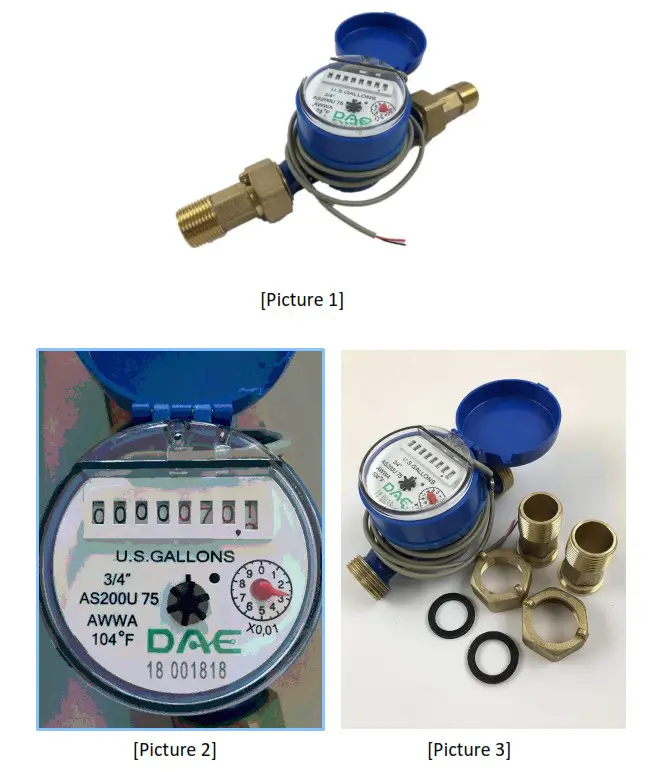

- 8 digits register counter. The last digit is one tenth gallons (*0.1 gallons). The dial is one hundredth gallons (*0.01 gallons). The reading in 2nd picture of the listing is 70.13 gallons.
- The register head can be freely rotated for convenient viewing
- The DAE meters have been tested by our QC inspectors in the production line to certify their quality. Therefore, the reading will not be zero.
- DAE AS series is single jet water meter with bore size 0.57 inch.
- Factory calibration certificates available for government contracts.
- 2 years warranty from the seller.
- For the water meter to be installed vertically with water flowing upward, please refer to V-75, V-75P, PVM-75, PVM-75P, or VM-75P.
- DAE AS series water meters are not NSF61 certified. It is DAE MJ series water meters which are NSF 61 certified. California, Vermont, Maryland, and Louisiana state laws require that all the water meters used their states be NSF61 certified.
[Remote Reading Solutions]

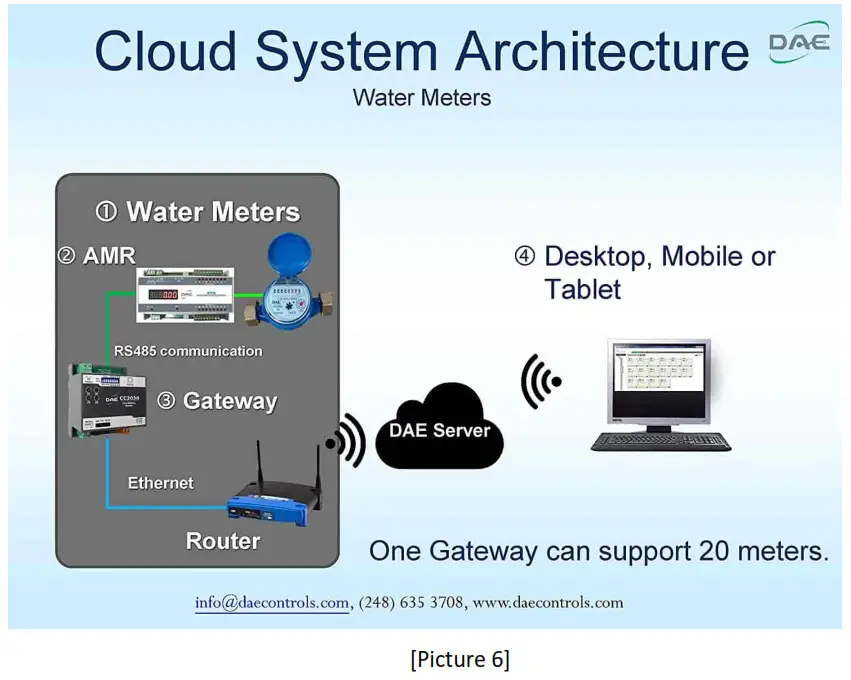

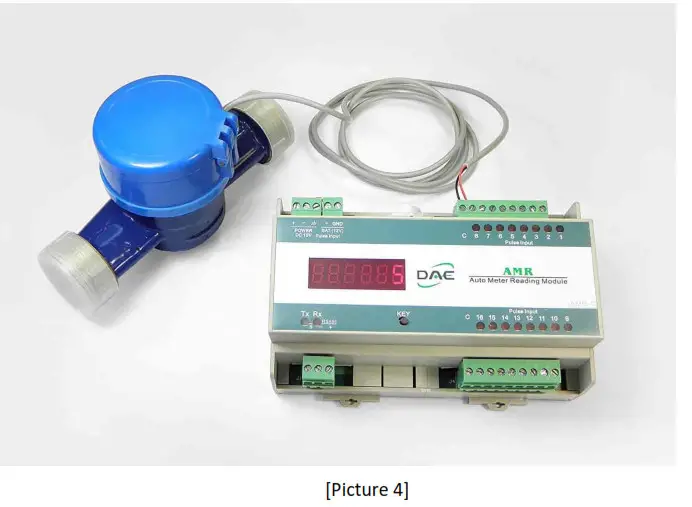

- Refer to 6th picture, available for cloud metering system with CC2030 Gateway. DAE CC2030 Gateway will get the water consumptions from (Auto Meter Reading Module for single water meter) or AMR (Auto Meter Reading Module for 16 water meters) and send them to the cloud (DAE server) through Ethernet. With PC or cell phone or tablet, the building owners or property managers will therefore be able to get access to real time data as well as the monthly water consumption and billing reports to their tenants.
- Only two-wire connection between water meter and AMR or AMR130. It is not required for additional power source.

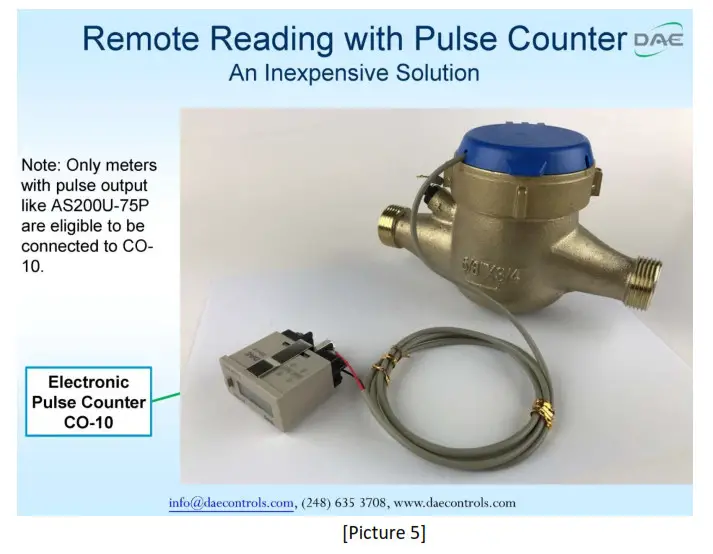

- Available to use with CO-10 KIT or CO-10 Electronic Pulse Counter – An inexpensive remote reading solution Please refer to 5th picture.

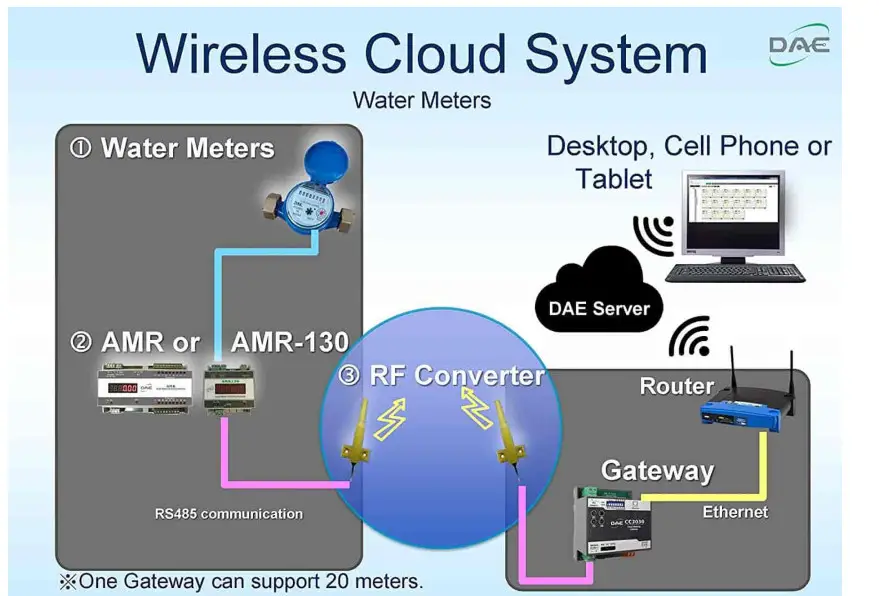

- Available for wireless remote reading with DAE RF converters. Please refer to 7th picture.
[email protected]
248-635-3708
