Samsung Nz30a3060uk 30 Inch Smart Induction Cooktop With Wi-fi In Black User Guide

30 Inch Smart Induction Cooktop with Wi-Fi in Black
User Guide

Product Overview

NZ30A3060UK – 30″ Smart Induction Cooktop with Wi-Fi in Black
Product Title
Smart Induction ooktop with i- i in lack
Product Short Description (200 characters)
This powerful, smart, energy-efficient induction cooktop offers fast performance and innovative technology that gives you peace of mind in the kitchen. Save energy and time with induction technology.
Product Long Description (220 characters)
This powerful, smart, energy-efficient induction cooktop offers fast performance and innovative technology that gives you peace of mind in the kitchen. Save energy, time, and cook worry-free with induction technology.

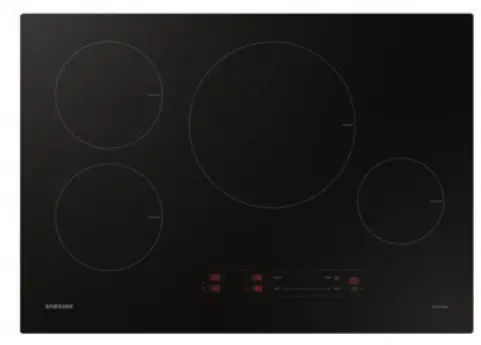

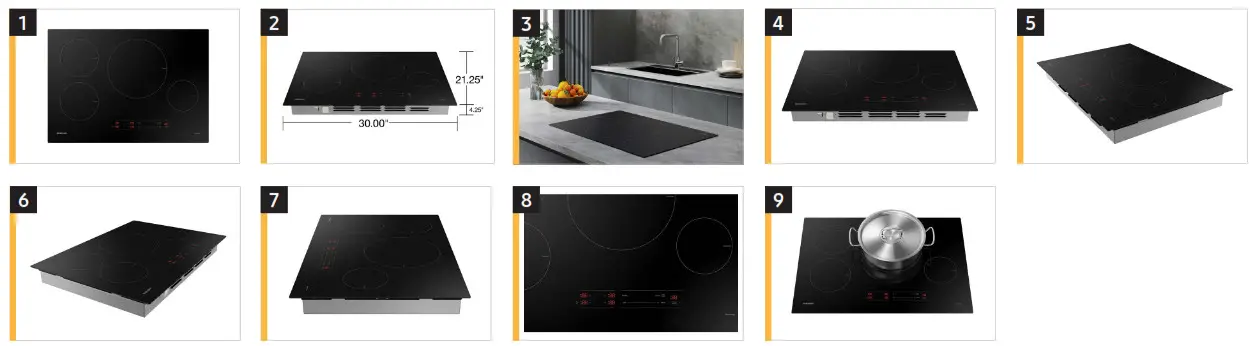

Carousel Image Order

Easy Ad Links: NZ30A3060UK
R.COM https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=NZ30A3060UK%2ORCOM
S.COM https://dam.gettyimages.com/p/z0c3461/external?o=AND&qrNZ30A3060UK0/020SCOM

Product Messaging

NZ30A3060UK – 30″ Smart Induction Cooktop with Wi-Fi in Black

Overall Product Headline	Feature Name	Long Body Copy	Short Body Copy	Associated Image
Precise Temperature Control	Induction Technology	The induction burner features precise temperature control and immediately goes down to a higher or lower temperature setting. No more spills due to over-boiling, means less time cleaning the cooktop.	No more spills due to over-boiling, means less time cleaning the  ooktop.
Give All Your Burners A Boost	Fast, Powerful Performance	All 4 burners on this cooktop feature Power Boost mode, which boils water fast when you don’t have time to prepare meals.	All 4 burners on this cooktop feature Power Boost mode, which boils water fast.

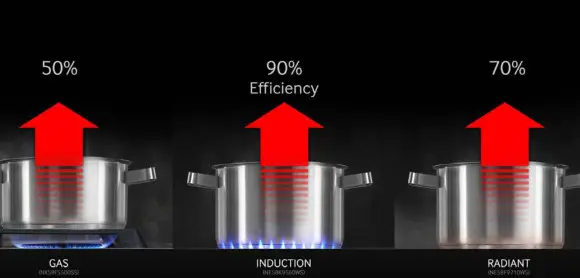

Save Time And Conserve Energy	Energy Efficient	Samsung’s innovative induction technology generates heat directly through cookware leaving your cooktop cool to the touch. Pots and pans are heated quickly and consistently without wasting energy.	Generates heat directly through the cookware leaving your cooktop cool to the touch. Pots and pans are heated quickly and consistently without wasting energy.

Overall Product Headline	Feature Name	Long Body Copy	Short Body Copy	Associated Image
Make Cooking Simple With Smart Technology	Wi-Fi	Monitor your cooktop from anywhere with your smartphone.* *Available on Android or iOS devices. A Wi-Fi connection is required.	Monitor your cooktop from anywhere with your smartphone. *Available on Android or iOS devices. A Wi-Fi connection is required.
Easy to Use and Clean	Digital Touch Controls	The glass cooktop surface with digital glass touch controls features an intuitive design that is easy to keep clean.	The glass cooktop surface with digital glass touch controls that is easy to keep clean.
Helping To Keep Little Chefs Safe	Child Safety Lock	Have peace of mind whether in or out of the house. Lock your cooktop by one touch of a button at home or anywhere using the SmartThings App on your smartphone.* GPS-based automation included, which effortlessly locks or unlocks your cooktop when leaving or returning.** *Available on Android and iOS devices. A Wi-Fi connection is required. GPS-based automation only available when the cooktop is not in use; requires a stable Wi-Fi connection and must be activated using the SmartThings App. **Only available when activated by the user. The quality of the GPS reception may affect performance or activation if Wi-Fi connection is unstable.	Have peace of mind whether in or out of the house using the SmartThings App on your smartphone.* *Available on Android and iOS devices. A Wi-Fi connection is required. GPS-based automation only available when the cooktop is not in use; requires a stable Wi-Fi connection and must be activated using the SmartThings App.

Lifestyle Images

Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=NZ30A3060UK%20Lifestyle%20Images

2021 ENERGY STAR® 2021 ENERGY STAR® Emerging Technology Award Assets
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=NZ30A3060UK%20Awards

Lifestyle Asset – se for marketing use on web pages, web banners, e-blasts, etc.	Product Asset – se with Item isting / rice.

NOTE: These approved assets need to be used as is, they cannot be manipulated or changed as per EPA guidelines. Usage expires 12/31/2022. The assets need to be shared with Samsung for approval of use. Anyone who wishes to use should share how and where it’s being used with Bonnie Murray (b.murray9samsung.com) for approval.

Fact Tag Guidance

Please follow one of the below naming conventions for fact tags at retail, accounting for any potential character count limitations. Please also ensure that any feature list appearing on fact tags follows the Product Messaging hierarchy and copy noted in the Product Guide for each model.
NZ30A3060UK
Long (More than 40 Characters)30″ Smart Induction Cooktop with Wi-Fi in Black (47 characters)
Medium (40 Characters or less)
30″ Smart Induction Cooktop with Wi-Fi (38 characters)
Short (30 Characters or less)
30″ Smart Induction Cooktop (27 characters)

2021 Meyer Promo Materials 8/26/2021-3/2/2022
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=Induction%20Cooktop%20Meyer%20Promo

Product Specs
NZ30A3060UK – 30″ Smart Induction Cooktop with Wi-Fi in Black
Related Products

Spec Sheet
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=NZ30A3060UK%20Spec%20Sheet
NZ30A3060UK
30″ Induction Cooktop with Wi-Fi

Signature Features

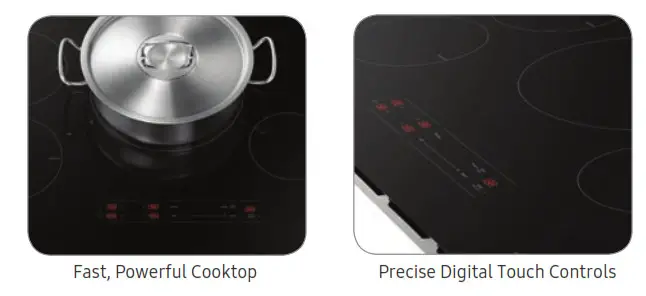

Precise Digital Touch Controls

• Digital touch controls accurately control your heating and provide an easy-to-clean surface.

Fast, Powerful Cooktop

• This powerful, energy-efficient induction cooktop offers fast performance and smart technology.
• All 4-burners on this cooktop feature Power Boost mode that boils water faster when you don’t have much time to prepare meals.

Wi-Fi Connectivity

• Monitor your cooktop from wherever you are withyour smartphone.* * Available on Android or iOS devices. A Wi-Fi connection is required. Bixby is Samsung’s brand of artificial intelligence (AI) Internet of Things (iOT) voice assistant.

Available Color
Black
Features

• Precise, Digital Touch Controls
• Fast, Powerful Cooktop:
  – 4-Element Cooktop
  – Left Front: 7″, 1.8 kW (Boost – 2.3 kW)
  – Right Front: 6″, 1.2 kW (Boost – 1.5 kW) – Left Rear: 7″, 1.8 kW (Boost – 2.3 kW)
  – Center: 11″, 2.3 kW (Boost – 3.8 kW)
• Wi-Fi Connectivity
• Pan Presence & Size Sensor
• ADA Compliant
• Simmer
• 7.1 kW Total Power

NZ30A3060UK
30″ Induction Cooktop with Wi-Fi
Installation Requirements
Countertop cutout and minimum clearance dimensions:

Total Power
7.1 kW
Power Source
240 V /60 Hz / 30A

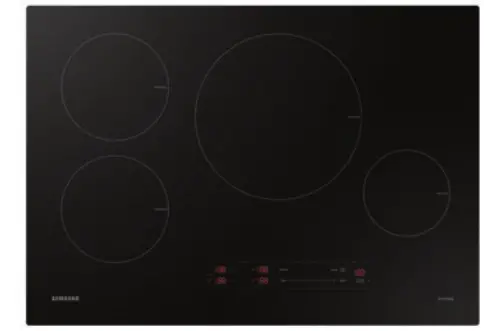

Ceramic Glass Cooktop

• Left Front: 7″, 1.8 kW (Boost – 2.3 kW)
• Right Front: 6″, 1.2 kW (Boost – 1.5 kW)
• Left Rear: 7″, 1.8 kW (Boost – 2.3 kW)
• Center: 11″, 2.3 kW (Boost – 3.8 kW)

Warranty
One (1) Year Parts and Labor
Five (5) Years Glass Cooktop Part and Heater Coil (Parts Only

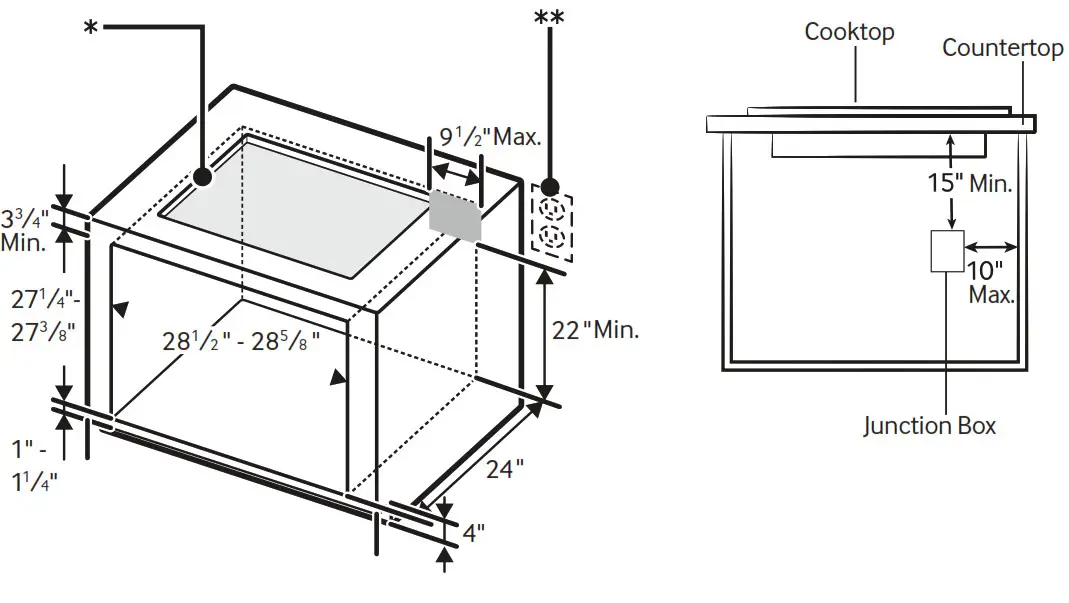

Installing Over a Single Oven

* See built-in oven manual for complete installation instructions. See label on top of approved built-in oven models.
** Refer to installation manual of oven.

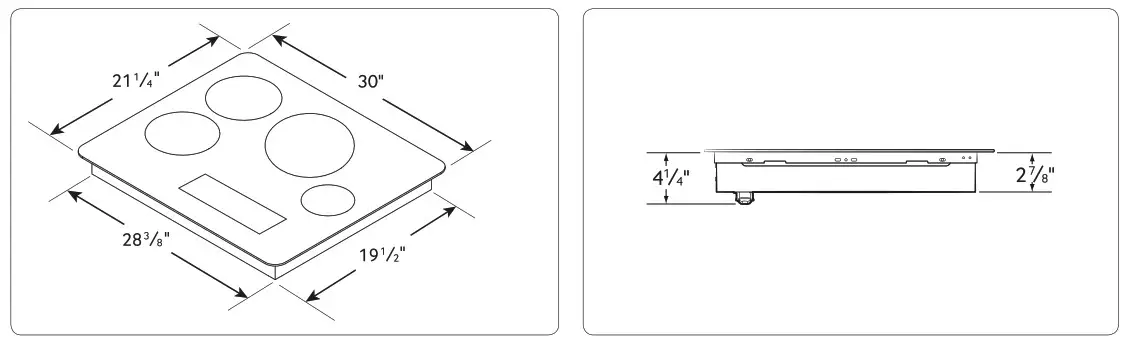

Product Dimensions & Weight (WxHxD)
Outside (Max) Cooktop Dimensions: 30″ x 4¹/4″ x 21¹/4″
Cooktop Cutout Dimensions: 28¹¹/16″ x 3³/4″ x 19⁵/8″
Weight: 24.3 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 29¹/2″ – 28⁵/8″ x 19⁵/8″ x 19¹¹/16″ Weight: 29.3 lbs

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2021 Samsung Electronics America, Inc. 85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
User Manual and Warranty Information
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=NZ30A3060UK%20User%20Manual
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=NZ30A3060UK%20Warranty

Warranty (U.S.A)
SAMSUNG ELECTRIC COOKTOP.
LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE.
This SAMSUNG brand product, as supplied and distributed by SAMSUNG. ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to  he original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period, starting from the date of original purchase, of:
One (1) Year Parts and Labor. Five (5) Years Glass Cooktop Part and Heater Coil Part (Parts Only)
This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions  ttached to or furnished with the product. To receive warranty service,  the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service.
SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.
To receive in-home service, product must be unobstructed and accessible to the service agent.
During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.
This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modification or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product’s finishes; damage caused by abuse, misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused.

Feature Icons

Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=NZ30A3060UK%20Icons
