Lemega S6 Bluetooth Speaker Clock Radio With Lamp Owner's Manual

S6 Clock Radio with Lamp

Owner’s manual

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. WARNING – To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
6. Clean only with a dry cloth.
7. Only use attachments/accessories specified by the manufacturer.
8. Unplug this apparatus during lightning storms or when unused for long periods of time.
9. Keep this product a safe distance away from naked flames, such as a lit candle.
10. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
11. Don’t press more than one key at the same time.
12. In the event that the unit malfunctions, unplug it for 3 seconds, then plugin again.

Package content included:

1 Power adapter
1 Owner’s manual
1 Warranty Card

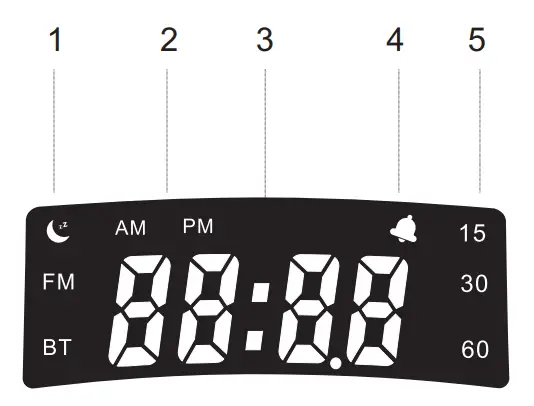

LCD Display

1. Switching between different modes: Soothing Music mode / FM mode and Bluetooth mode.
2. Switch between AM and PM
   [Note: When you set the Alarm, please note the time is AM or PM]
3. Clock display
4. Alarm setting
5. Set the sleep timer from 15mins / 30mins / 60mins / Sleep Off in turn

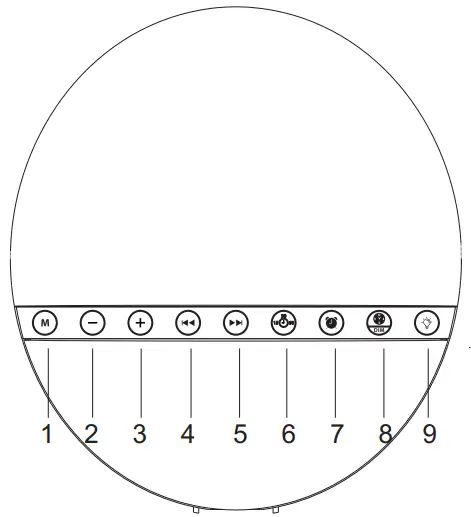

Guide To Features (Top touch buttons):

1. M [Standby/ MODE]: Briefly press M to switch FM mode, Bluetooth mode and Soothing sleep music mode in turn. Long press and hold M to enter Standby mode and turn off the light. Briefly press M to turn on the unit.
2. VOL– /–: Press and hold the –button to decrease the volume quickly. Briefly press– to decrease the volume step by step.
3. VOL+ /+ : Press and hold the button+ to increase the volume quickly. Briefly press+to increase the volume step by step.
4. : In Bluetooth / Soothing sleep music mode,  briefly press to the previous track. In FM mode, briefly press to back forward 0.1MHz frequency. Press and hold 2 seconds to auto-scan the stations.
5. : In Bluetooth / Soothing music mode, briefly pressto next track. In FM mode, briefly press to move forward 0.1MHz frequency. Press and hold 3 seconds to auto-scan the stations.
6. SLEEP: In FM/BT/Soothing sleep music mode, Press to set the time 15mins /30mins/60mins/ Sleep Off in turn before the unit will switch off automatically in 15mins/30mins/60mins.
7. / ALARM: Briefly press the button to activate or deactivate the alarm. An alarm icon will appear on the display when the Alarm is activated. Now Press and hold the button to set up.
   1) When the hours flash, Press to set the hour press to confirm the hour setting and to the next step.
   2) When the Minute flash, Press to set the minutes, press to confirm minutes setting, and to the next step.
   3) Alarm Ring tone setting: Pressto chooses Soothing sleep music or FM station as an Alarm ring tone. Press to the next step.
   4) Alarm Volume setting: Press -/ +to set the Alarm volume level, press to confirm the setting.
8. CLOCK / DIM:
   8.1 Clock: Press and hold button, when the hours flash, press to set the Hour, press CLOCK to confirm Hour setting then move to the next step.
   When the Minute flash, press to set the Minute, press to confirm Minute settings. Note: If the time stops flashing during the setting, repeat the above steps.
   8.2 DIM: Briefly Press the button to adjust the LCD brightness: High/Mid/ Low level in turn.
9. LightMode: Briefly press to enter to Light mode press a second time to enter into seven color lighting changeable mode. Press a third time to turn off the light.
   Press and hold to change the light brightness level from lighting level 1 to 30.
10. Sunrise & Sunset light Simulation
    10.1. Sunrise light Simulation: Under Alarm Mode, The Sunrise starts 15 minutes before your Alarm time. The lights will light up gradually increasing to reach the brightest level at your alarm time to wake you up, press any key to enter Snooze for sleep extra minutes.
    10.2. Sunset light Simulation
    Set the Sleep timer as 15mins/30mins/60mins, the lights will be dim to completely off and go into standby in 15/30/60 minutes.
11. Snooze: After the Alarm is activated, press any of the buttons to mute the Alarm for 5 minutes, Sleep extra 5 minutes.

Note: Once the Alarm ring tone is activated, you need to press any button to Snooze first then press the button to cancel the activation.

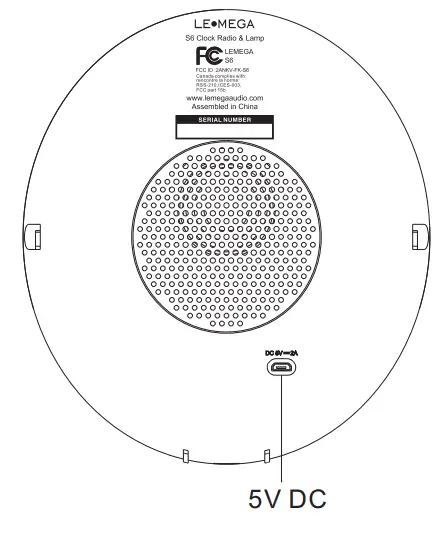

Back Overview

FM RADIO

1. Briefly press “M” button on the unit to enter FM Mode;
2. Briefly press to move backward / forwards each 0.1MHz frequency to search stations. Press and hold button to Auto-scan the stations.

BLUETOOTH

1. Briefly press “M” button to enter into Bluetooth Mode;
2. Connect your smartphone, your smartphone will show Bluetooth device name “LEMEGA S6” select device name “LEMEGA S6” to pair.
3. You can start to play your music tracks, then adjust the volume level on your device.

SOOTHING SLEEP MUSIC MODE

1. Press “M” button on the unit to enter into Soothing sleep music mode ;
2. Briefly press to change different Soothing music: Frog croaks, Ocean Waves, Thunder & Rain, Campfire, White noise, Running Water, Insect Sound, Birds chirping, and Lullaby in turn.

SPECIFICATIONS

Model: S6
Type: Clock Radio with Lamp
Drivers: 1 x 2.5″
Power output: RMS 2.5W
Power Supply: 5V 2A
Dimensions: L 205 X H205 X D90 MM
Weight: 428g
Specifications are subject to change without notice.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Correct Disposal of this product. This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased . They can take this product for environmentally safe recycling.

S6 Clock Radio with Lamp
If you have any questions or suggestions, please share with us.
[email protected]
www.lemegaaudio.com

MADE IN CHINA
