USA F-FBENCH F-Series Bench
User Manual
ASSEMBLY MANUAL
BEFORE YOU START
Read all instructions in this manual before assembling or using this equipment.
Remove all parts from the packaging and separate and count each various component to ensure everything has been correctly provided.
Follow the instructions and consult both the individual assembly pages and the overall expanded views of the equipment.
It is the owner’s responsibility to ensure that all users of this unit have read the owners manual and are familiar with the safety precautions.
We recommended you save these instructions
SAFETY PRECAUTIONS
- Highly recommended for two or more people to assemble the equipment
- Assemble equipment on a flat surface
- Consider placing a mat under equipment to protect your floor
- Only tighten nuts and bolts by hand until whole equipment is assembled
- Ensure all parts are in working order prior to use
- Do not use equipment outdoors or around water
- Keep hair, fingers and clothing away from moving parts
- Only use attachments recommended by the manufacturer
- Never operate if parts are not functioning correctly
- Always stretch prior to using equipment
- Stop immediately if you experience any pain, dizziness or nausea.
- Before starting any exercise program consult your doctor
PLEASE NOTE: Descriptions of pieces as LEFT and RIGHT are from the point of view of standing behind the equipment facing towards the front.
IMPORTANT ASSEMBLY INFORMATION
NOTE: It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury.
- Tools Required for Assembling the Bench: Adjustable Wrench and Allen Wrench.
- Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be assembled. Attach washer only to end of the Carriage Bolt.
- Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to be assembled.
- Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not tighten each bolt right after it is installed

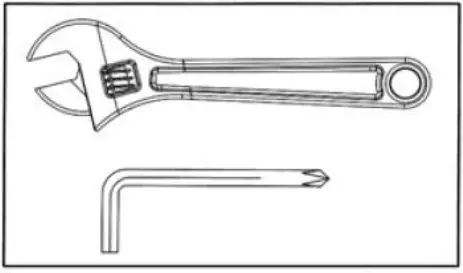

FASTEN NUTS AND BOLTS
Securely tighten all Nuts and Bolts after all components have been assembled in current and previous steps.
NOTE: Do not overtighten any component with pivoting function. Make sure all pivoting components are able to move freely.

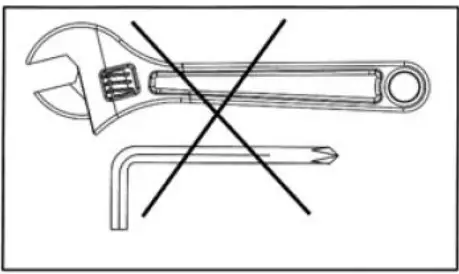

Do not tighten all Nuts and Bolts in this step.
ASSEMBLY INSTRUCTION
ASSEMBLY STYPES
ASSEMBLY STYPES | ||||||
| Steps | Numbers | Name | Quantity | Numbers | Name | QTY |

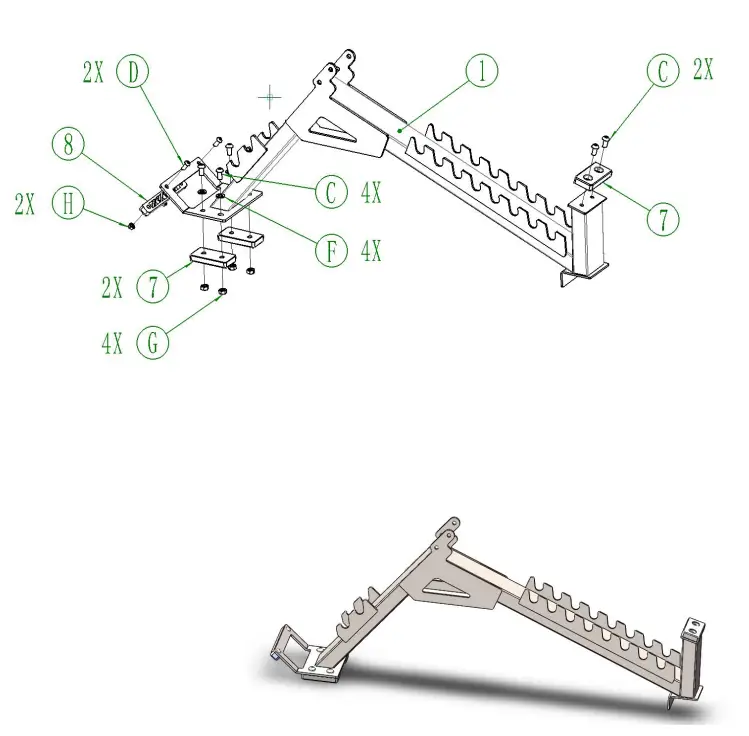

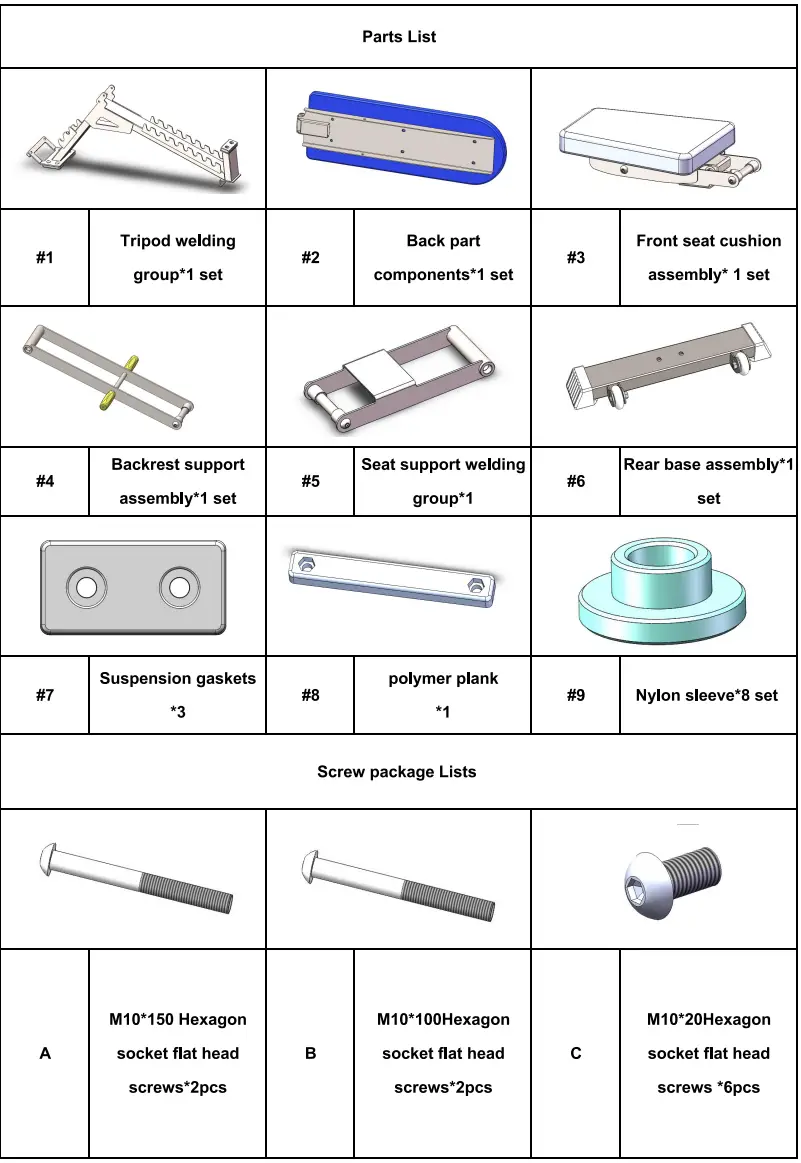

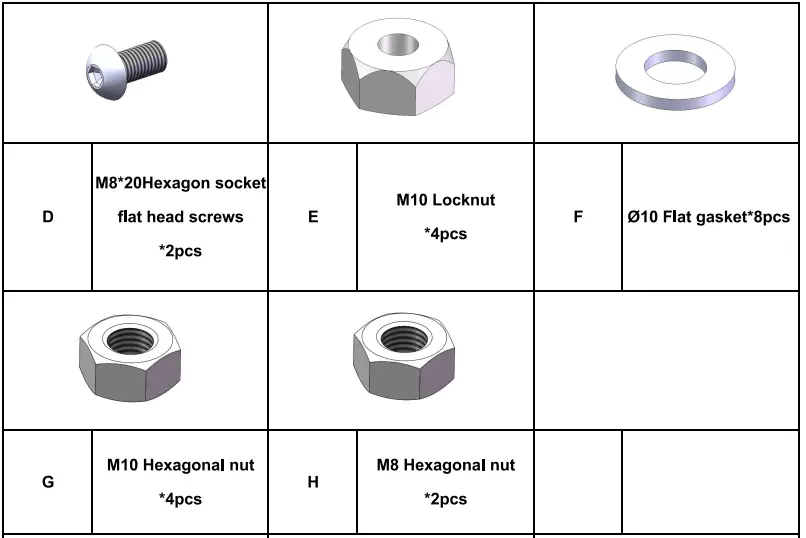

| 1 | #1 | Tripod welding group | 1 | D | M8*20Hexagon socket | 2 |
| #7 | Suspension gaskets | 3 | G | M10 Hexagonal nut | 4 | |
| #8 | polymer plank | 1 | F | 010 Flat gasket | 4 | |
| C | M10*20Hexagon socket flat head | 6 | H | M8 Hexagonal nut | 2 | |
| Tools | ||||||
 | ||||||
ASSEMBLY STYPES | ||||||
| Steps | Numbers | Name | QTY | Numbers | Name | QTY |

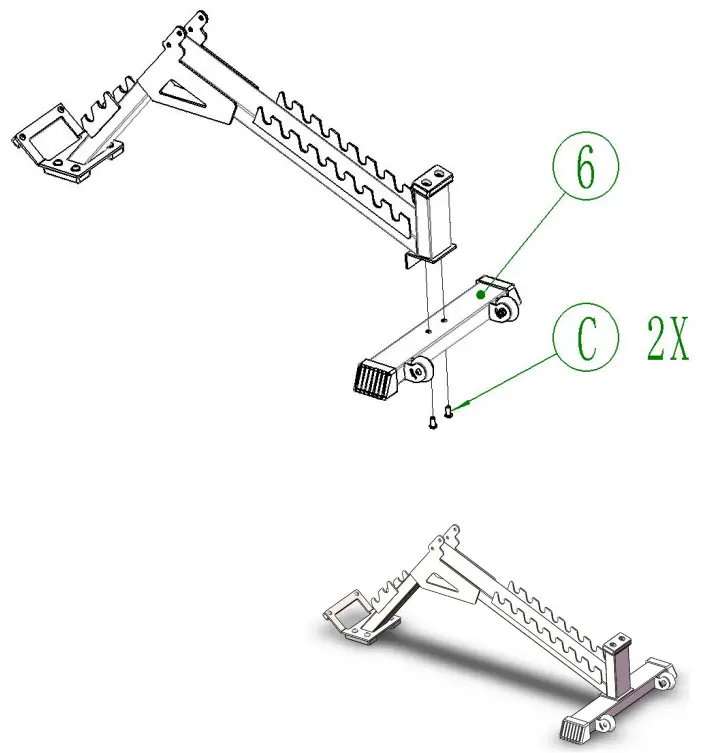

| 2
| 6# | Real base assembly | 1 | |||
| C | M10*20Hexagon socket flat head | 2 | ||||
| Tools | ||||||
 | ||||||
ASSEMBLY STYPES | ||||||
| Steps | Numbers | Name | QTY | Numbers | Name | QTY |
| 3 | #2 | Back part | 1 | E | M10 LOOKUNT | 1 |
| #4 | Backrest support | 1 | F | ∅10 Flat gasket | 1 | |
| #9 | Nylon Sleeve | 2 | ||||
| A
| M10*20Hexagon socket flat head | 1
| ||||
| Tools | ||||||
 | ||||||
ASSEMBLY STYPES | ||||||
| Steps | Numbers | Name | QTY | Numbers | Name | QTY |
| 4

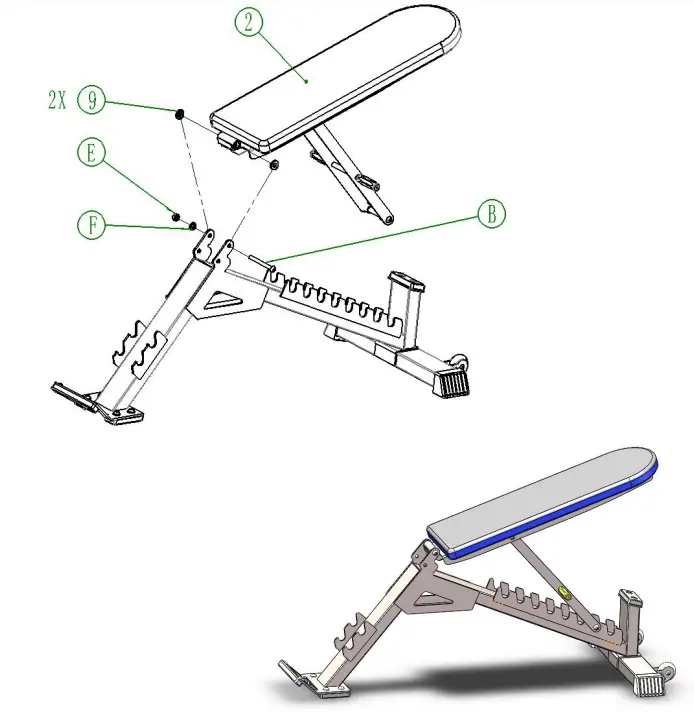

| #2 | Back part | 1 | F | ∅10 Flat gasket | 1 |
| #9 | Nylon Sleeve | 2 | M10 LOOKING | |||
| B | M10*20Hexagon socket flat head | 1 | ||||
| E | M10 LOOKING | 1 | ||||
| Tools | ||||||
 | ||||||
ASSEMBLY STYPES | ||||||
| Steps | Numbers | Name | QTY | Numbers | Name | QTY |

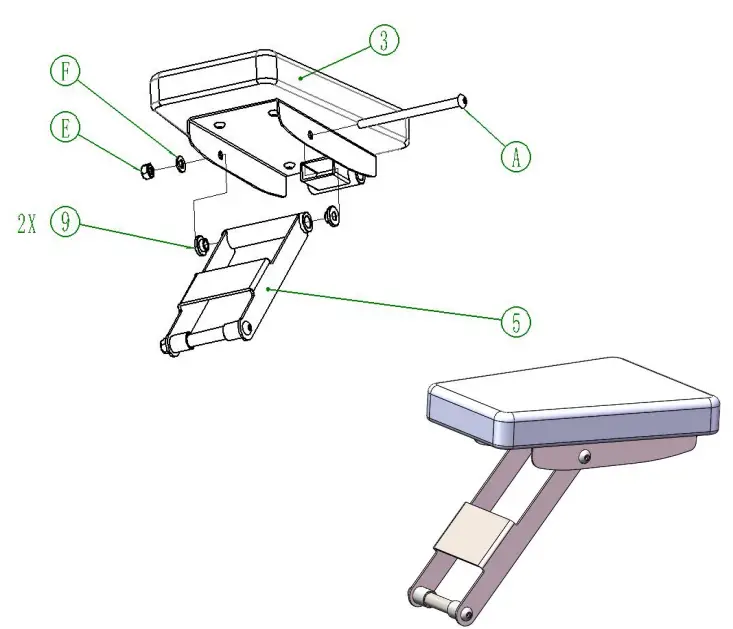

| 5 | # 3 | Front seat cushion assembley | 1 | E | ∅10 Flat gasket | 1
|
| # 5 | Seat support welding group | 1 | F | M10 LOOKING | 1 | |
| # 9 | Nylon Sleeve | 2 | ||||
| A | M10-150 Hexagon socket flat head | 1
| ||||
| Tools | ||||||
 | ||||||

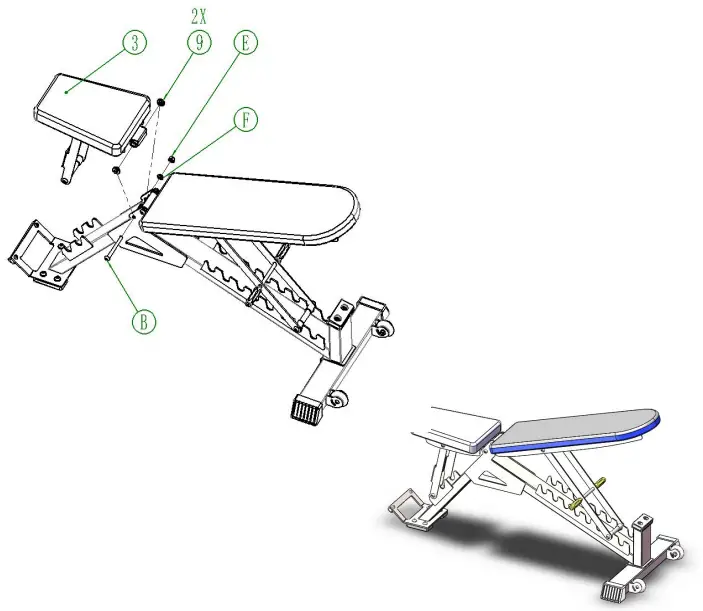

| Install the cushion support group | ||||||
ASSEMBLY STYPES | ||||||
| Steps | Numbers | Name | QTY | Numbers | Name | QTY |
| 6 | # 3 | Front seat cushion assembly | 1 | F | M10 LOOKING | 1 |
| # 9 | Nylon Sleeve | 2 | ||||
| B | M10-150 Hexagon socket flat head | 1 | ||||
| E | 1 | |||||
| Tools | 6# Hexagon screwdriver,wrench | |||||
 | ||||||

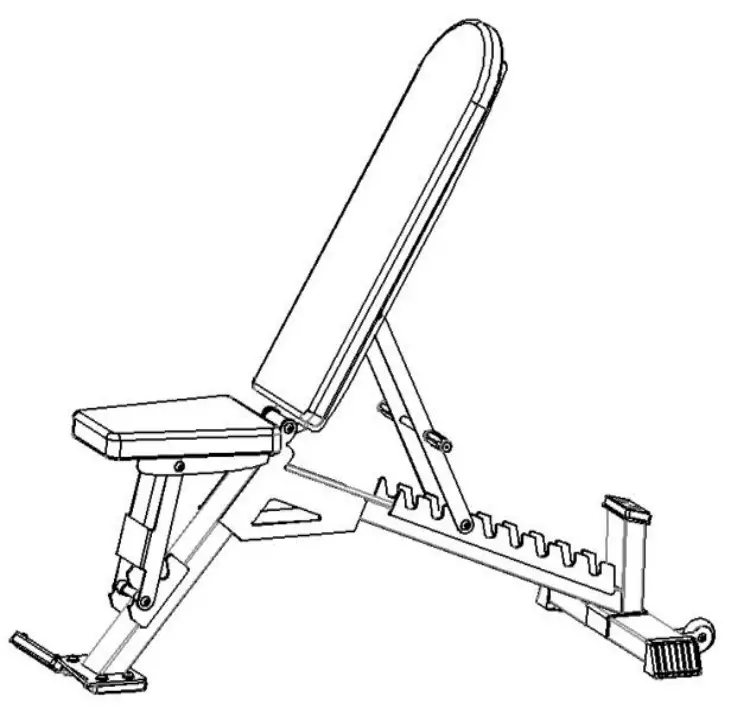

| As shown in the figure. install the front seat cushion assembly to complete all assembly. | ||||||
