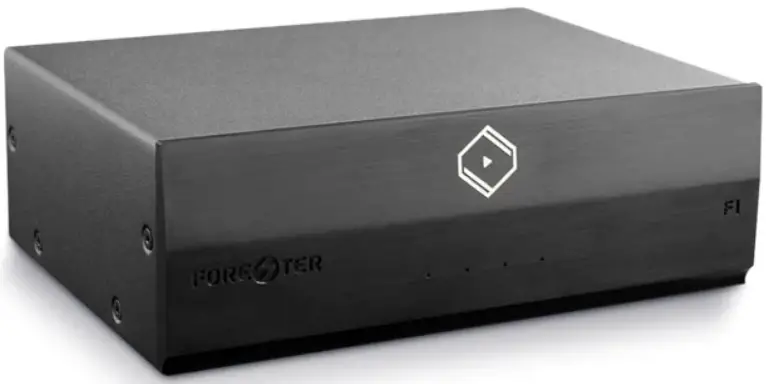

Silent Angel Forester F1 Dual 5V Linear Power Supply User Guide

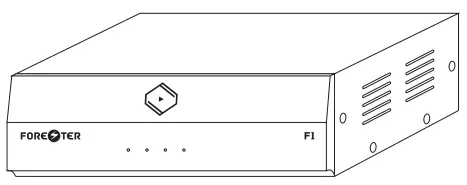

Package Contents

• F1 x1
• Power Cord x1
• 5.5mm x 2.1mm DC Plug Cable x2
• Quick Start Guide x1
• Warranty Card x1

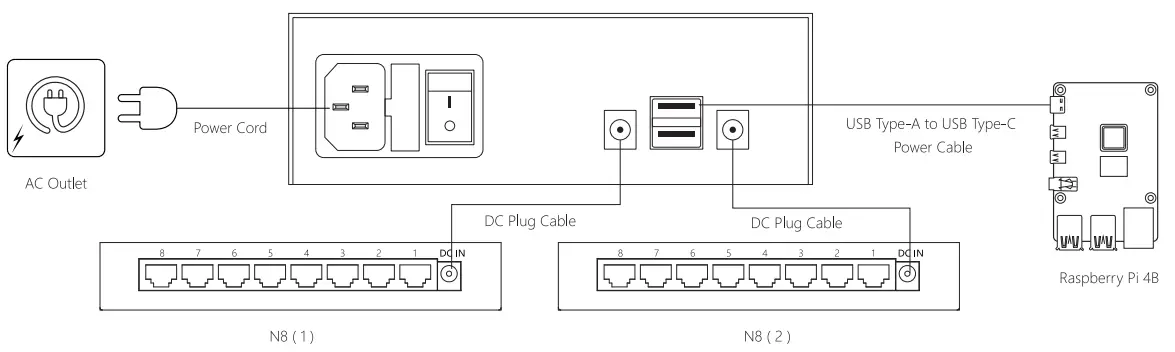

Start to Use

 Check and Set Voltage Selector at the bottom of F1

Front Panel, Rear Panel, and Bottom

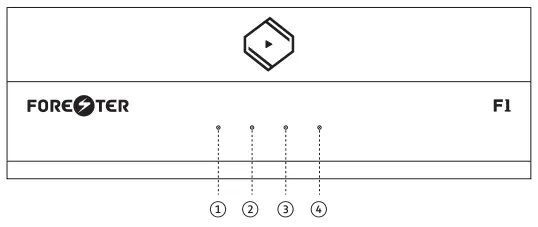

1. Output 1 Over Temperature
   Light on when over temperature protection of output 1 is activated.
2. Output 1 Status
   Green light on when output 1 power is on and output is good. Red light on when over current protection is activated and output is off
3. Output 2 Status
   Green light on when output 2 power is on and output is good. Red light on when over current protection is activated and output is off.
4. Output 2 Over Temperature
   Light on when over temperature protection of output 2 is activated.

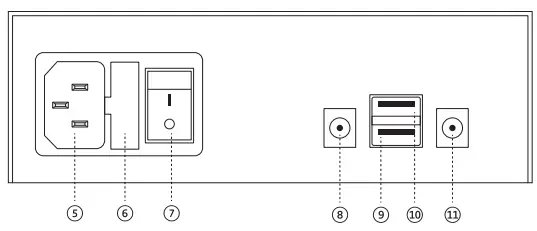

5. AC Input
   AC power input.
6. Fuse Holder
   Fuse is inside the fuse holder.
7. Power Switch
   Power switch for controlling main power.
8. 5V DC Output Port 2*
   5V DC output 2A max. (DC plug 5.5mm x 2.1mm, tip carries +5V)
9. CD 5V DC Output Port 2*
   5V DC output 2A max. (USB Type-A) g
10. 5V DC Output Port 1*
    5V DC output 2A max. (USB Type-A)
11. 5V DC Output Port 1*
    5V DC output 2A max. (DC plug 5.5mm x 2.1mm, tip carries +5V)

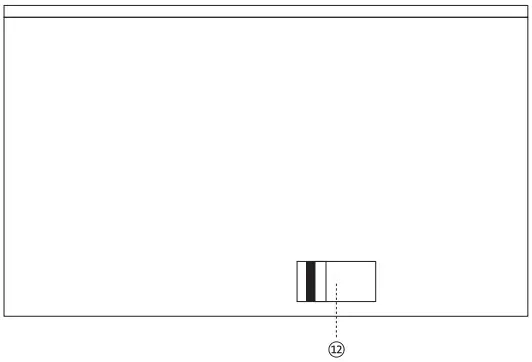

12. AC Voltage Selector
    Select proper AC voltage for AC INPUT


DO NOT connect to USB and DC plug for the same port at the same time.
