Self Lock Projection Screen Deluxe
User Manual

Self Lock Projection Screen Deluxe

MANUAL PROJECTION SCREENS DELUXE

ELEGANT DESIGN & SUPERIOR MATERIAL CHOICES
Le Screen Manual Self-Lock Projection Screen Deluxe are elegant projection screens designed with a aluminum cassette, high-end for the living room, home theatre, conference rooms or for educational use in schools. With a sleek Nordic design this projection screen fits any environment it is installed in.
The Le Screen Projection Screens are easy to install and even easier to use. Just sit back and enjoy the show! Non compromised material choices is used when making a Le Screen Manual Screen giving you market leading technical specifications and optimized picture quality.
Slow retention
A slow retention function is built into the manual screens. This makes the screen retract slowly and controlled retract into the cassette. This prolong the lifetime (normally doubles the life expectancy) of the projection screen and makes the manual screen usable in more public environments where multiple users handle the screen every day.

Superior screen material
The quality of screen material is the most important aspect of any projection screen. Most screens on the market will use a very basic compressed cloth type material resulting in a creased surface and poor contrast performance. The Le Screen Projection Screen Deluxe series use a high quality multi ply material with a high contrast and low gain of 1.0. The material is tear resistant, fireproof, anti wrinkle safe and is designed to hang flat. The center layer is a glass fiber net producing a flex rate of less than 1% compared with the industry average of 33%. The front layer optimizes contrast and reflectivity while a black PVC backing prevents light leakage and helps retain a uniformly flat projection surface.

Elegant design
Le Screen Manual Self-Lock Projection Screens Deluxe are an elegant series of manual screens. The cassette is all aluminum coated in white paint. High quality details & superior design makes this piece a beauty among projection screens.
Formats
Available in 16:9, 16:10, 4:3 or 1:1. (16:9, 16:10, 4:3 are surrounded by a black boarder for contrast).

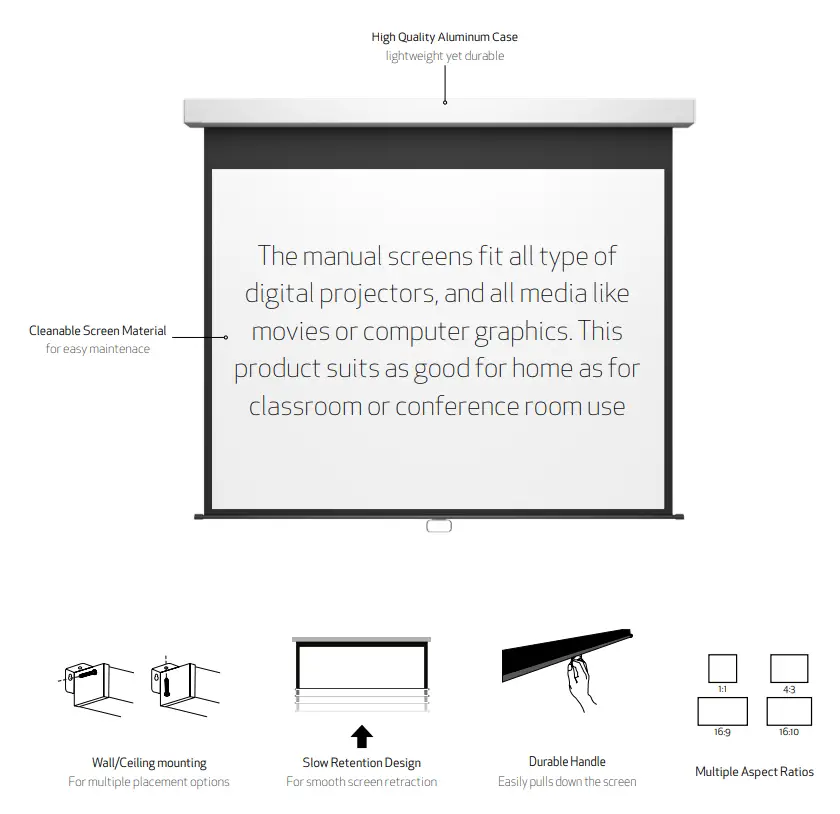

MANUAL PROJECTION SCREENS:

• Available with aspect ratios: 16:9, 16:10, 4:3 and 1:1
• High quality aluminum cassette
• Slow retention & high quality details for longer life
• Market leading screen fabric gain 1.0
• Mounts for ceiling or wall installations included
• 30 centimeter black drop

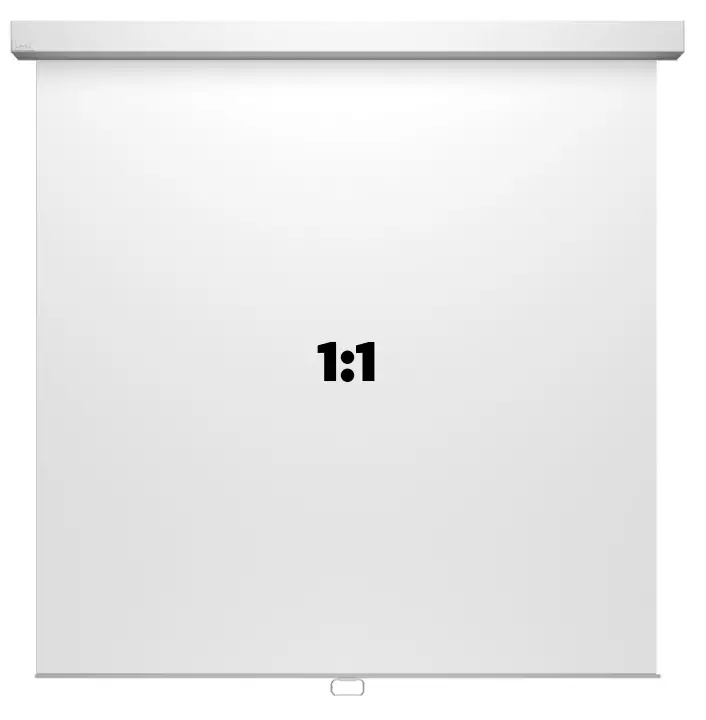

M 1:1 Manual Projection Screens White Edition

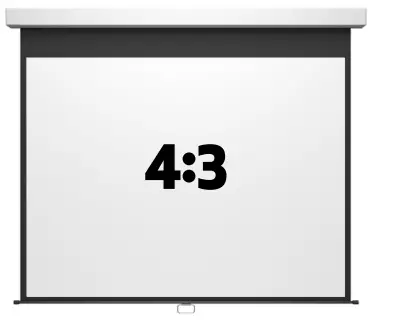

M 4:3 Manual Projection Screen 200×150, 100”

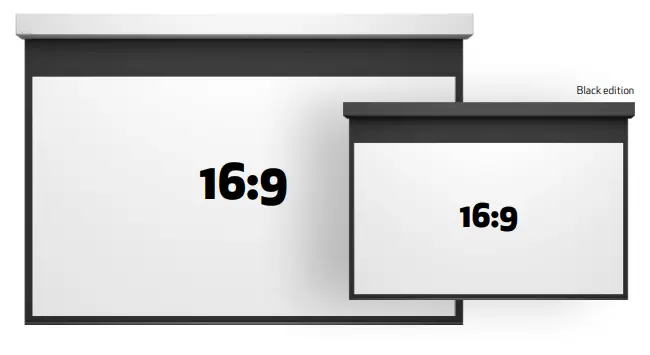

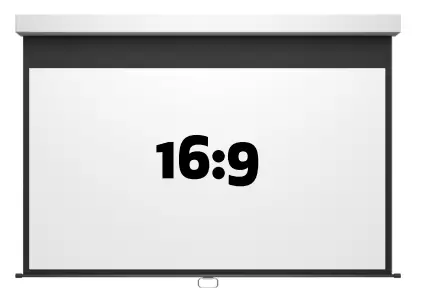

M 16:9 Manual Projection Screen 200×112, 90

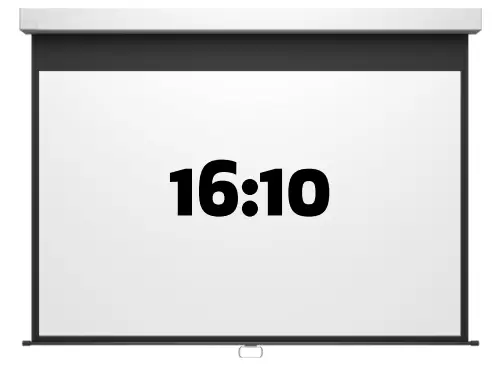

M 16:10 Manual Projection Screen 232×145, 108”

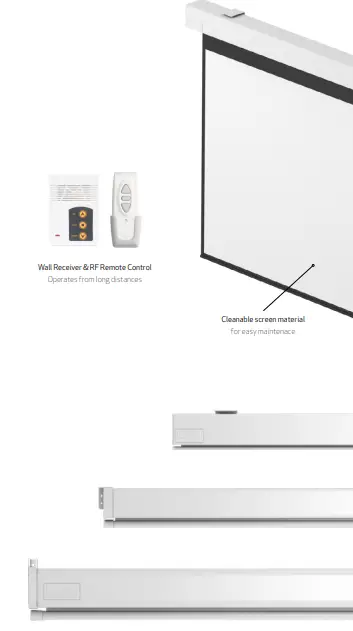

MOTORIZED PROJECTION  SCREENS DELUXE

ELEGANT DESIGN & SUPERIOR MATERIAL CHOICES

Our motorized projection screens are designed to increase functionality and  performance for today’s presentation environments. Also by being motorized and not handled by hand it will last much longer than its manual counterparts.
Crafted to strict Le Screen standards, these innovative screens are now available in widths from 77” to a massive 334” (or 8,5m diagonal).
Le Screen Motorized Screens also  feature seamless height adjustments for a picture perfect reproduction in the most challenging environments. Le Screen standard fabric is a Gain 1.0 and our screen cloth is using a high levelled three layer technology. Le Screen can also custom produce screens with different fabrics built to a project’s specification. Supporting most popular aspect ratios: 16:9, 16:10, 4:3, and 1:1 we are almost certain we have a Motorized Projection Screen that fits your needs.

Superior screen material
The quality of screen material is the most important aspect of any projection screen. Most screens on the market will use a very basic compressed cloth type material resulting in a creased surface and poor contrast performance. The Le Screen Motorized Projection Screen Deluxe series use a high quality multi layered ply material with a high contrast and low gain of 1.0. The material is tear resistant, fireproof, anti wrinkle safe and is designed to hang flat. The centre layer is a glass fiber net producing a flex rate of less than 1% compared with the industry average of 33%. The front layer optimizes contrast and reflectivity while a black PVC backing prevents light leakage and helps retain a uniformly flat projection surface.

HIGHLIGHTS:

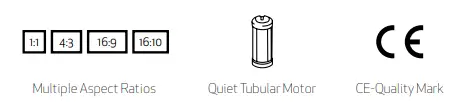

• Available with aspect ratios:16:9, 16:10, 4:3 and 1:1
• Adjustments possibilities are easy to reach inside the case
• Pre programmed final setting for rolling in and out of projection screen makes rapid installation possible
• All Motorized projection screens follows the product safety standards with CE-quality mark
• The motor with 28RPM is incredibly quiet
• Supplied with mounting details for ceiling and wall installation

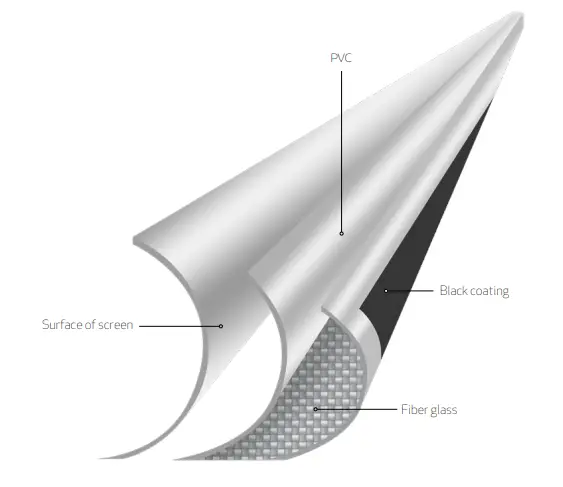

• Matte white, double-sided laminated vinyl with black back, and fiber glass centre (three layered technology) gain 1.0, viewing angle over 50 degrees left and right, weight approximately 450g/m² and thickness approximately 0.45mm.
• Le Screen Motorized Projection Screens Deluxe support formats 16:9, 16:10, 4:3, and 1:1
• Black border of 4cm around the viewing area (16:9, 16:10 and 4:3)
• Black/white drop 30cm
• Case colors available in white and black

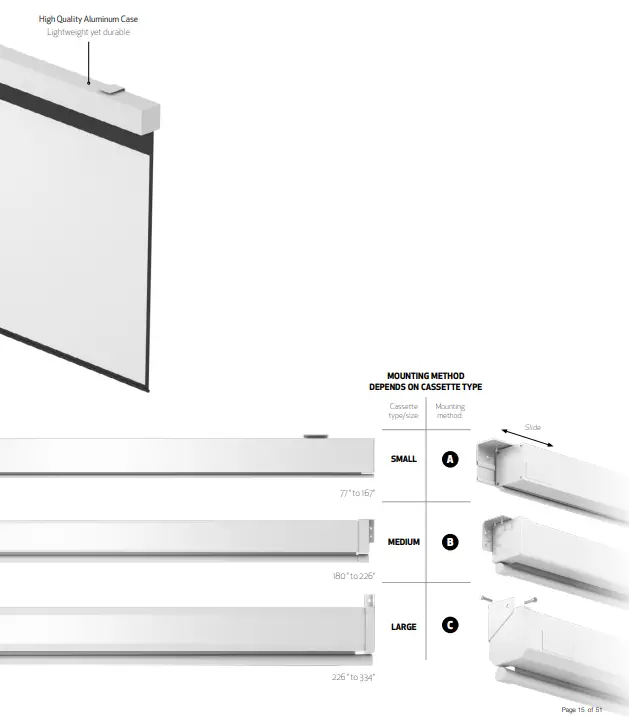

• Sliding wall mounts ensure the installation is properly centered.

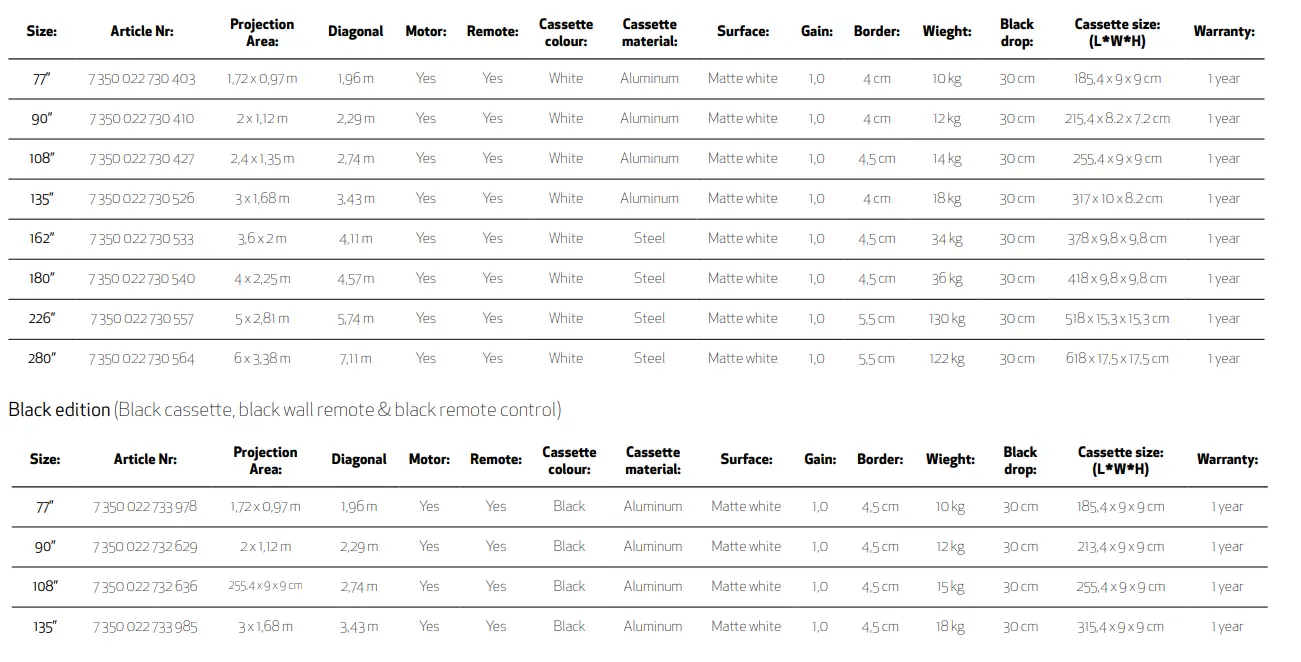

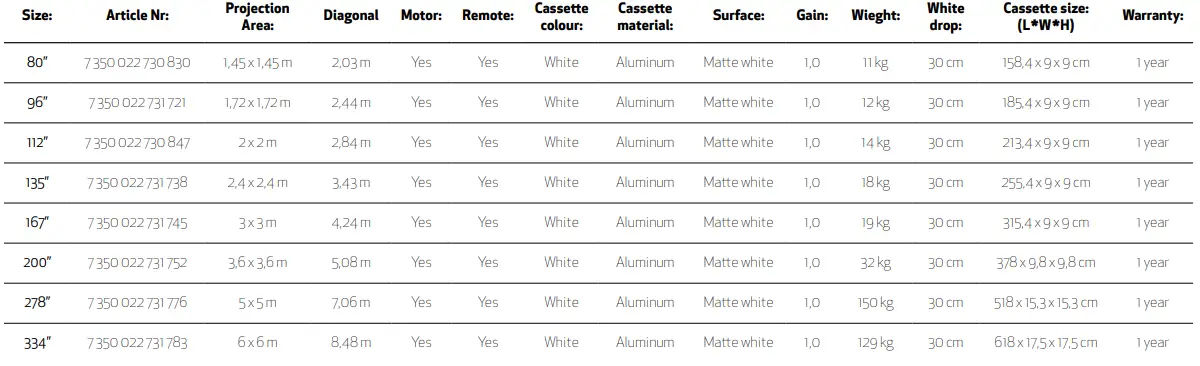

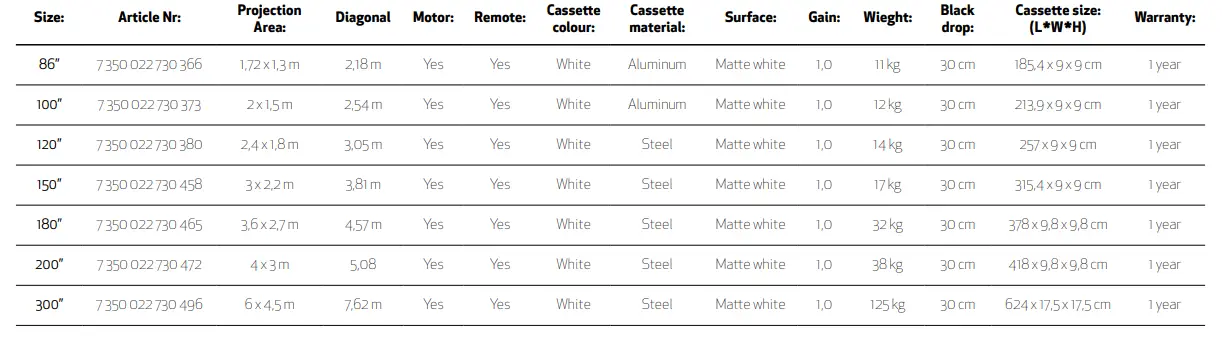

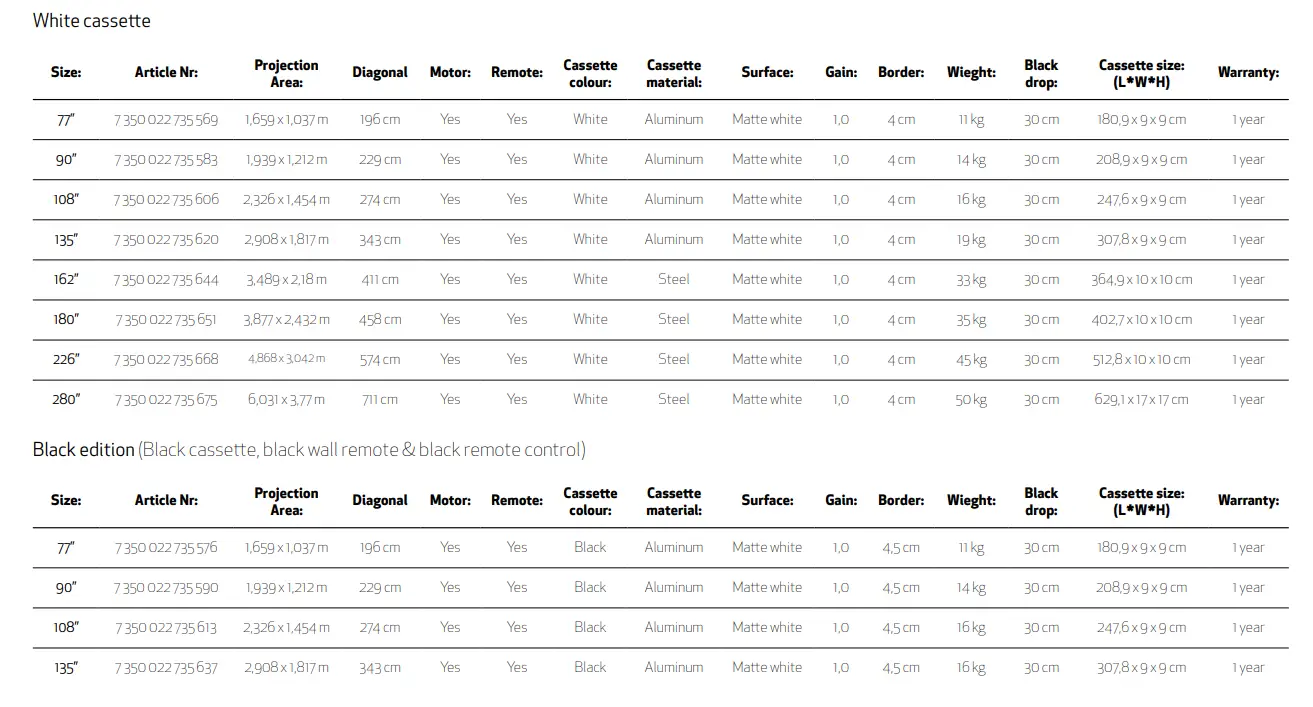

MOTORIZED PROJECTION SCREENS

M 4:3 Motorized Projection Screens

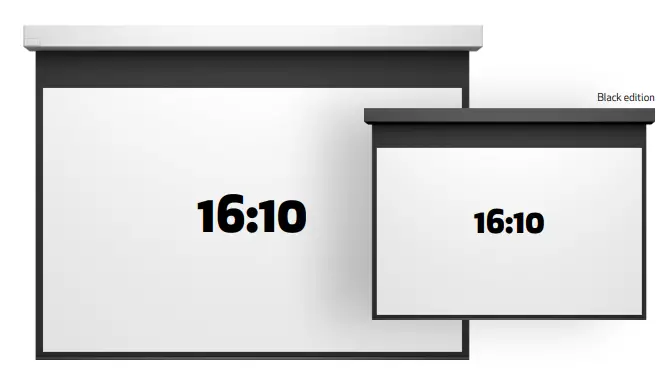

M 16:10 Motorized Projection Screen

M 16:9 Motorized Projection Screen

ACCESSORIES

Motorized Projection Screens

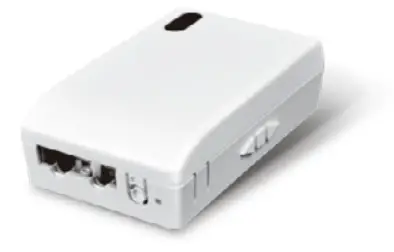

M 12V Trigger Kit for MB Motorized Screens

CAUTION: The installation must be wired and connected by a certified electrician!
PARTS Motorized / Manual Projection screens

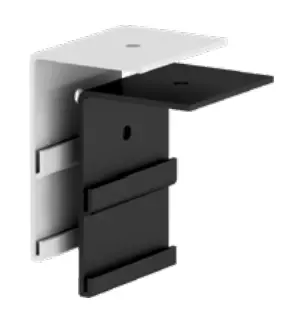

Pair of Wall / Ceiling Mount for Manual & Motorized Screens up to 135”

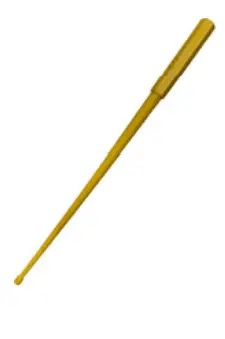

Black Drop Stick

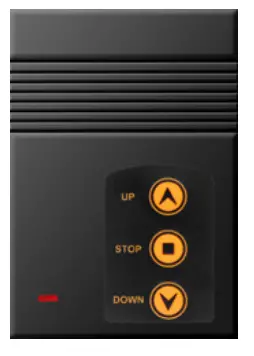

Wall-Remote Control Black for Motorized Screens

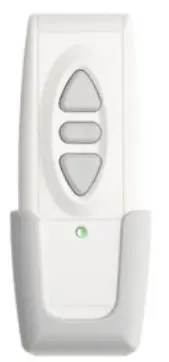

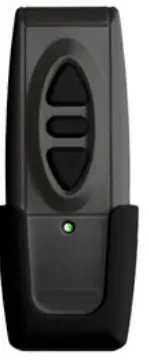

M Remote Control Black for Motorized Screens

M Wall-Remote Control White for Motorized Screens

M Remote Control White for Motorized Screens

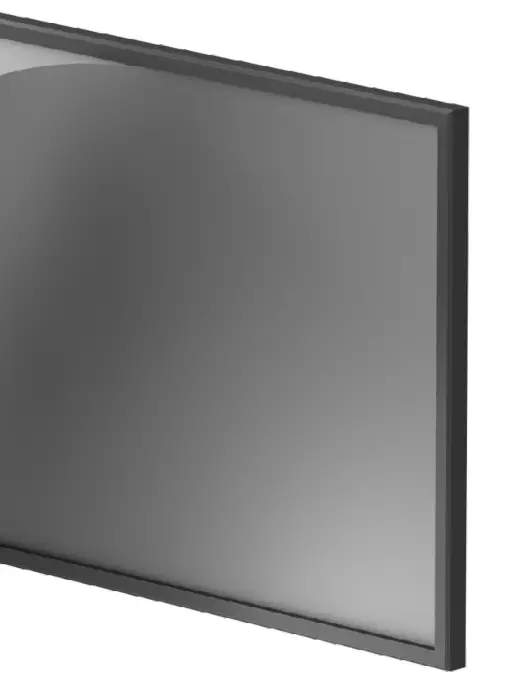

FRAMED PROJECTION SCREENS

ELEGANT DESIGN & SUPERIOR MATERIAL CHOICES
Our ultra flat framed screens reach a perfectly smooth surface. With a frame that is just 30 mm thick, it looks rather like an LCD than a projection screen. It´s simple and linear shape harmonizes beautifully. Avaliable from 77” to m assive 226”.
Our Framed series is a best seller in EU perfect for Boardrooms, Corporate Information Suites, Reception areas and other prestige business locations. Our line of framed screens are also perfect for smaller viewing theatres, visitor centers, museums and other select presentation venues. The screens are based on a high quality screen cloth. Producing a 1.0 gain with a superior extra wide viewing angle.

Our series Fixed projection screens are tailored to fit the bill for high-end fixed screens and viewers wanting high quality and good economy. Selected framed screens has the option to use Le Screen Grey Plus Cloth (Gain 0.9) or our Acoustically transparent screen technology.

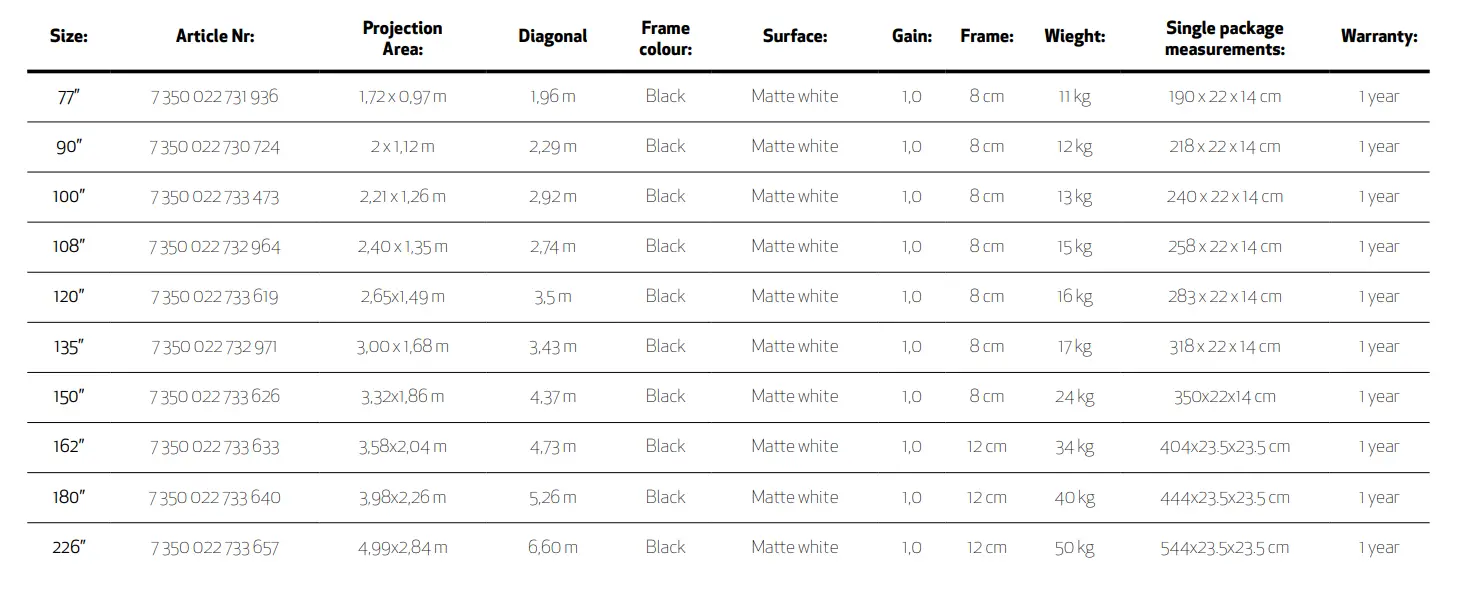

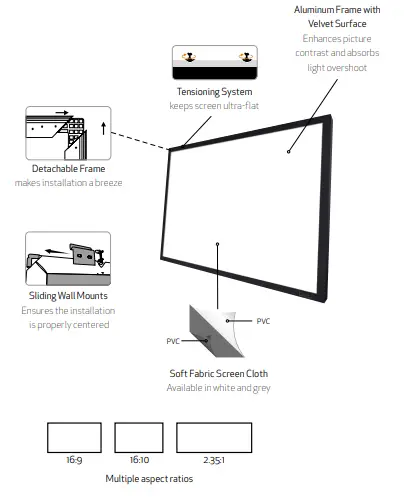

FRAMED PROJECTION SCREENS

• Multiple aspect ratios available: 16:9, 16:10 and 2.35:1
• Highly versatile 1.0 flat-tensioned screen material with standard black backing to eliminate light penetration.
• Aluminum contour frame surfaced with black velvet to enhance picture contrast and absorb light overshoot.
• Slide-on wall mount is horizontally adjustable for easy centering.
• Designed for high performance Home Cinema Projectors.

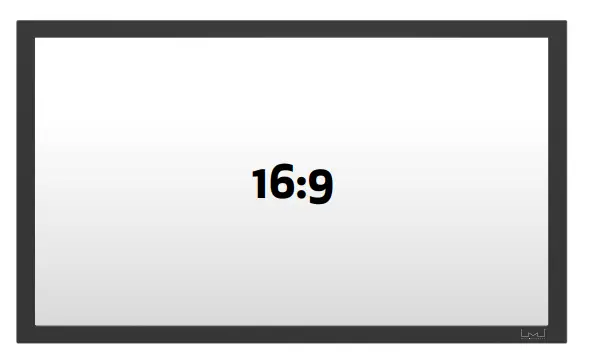

M 16:9 Framed Projection Screen

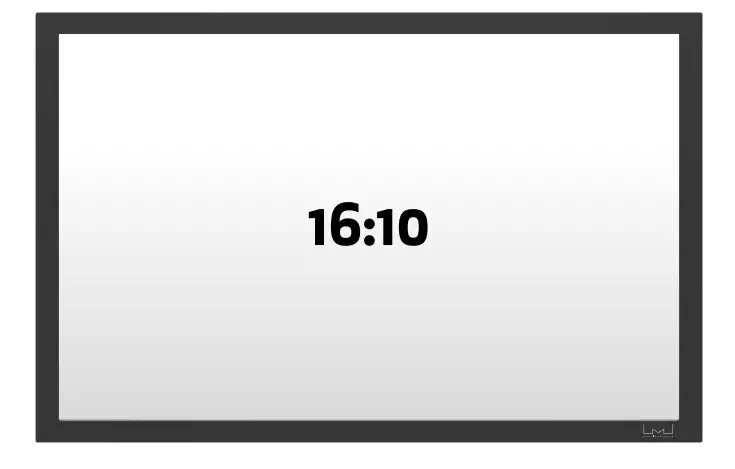

M 16:10 Framed Projection Screen

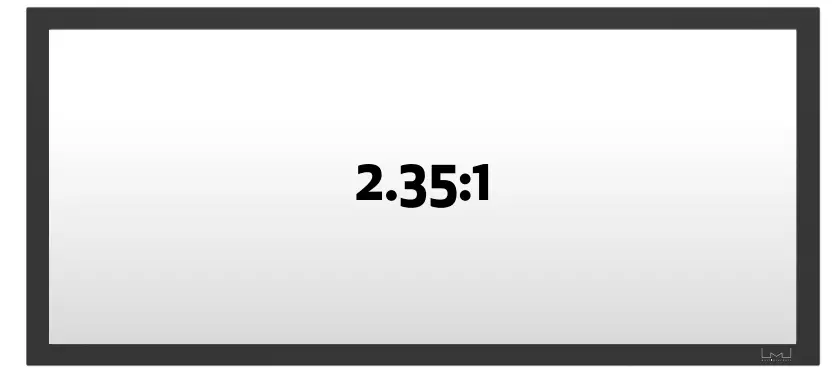

M 2.35:1 Framed Projection Screen

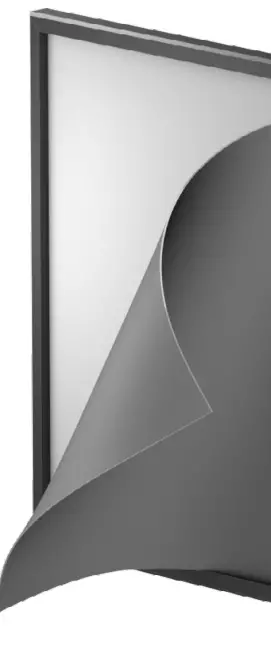

M GREY PLUS EXTRA CLOTH

GET THE BEST PICTURE QUALITY FOR THEIR FIXED FRAME SOLUTION
This projection screen surface is optimized for any user striving to get the best picture quality for their fixed frame solution. Overall the M Grey Plus generally provides higher contrast and better colour rendition than a standardized matte white projection screen surface.
The grey screen surface is the perfect choice when video images are the main source of information being projected and where ambient lighting is mode ratel controlled. With its specially designed grey base surface and a reflective top surface, this screen material is able to provide very good black levels without sacrificing the white level output. With its enhanced black levels and brilliant white levels this screen surface provides deep life-like colors and greater detail and sharpness to the image.

M Grey Plus projection screen surface ensures a dramatic improvement of contrast display for any projector. M Grey Plus is available in all fixed framed screens sizes, and is purchased separately.

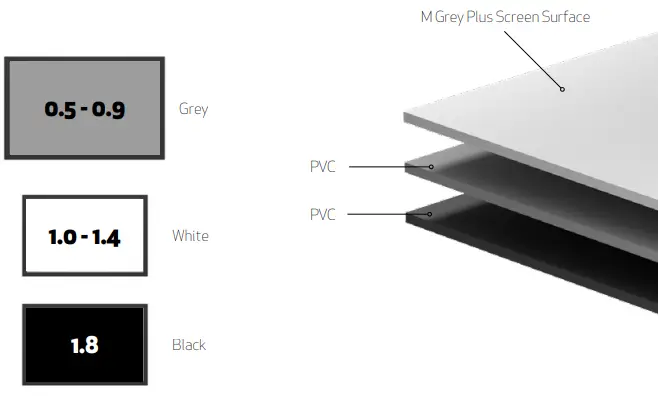

GAIN: SCREEN REFLECTIVITY
The image luminance is the overall image brightness created by the combination of projector output and screen reflectivity. Projection screens vary in their  elective properties. The reflective neutral matte white screen is typically 1.0 gain but can vary as high as 1.4 in its reflectivity. Negative gain projection screens are designed to enhance contrast levels at the expense of having less reflectivity. They are typically measured between 0.5 to 0.9 gain. Ambient Light Rejecting or ALR projection screens typically perform in the realm positive gain, or anything higher than 1.0 to 1.8 gain. These screens are known for superior brightness and image saturation, however they can also be negative gain as heavy contrast layers are incorporated to enhance darkness levels for superior image quality.

0.9 GAIN
Negative gain projection screens are designed to enhance contrast levels at the expense of having less reflectivity.

16:10

16:9

• Multi-layer PVC (Polyvinyl chloride) with texture and surface coating
• Surface can be cleaned with mild soap and water
• Exceptional picture quality

2.35:1

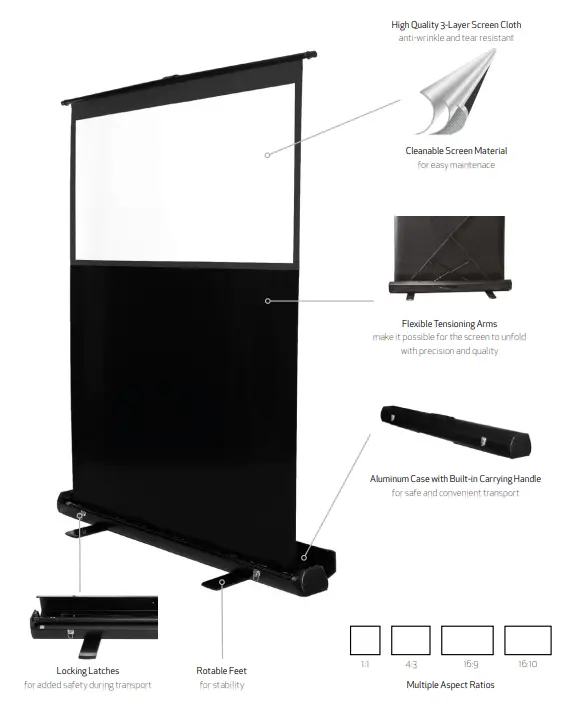

M PORTABLE PROJECTION SCREEN EXTREMELY LIGHTWEIGHT AND PORTABLE
SUITABLE FOR PROFESSIONAL USE FOR PEOPLE ON THE GO
Our portable projection screens are designed to be easy to bring along. The screen unfolds with a scissor like structure, making it easy to use in cramped up places. These screens are easy to use, lightweight and truly portable. Perfect if you are on the go.

PORTABLE PROJECTION SCREENS

• The flexible tensioning arms makes it possible for the screen to unfold with precision and quality
• The M Portable Projection screen has two rotatable feet ensuring stability
• An extra strong case makes the unit handle travelling with ease

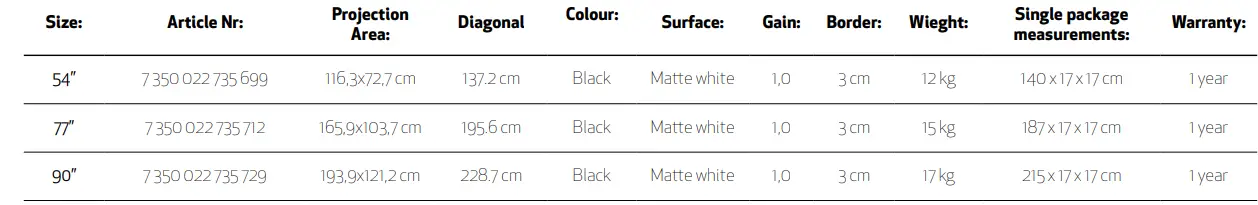

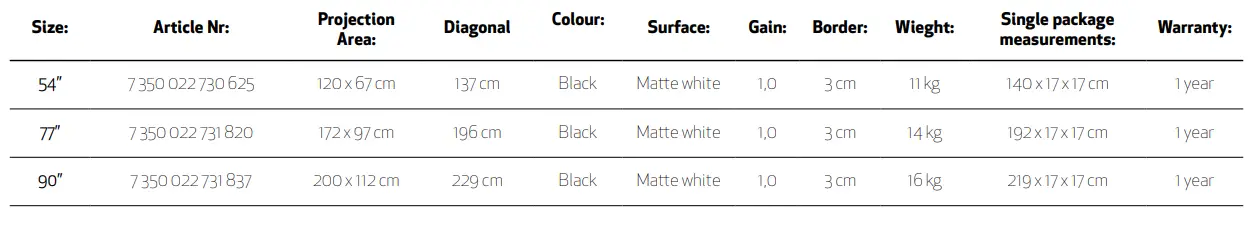

• Avaliable with aspect ratios 16:9, 16:10, 4:3 and 1:1
• Avaliable from 54” to 100”

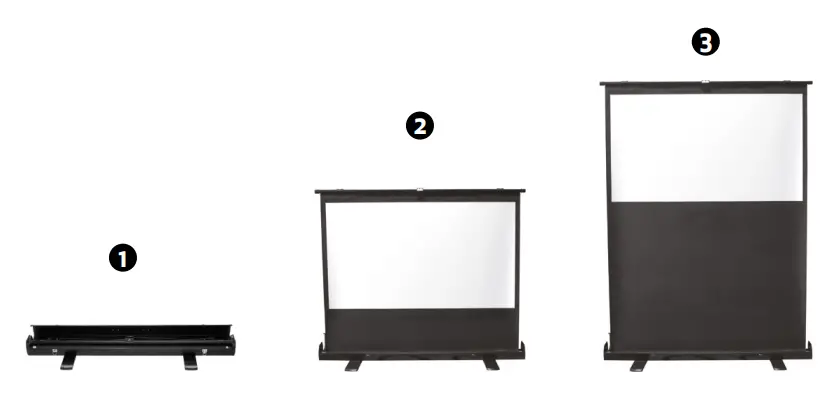

SET UP AS EASY AS 1-2-3

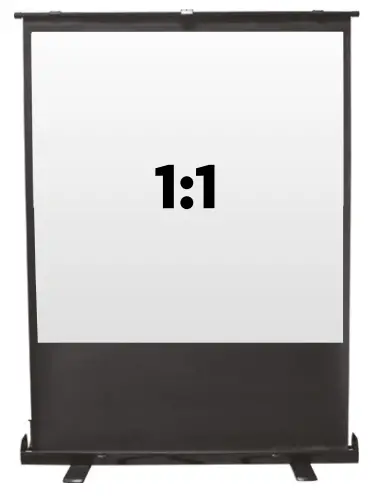

M 1:1 Portable Projection Screen

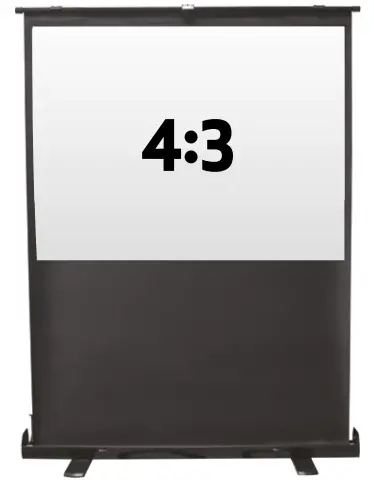

M 4:3 Portable Projection Screen

M 16:10 Portable Projection Screen

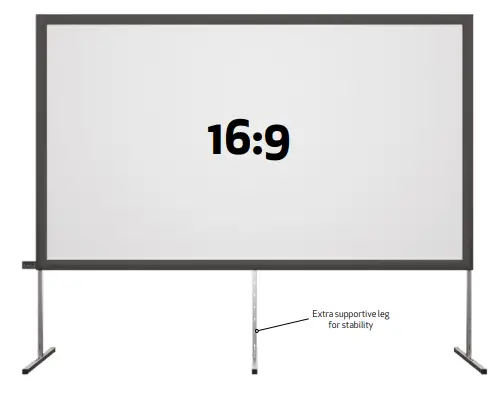

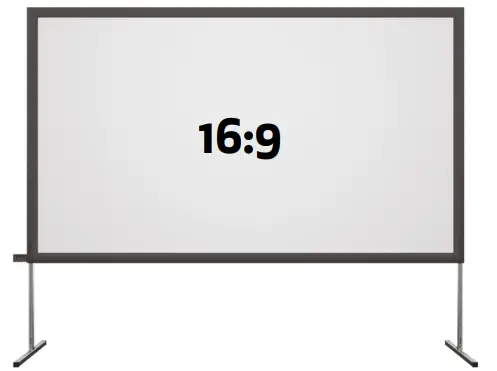

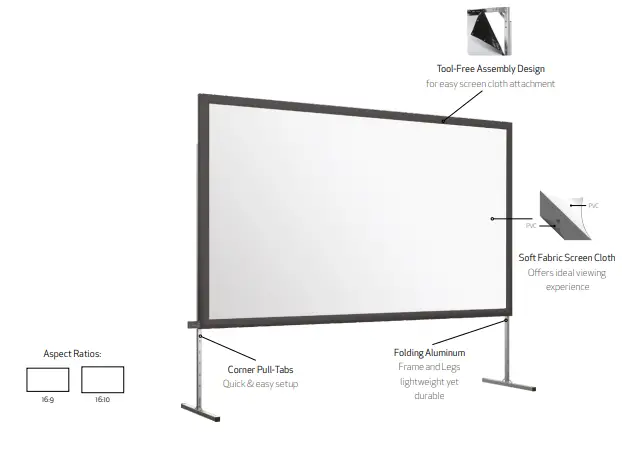

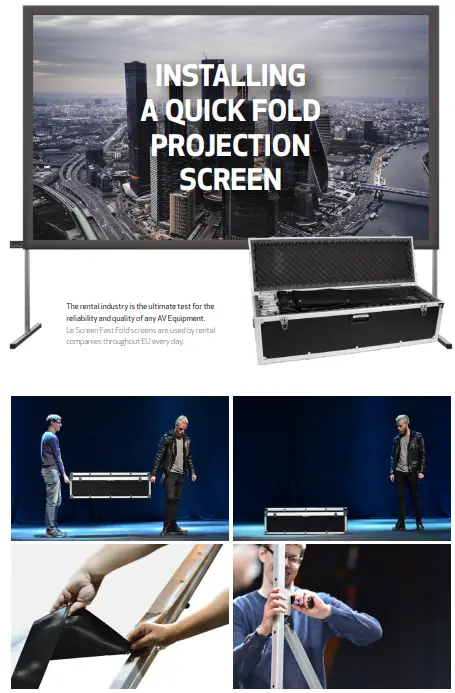

QUICK FOLD PROJECTION SCREENS

EASY TO TRANSPORT BETWEEN DIFFERENT LOCATIONS
Le Screen Quick Fold Projection Screen are elegant projection screens designed for flexibility and easy transport. The perfect choice if you are looking for a flexible projection screen solution. It is easy to move between rooms and easy to transport between different locations.
Suited for commercial presentations, residential home cinemas, sport bars etc. This is ideal for both indoor and outdoor presentations. It only takes minutes to install and assemble. Flight case design makes it convenient for you to carry it with you and aluminum frame case helps to enhance screen surface tension. Wide selections of sizes are provided to meet your diverse needs.

QUICK FOLD PROJECTION SCREENS

• Offering a clear picture with 140° viewing angle
• Ensures tool less height adjustment with Locking Rotary Knob
• Tool-Free Assembly Design: allows set-up in minutes by simply unfolding and locking frame, snapping on projection material and inserting legs
• Enhance picture contrast with the 4-sides black Masking Borders
• 1.1 Gain: Help you enjoy vibrant images through preventing light from muddying the colors on the screen
• Aluminum Flight Case: Ideal for travel and protects the screen when not in use
• Available in 16:9 and 16:10 aspect ratios

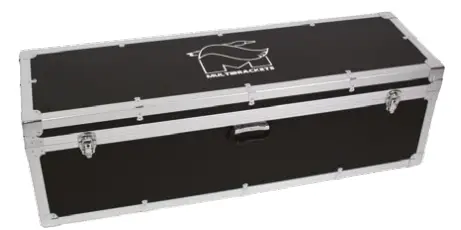

Rugged Flight Case with Rotating Clasps and Wheels Ideal for storage and transport

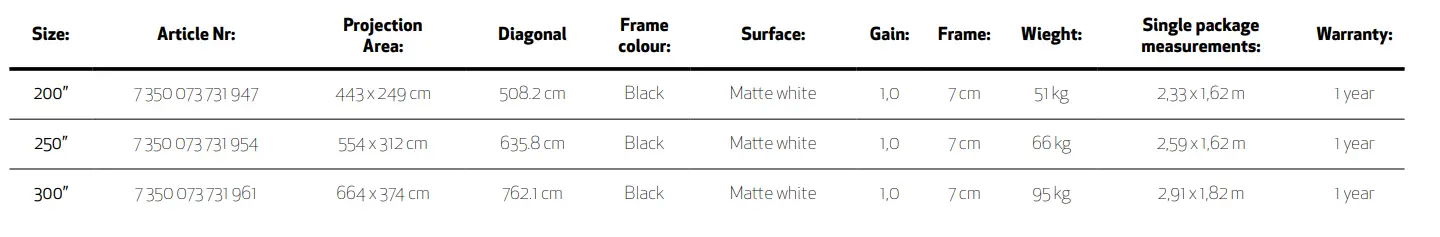

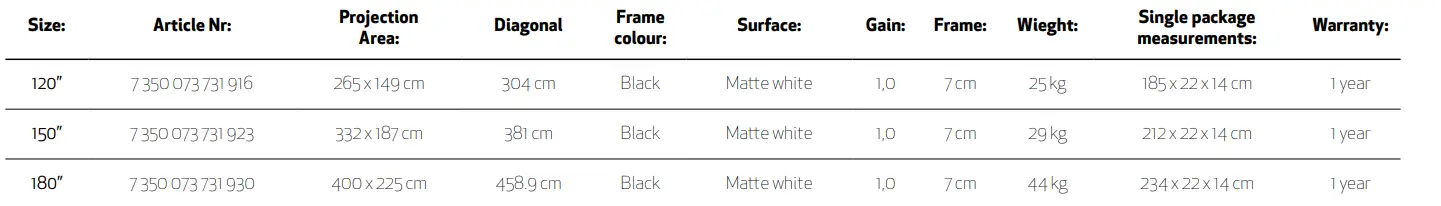

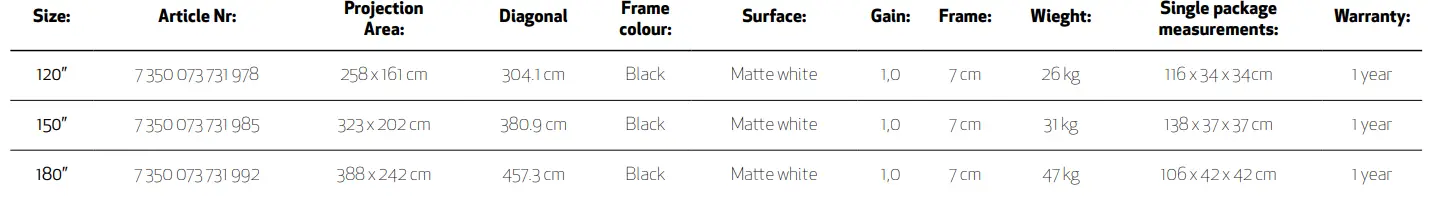

M Quick Fold Projection Screen 16:9 120” to 180”

M Quick Fold Projection Screen 16:9 200” to 300”

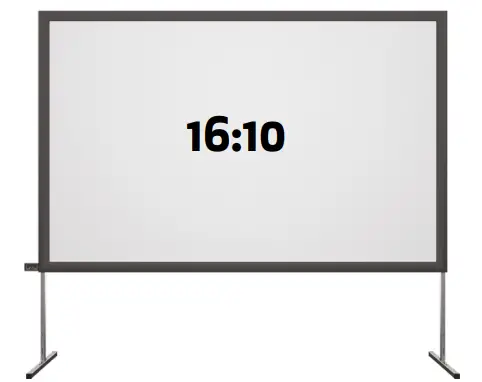

M Quick Fold Projection Screen 16:10 200” to 300”

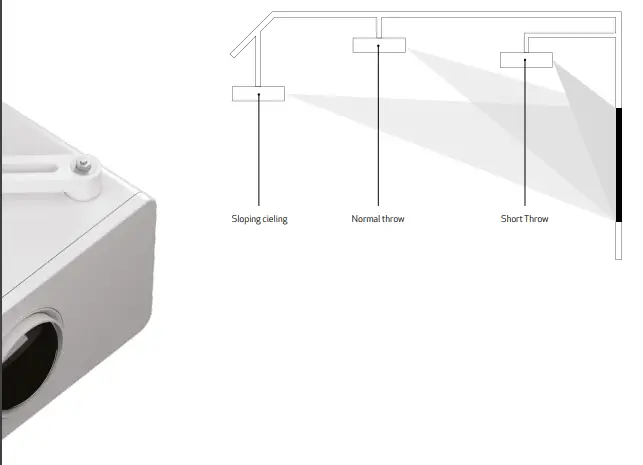

CHOOSE THE RIGHT MOUNT FOR YOUR PROJECTOR:

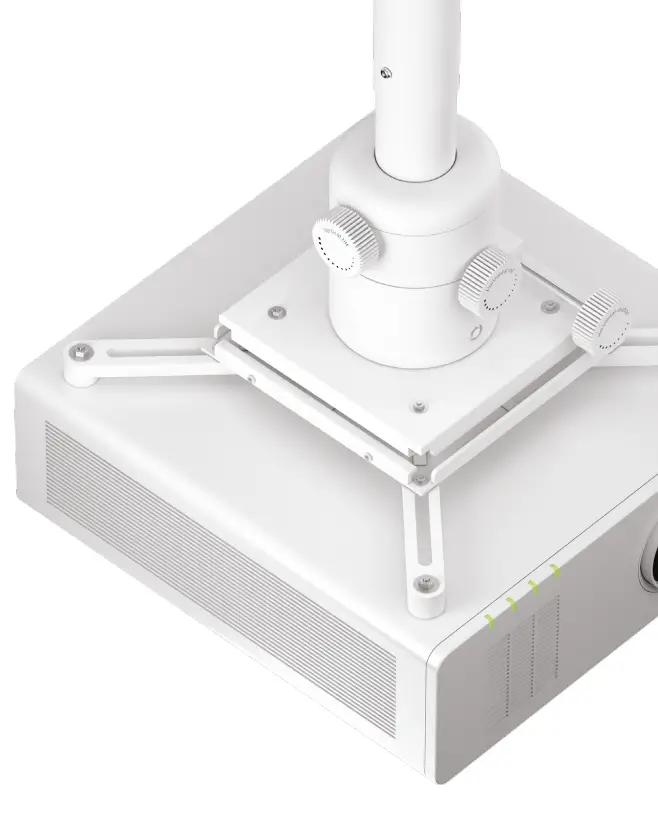

PROJECTOR CEILING MOUNTS

INDUSTRY-LEADING PROJECTOR MOUNTS WITH FINE TUNE TECHNOLOGY FOR CEILING INSTALLATIONS.

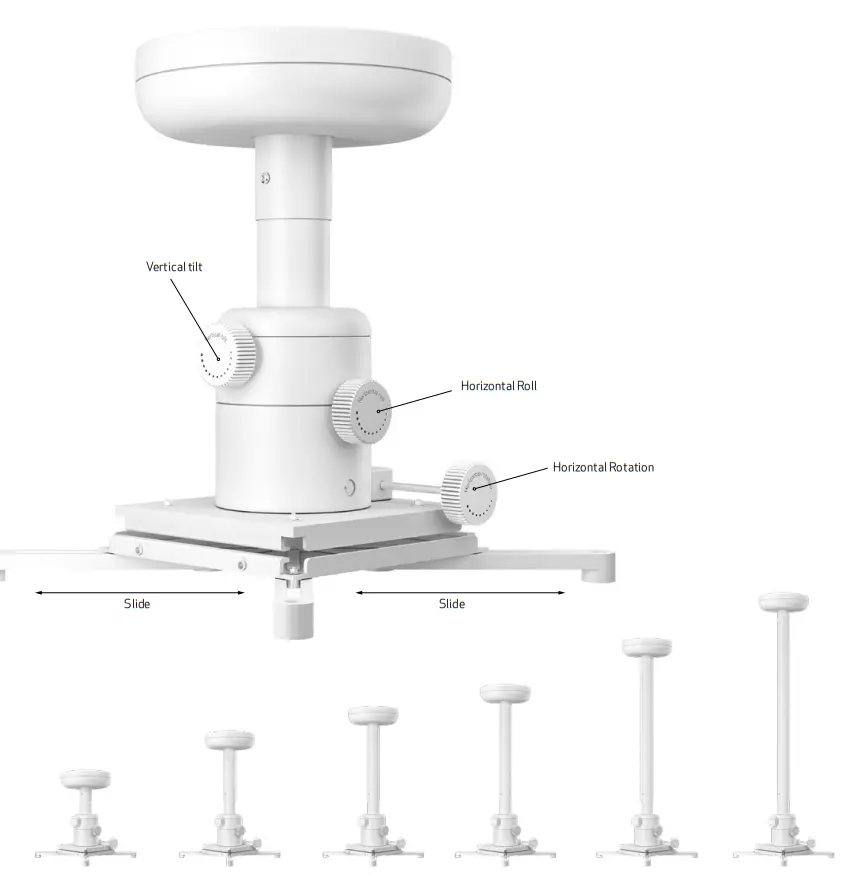

Le Screen Projector Ceiling Mount series 200/ 500-800/ 600-1000/ 900-1600/ 1600-3000 with Fine tune offers an industry-leading projector mount for ceiling installations. The series minimizes installation time, simplify maintenance and offers a sought after fine tune adjustment alignment with 3-axle angles. This model also offers an anti-theft security feature.

The M Universal Projector Ceiling Mount 200 with Fine tune give you easy placement of your projector in the most discreet setting possible. You can orient and incline according to several axes. The model features integrated cable management, easy fine tune settings adjustments, once the projector is in place. This projector mount has a minimum of surface area to the projector good for not trapping heat close to your projector thus not cutting your projector lamps lifetime.

The built in fine tune technology provides easy fingertip positioning capabilities which automatically adjusts the projectors position. That way you can always be sure to get a well balanced position for your projector after installing it. This does not only save installation time but also make room for possible changes of what projector is being used or how your projection screen is positioned, perfect if you anticipate changing projectors in the future. The arms holding the projector are articulated and telescopic to adopt to almost all projector models.

Le Screen Projector Ceiling Mount series 200/ 500-800/ 600-1000/ 900-1600/ 16003000 with Fine tune offers an industry-leading projector mount for ceiling installations. The series minimizes installation time, simplify maintenance and offers a sought after fine tune adjustment alignment with 3-axle angles. This model also offers an anti-theft security feature.
There is a reason why this series of projector mounts quickly has become one of Le Screen top selling product lines.
HIGHLIGHTS:

• Fast installation with innovative design
• Ideal for those who wish to use it with more than one brand projectors, or who anticipate changing projectors in the future
• Projector position from the ceiling
• Integrated lateral shift
• Telescopic slide extension

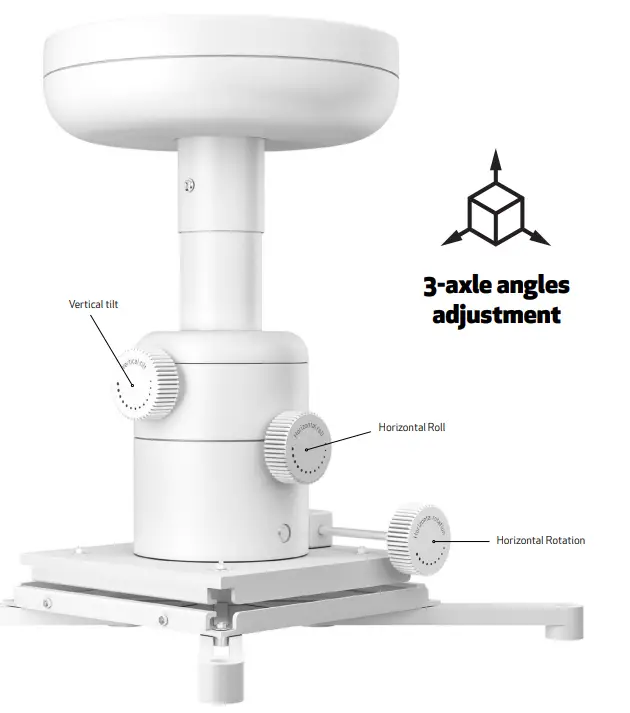

• Fine tune adjustment alignment with 3-axle angle
• Integrated cable management system for concealing cables
• Product: Includes arm and projector mount (complete)
• Ceiling: Includes hardware for a complete installation for nearly any ceiling
• For faster installation the unit comes partially pre assembled

PRO M Universal Projector Ceiling Mount with Fine tune.

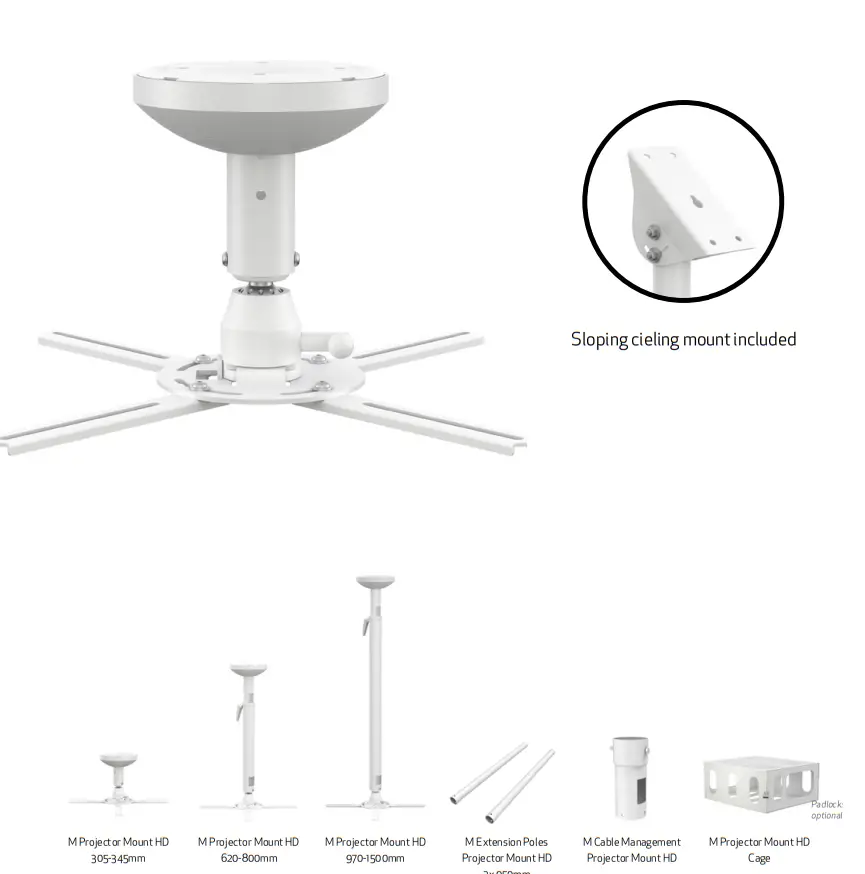

HEAVY DUTY M Projector Mount HD

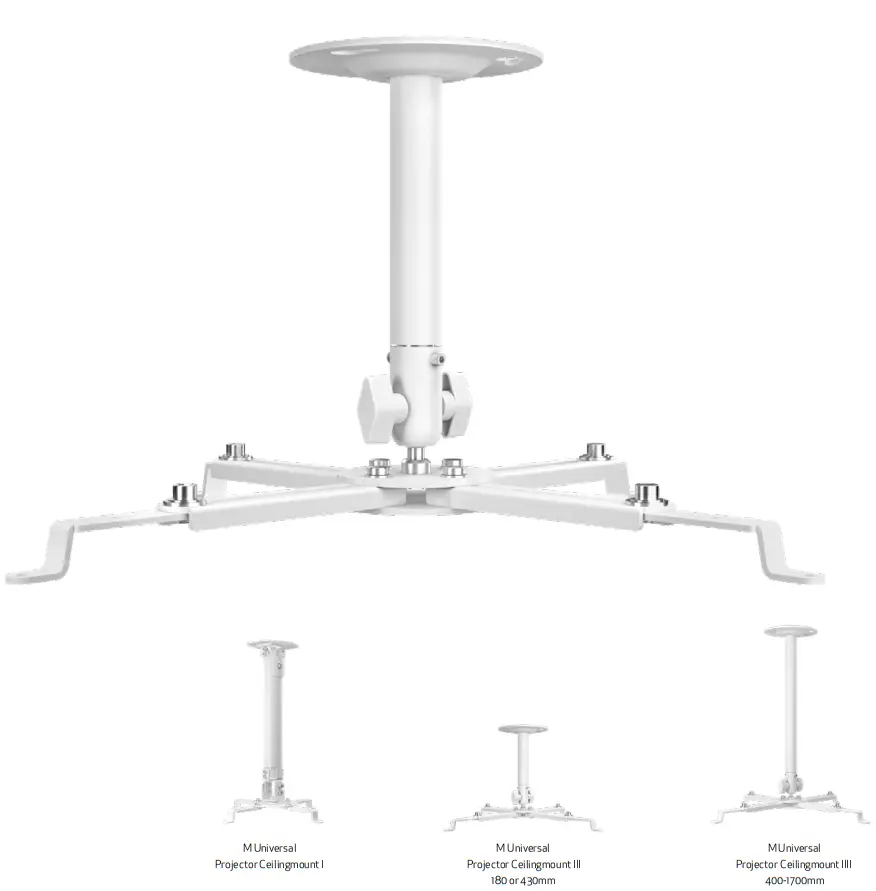

BASIC M Universal Projector Ceiling mount

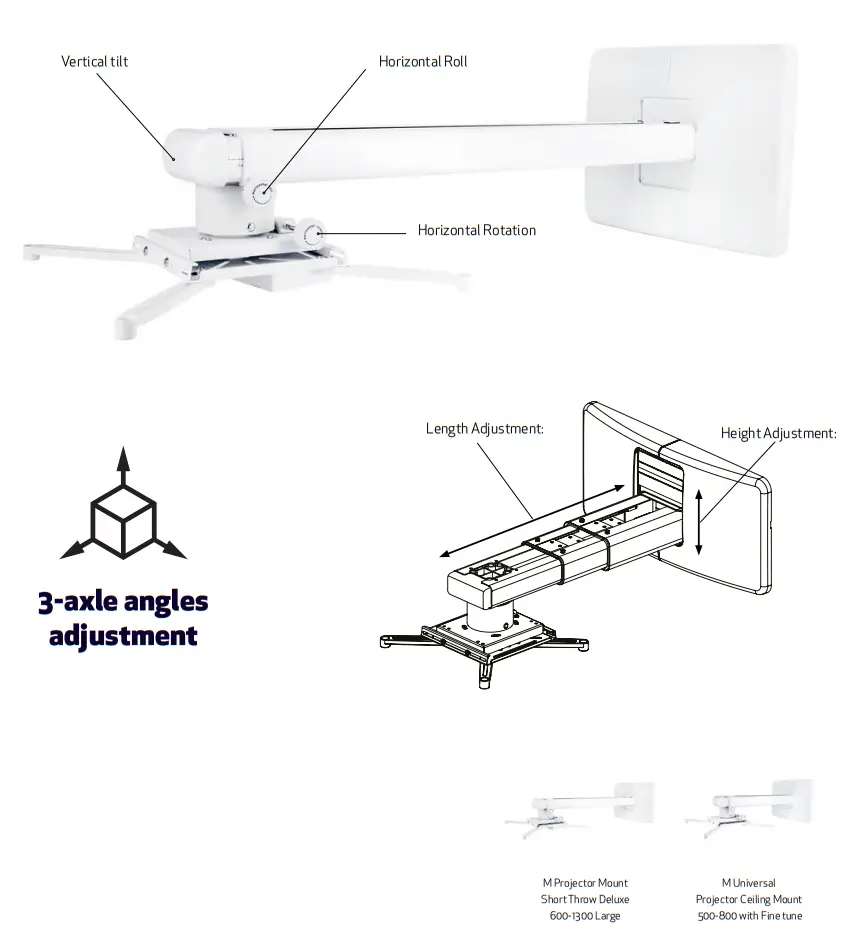

SHORT THROW M Projector Mount Short Throw Deluxe
