Philips Ppm4311 Mini Back Massager User Manual

Back and Waist Massager
Back Massager
PPM4311 User Manual

Instructions for User

Please read this manual carefully before using the product and keep this manual properly.
Symbol Description
To avoid personal injury or property damage, be sure to observe the following.

• The following symbols respectively illustrate the items that you must observe.

Indicate prohibition
Indicate that you should do as instructed
People restricted or prohibited from use
The following groups shall use the product with caution
People under treatment at a medical institution or in the following conditions, should consult with a doctor or physiotherapist before using the product.

• People with implanted pacemakers or related medical electrical devices
• people with malignant tumor or heart disease
• Pregnant women or puerpera
• People suffering from a highly nerve ending disorder caused by diabetes
• People with skin trauma
• People with body temperature above 38°C
• People with back pain or who used to have pain in the head, waist, or feet
• People who are prone to numbness of hands and feet
• People who have difficulty with respirators
• People with hypertension
• People with acute symptoms of visceral diseases (gastritis, hepatitis, gastroenteritis, etc.)
• People with lumbar disc herniation, spondylitis
• People with osteoarthritis, arthritis, gout
• People with fractured spine or swollen bones
• People who have lost skin temperature sensation
• People with hypothermic burns
• People with abnormal back bones
• People with vascular disorders
• people who use restorers
• People with abnormal body sensation

The following groups are prohibited from using the product
People who have been advised by their doctor to abstain from exercise or stretching Such as: thrombosis, severe aneurysm, acute venous aneurysm, various dermatitis, various skin infections. It is prohibited to use because it is easy to cause deterioration.

• People who cannot express their will or who cannot operate machines independently
• Children aged 14 and younger are prohibited from using this product or approaching to the product in operation
• This product is set to operate for a fixed time of 15 minutes, and it should not be used continuously.
• Use is prohibited under the following circumstances:
  – When you are severely tired
  – Within an hour before and after meals
  – When you are drunk

Precautions for Use
Never use other power adapters except for the original ones.
Before use, check whether the product is intact. If any damage regardless of its extent is found, stop using the product immediately.
Please remove the dust from the charger regularly. The accumulated dust on the plug is likely to induce moisture and cause poor insulation, eventually leading to fire.
Before use, check if the switch and timer can work normally.
If the product cannot work or you feel any abnormality, please stop using it immediately and unplug the power cord.
In the event of a power outage, unplug the power cord.
The surface of the product will become hot. Thus, people who are not sensitive to heat should use with caution.
Do not stand on the product or use the product as a toy to avoid accidents.
Never disassemble, modify or repair the product or open the zipper by yourself.
Do not use this product when your body is wet, or it is easy to get an electric shock.
Do not wear too much to use the product, and do not let the surface of the product directly contact your skin during use.
Do not use the product with its cover removed. This is likely to cause accidents.
Do not pull the product with force, or stab the product with a knife or sharp object.
Precautions for Operation Place
Do not use the product near a stove, in electric heating quilts or on electric blankets and other heating appliances, otherwise a fire or disaster may occur.

Do not cover the product with a towel, cloth or other objects.
Do not use this product near water-filled bathtubs, showers, washbasins, or other high-humidity vessels.
Precautions for Maintenance
During maintenance, be sure to disconnect the power supply.
When the product is not in use for a long time, be sure to unplug the power cord.
Do not drop the product or remote control and charger, or hit them with strong force.
Do not put too much weight on the product.
This product cannot be used for two persons simultaneously.
Do not spray water on the product.
Do not use the product in direct sunlight or at places where the room temperature is above 35°C.
Do not use the product in bathrooms or places with high humidity. If the product has not been used for a long time, you have to check in advance whether the switch is normal prior to re-use.
During maintenance, do not clean the product with volatile oil, diluent, alcohol, strong alkaline detergent, bleach and other cleaning agents.
Simple blackening prevention facilities are provided for the product so that it can be transported by air, rail, road and ship. Avoid rain and snow, inversions and collisions during transport.
Keep this product out of the reach of children.
When storing, make sure the product cools down.
Frequently check the product for signs of wear or damage. If there are such signs or the product has been misused, you must return the product to the supplier before reuse.

Product Features

This product can be used in two postures: sitting and standing. It can promote blood circulation and relieve muscle soreness and discomfort by tapping with artificial hands. There are multiple massage modes and tapping intensities available to meet the massage demands of different groups of people.

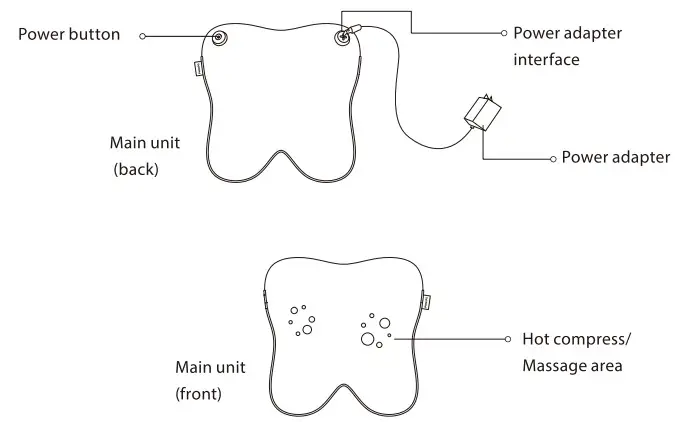

Parts Name

How to Use

Preparations for Use
Check whether the cover is damaged.
Check that the product and accessories are complete. Always remove the pendant and decorations before use to avoid affecting the massage part.

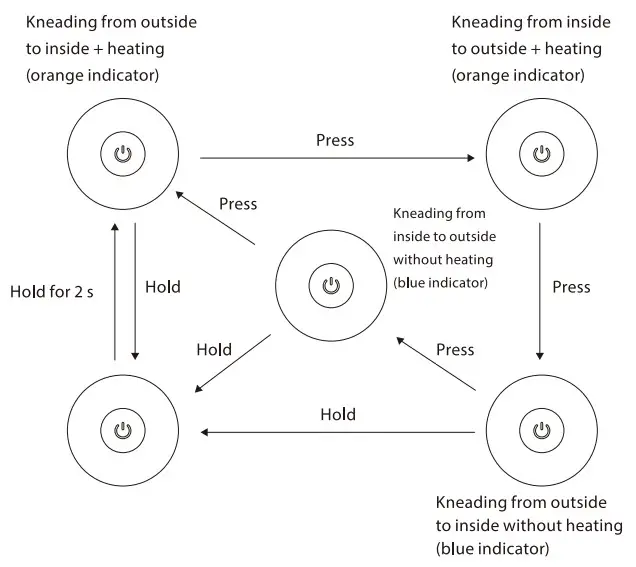

Operation

1. Hold the power button for 2 seconds to start up. The device runs in mode 1 (kneading from outside to inside + heating) by default, and the ring indicator light is illuminated in orange at this time.
2. Press the power button to switch to mode 2 (kneading from inside to outside + heating), press again to switch to mode 3 (kneading from outside to inside without heating), and continue pressing to switch to mode 4 (kneading from inside to outside without heating). Short press the button to cycle through 4 modes in turn.
3. This product is set to shut off within 15 minutes by default. To suspend massaging, you can hold the power button for 2 seconds.
4. If the heating is enabled, the ring indicator light will be illuminated in orange, otherwise the indicator light will be illuminated in blue.

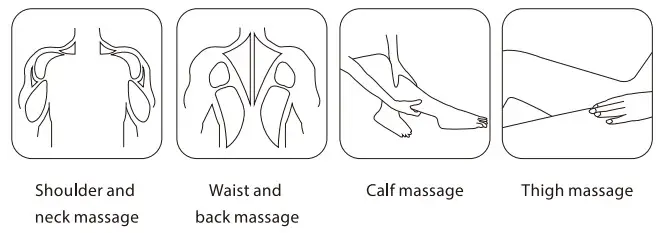

Applicable Parts Charging Method

1. When the battery is low, the indicator light flashes blue, indicating to charge the product.
2. Connect the product and the power supply with a DC12.6V/1A adapter to start charging.

Tips:

1. Please use the power adapter supplied by the manufacturer instead of other ones for charging.
2. When the battery is low, the blue indicator light will flash quickly. After 3 seconds, the indicator light will go out and the product will stop working.
3. When charging, the blue indicator light will flash slowly. It takes about 3 hours to fully charge, and the blue indicator light is always on.

Precautions for Battery

1. Do not replace the battery by yourself during normal use.
2. The battery must be removed from the product before disposing of the product. The removal steps are as follows:
   – Unpack the product.
   – Remove the relevant wires inside and remove the battery.
   – When removing the battery, the product must be powered off.
   • Batteries should be disposed of safely.

Maintenance

Cleaning Method

• The product cover cannot be removed.
  (1)Remove the dust from the cloth cover of the product with a vacuum cleaner rather than by patting;
  (2)Wipe off the dirt from the surface with a clean rag;
  (3)Where the dirt accumulates in relatively deep places, dampen the cloth with neutral detergent, and then wipe gently;
  (4)Prevent water from entering the product;
  (5)Place the product and dry it naturally.
• Do not put the product in direct sunlight or at places with high humidity after use. If the product is left to be unused for a long time, remember to cover it with a cloth after removing dirt, so as to avoid dust.
• Disposal: Do dot discard the product at random. Please scrap it according to the disposal method for each part to protect the environment.

Be sure to unplug the power cord without using wet hands during maintenance.

Diagnosis

This chapter lists the most common problems to the product. If the problems you encounter are not included in the following tables, please call our service hotline or contact the authorized service center at the region where you are located.

Note: If the fault cannot be eliminated or the product still cannot be operated ideally, please contact the after-sales service personnel, and do not disassemble or repair by yourself.

Main Specification

Product Name	Philips Back Massager
Product Model	PPM4311
Adapter	Input 100-240V∼ 50/60Hz 0.6A
	Output DC12.6V1.0A
Working Voltage	11.6V
Working Power	24W
Charging Voltage	12.6V
Charging Current	lA
Battery Capacity	2000mAh
Net Weight	1.4kg
Adapter Cord Length	1.6m
Dimension	290mmx290mmx110mm

Service Guideline for Warranty

Service and Support
If you require assistance with the operation of the product, its features or specifications. Please call Mann & Noble on +61 (0) 2 8801 7666 in Australia or +64 (0) 800 112 660 in New Zealand or email [email protected] or visit www.philips.com/support.
Warranty
Please refer to the separate warranty leaflet provided with this product.
Warranty Card

Packing List

Visit us
www.philips.com
There may be certain differences between the content of this manual and your product. Please refer to the actual product. We reserve the right to update the product at any time without prior notice.
©102022 AquaShield
All rights reserved
The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninkli-jke Philips N.V. used under license.

Rev A JUL 22
