PHILIPS PPM7501 Mini Massage Gun User Manual

Instructions for User

Please carefully read the operation manual before use and keep it properly.

Symbol Description
The following contents must be abided by so as to avoid personal injury or property loss.

The following diagrams are used to illustrate the contents that you should abide by.

It means forbidden
at means to operate according to the instructions

Precautions for use

Please use the product with caution for the following conditions after being approved by doctors.

Pregnant, diabetic complication (such as, neuropathy or retinal damage). People who wear pacemaker and who suffer from seizures or migraines, disc herniation, spinal prolapse, loss of vertebrae or stiffness of joints of immediate vertebrae as well as people who have perform surgeries recently. In case of such conditions, you can use the product, but please consult with doctors in advance.

According to practices, under many cases, it is a treatment method to combine the beating training with other therapeutic regime, however, such method should be suggested or accompanied by doctor, expert or therapist.

Safety Warning

It is forbidden to apply on wet and filthy skin surface. You can use it with your clothes on. Gently press and move it on your skin;

It is forbidden to use it above the neck and areas with less muscle coverage;
It is forbidden to use it on the weakened parts of the spine, neck, head, joints, etc.;
It is forbidden to apply on part with bruise and discomfort;
It is forbidden to put any articles an the heat part of the product;
It is forbidden to throw the product in fire or keep it close to fire source;
It is forbidden to fall off the product deliberately;
It is forbidden to insert finger, hair or other body part into the mounting hole of the massage head, which may be c|amped; People who aged 12-IB year‘s old should be accompanied by parents for use and shoMld not use it on their own. It is forbidden for children under 12 to use; When there is no pain or discomfort, use this product only on the soft tissues of the
body, and pay attention to avoiding nearby bones and joints to avoid damage: In case of muscle injury, please consult doctors in advance or please use it in the
The battery can be taken out from the bottom cabin (users are not allowed to replace
battery on their own) :

• The battery must be taken out from the cabin before disposing the device
• The device must be disconnected from power while taking the battery out The battery must be disposed in a safe manner

Product Features

The product can relax the soft tissue of body through the high-frequency impact, which can help relax the tense muscles and release the sour and fatigue after exercise. Different massage heads can be matched to massage the muscles. It is compact and portable.

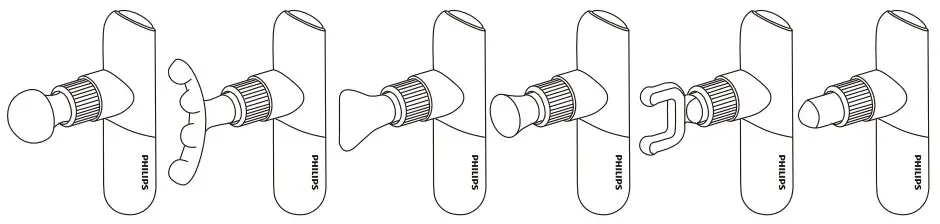

Parts Name

The product can relax the soft tissue of body through the high-frequency impact, which can help relax the tense muscles and release the sour and fatigue after exercise. Different massage heads can be matched to massage the muscles. It is compact and portable.

Rubber Spherical head
Suitable for daily massage and relaxation

Titanium Flat Head
Suitble for muscle relaxation after high intensity exercise

Curved head
Up to 4 contact points to meet the needs of large-area massage

U-shaped Head
Suitable for concentrated massage on specific sore points

Wedge-shaped Head
Can be used for massaging large muscle groups

Pointed Tip Head
Used to impact deep tissues and quickly relieve muscle soreness

How to Use

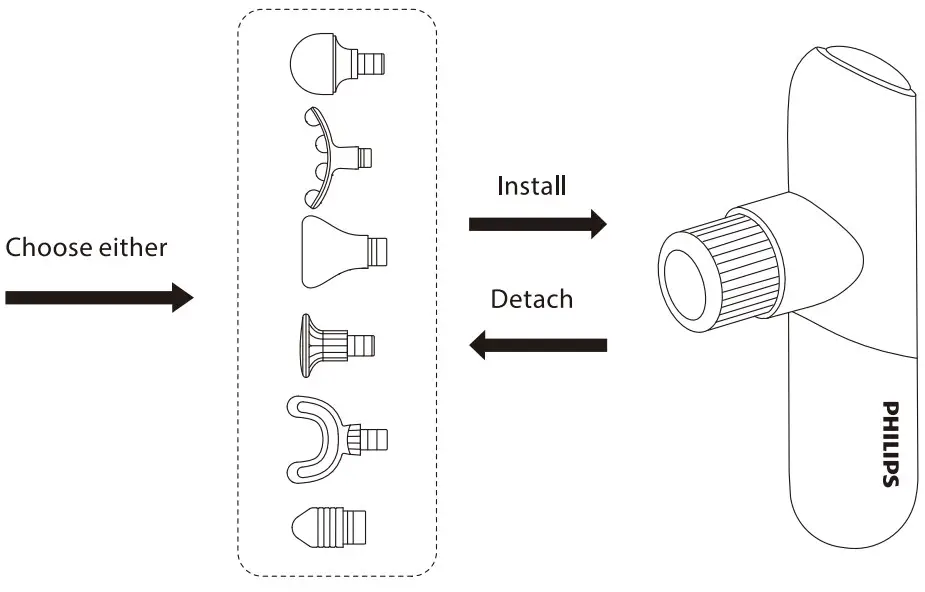

1. Product Installation
   According to the massage needs, please select the massage head and insert it into the front round hole of the fascial gun.

   Illstration as shown in the figure:

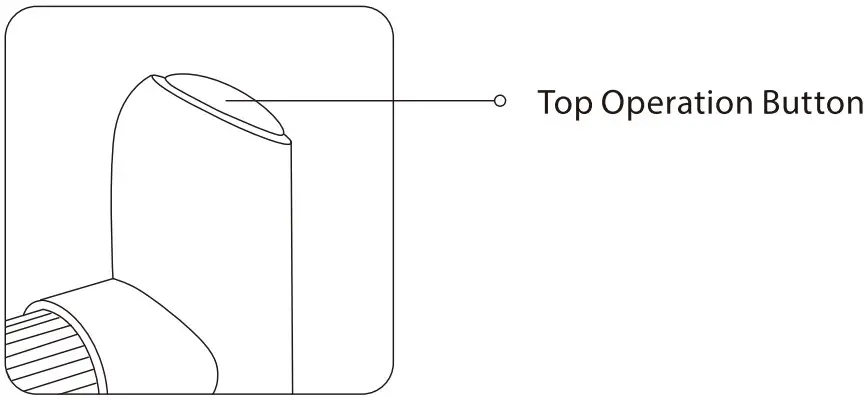

2. On/Off
   Hold the operation button on the top of the device for 1 second to turn it on. No action will be made if holding more than 3 seconds to avoid mis-operation.

   The device will switch to charging mode while charging and the product will not turn on by pressing the touch button.
   In order to avoid massaging the same position for a long time, the device will be automatically off after using 10 minutes for each level.
3. Level Switch
   Press the operation button to switch from level 1-5. At this moment, the lamp ring will display the level, which can be equally divided into 5 parts, corresponding to 5 levels

4. Pressure Feedback
   If there is no operation after 3s, the lamp ring will automatically switch to pressure feedback mode. Different colors will prompt the user about the pressure of the device.

   Corresponding Color	The Force Imposed to the Device by the User
   Blue	0-1kg
   O Green	1-3kg
   O Yellow	3-5kg
   OOrauge	>5kg

   Please adjust the power according to your own condition to avoid damaging
   your muscle.
   Asthe moving parts are made of metal, they may heat after a long-time use, which is normal.

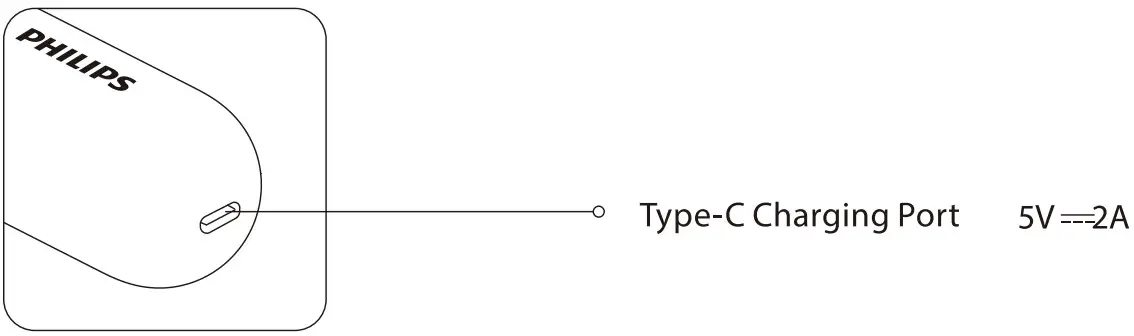

5. Charging
   It takes about 4 hours for the battery to be fully charged. Please unplug the charging cable once finish charging.

   During charging, the fascial gun should lay flat.

Description of Indicator Light

Main Specification

Service Guideline for Warranty

Service and Support

If you require assistance with the operation of the product, its features or specifications. Please call Mann & Noble on +61 (0) 2 8801 7666 in Australia or +64 (0) B00 112 660 in New Zealand or email [email protected] or visit www.phiIips.com/support.

Warranty

Please refer to the separate warranty leaflet provided with this product.

Warranty Card

Packing List

Visit us
www.philips.com
There may be certain differences between the content of this manual and your product. Please refer to the actual product. We reserve the right to update the product at any time without prior notice.
