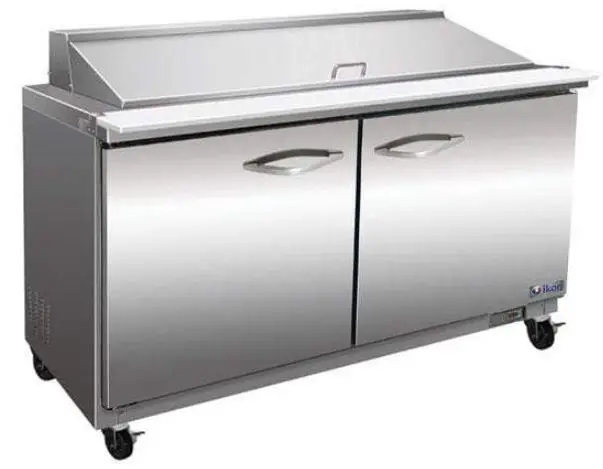

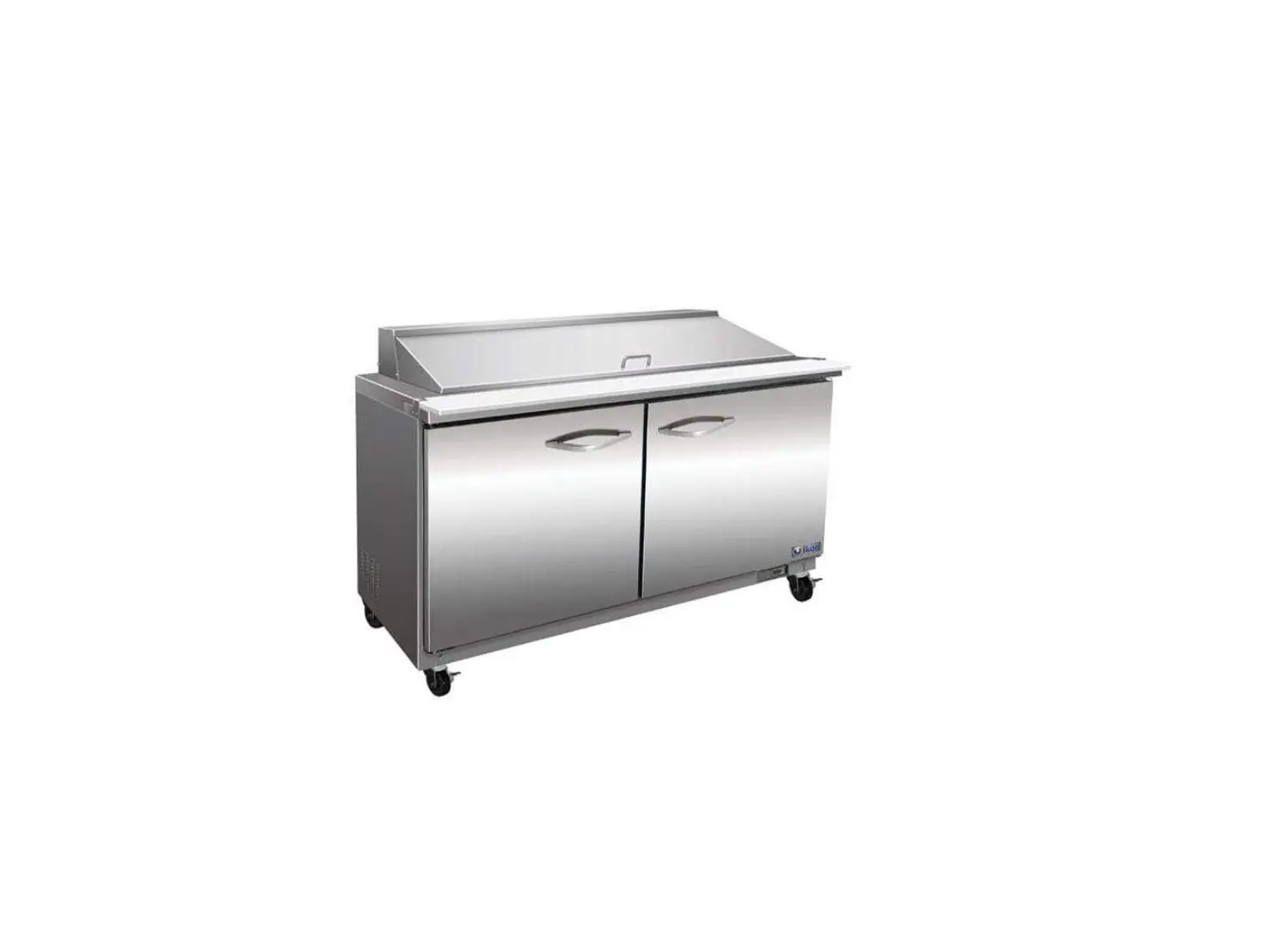

ikon ISP48M Refrigerator

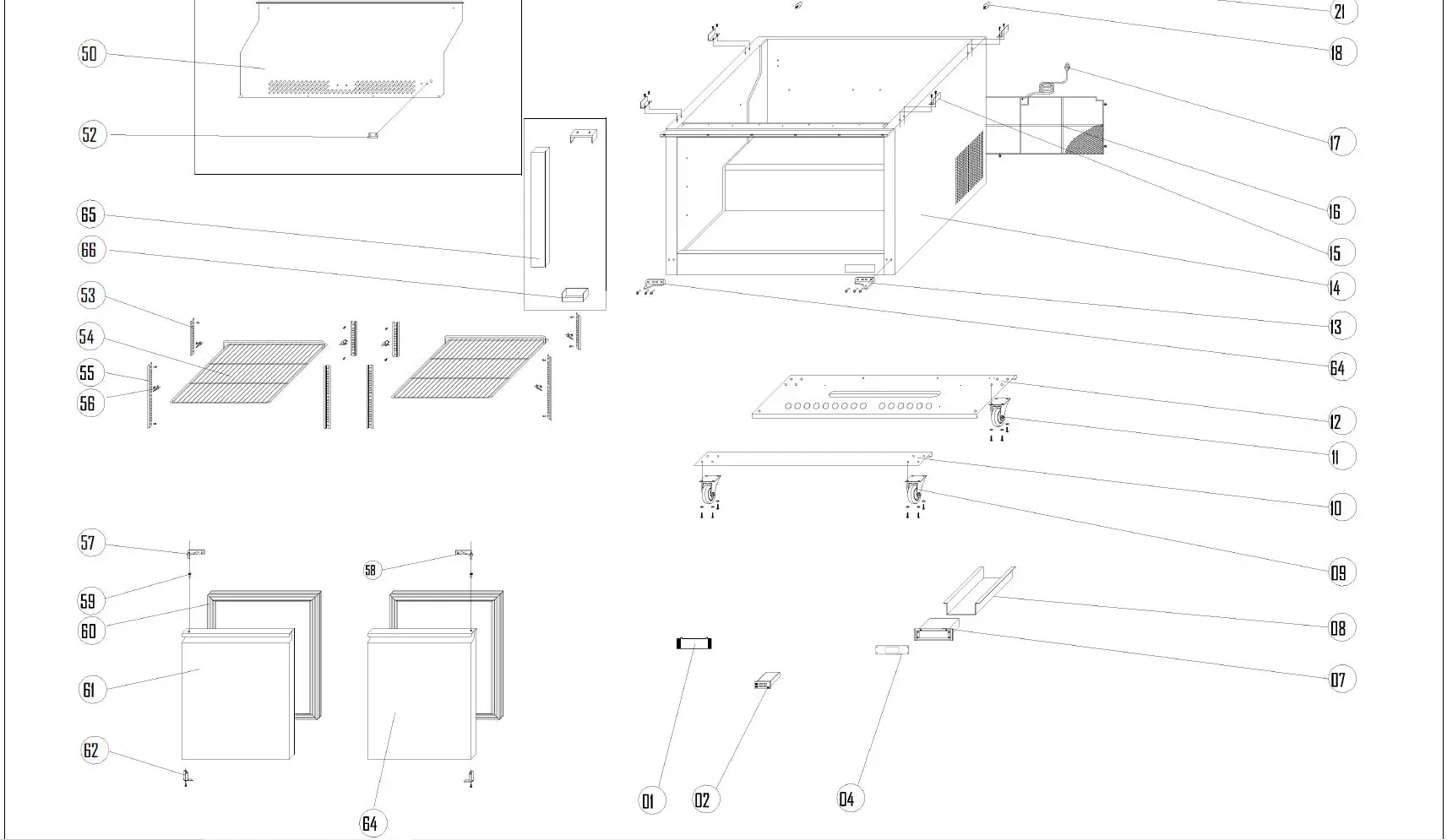

OVERVIEW
| LABEL NO. | ITEM NO. | ITEM NO. DESCRIPTION |
| 1 | 1070274 | THERMOSTAT COVER |
| 2 | 1070078 | THERMOSTAT |
| 4 | 1070365 | THERMOSTAT FIX BOARD |
| 7 | 1070366 | THERMOSTAT BOX |
| 8 | 1075301 | CABLE COVER |
| 9 | 1075295 | BRAKE WHEEL |
| 10 | 1075350 | FRONT SUPPORT OF UNIT BOARD |
| 11 | 1075298 | NORMAL WHEEL |
| 12 | 1075351 | BACK SUPPORT OF UNIT BOARD |
| 13 | 1075133 | DOOR HINGE/RIGHT |
| 14 | 1075922 | BODY |
| 15 | 1075899 | TOP CLIP |
| 16 | 1075339 | UNIT ROOM COVER |
| 17 | 1070079 | PLUG |
| 18 | 1075309 | LOCATION KNOB |
| 19 | 1070421 | FIXED PIN OF CUTTING BOARD |
| 20 | 1075259 | TOP |
| 21 | 1075260 | CUTTING BOARD |
| 22 | 1075251 | PAN SUPPORT /FRONT/BACK |
| 23 | 1075225 | STANDARD PAN |
| 24 | 1075244 | PAN SUPPORT /LEFT/RIGHT |
| 25 | 1075245 | PAN SUPPORT |
| 26 | 1075162 | HANDLE OF COVER |
| 27 | 1075261 | MOVING COVER |
| 28 | 1075262 | FIXED COVER |
| 29 | 1075675 | CONDENSER |
| 30 | 1070101 | FILTER DRIER |
| 31 | 1070073 | DRIER SUPPORT |
| 32 | 1070087 | CAPILLARY |
| 33 | 1074843 | CONDENSER FAN |
| 34 | 1075708 | BASKETC GUARD GRILLS |
| 35 | 1075354 | EVAPORATE PIPE |
| 36 | 1076547 | WATER BOX |
| 37 | 1070395 | COMPRESSOR |
| 38 | 1075341 | SUCTION PIPE |
| 39 | 1075315 | CONNECTOR SUPPORT |
| 40 | 1070080 | CABLE CONNECTION |
| 41 | 1075230 | CONNECTOR COVER |
| 42 | 1075344 | GUIDE OF UNIT BOARD |
| 43 | 1075738 | UNIT BOARD |
| 45 | 1075323 | CIRCLE FAN |
| 46 | 1075255 | CIRCLE FAN SUPPORT |
| 47 | 1070393 | EVAPORATOR |
| 48 | 1075356 | EVAPORATOR WATER PAN |
| 49 | 1075213 | FIXED SUPPORT OF EVAPORATOR COVER |
| 50 | 1075256 | EVAPORATOR COVER |
| 52 | 1070217 | SENSOR FIXED CLIP |
| 53 | 1076440 | SHELF SUPPORT B |
| 54 | 1075346 | SHELF |
| 55 | 1075317 | SHELF SUPPORT A |
| 56 | 1070007 | K SHAPE CLIP |
| 57 | 1075179 | UP HINGE/LEFT |
| 58 | 1075195 | UP HINGE /RIGHT |
| 59 | 1075129 | BUSHING |
| 60 | 1070390 | GASKET |
| 61 | 1075348 | DOOR/LEFT |
| 62 | 1076449 | DOOR SPRING HINGE |
| 63 | 1075928 | CONDUCT BOARD |
| 64 | 1075131 | DOOR HINGE/LEFT |
| 65 | 1070423 | MIDDLE GIRDER |
| 66 | 1070424 | MIDDLE GIRDER FIXER |
| 67 | 1075771 | FIXED BOLT |
| 68 | 1075766 | FIXED NUT |
| 1075842 | BV HANDLE | |
| 1075349 | DOOR /RIGHT | |
