EVOTECH CRF1100L Honda Africa Twin Plus Tail Tidy Instruction Manual
Kit Contents PRN014568-015031
A 1 x Main Plate

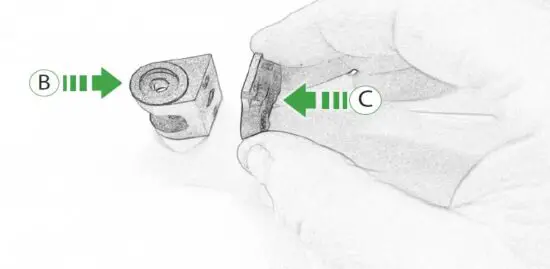

B 1 x Pivot Plate
C 1 x Quad Lock Sub Bracket
D 1 x Quad Lock Mounting Bracket
E 2 x M5 x 8mm Black Button Head Bolts
F 2 x P-clips (No.1)
G 2 x P-clips (No.2)
H 2 x P-clips (No.3)
I 2 x P-clips (No.4)
J 2 x Lobe Screw

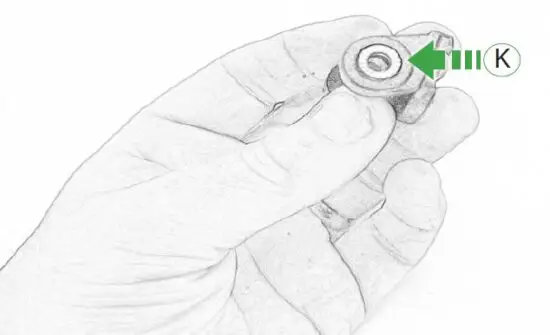

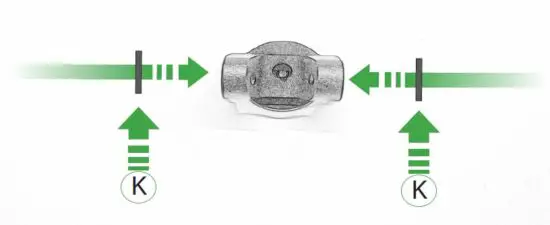

K 2 x Locking Washer
L 2 x M5 Black Washer
M 2 x M4 x 5mm Black Button Head Bolts
Sub Kit

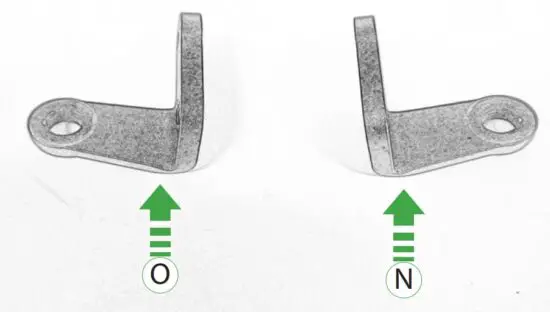

N 1 x Right Hand Arm
O 1 x Left Hand Arm

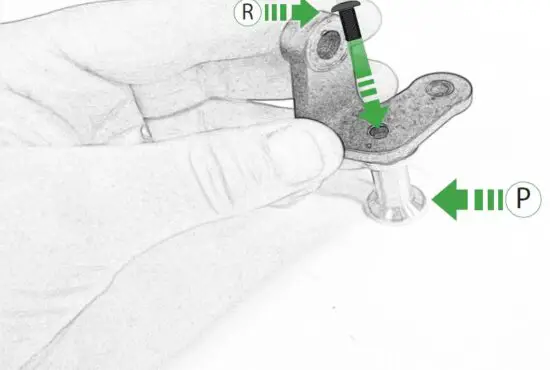

P 1 x Spacer

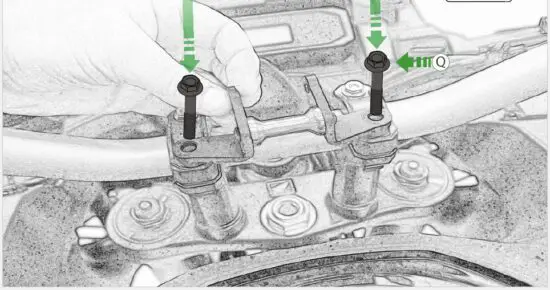

Q 2 x M8 x 45mm Flange Bolt

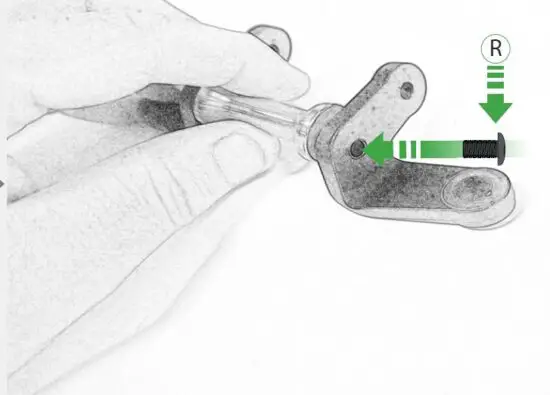

R 2 x M5 x 12mm Black Button Head Bolts

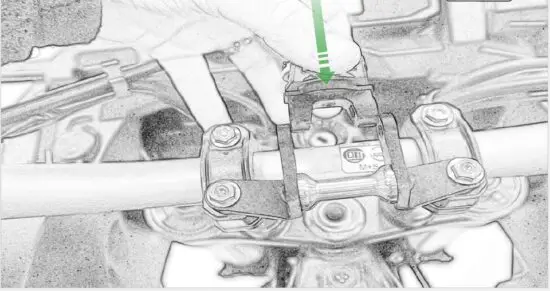

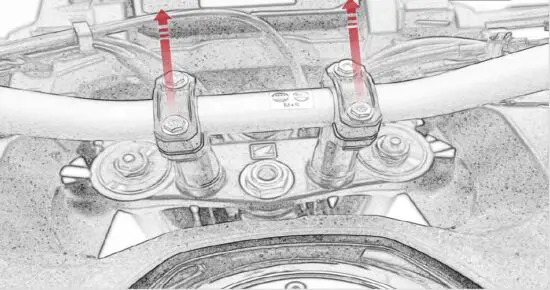

Installation Instructions
