WERMA 260 700 01 TwinFlash Combi Light

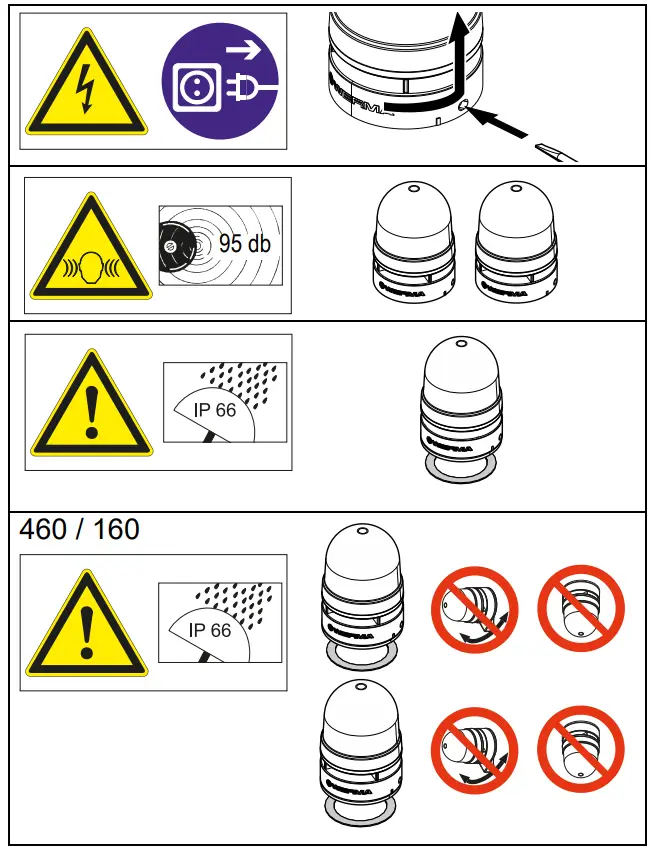

SAFETY INSTRUCTIONS
|
 |
DANGERElectrical connection is to be made by trained electrical specialists only.
|
Unsuitable for epilepsy sufferers.

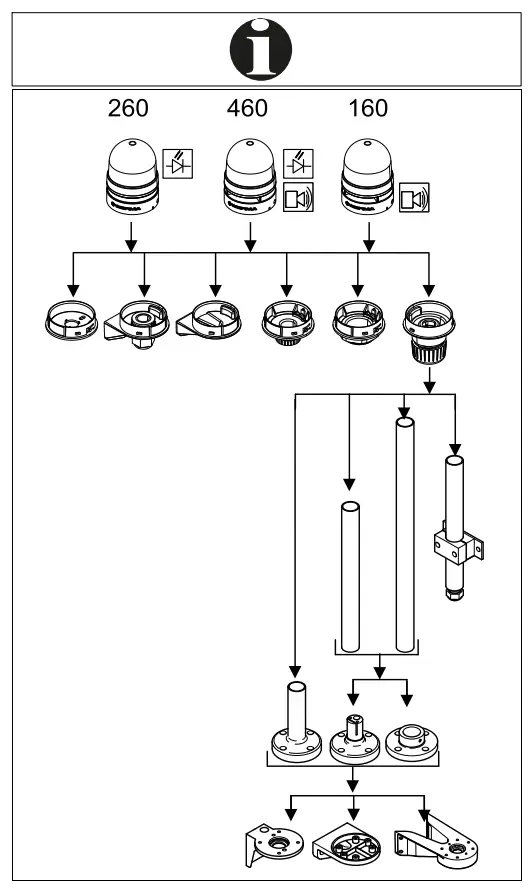

INSTALLATION DIAGRAM
 | 260 x10 74 260 x10 75 260 x10 60 | 12V≃ 24V≃ 115V/60Hz- 230V/50Hz | ≤90 mA ≤75 mA ≤45 mA |
| 260 x20 74 260 x20 75 260 x20 60 | 12V≃ 24V≃ 115V/60Hz 230V/50Hz | ≤70 mA ≤70 mA ≤45 mA |
 | 260 430 75 | 24V≃ | ≤90 mA |
 | 460 x10 74 460 x10 75 460 x10 60 | 12V≃ 24V≃ 115V/60Hz 230V/50Hz | ≤100 mA ≤100 mA ≤70 mA |
| 460 x20 74 460 x20 75 460 x20 60 | 12V≃ 24V≃ 115V/60Hz 230V/50Hz | ≤85 mA ≤100 mA ≤65 mA |
| 160 700 74 160 700 75 160 700 60 | 12V≃ 24V≃ 115V/60Hz 230V/50Hz | ≤30 mA ≤40 mA ≤30 mA |

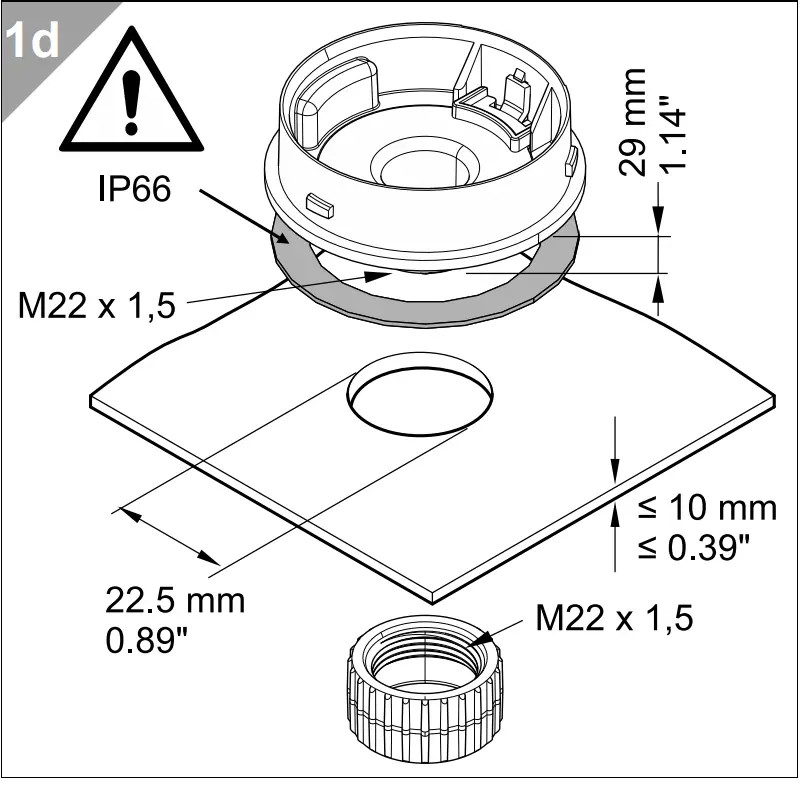

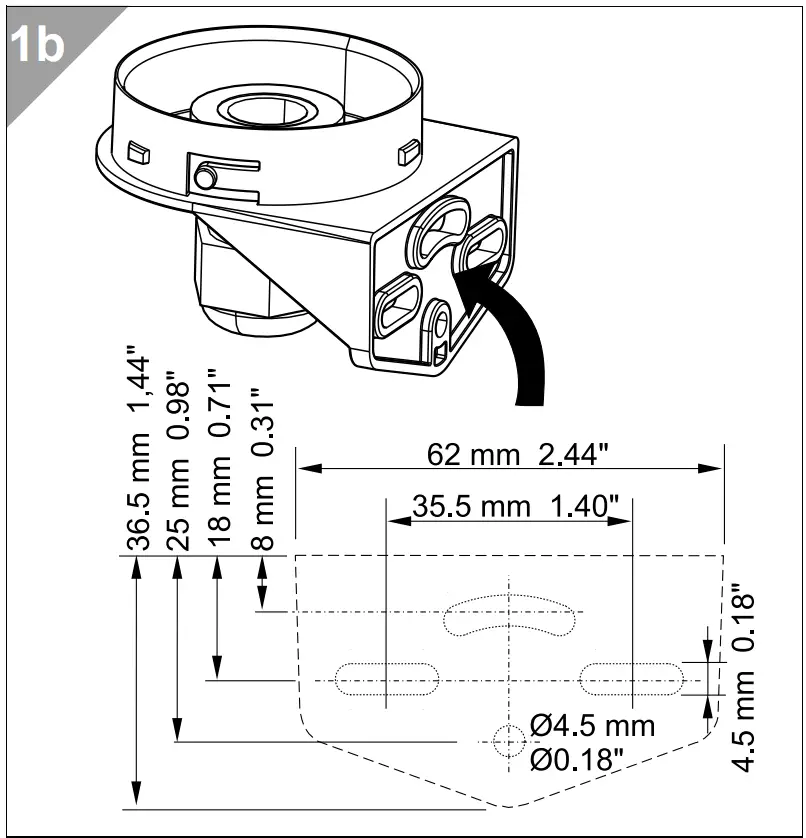

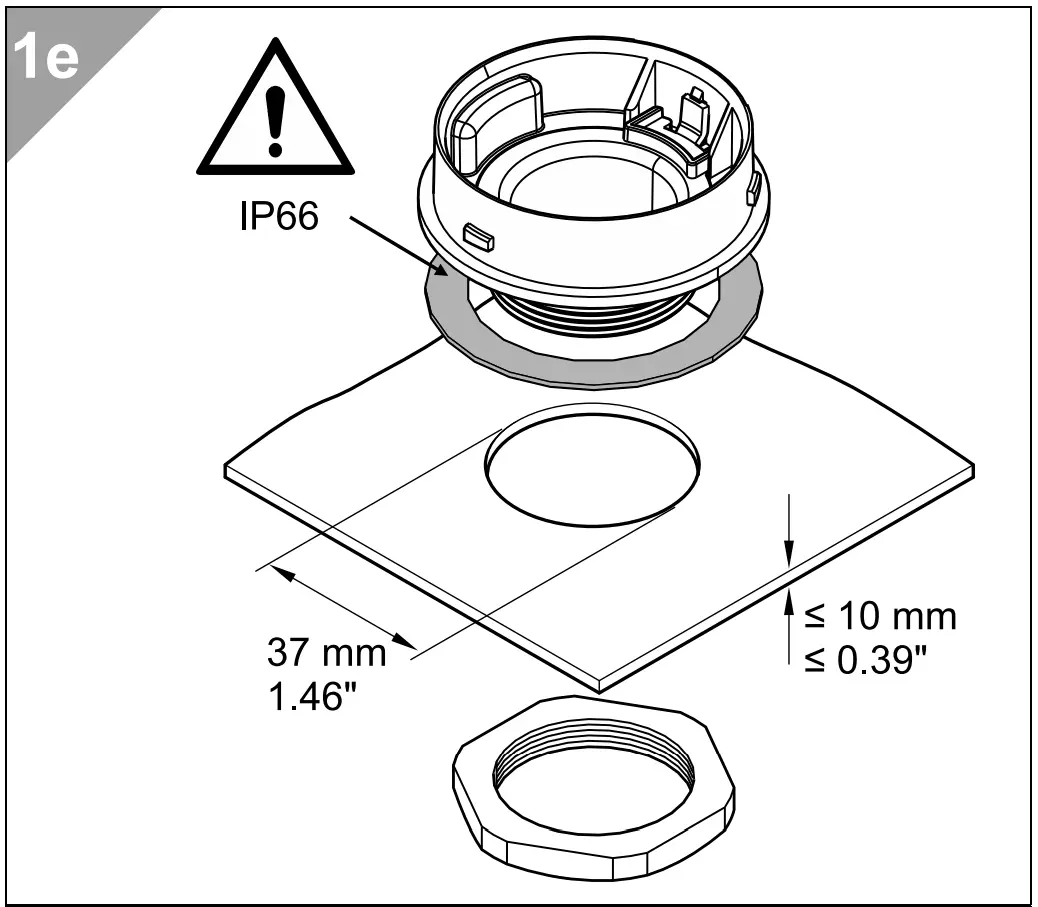

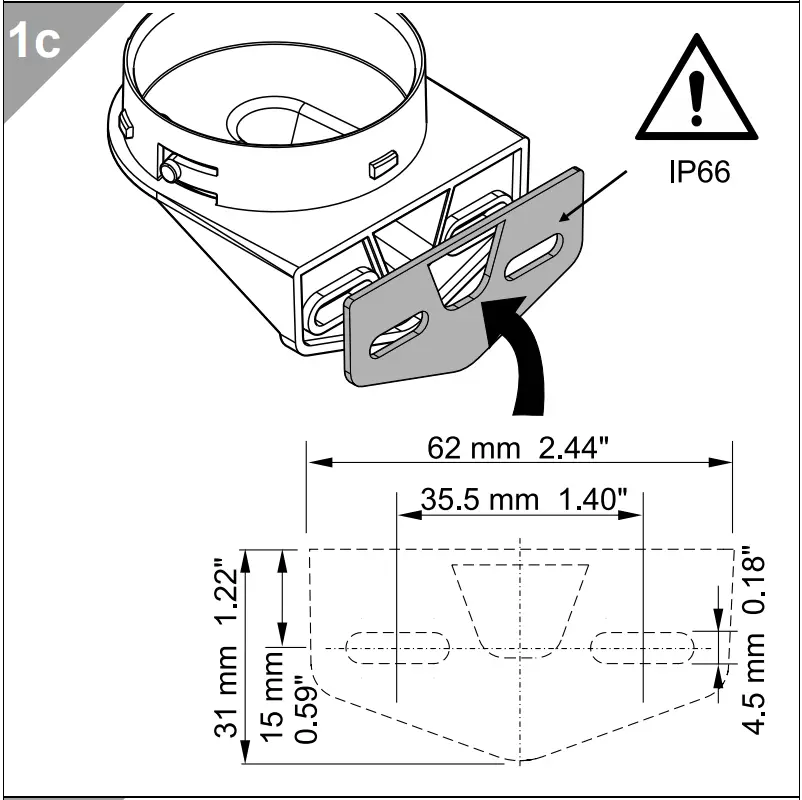

INSTALLATION DIMENSIONS

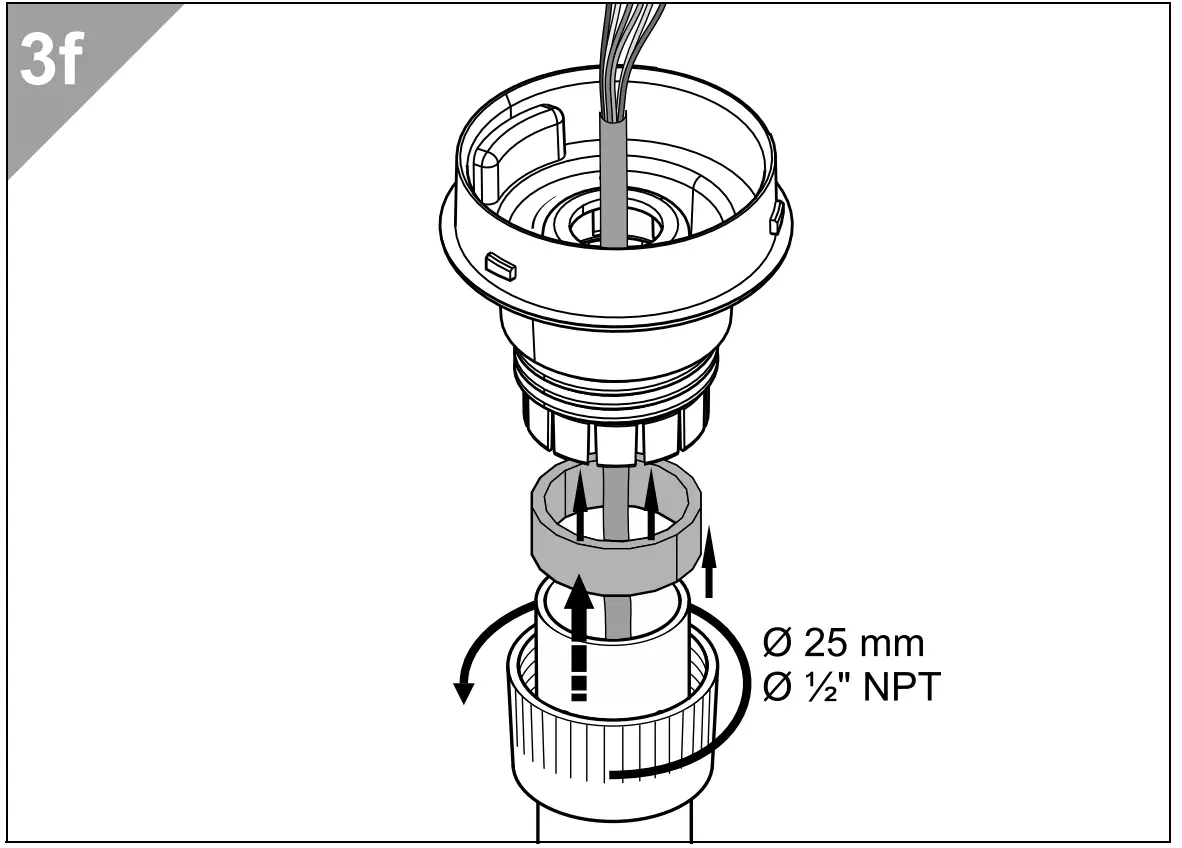

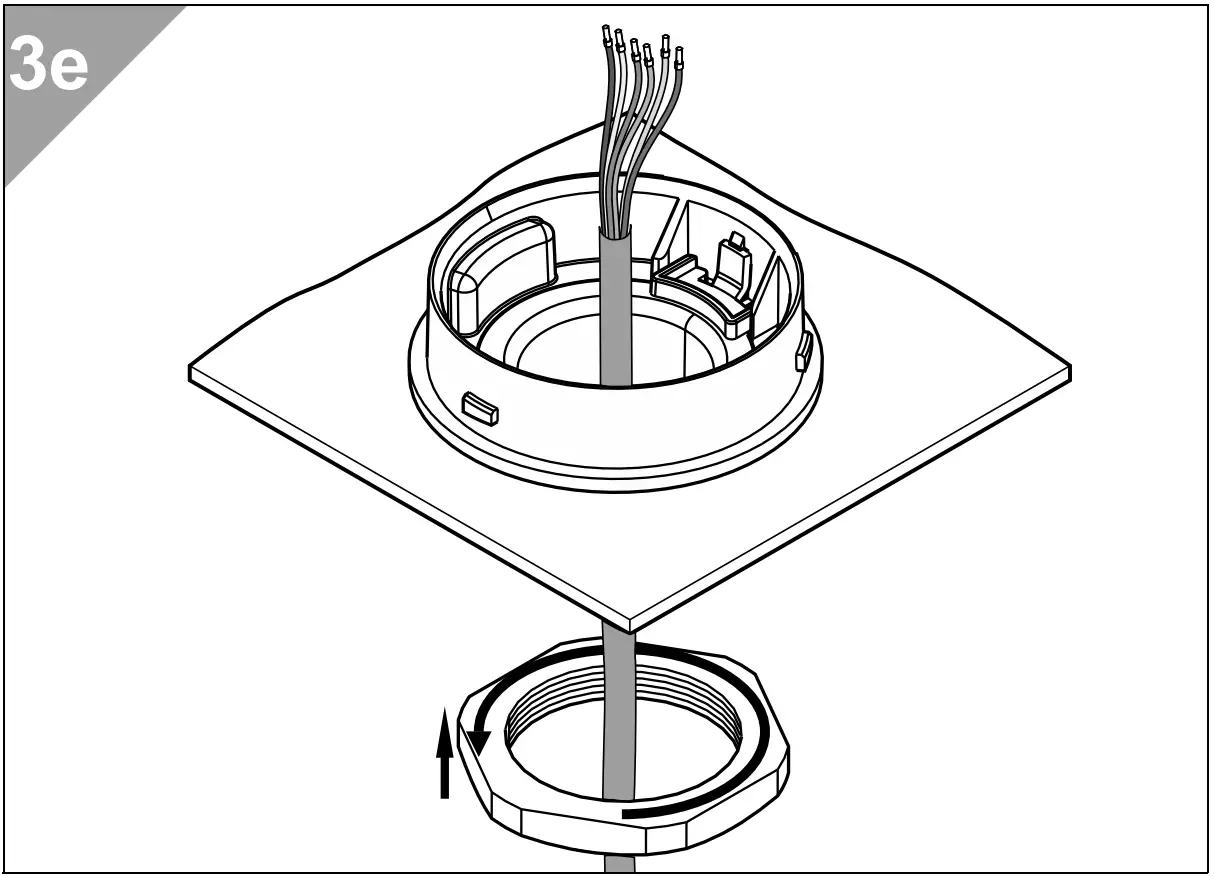

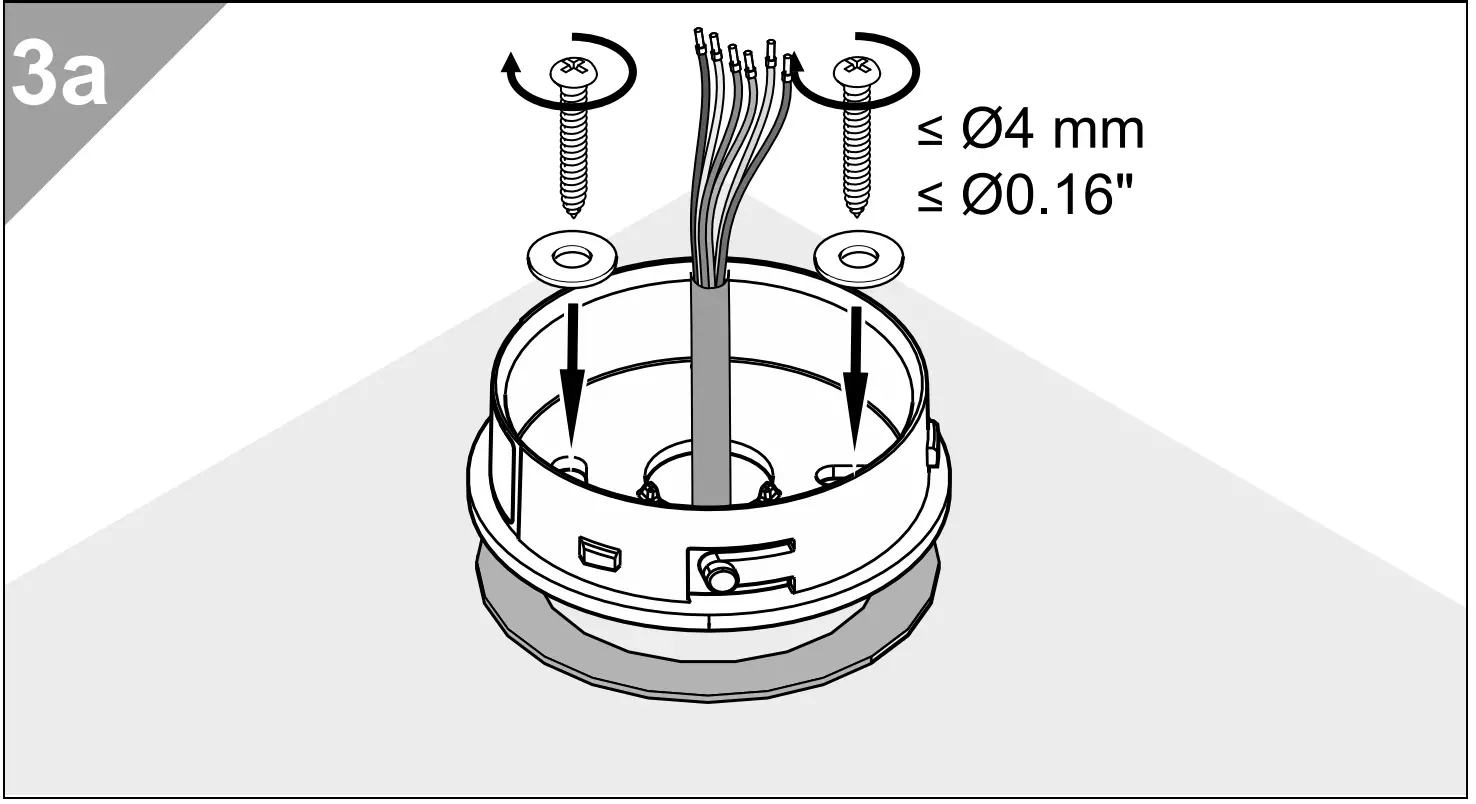

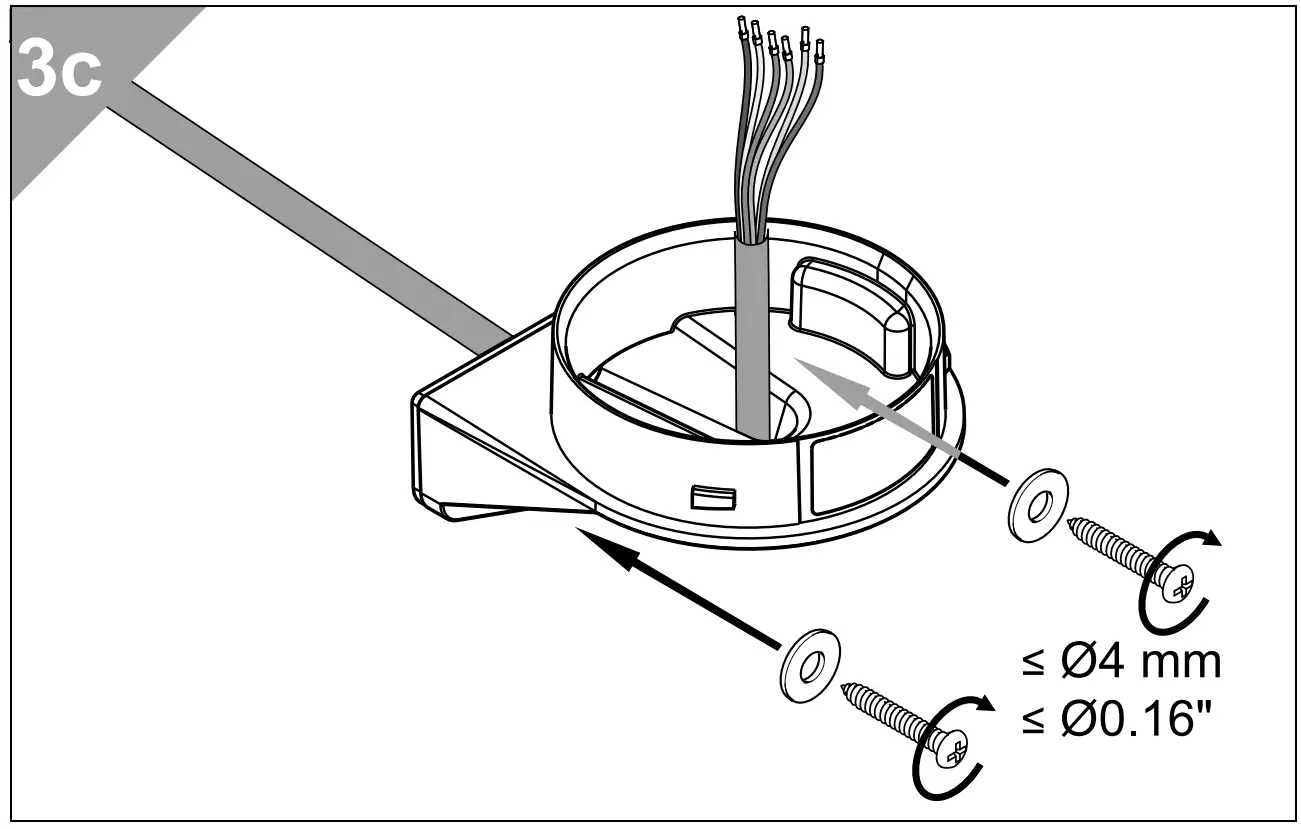

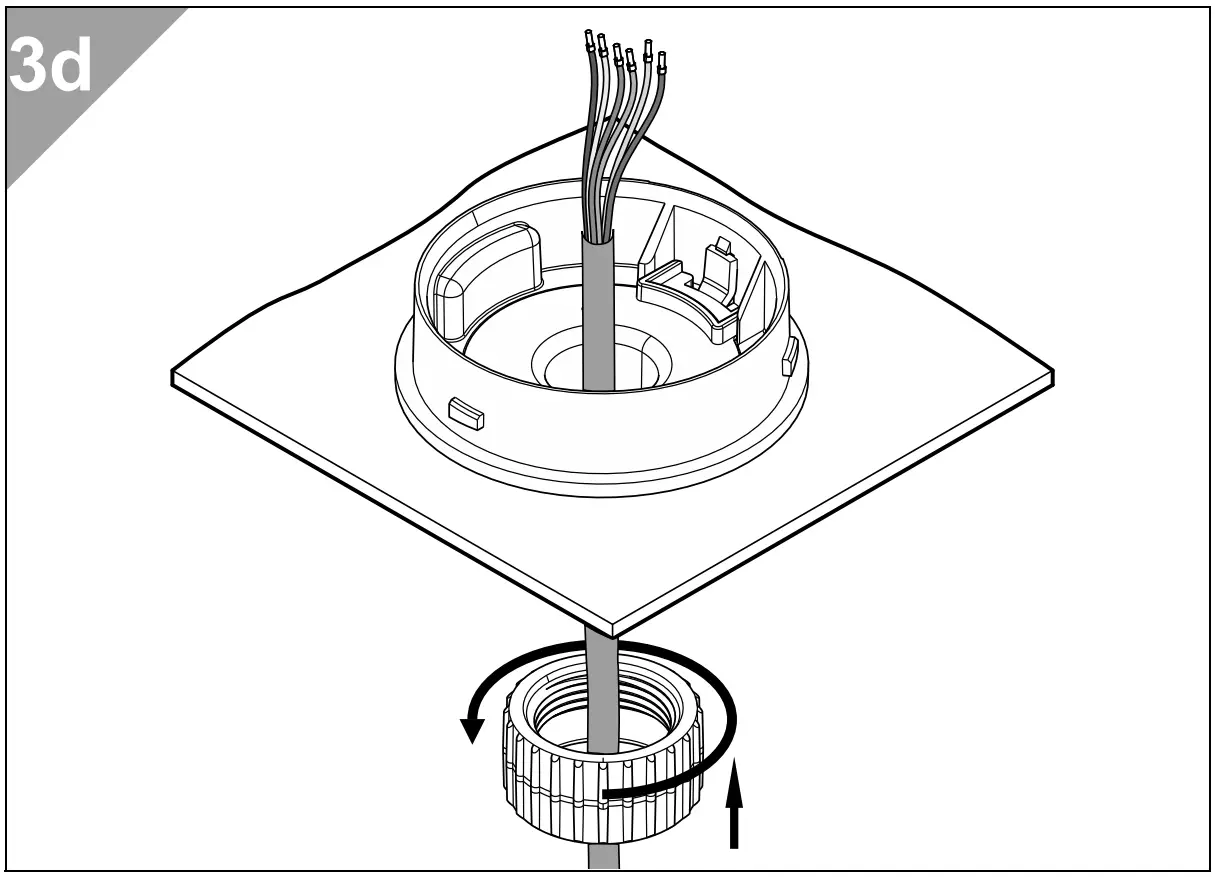

INSTALLATION INSTRUCTIONS

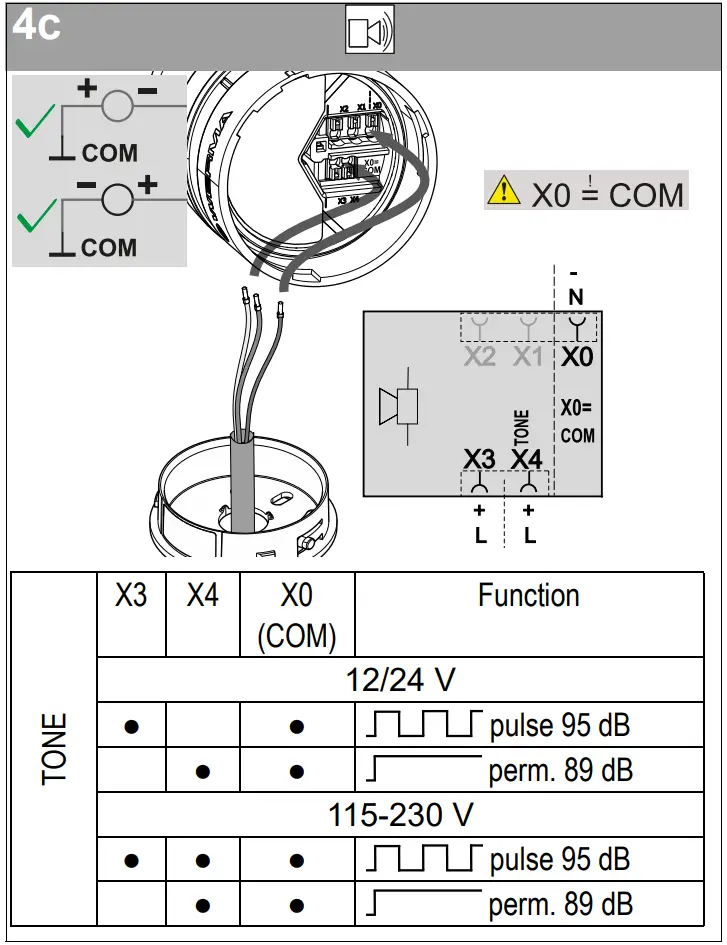

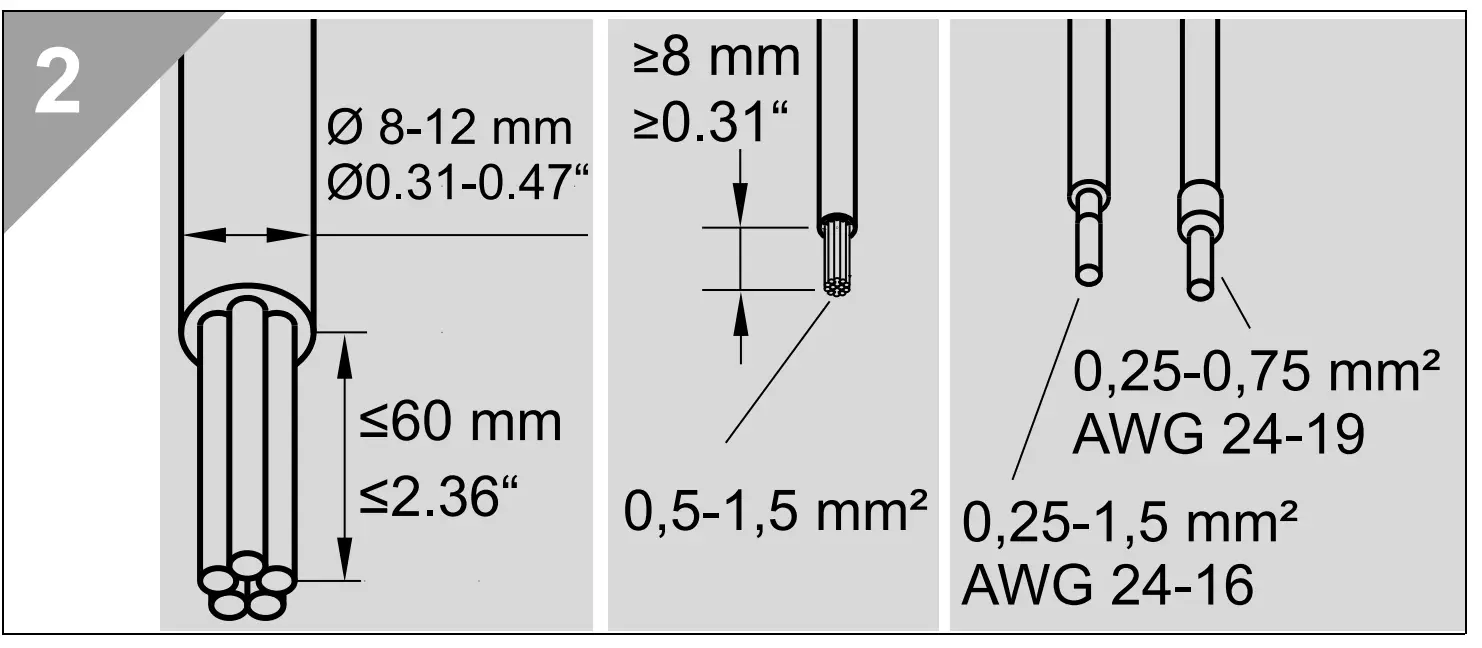

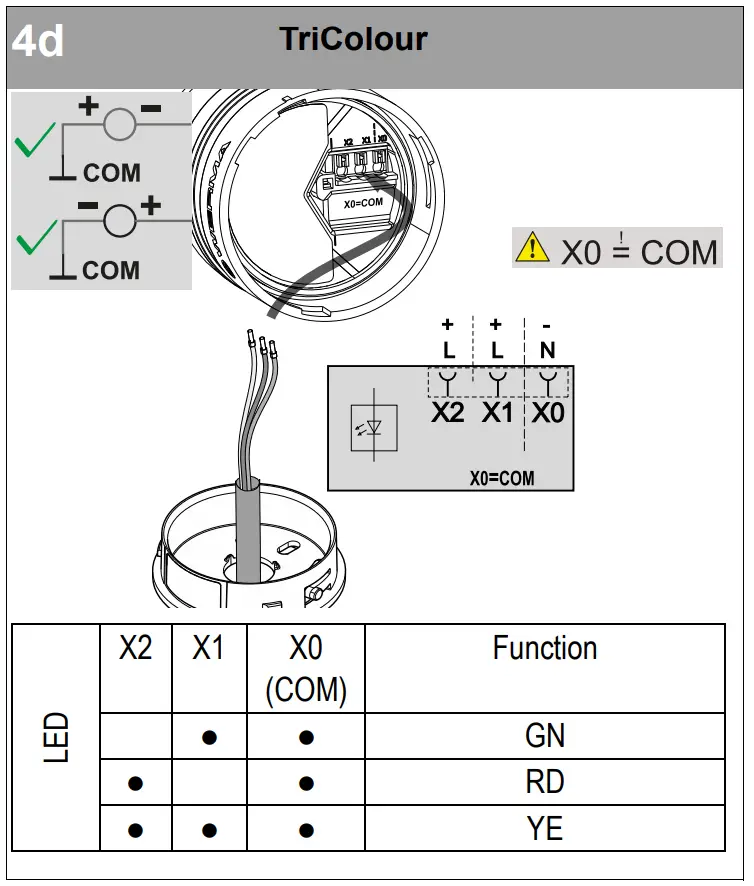

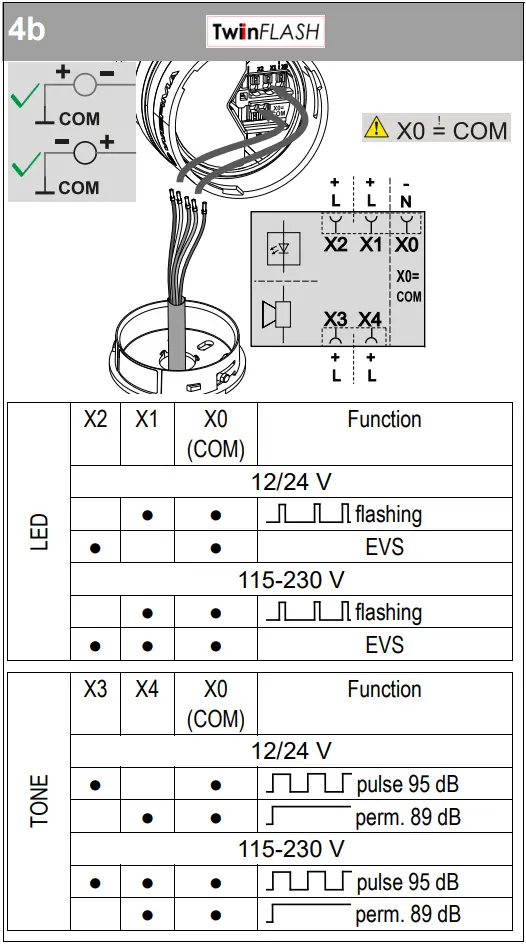

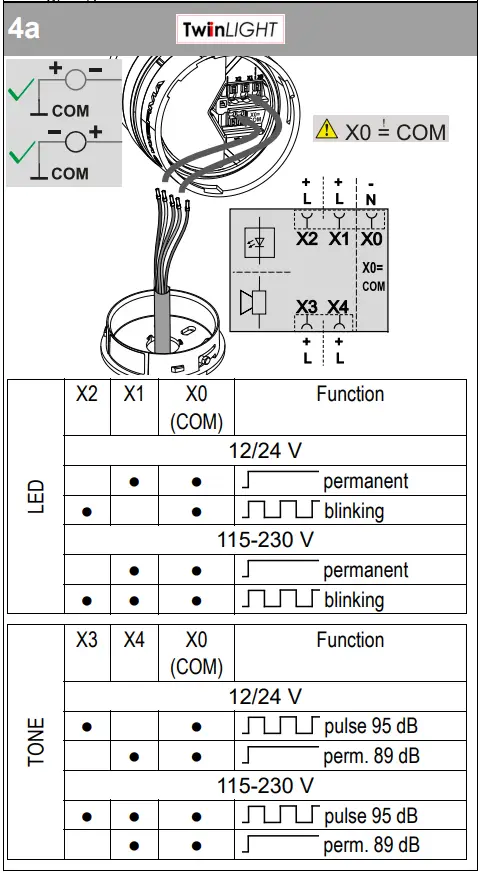

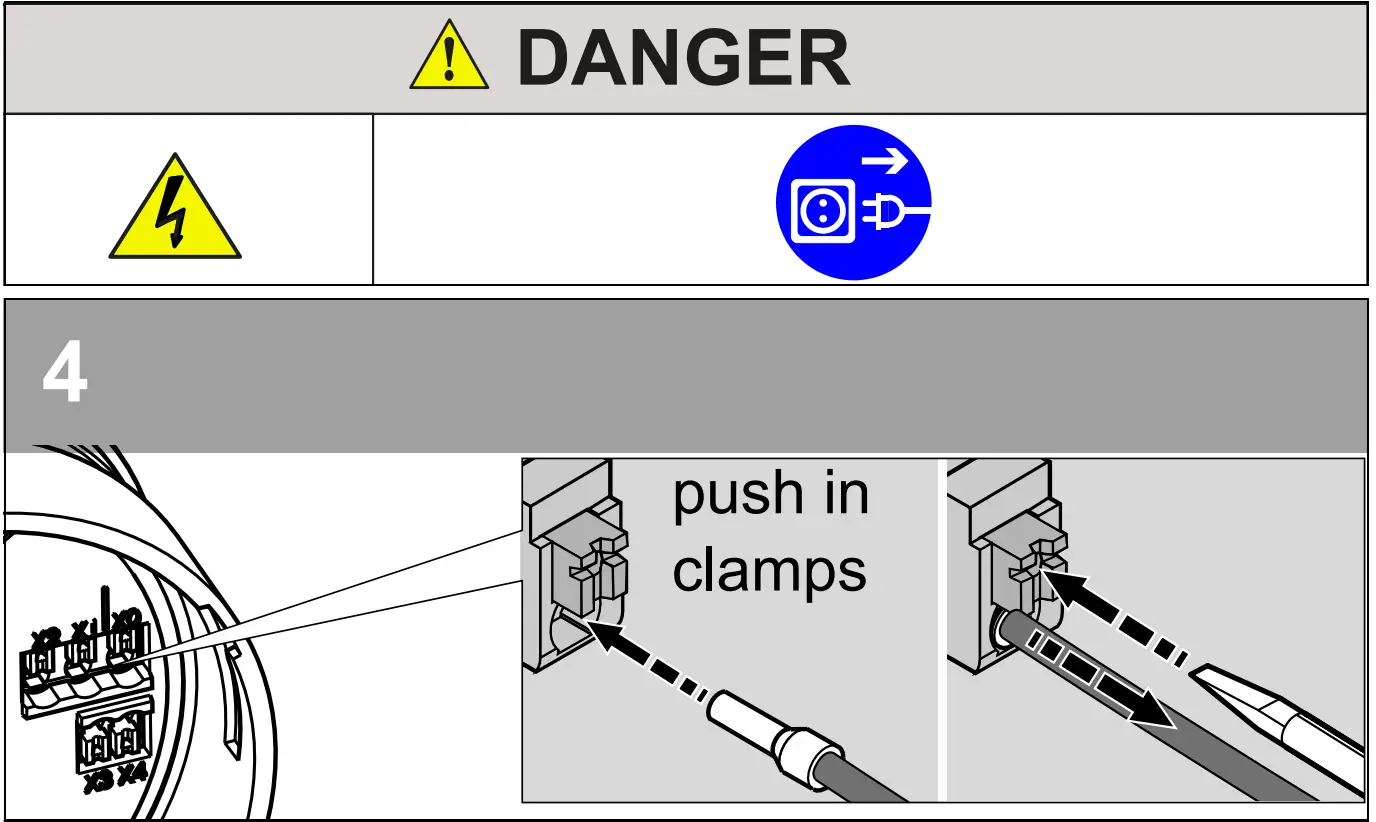

WIRING INSTRUCTIONS
Customer Servcie
WERMA Signaltechnik GmbH + Co. KG
D-78604 Rietheim-Weilheim
Telefon +49 (0)7424 / 9557-0
Telefax +49 (0)7424 I 9557-44
[email protected]
www.werma.com
