Slim Reach XtendTM
(NN01-104)

Ignition specializes in enabling effective mobile communications. Using Ignition technology, we design and manufacture optimized antennas to make your wireless devices more competitive. Our mission is to help our clients develop innovative products and accelerate their time to market through our expertise in antenna design, testing, and manufacturing.

Ignition products are protected by Ignition patents.
All information contained within this document is the property of Ignition and is subject to change without prior notice. Information is provided “as is” and without warranties. It is prohibited to copy or reproduce this information without prior approval. Ignition is an ISO 9001:2015 certified company. All our antennas are lead-free and RoHS compliant.

ANTENNA DESCRIPTION

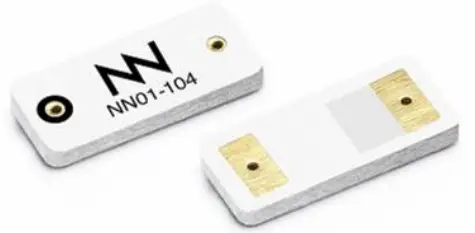

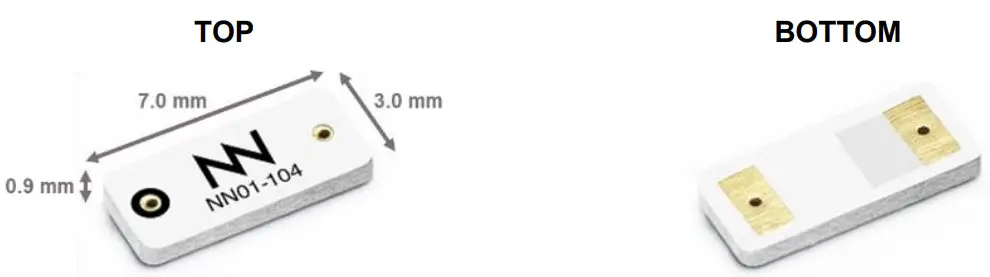

The Slim Reach Xtend TM chip antenna is engineered specifically for wireless headsets using Bluetooth ® and other wireless standards operating at the ISM 2.4 GHz band. The Slim Reach Xtend TM antenna has been designed to resonate at 2.65 GHz in free space conditions. This has been done purposely because the human head and plastic housing produce a frequency downshift of 150-250 MHz in the resonance frequency of the antenna. Based on our research and development in this area, you are not forced to test multiple antennas with different resonant frequencies.

Material: The Slim Reach Xtend™ antenna is built on glass epoxy substrate.

QUICK REFERENCE GUIDE

Table 1 – Technical Features. Measures from the evaluation board. See Figure 1.

Please contact [email protected] if you require additional information on antenna integration or optimization on your PCB.

ELECTRICAL PERFORMANCE

3.1. EVALUATION BOARD

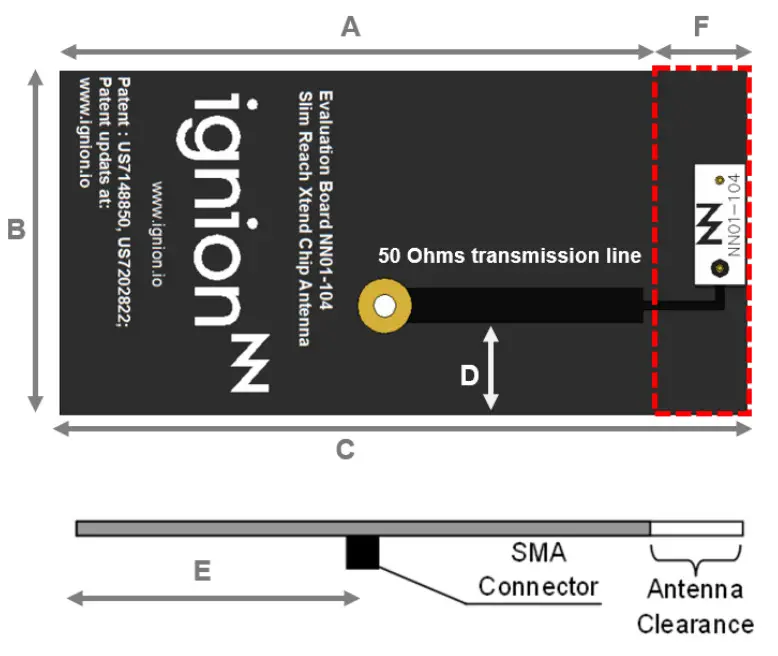

The Ignition configuration used in testing the Slim Reach Xtend™ chip antenna is displayed in Figure 1.

Figure 1 – EB_NN01-104. Slim Reach XtendTM Evaluation Board.

Tolerance: ±0.2mm
Material: The evaluation board is built on an FR4 substrate. Thickness is 1.0mm. Clearance Area: 20.0 mm x 6.0 mm (BFF)

3.2. MATCHING NETWORK

The specs of an Ignition standard antenna are measured in their evaluation board, which is an ideal case. In a real design, components nearby the antenna, LCDs, batteries, covers, connectors, etc affect the antenna performance. This is the reason why it is highly recommended to place pads compatible with 0402 and 0603 SMD components for a PI matching network as close as possible to the antenna feeding point. Do it in the ground plane area, not in the clearance area. This is a degree of freedom to tune the antenna once the design is finished and takes into account all elements of the system (batteries, displays, covers, etc). Please notice that different devices with different ground planes and different components nearby the Slim Reach Xtend™ chip antenna may need a different matching network. To ensure optimal results, the use of high Q and tight tolerance components is highly recommended (Murata components). If you need assistance to design your matching network, please contact [email protected], or try our free-of-charge 1 NN Wireless Fast-Track design service, you will get your chip antenna design including a custom matching network for your device in 24h 1. Other related to NN’s range of R&D services is available at: https://www.ignion.io/rdservices/

See terms and conditions for a free NN Wireless Fast-Track service in 24h at: https://www.ignion.io/fast-track-project/

3.3. VSWR AND EFFICIENCY

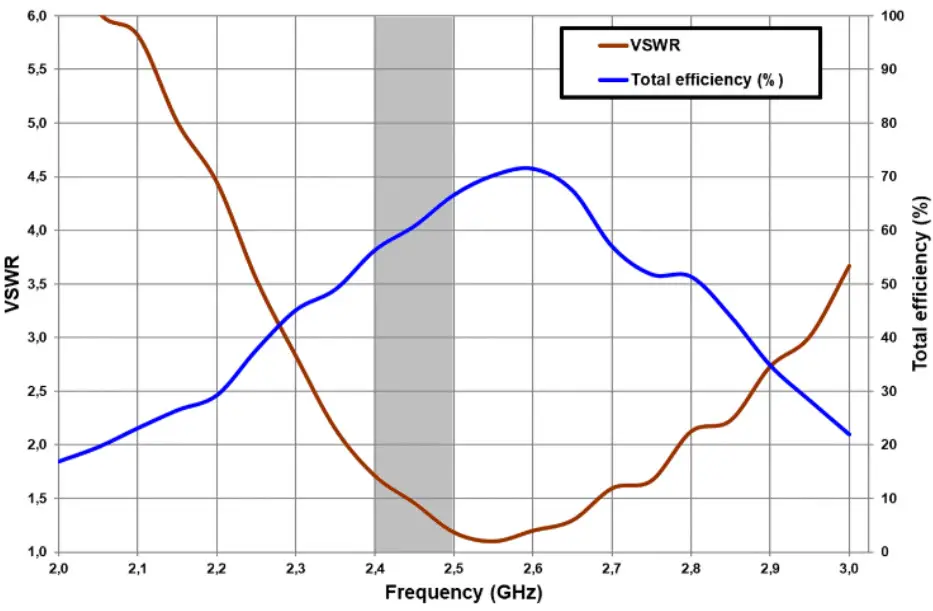

VSWR (Voltage Standing Wave Ratio) and Total Efficiency versus Frequency (GHz).

Figure 2 – VSWR and Efficiency (%) vs. Frequency (GHz).
NOTE: the frequency performance is centered in between 2.4 GHz and 2.5 GHz in headset designs. The effect of the device casing and the human body is taken into account.

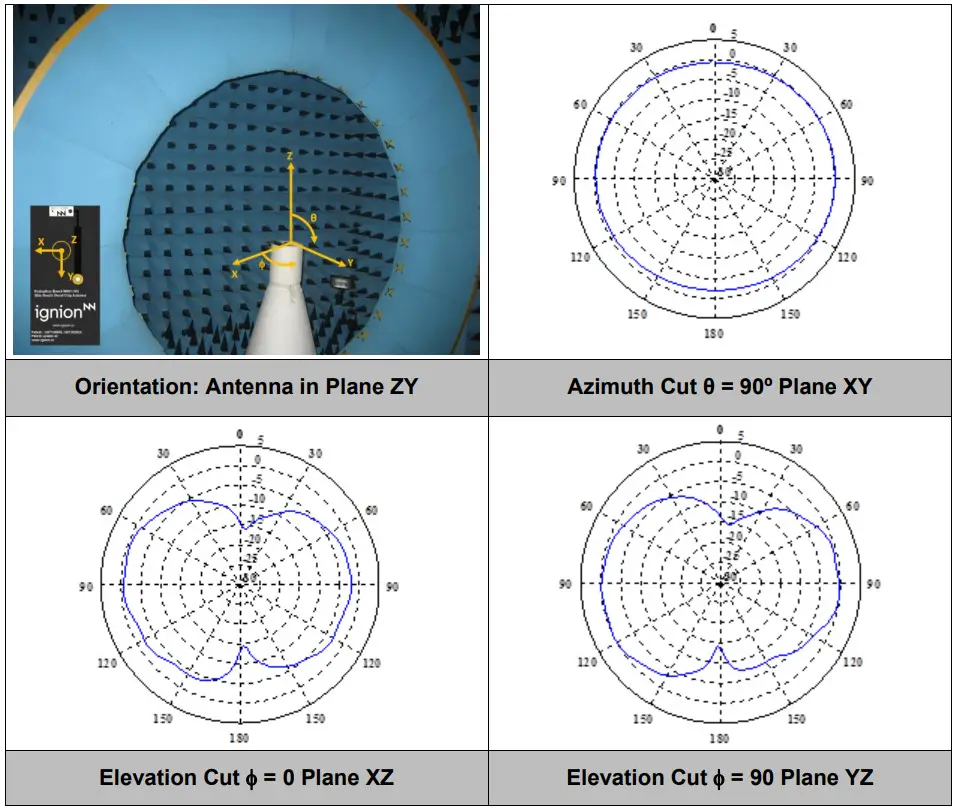

3.4 RADIATION PATTERNS (2.4 – 2.5 GHz), GAIN AND EFFICIENCY

Table 2 – Antenna Gain and Efficiency within the 2.4 – 2.5 GHz band. Measures were made in the evaluation board and in the Satimo STARGATE 32 anechoic chamber.

3.5. CAPABILITIES AND MEASUREMENT SYSTEMS

Ignition specializes in the design and manufacture of optimized antennas for wireless applications, and with the provision of RF expertise to a wide range of clients. We offer turn-key antenna products and antenna integration support to minimize your time requirements and maximize return on investment throughout the product development process. We also provide our clients with the opportunity to leverage our in-house testing and measurement facilities to obtain accurate results quickly and efficiently.

MECHANICAL CHARACTERISTICS

4.1. DIMENSIONS AND TOLERANCES

The black circle located on the top side of the antenna indicates the feed pad.

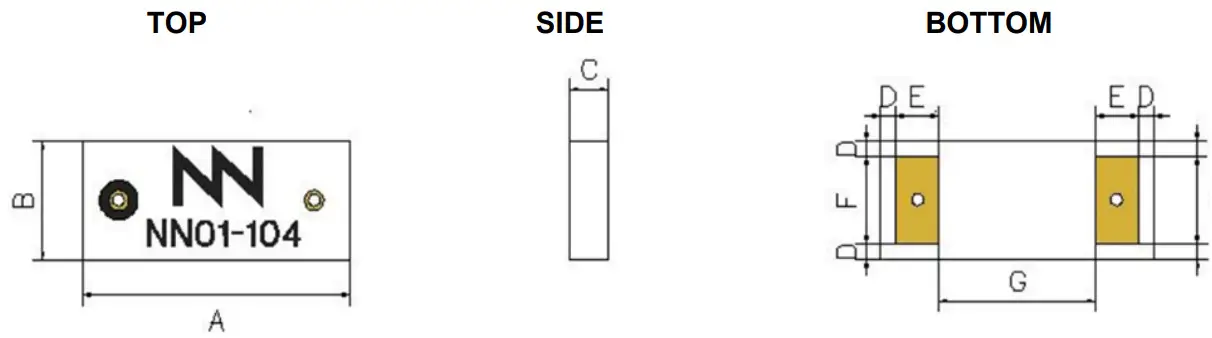

Figure 3 – Antenna Dimensions and Tolerances.

The Slim Reach XtendTM chip antenna is compliant with the restriction of the use of hazardous substances (RoHS). The RoHS certificate can be downloaded from  www.ignion.io.

4.2. SPECIFICATIONS FOR THE INK

Next figure shows the correct colors of the antenna:
4.3. ANTENNA FOOTPRINT

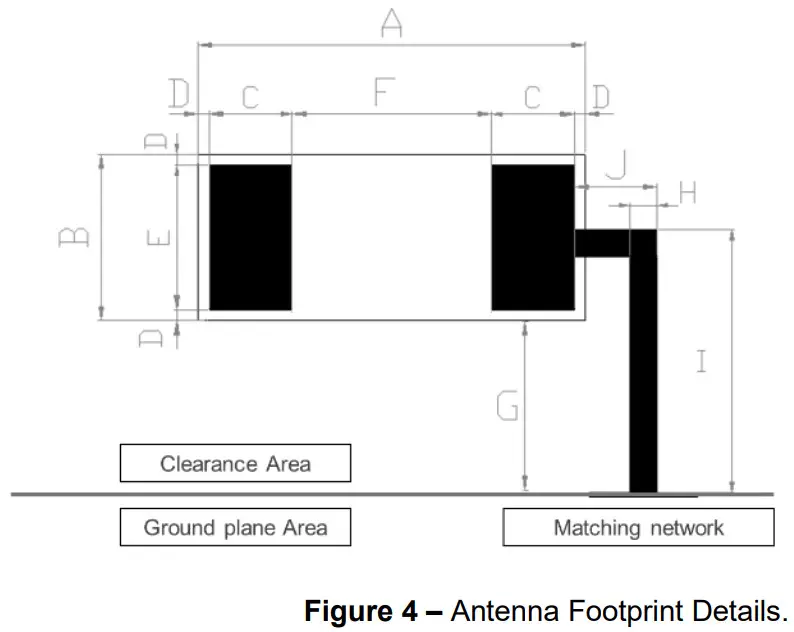

This antenna footprint applies to the reference evaluation board described on page 6 of this User Manual. Feeding line dimensions over the clearance zone described in Figure 4 apply for a 1.0 mm thickness FR4 PCB.

Tolerance: ±0.2mm
Other PCB form factors and configurations may require a different feeding configuration, feeding line dimensions, and clearance areas. If you require support for the integration of the antenna in your design, please contact [email protected].

ASSEMBLY PROCESS

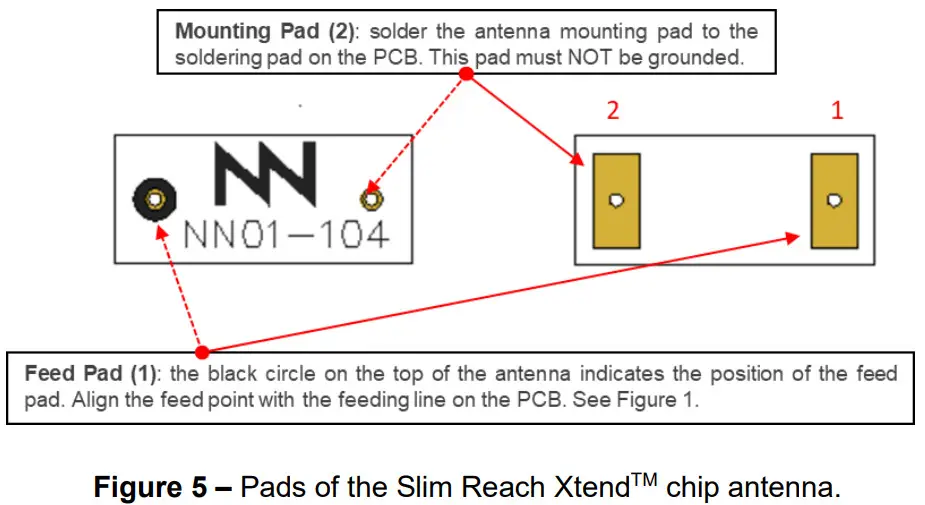

Figure 5 shows the back and front view of the Slim Reach Xtend TM chip antenna, and indicates the location of the feeding point and the mounting pads:
As a surface mount device (SMD), this antenna is compatible with industry-standard soldering processes. The basic assembly procedure for this antenna is as follows:

1. Apply a solder paste to the pads of the PCB. Place the antenna on the board.
2. Perform a reflow process according to the temperature profile detailed in Table 3, Figure 7 on page 13.

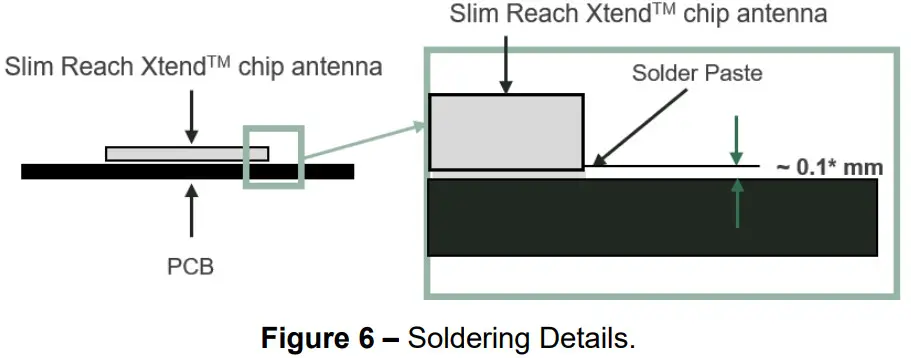

3. After soldering the antenna to the circuit board, perform a cleaning process to remove any residual flux. Ignition recommends conducting a visual inspection after the cleaning process to verify that all reflux has been removed. The drawing below shows the soldering details obtained after a correct assembly process:

NOTE(*): Solder paste thickness after the assembly process will depend on the thickness of the soldering stencil mask. A stencil thickness equal to or larger than 127 microns (5 mils) is required. The Slim Reach Xtend TM antenna should be assembled following either Sn-Pb or Pb-free assembly processes. According to the Standard IPC/JEDEC J-STD-020C, the temperature profile suggested is as follows:

Table 3 – Recommended soldering temperatures.

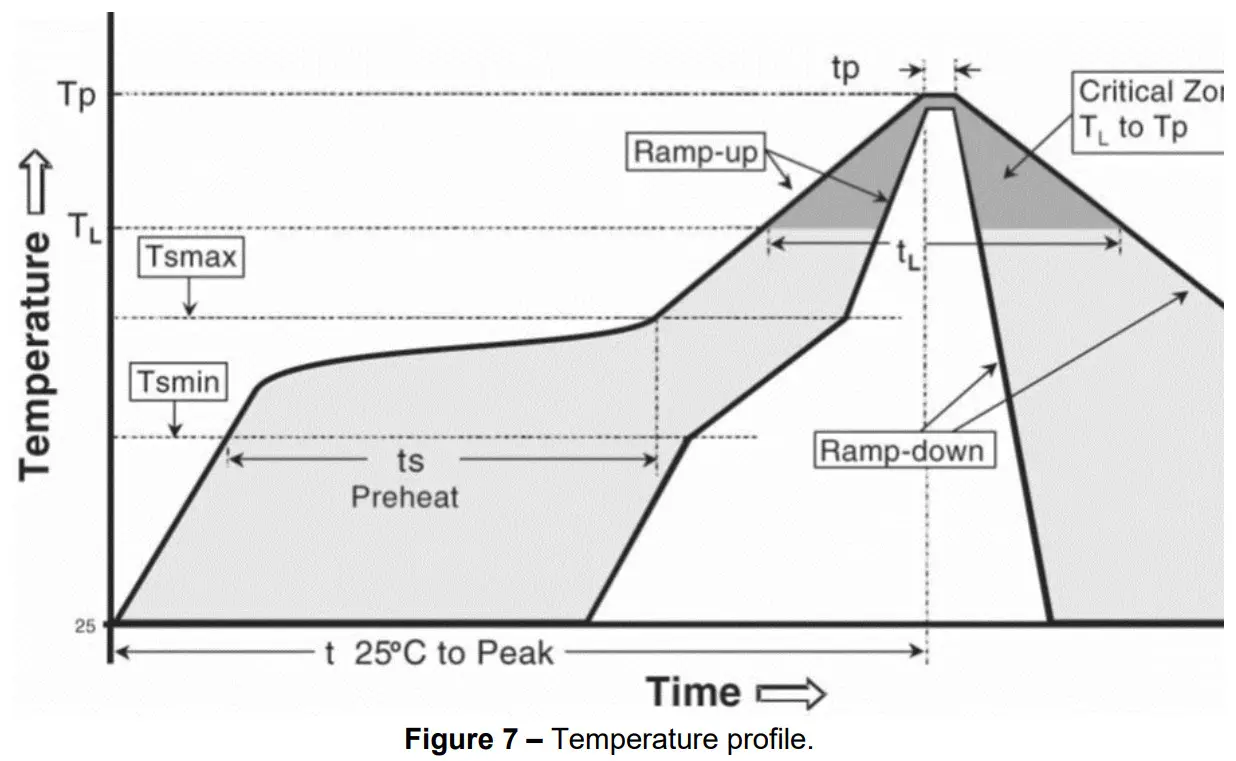

Next to graphic shows the temperature profile (grey zone) for the antenna assembly process in reflow ovens.

PACKAGING

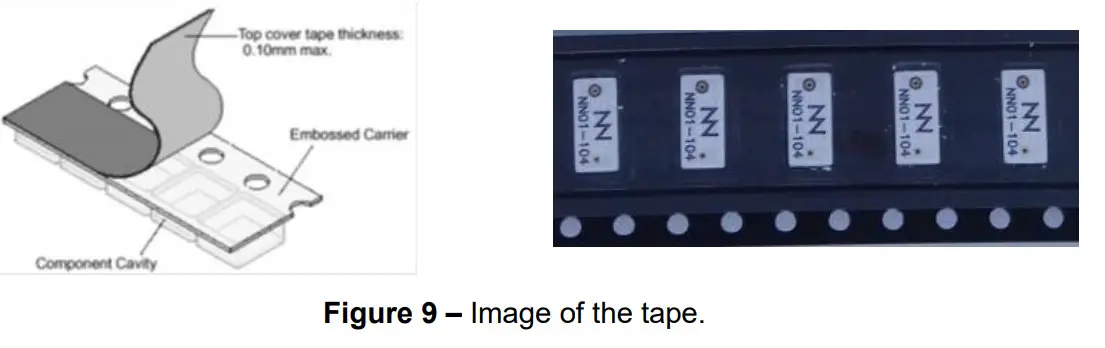

The Slim Reach Xtend™ chip antenna is available in tape and reel packaging.

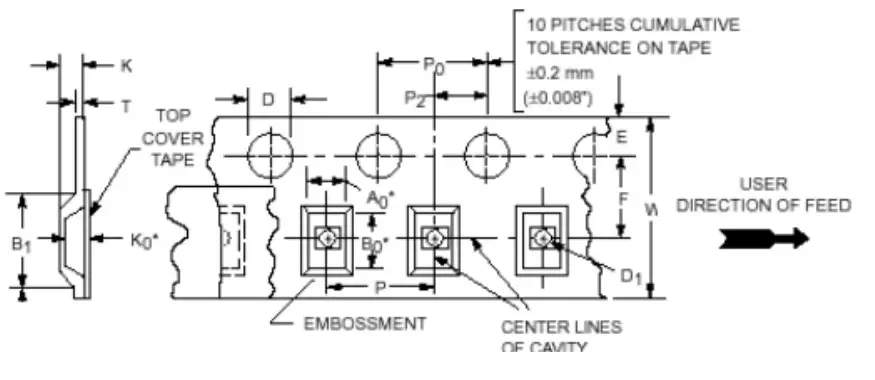

Figure 8 – Tape Dimensions and Tolerances.

PRODUCT CHANGE NOTIFICATION

This document is property of Ignition,
Not to disclose or copy without prior written consent

PCN Number: NN18090001
Notification Date: August 29th, 2019
Part Number identification:
Part Number changes will be applied in all the documents of the company (User Manual, Data Sheet, …)

Reason for Change:

Change description

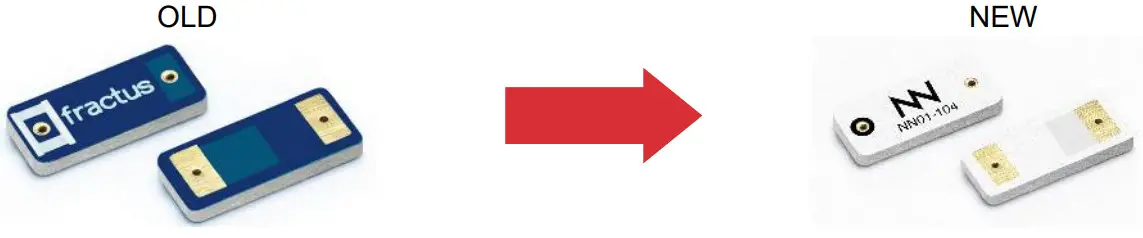

1. – Part Number: From FR05-S1-N-0-104 FRACTUS to NN01-104 IGNITION in the User Manual
2. – Color: From blue/white to white/black

Comments:

1. – Electrical and Mechanical specs remain the same
2. – Footprint in the PCB to solder the chip antenna remains the same

Identification method

1. – The color and the logo are different

Ignition Contact:
