Swan Sh16310n Column Patio Heater Installation Guide (+ PDF)

Patio Heaters Assembly
Photo Guide
Models: SH16310N, SH16320N, SH16330N

Please read in conjunction with the printed manual that came with the product
Helpline: 0333 220 6050

Contents hide

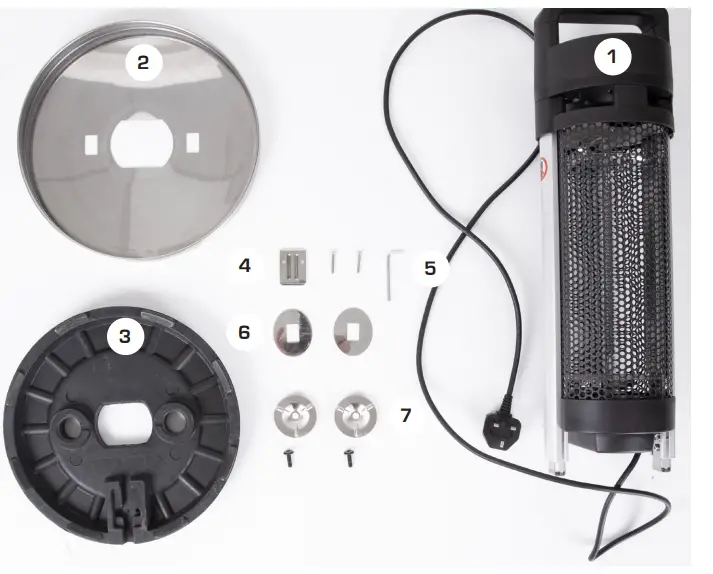

SH16310N – COLUMN PATIO HEATER

Lower body
Upper body
Base
Base cover
Cord grip
Screws for joint boards
Screws & washers for base
Joint boards
Allen key

You will also need a cross-head screwdriver. Assembly is much easier with two people and reduces the risk of damaging the product.

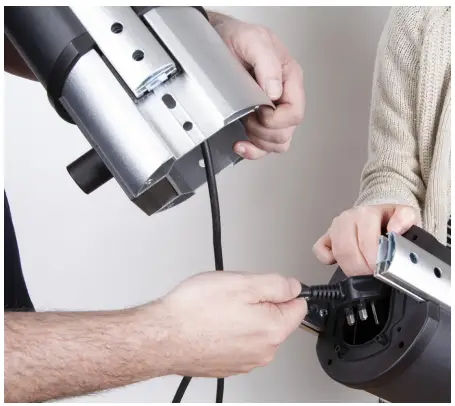

Thread the plug and cable from the upper body (2) through the channel in the lower body (1)

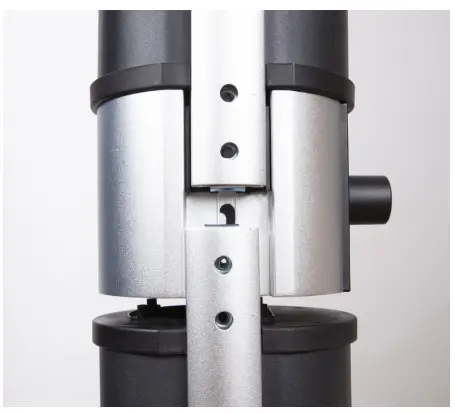

Make sure it goes all the way through. Slide the upper body (2) onto the lower body (1)

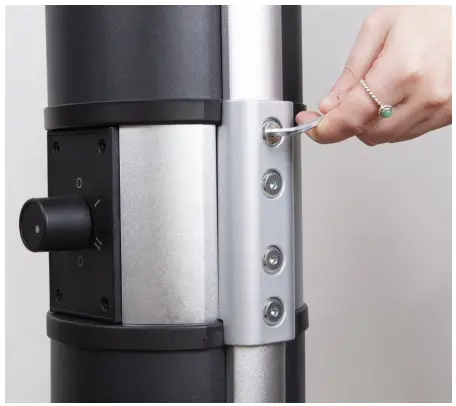

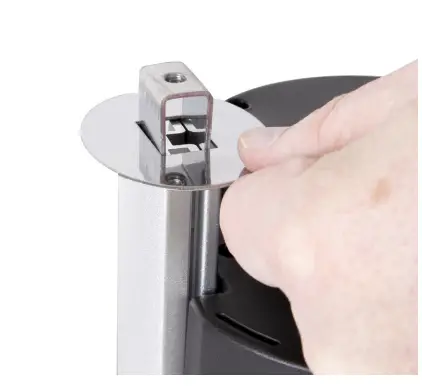

Fit the joint boards and secure with the screws (6) using the Allen key provided (9)

Turn the unit upside down (put some cloth down to prevent scratches).

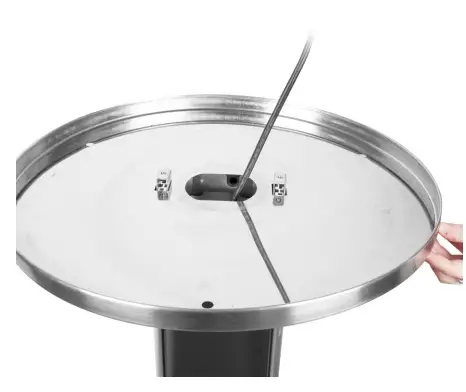

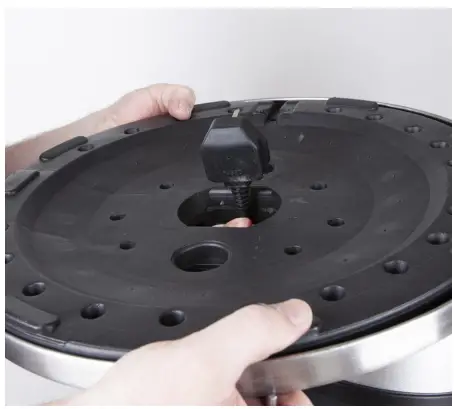

Put the base (3) inside the base cover (4) and thread the plug and cord through the hole in the middle

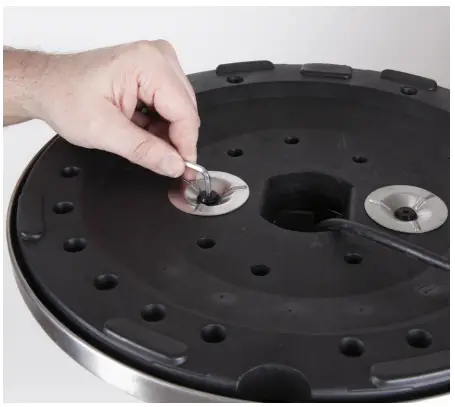

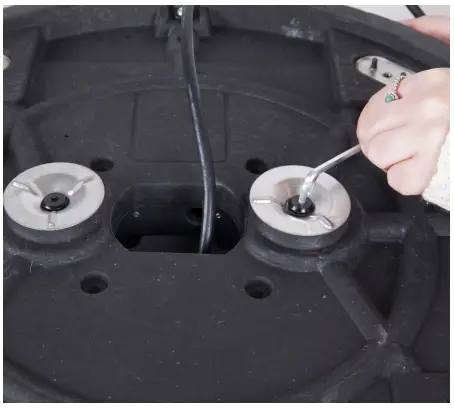

Fasten the base to the main unit using the screws & washers (7)

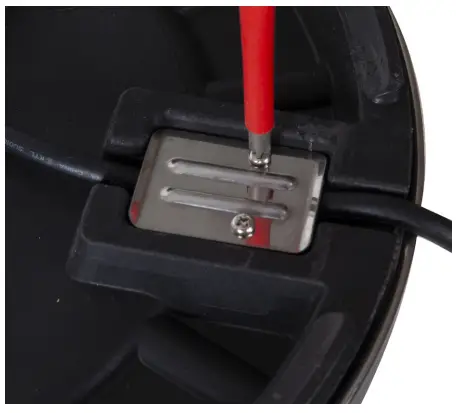

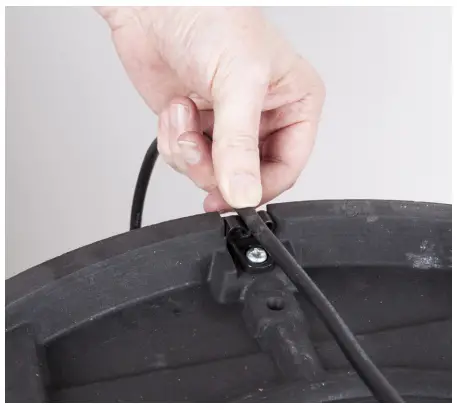

Fasten the cord grip (5). Make sure the lip faces upwards

Refer to the manual that came with the product for the operation guide

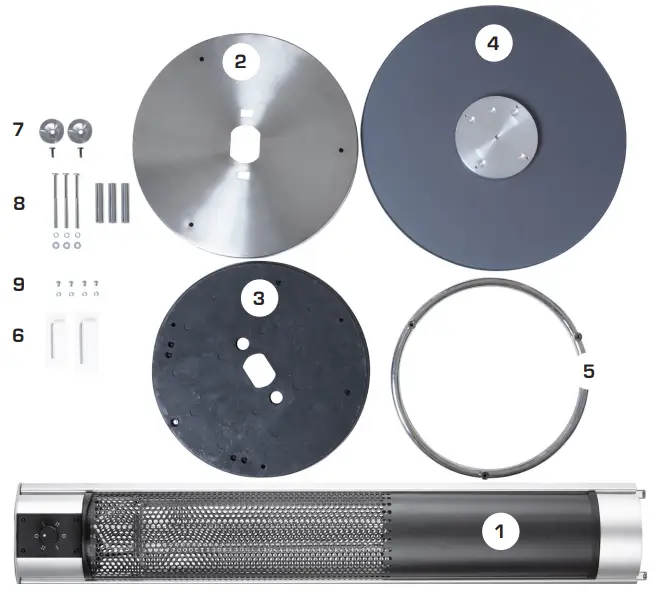

Main body
Base cover
Base
Table top
Foot bracket
Allen keys – 1 large + 1 small
Screws & washers for base
Long screws + steel tubes
Screws for tabletop

You will also need a cross-head screwdriver. Assembly is much easier with two people and reduces the risk of damaging the product.

Turn the main body (1) upside down (put a cloth down to prevent scratches)
Fit the base cover and thread the plug and cord through the hole in the middle.

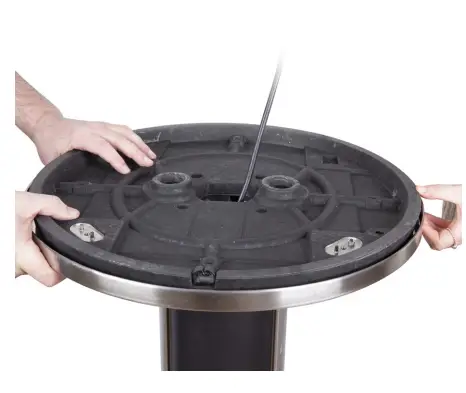

Fit the base inside the base cover (2) and align the holes ready for the screws and washers.

Fit the screws and washers. Leave them slightly loose for the moment. This allows a little movement in the base for the next part…

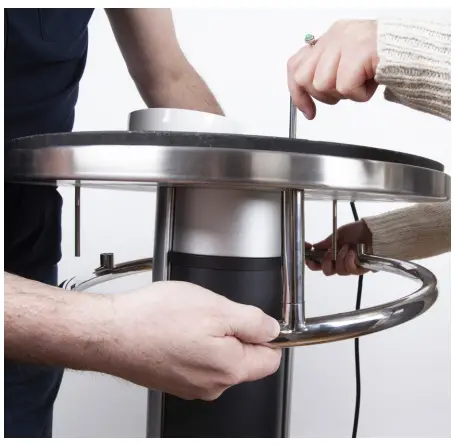

Get someone to hold the bar base (5) in position.
Thread the long screws through the holes into the steel tubes (8) and into the threaded holes on the bar base.
Don’t fully tighten them until all 3 are fitted

Once all 3 of the long screws are fitted, tighten them all (using the larger allen key)

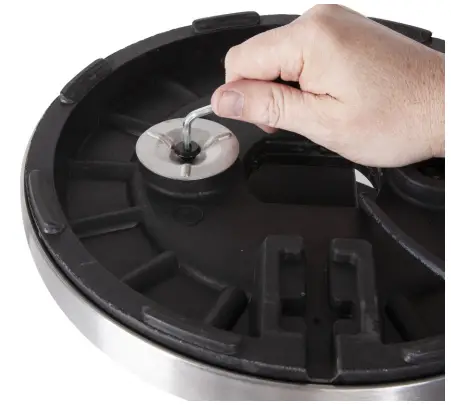

Finally, tighten the base screws as well (small Allen key)

Fit the cable to the cable tie and fit the castors

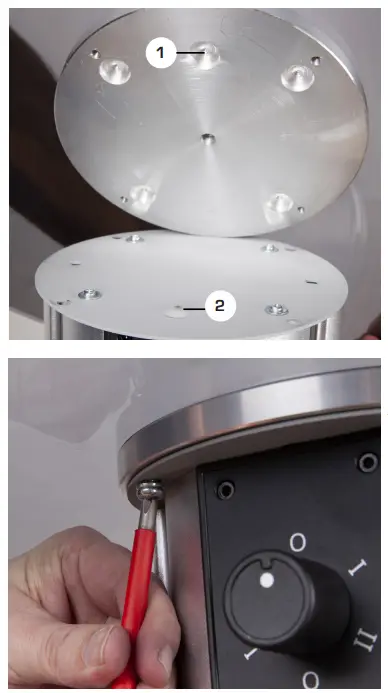

Turn the unit the right way up again & offer up the tabletop.
The holes must line up as shown. The bump (2) must align with the hole (1)
This MUST be a 2 personal task or you risk breaking the tabletop.
Fit the screws to secure the tabletop to the main unit.

Refer to the manual that came with the product for operation guide
