Vita Kensington Planter Box And Trellis Instruction Manual

vita Kensington Planter Box and Trellis

ASSEMBLY INSTRUCTIONS

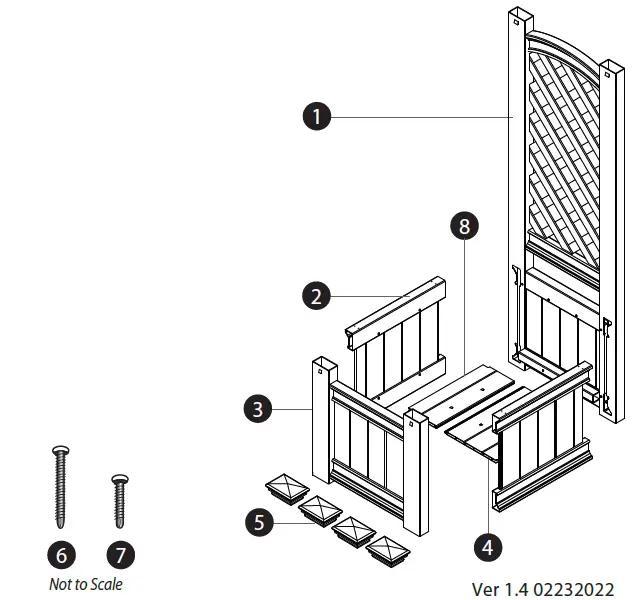

Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 5:00 PM EST).

1.  Pre-Assembled Back Panel with Trellis (1) – 10895
2.  Pre-Assembled Side Panels (2) – 10896
3.  Pre-Assembled Front Panel with Posts Connected (1) – 10894
4.  Wide Floorboard (1) – 10897
5.  Post Caps (4) – 10611
6.  2 1/2” (64 mm) Stainless Steel Screws (4) – 20009-1
7.  1 1/2” (38 mm) Stainless Steel Screws (8) – 20005
8.  Narrow Floorboard (1) – 11232

General Information

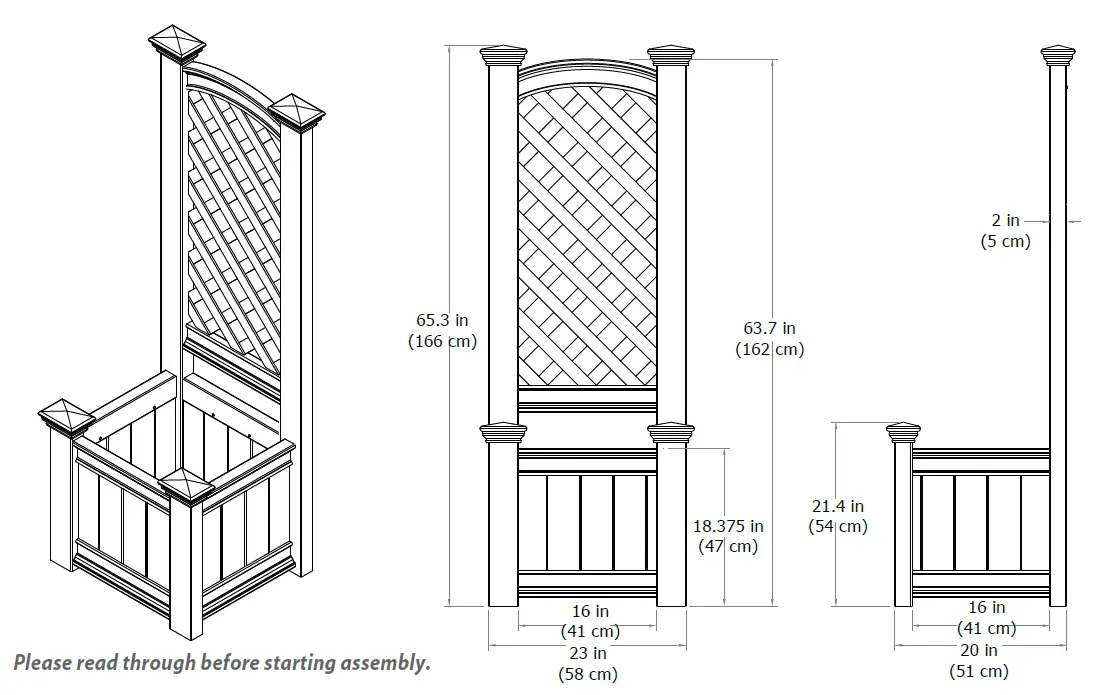

•  Read Instructions through carefully before beginning assembly.
•  When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
•  We recommend an area approx 4’x 8’ (1.2 m x 2.4 m) for unobstructed assembling.
•  You should not need to use excessive force when assembling components.

STEP ONE

Connect the Front & Back Wall to the Side Wall Panels

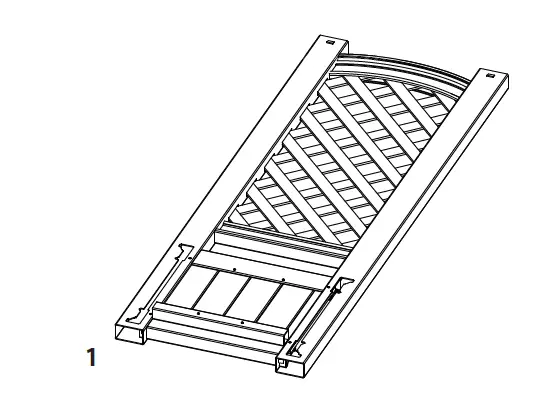

1. Layout front wall panel on the work surface.

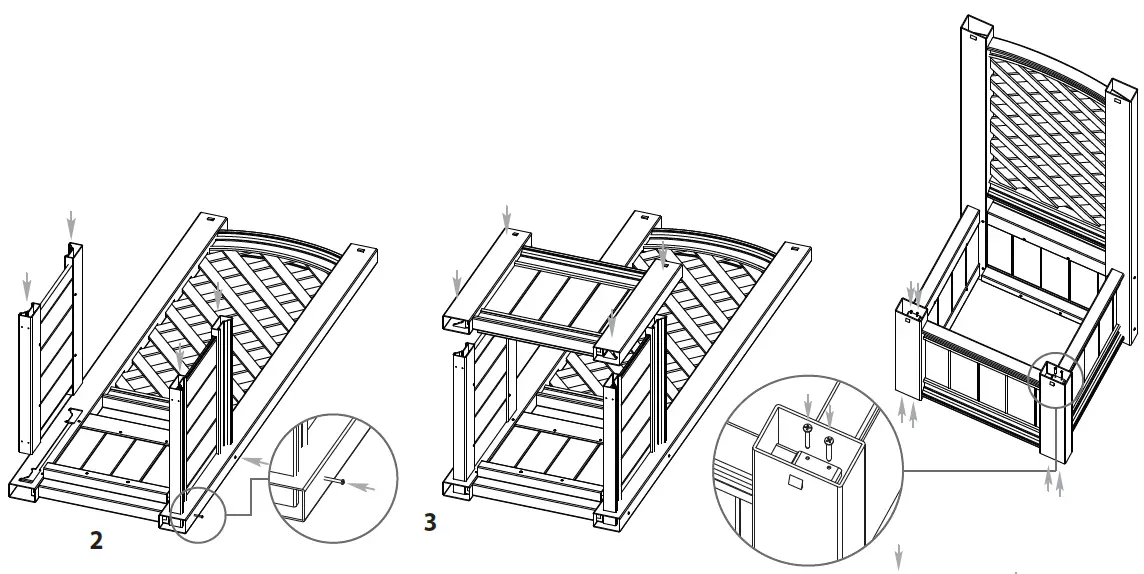

2. Insert the side walls into the routed holes on the front wall panel posts. Push until The panel bottoms out. Fasten each panel with two 2 1/2″ (64 mm) screws on the side of the trellis post as shown.
3. Fit the front wall panel over the side walls. Push until the panels bottom out. Using the 1 1/2” (38 mm) screws provided, secure the side wall panels into the front wall panel with 2 screws at the end of the rails. Screws should only be drilled in half-way so that panels do no pull out of the posts when under stress.

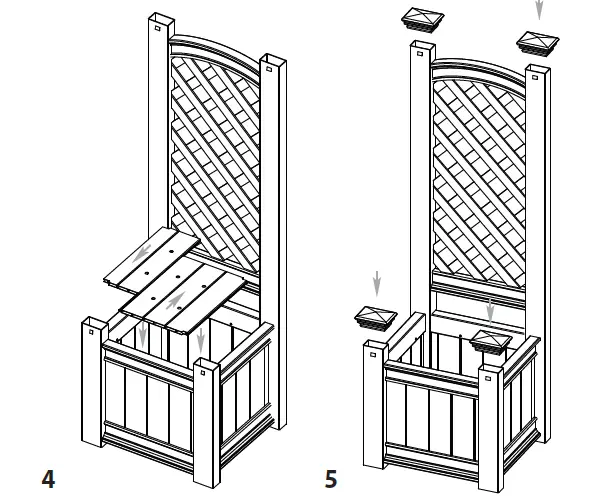

4. Slide the floorboards together and place inside the planter box.
5. Install the four post cap to the four posts as shown.

STEP TWO

Install the Floor Boards and Post Caps
