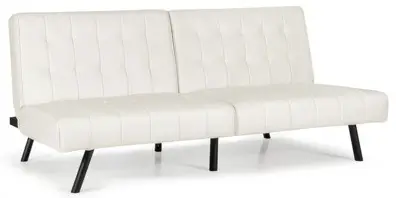

YESHOMY 8CK-68469HWWH White Futon Sofa Instruction Manual
Before You Start
- Please read all instructions carefully.
- Retain instructions for future reference.
- Separate and count all parts and hardware.
- Read through each step carefully and follow the proper order.
- We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Always place the product on a flat, steady and stable surface.
- Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.
ASSEMBLY INSTRUCTION
WARNING:
- This sofa bed has been designed for seating and as an alternate sleep product for two(2)average adults.To prevent injury and damage to this unit, PROHIBIT jumping on the seat and back.
- This product is designed for home use and not intended for commercial use.
- WARNING FOR YOUNG CHILDREN-This product contains small components, please ensure that they are kept away from young children.
Children under the age of 5,small infants and babies must not sleep on this futon for safety reasons. - Recommended number of people needed for assembly: 1 person. (however it is always better to have an extra hand)estimated assembly time is 15 minutes.

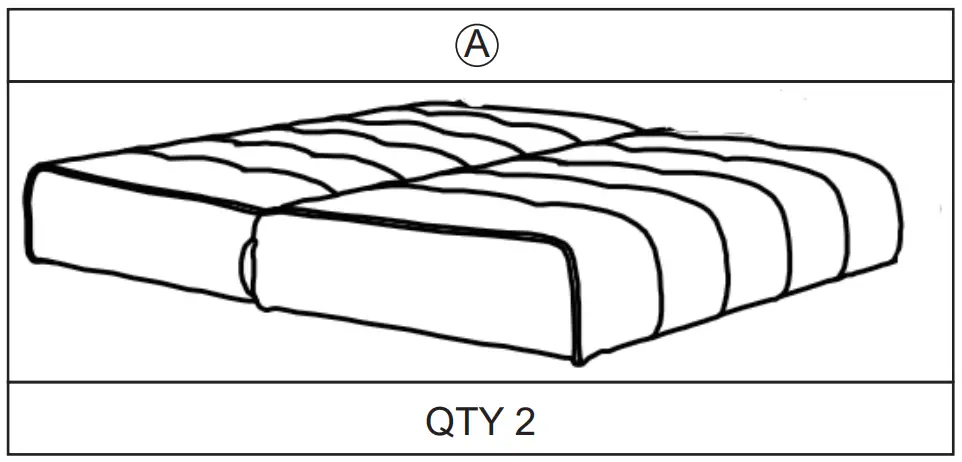

Body:

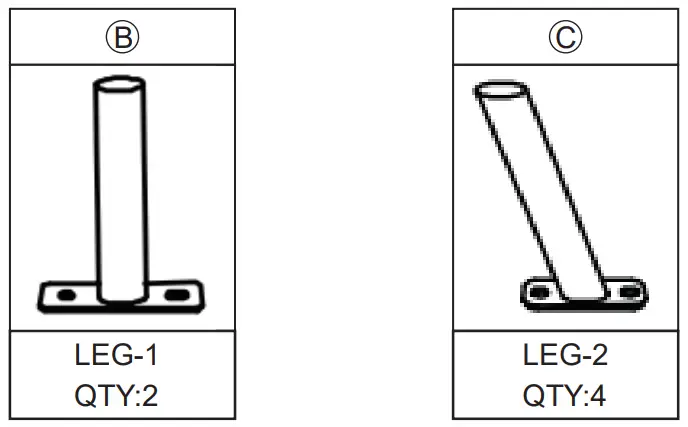

Parts List

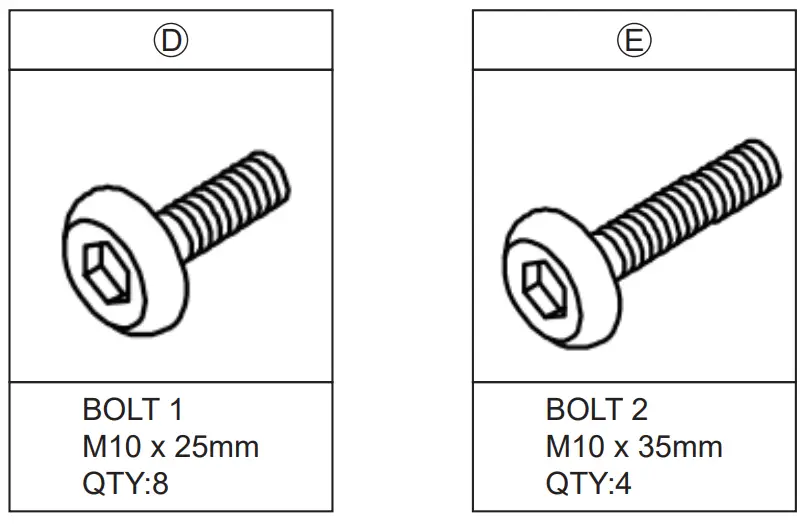

Hardware List

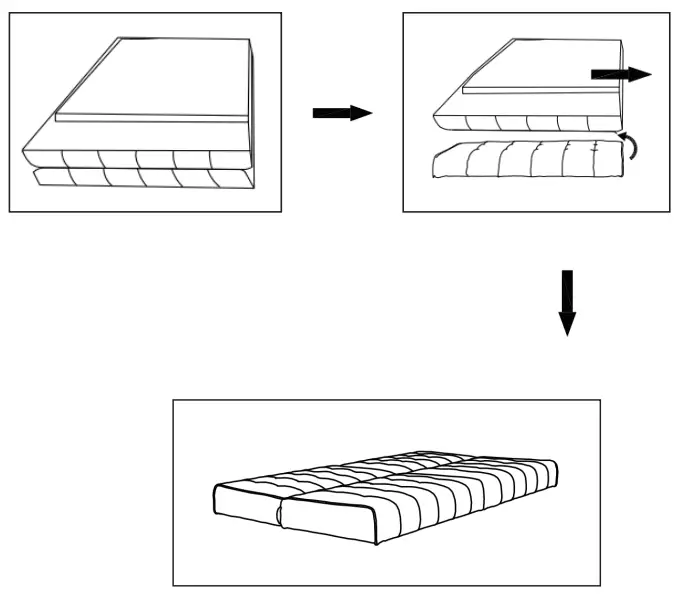

As shown below, unfold the cushion(A),and then go to the next step.

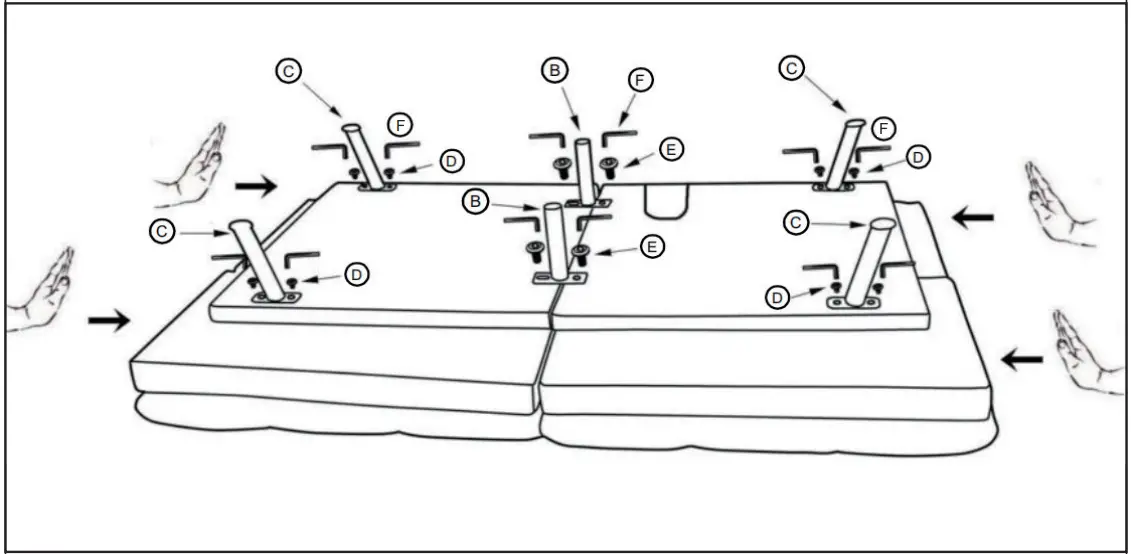

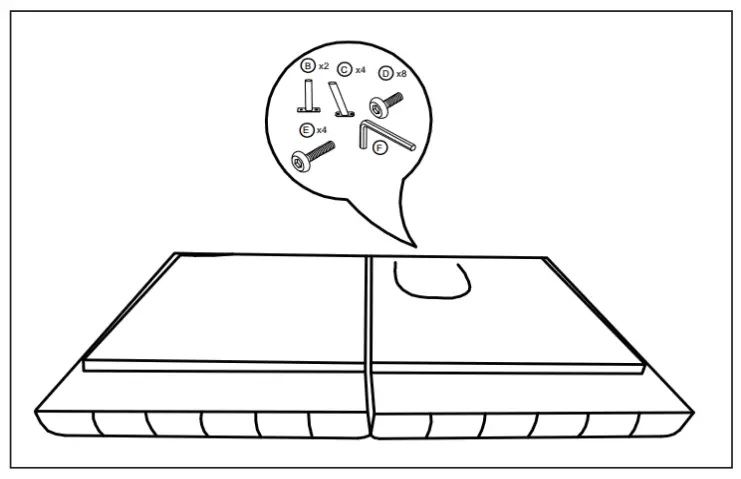

Open the flaps, find legs(B)and (C),and use bolts(D)(E) and hex key(F)to insert them inside the cushion(A),as shown below.
Fix leg(B) with bolt (E) by hex key(F),fix leg(C)with bolt(D) by hex key(F),shown as below.

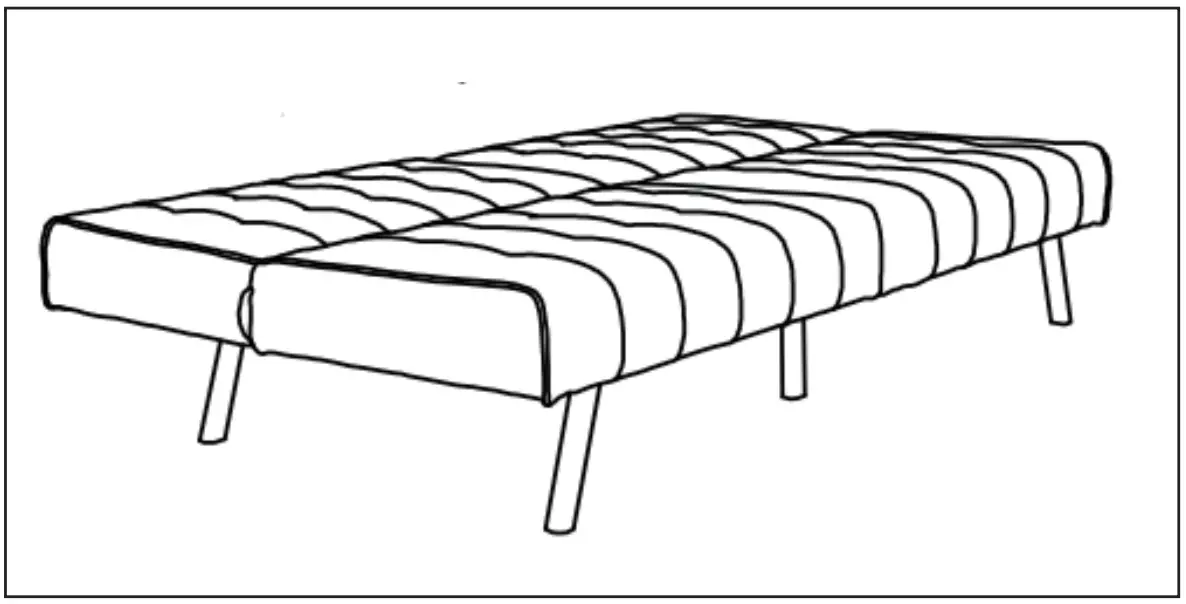

Completed! Turn the cushion all over & set it on its legs.

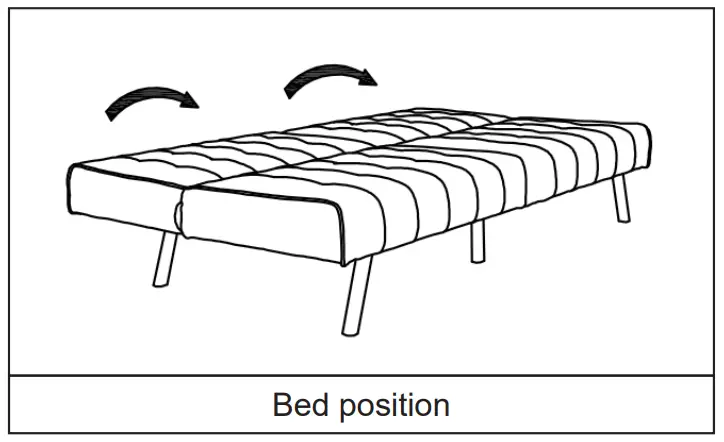

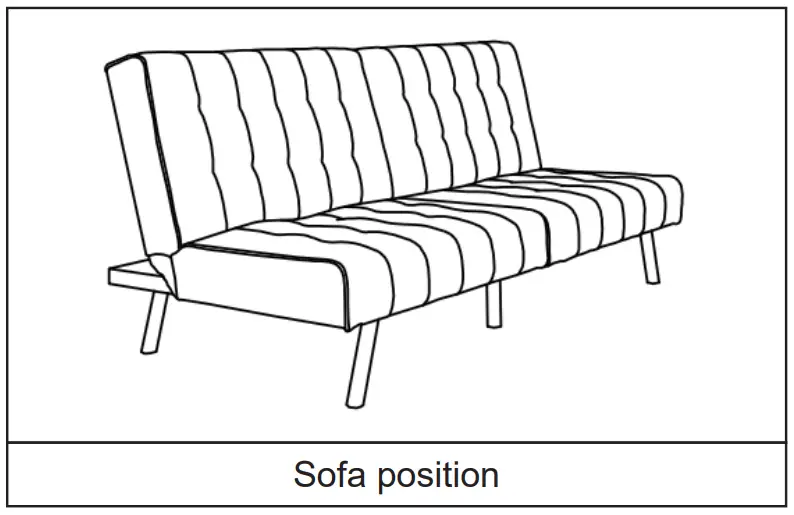

Convert to sofa:In bed(flat) position, simply lift backrest upward with each click sound until you reach the sofa position.

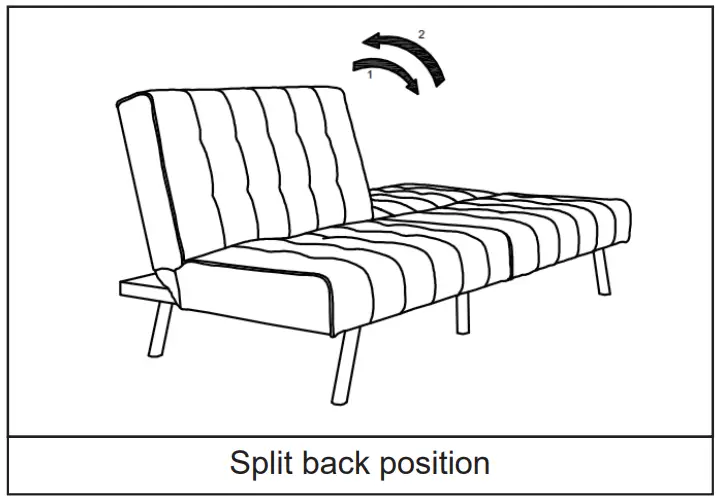

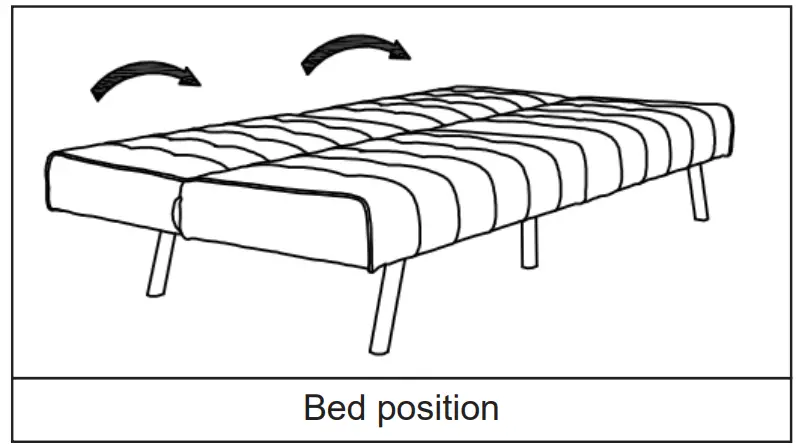

Convert to bed: From sofa or split position, lift backrest all the way up until the last click is heard ,then unlock the mechanism and carefully return to the flat position.
