HW68470 Sofa Bed
User Manual
Sofa Bed HW68470
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Please give us a chance to make it right and do better！
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
Follow Costway
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: [email protected]
UK: [email protected]
Before You Start
Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. Always place the product on a flat, steady and stable surface. Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.
ASSEMBLY INSTRUCTION
WARNING:
·This sofa bed has been designed for seating two(2)average adults and as an alternate sleep product.To prevent injury and damage to this unit,PROHIBIT jumping on the seat and back.
·This product is designed for home use and not intended for commercial use.
·WARNING FOR YOUNG CHILDREN-This product contains small components,please ensure that they are kept away from young children.Children under the age of 5,small infants and babies must not sleep on this futon for safty reasons. ·Recommended number of people needed for assembly:1
person (however it is always better to have an extra hand)estimated assembly time is 15 minutes.
Body

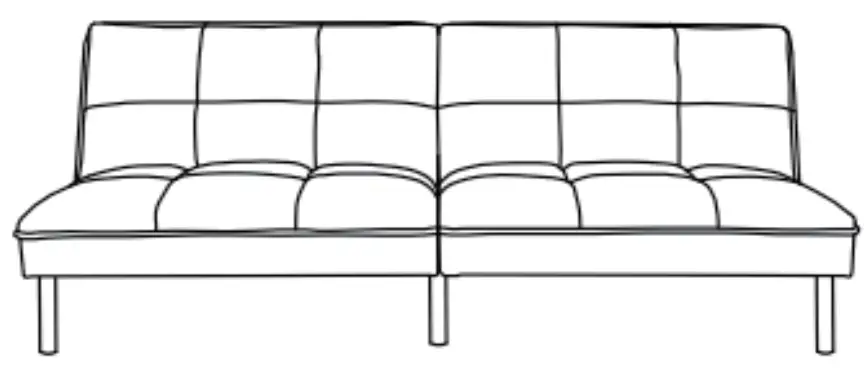

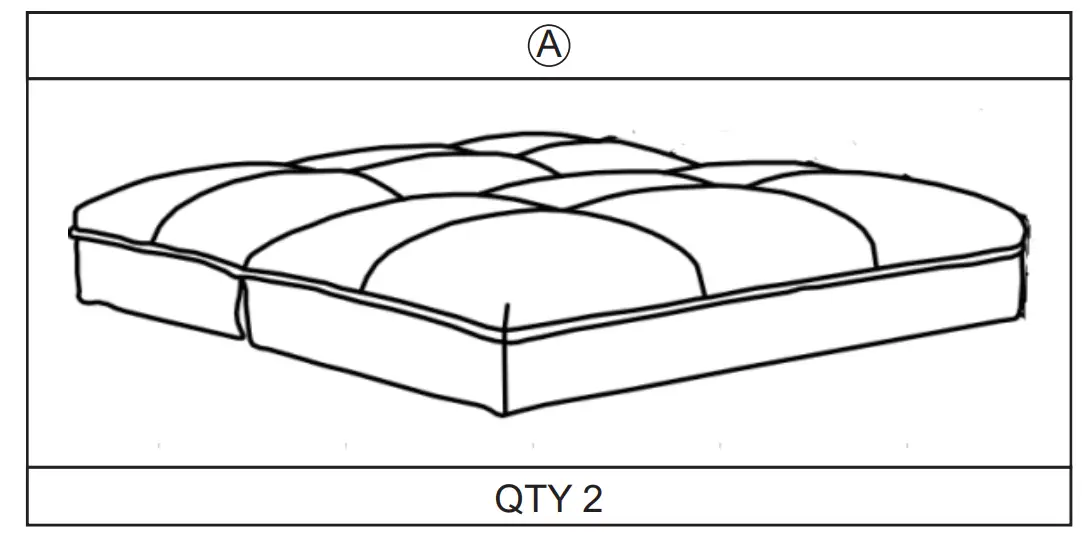

Parts List

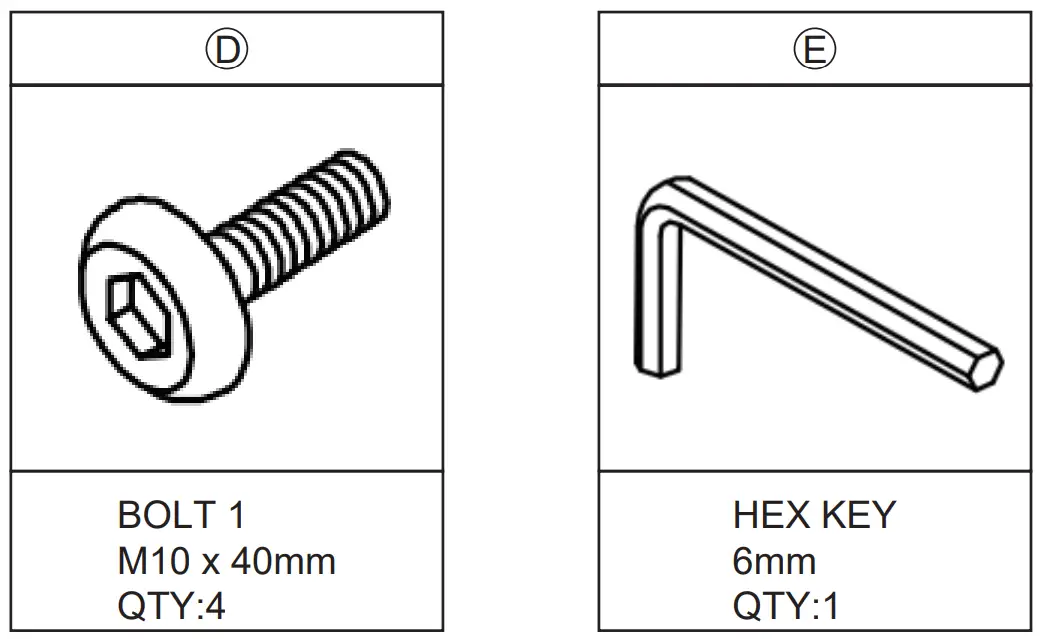

Hardware List

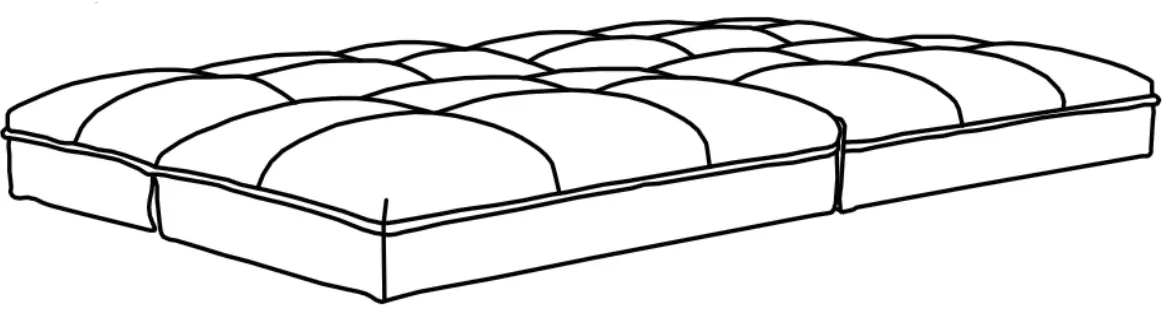

- As shown below,unfold the cushion(A),and then proceed to the next step.

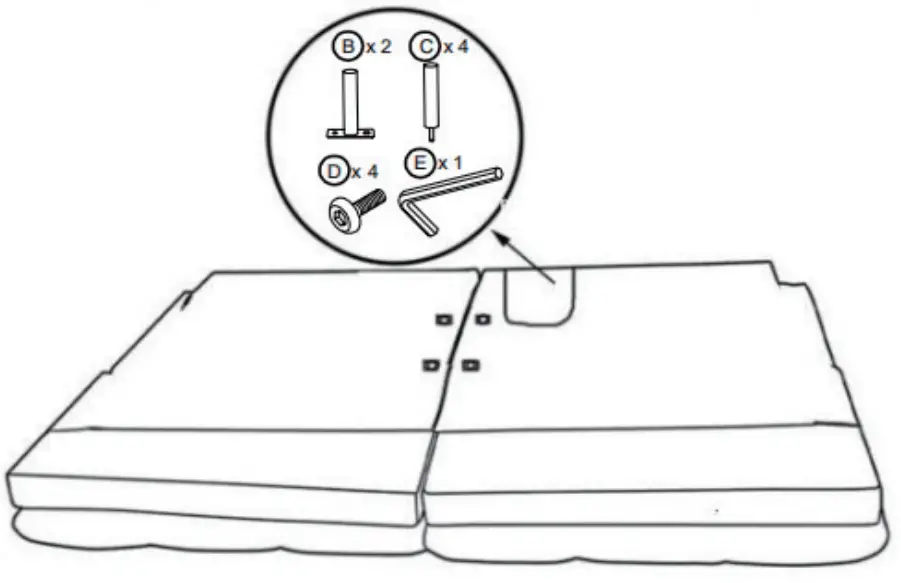

- Open the flaps,find the legs(B)(C )and use bolts (D),hex key(E) to insert the legs inside the cushion(A),as shown below.
- Fix leg(B) with bolt (D) by hex key(E), fix leg(C) by hand,shown as below.

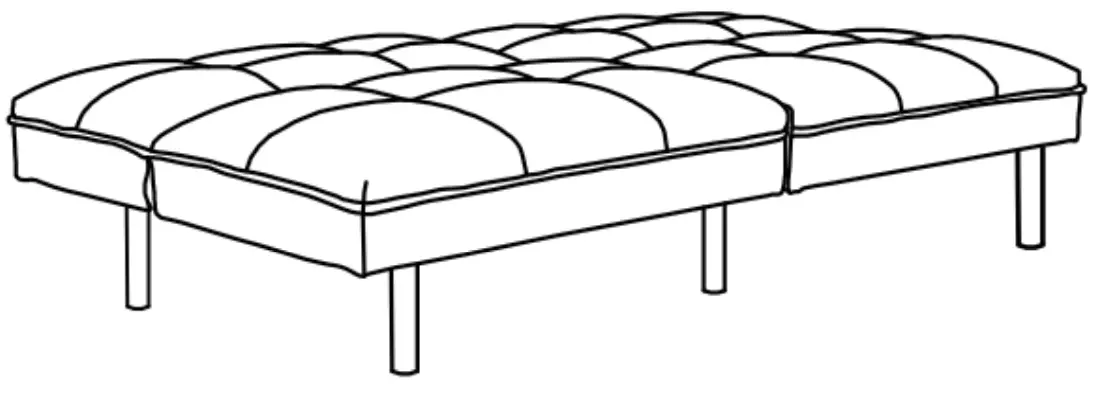

- Completed! Turn the cushion all over & set it on its legs.

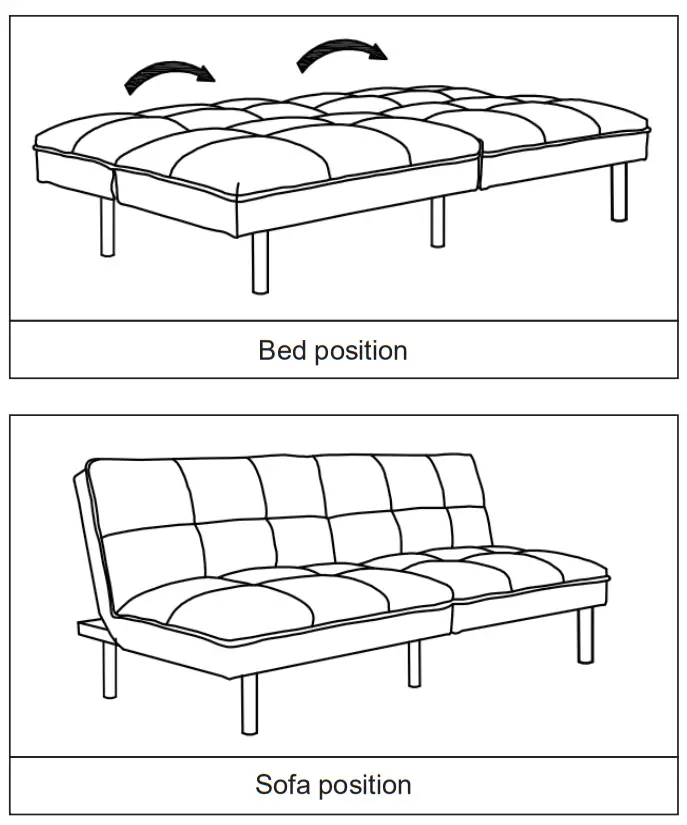

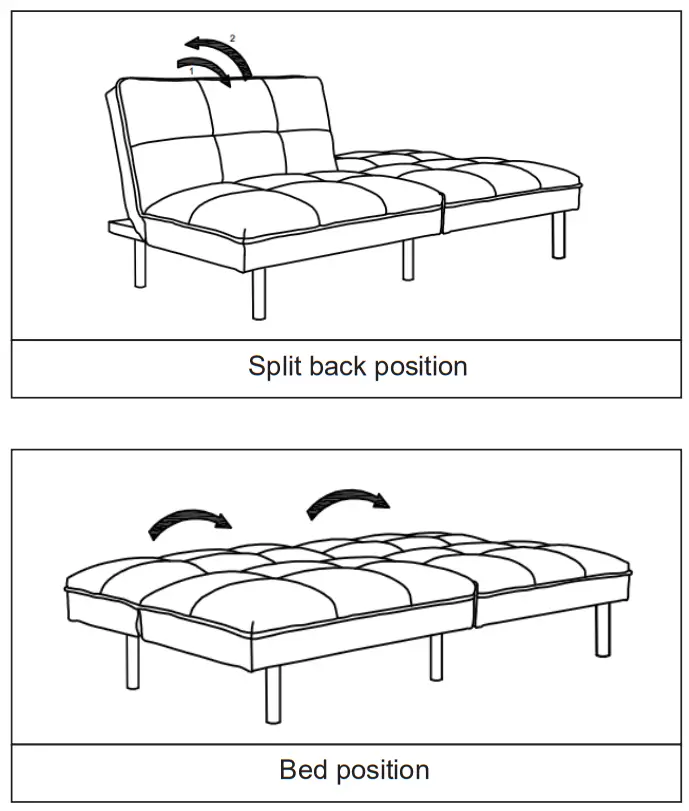

- Convert to sofa:In bed(flat) position,simply lift the backrest upwards with each click sound until you reach the sofa position.
- Convert to bed:From sofa or split position,lift backrest all the way up until you hear the last click,unlock the mechanism and carefully return to the flat position.
