Povison Sf010adg 76 Inch Pink Cotton Velvet Sofa Bed 2-seater User Manual

Functional Design, Better Home.
User Manual
ASSEMBLY INSTRUCTION

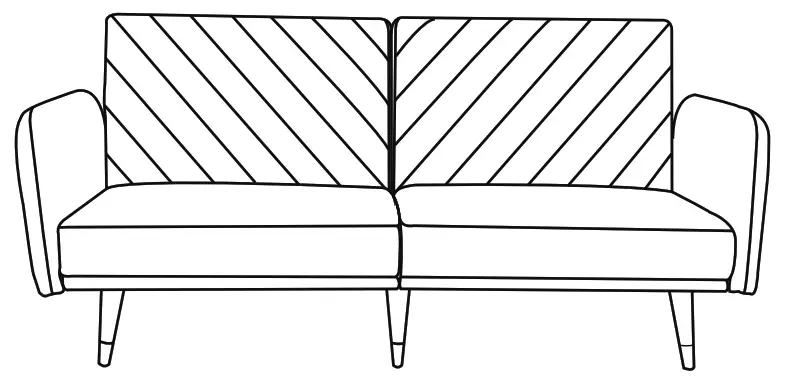

SF010ADG 76 Inch Pink Cotton Velvet Sofa Bed 2-Seater

SF010AL/SF010ADG/SF010AR

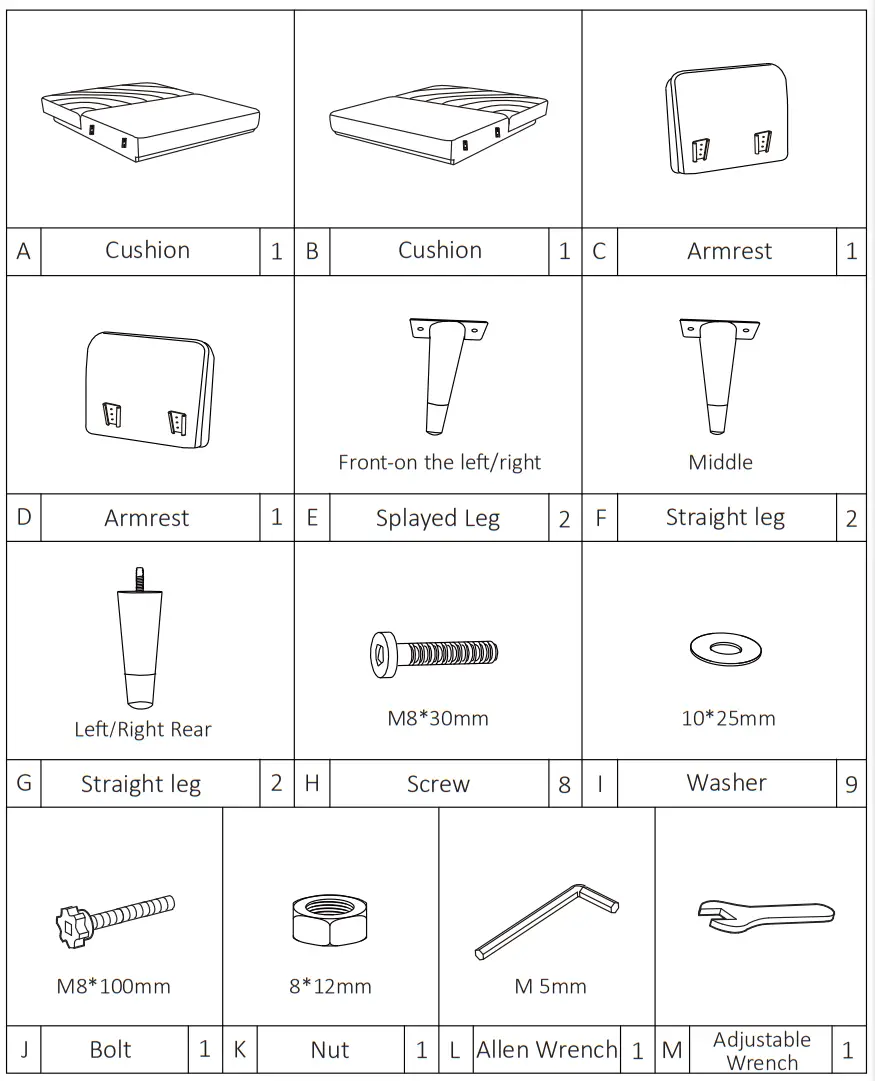

Parts List

PS: NO. , PRAT, QTY

Assembly Instruction

Note: Screw(H), Washer(I), Bolt(J), and Nut(K) are used for sofa.

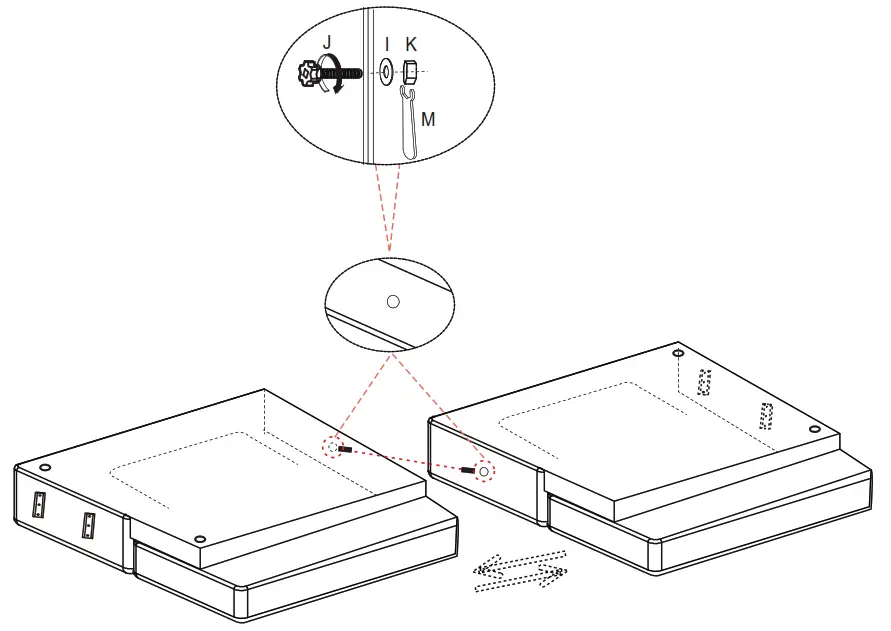

1. Align Cushion (A) to the holes of Cushion (B) from the middle position, then secure by Bolt(J), Washer (I), and Nut(K).

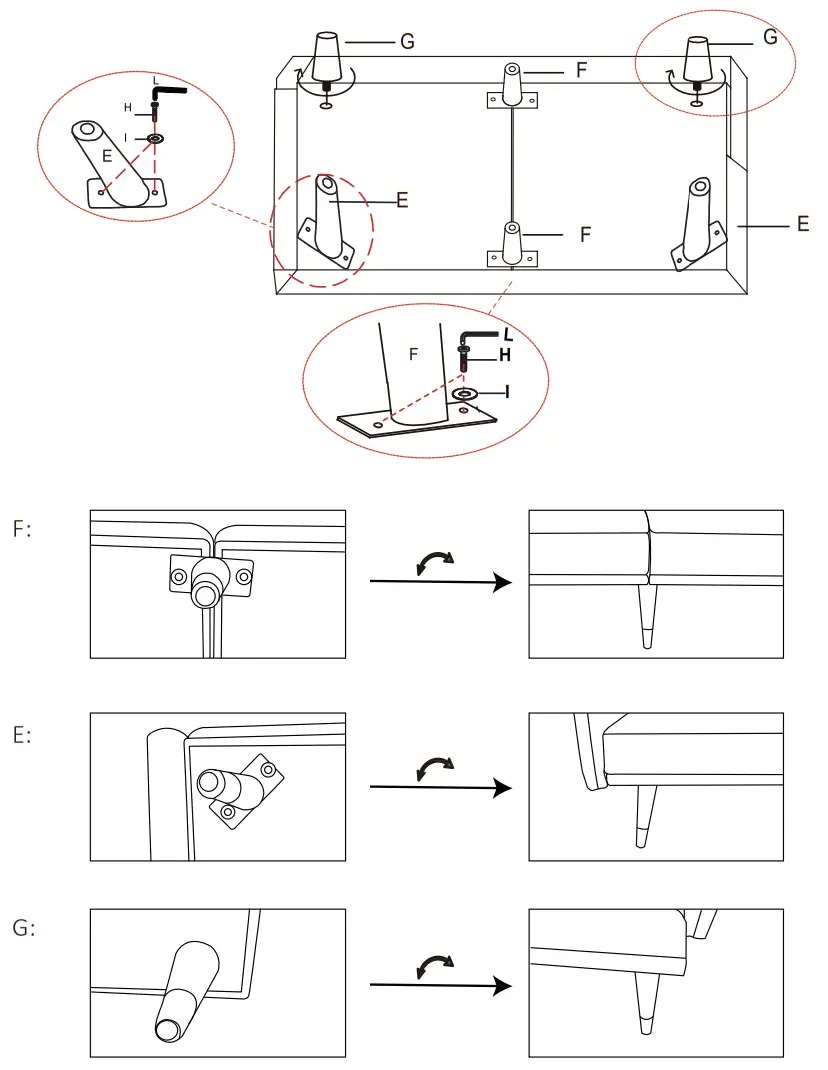

2. Connect Leg (F) with Cushion (A) and Cushion (B) through Screw(H) and Washer(I) respectively; Leg F is a straight leg.
   Install Leg (E) on Cushion (A) and Cushion (B) through Screw(H) and Washer(I) respectively; Leg E is a splayed leg.
   Rotate Leg (G) and install Leg (G) above Cushion (A) and Cushion (B) respectively; Leg G is a straight leg.

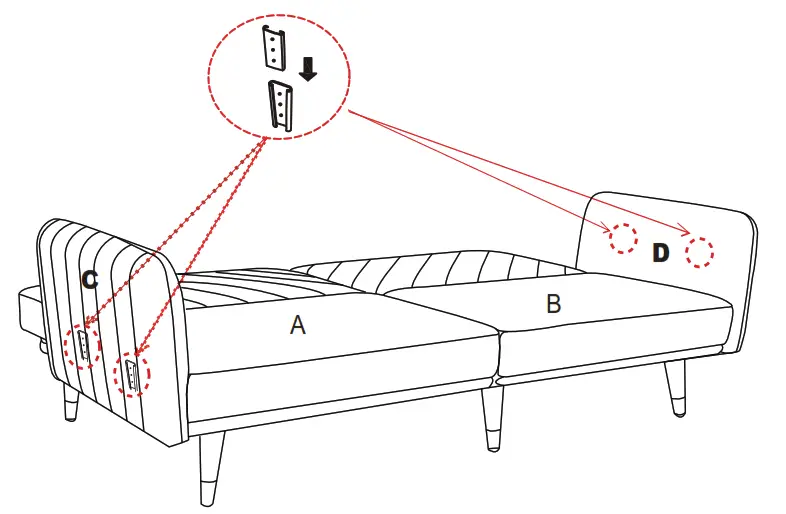

3. Insert Armrest (C) into Cushion (A) from top to bottom and insert Armrest (D) into Cushion (B) from top to bottom; Make sure that Armrest (C) aligns to Cushion (A)
   and Armrest (D) aligns with Cushion (B).

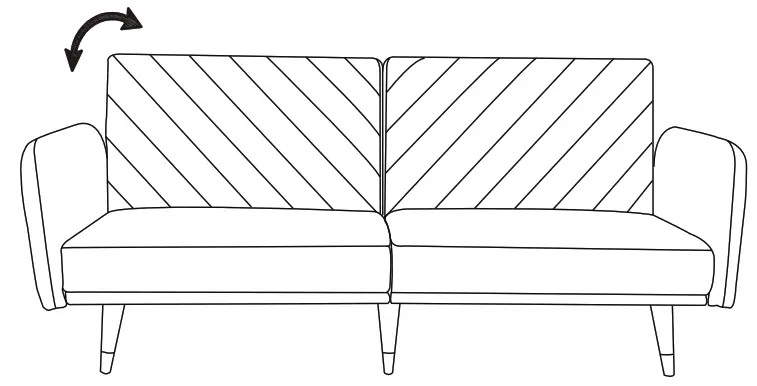

4. Tilt the backrest forward or backward to an optimal comfortable angle as your need.
