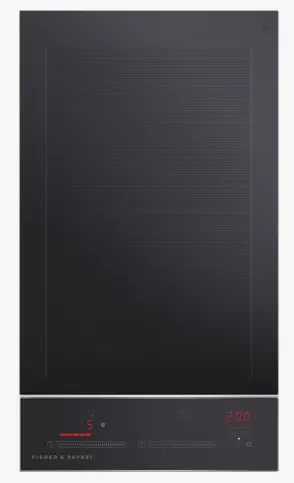

QUICK REFERENCE GUIDE > CI122DTB2 N
Induction Cooktop, 12″, 2
Zones with SmartZone
Series 9 | Contemporary
Black Glass
The energy efficiency and immediacy of induction heat, plus SmartZone. Pair your two cook zones to create one large heating surface.
- Immediate heat response and extremely accurate temperature control
- Child and pet safe – cooktop remains cool to touch until a pot or pan is placed on the surface
- PowerBoost activates a very high heat, bringing the liquid to boil in less than a minute
- Touch&Slide controls easily control each cooking zone

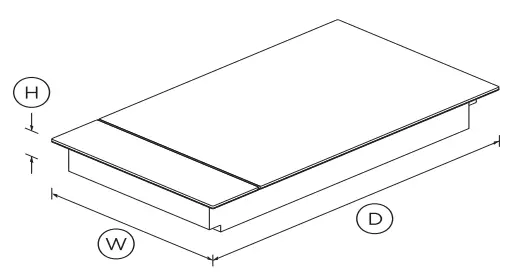

DIMENSIONS
| Height | 3 11/16″ |
| Width | 11 13/16″ |
| Depth | 20 7/8″ |
FEATURES & BENEFITS
Enhanced features
PowerBoost and GentleHeat deliver either very high or very low heat fast for specialized cooking tasks such as searing meat and melting chocolate. An integrated timer keeps you on track.
Safer choice
Induction cooktops only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it – so you don’t have to worry about curious little fingers or leaving an element on.
Instant response
Go from a boil to a simmer in seconds. Fisher & Paykel Touch&Slide controls react immediately when you adjust the temperature so you don’t waste time in the kitchen.
Easy cleaning
The surface around your cookware stays cool when you cook – preventing baked-on spills and making cleaning up a breeze. The durable ceramic cooktop surface just needs a quick wipe after use to maintain its good looks.
Superior efficiency
PowerBoost and GentleHeat deliver either very high or very low heat fast for specialized cooking tasks such as searing meat and melting chocolate. An integrated timer keeps you on track.
Precise Control
Fisher & Paykel induction cooktops offer extremely accurate, consistent temperature control from very high to very low heat, so you can sear, sauté and temper like a pro.
Perfect steak with induction
Fisher & Paykel induction cooktops quickly reach high temperatures, ideal for cooking steak. Cast iron pans are the best choice as they are highly inductive and get really hot for perfect searing.
SPECIFICATIONS
Cleaning
| Flat easy clean glass surface | • |
| Pan detection system | • |
Controls
| Auto cut-off timer for each | • |
| Minute timer | • |
| Soft-touch electronic controls | • |
| Touch and slide controls | • |
Performance
| Auto heat reduce | • |
| Dual color display | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| SmartZone | • |
| Zone bridging | • |
Power requirements
| Amperage | 16A |
| Supply frequency | 60Hz |
| Supply voltage | 240V |
Product dimensions
| Depth | 20 7/8″ |
| Height | 3 11/16″ |
| Width | 11 13/16″ |
Safety
| Keylock | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
Warranty
| Parts and labour | 2 years |
Zone ratings
| Front | 2100W |
| Front zone (Powerboost set) | 3700W |
| PowerBoost | up to 3700W |
| Rear | 2100W |
| Rear zone (Powerboost set) | 3700W |
Zones
| Number of elements | 2 |
| SKU | 81369 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User GuideGuide D’UtilisationService & WarrantyInstallation GuideGuide d’installationData Sheet Induction Cooktop
