Bajaj Gx 3501 500 Watts Mixer Grinder User Manual

Mixer Grinder
Use & Care  Manual

Dear Consumer, Thank you 1 For choosing the natal Mixer Grinder of which You are now the proud owner. please read and follow all the instructions given in this use and care manual carefully, prior to using your Bajaj Mixer Grinder, to get the best mileage and trouble-free operation. Bajaj Electricals Limited

TECHNICAL SPECIFICATIONS :

Model	GX 400GX (4 7/ Jars) GX 3000(3 Jars)	GX 8	GoodRx	0X21	REX (2 Jars) , REX (3 3a19	11411STER 0 Jers) &WU (3 Jars) MISTER (4Jas)	Tweten Min	GX 35°1/ OX 3701
Electric Supply	230V 50Hz AC Single Phase	230V 50Hz AC Single Phase	230V 50Hz AC Single Phase	230V 50Hz AC Single Phase	230V 50Hz AC Single Phase	230V 50Hz AC Single Phase	230V 50Hz AC Single Phase	230V 50Hz AC Single Phase
Motor Power	500 /750 W	500 1750 W	600 W	550 W	500 W	750 W	750 W	500 W/750 W
Operating Cycle	30 min. (5min. ON, 2min. OFF)	30 min. (5min. ON, 2min. OFF)	30 min. (5mln. ON, 2min. OFF)	30 min. (5min. ON, 2min. OFF)	30 min. (5min. ON, 2min. OFF)	30 min. (5mln. ON, 2min. OFF)	30 min. (5mln. ON, 2min. OFF)	30 min. (5mln. ON, 2min. OFF)
Motor Type	Universal	Universal	Universal	Universal	Universal	Universal	Universal	Universal
Speed Control Switch	Rotary type	Rotary type	Rotary type	Rotary type	Rotary type	Rotary type	Rotary type	Rotary type
Protection Class	/ Class I	/ Class I	Class I			Class I	Class I	/Class I
Incher	For momentary operation	For momentary operation	For momentary operation	For momentary operation	For momentary operation	For momentary operation	For momentary operation	For momentary operation
Speed (No Load)	20,000 R.P.M. approx	20,000 R.P.M. approx	20,000 R.P.M. approx	20,000 R.P.M. approx	20,000 R.P.M. approx	20,000 R.P.M. approx	20,000 R.P.M. approx	20,000 R.P.M. approx
Overload Protection	Resetting type OLP 250V 50Hz, 2213.2 Amps	Resetting type OLP 250V 50Hz, 2213.2 Amps	Resetting type OLP 250V 50Hz, 2.6 Amps	Resetting type OLP 250V 50Hz, 2.4 Amps	Resetting type OLP 250V 50Hz, 2.2 Amps	Resetting type OLP 250V 50Hz, 3.2 Amps	Resetting type OLP 250V 50Hz, 3.2 Amps	Resetting type OLP 250V 50Hz, 2.2A / 3.2A
Capacity/material of Grinding jar	1 Litre approx. Stainless steel	1 Litre approx. Stainless steel	1 Litre approx. Stainless steel	1 Litre approx. Stainless steel	0.8 Litre approx. ronrtinwth ee: Lars)	1 Litre approx. Stainless steel	1 Litre approx. Stainless steel	1 Litre approx. Stainless steel
Capacity/material of Liquidising jar	1.5 Litre approx Stainless steel	1.5 Litre approx. Stainless steel	1.5 Litre approx. Stainless steel		1.2 Litre approx. Stainless steel	1.5 Litre approx. Stainless steel		1.2115Le approx. Stainless steel
Capacity/material of Chutney jar	0.3 Litre PPM.	03 Litre approx.	0.3 Litre approx.	03 liter approx.	03 liter approx.	0.3 Litre approx.	0.3 Litre approx.	0.3 Litre approx.
	0.5 Litre approx. (III” Ca° I 6X 301	–	–	–	–	–	–	–
	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Housing material	ABS plastic	ABS plastic	ABS plastic	ABS plastic	ABS plastic	ABS plastic	ABS plastic	ABS plastic
Dome lids for jar	Polycarbonate/ Polypropylene	Polycarbonate/ Polypropylene	Polycarbonate Polypropylene	Polycarbonate/ Polypropylene	Polycarbonate/ Polypropylene	Polycarbonate/ Polypropylene	Polycarbonate/ Polypropylene	Polycarbonate/ Polypropylene
Blade material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Power supply with cord & plug	PVC cable with Molded plug	PVC cable with Molded plug	PVC cable with Molded plug	PVC cable with Molded plug	PVC cable with Molded plug	PVC cable with Molded plug	PVC cable with Molded plug	PVC cable with Molded plug
Capacity/material of transparent Blender jar				1.25Litre approx. Polycarbonate		1.25 Litre approx. honoree (Not for Twister 3 Jars & Swish )	1.25litre approx. Polycarbonate

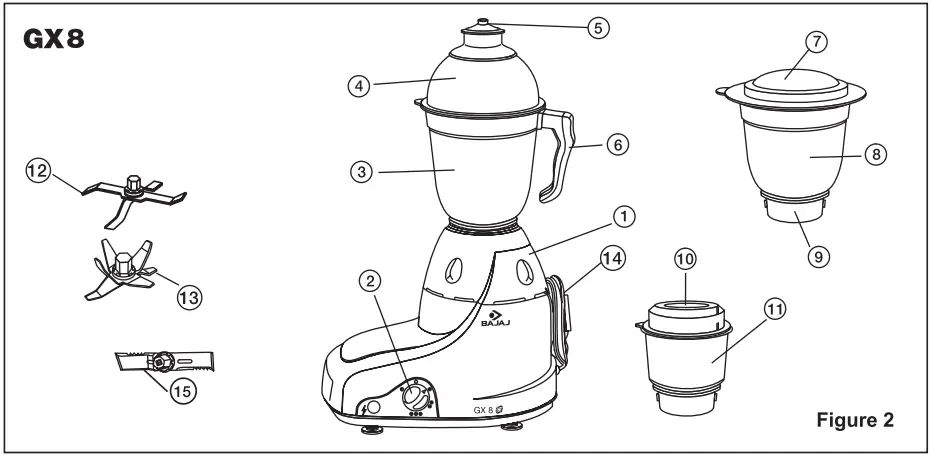

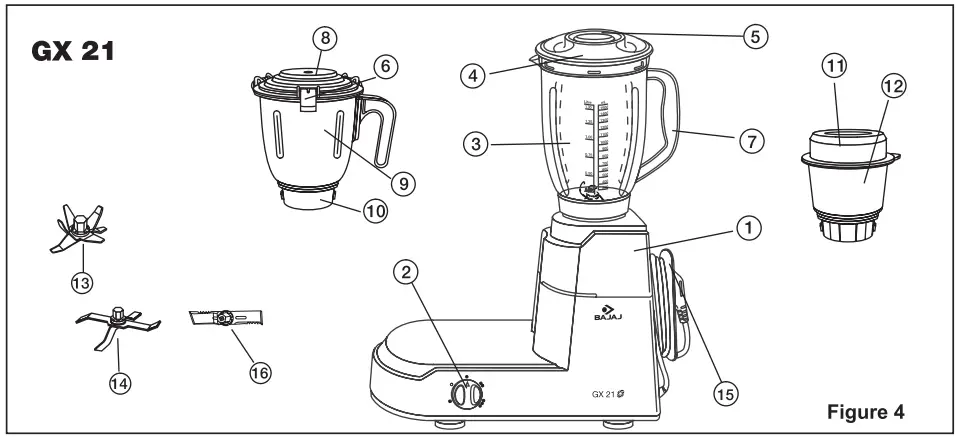

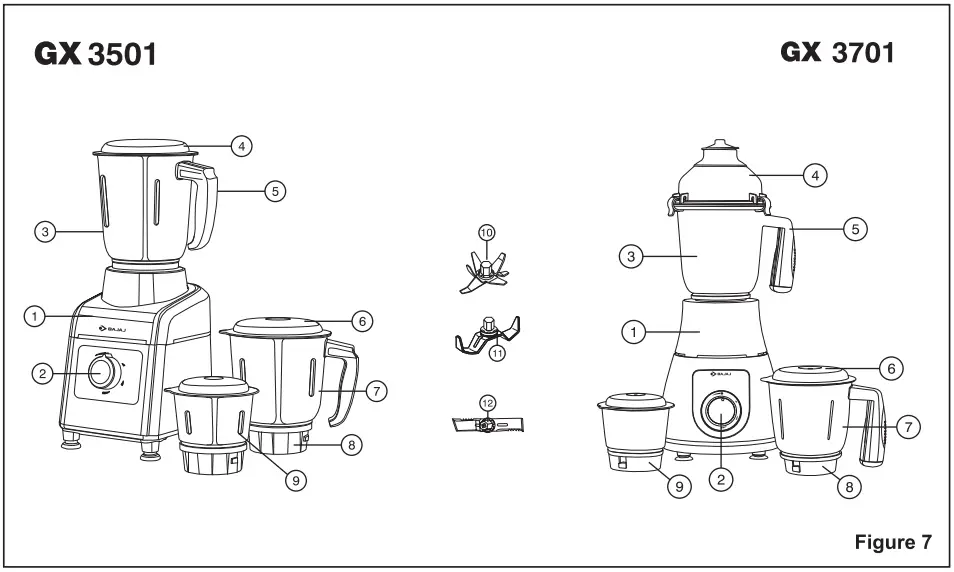

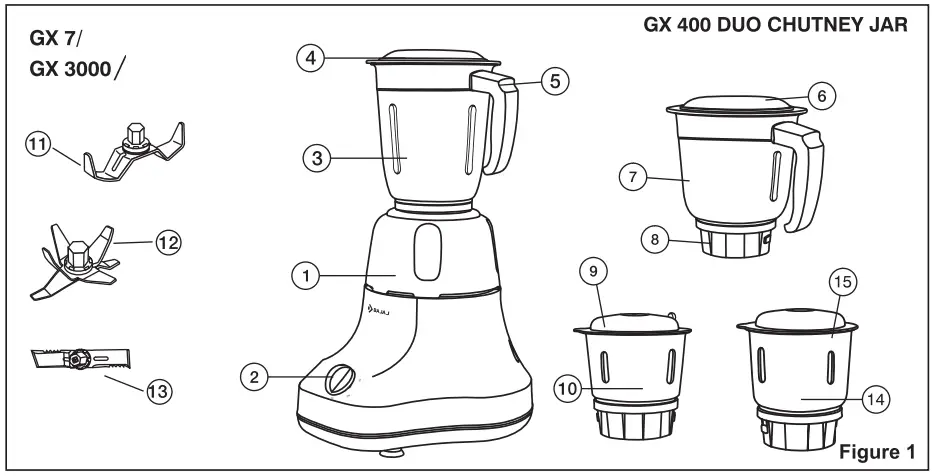

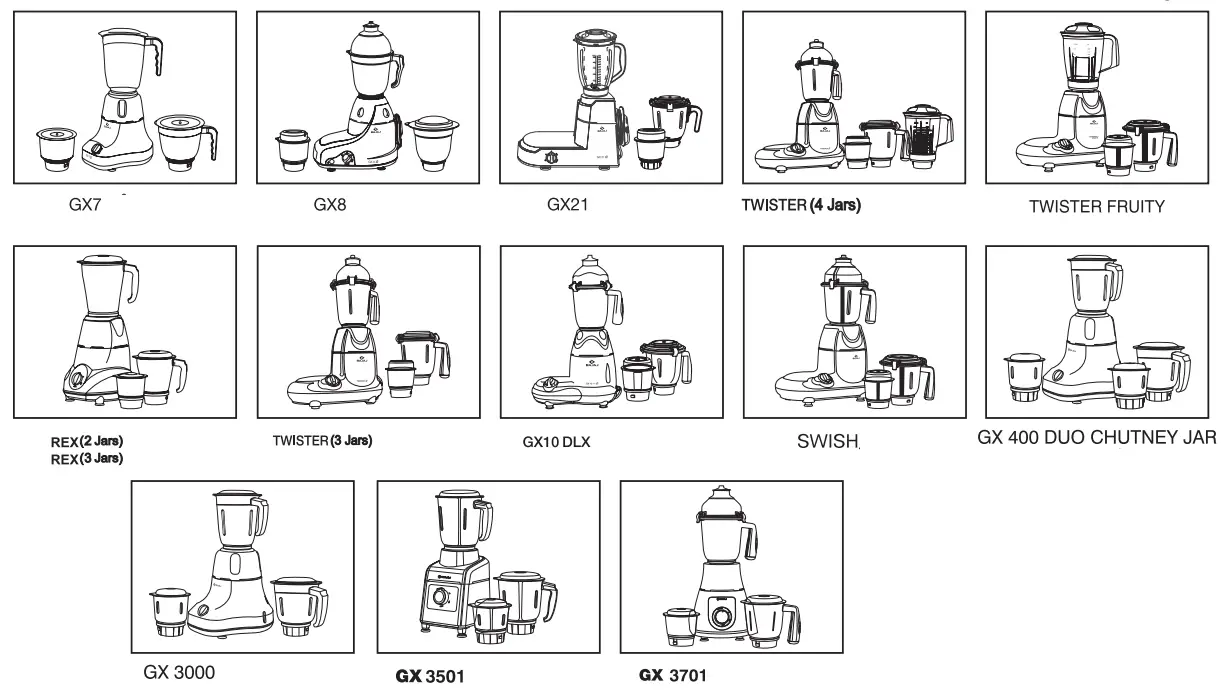

Know your Bajaj Mixer Grindeer

1. Main Unit
2. Speed / Incher Selector Knob
3. Liquidising Jar
4. Lid for Liquidising Jar
5. Jar Handle
6. Flat Lid for Dry / Wet Grinding Jar
7. Dry/ Wet Grinding Jar
8. Jar Base
9. Chutney Jar Lid
10. Chutney Jar Small
11. 2 in 1 function blade
12. Liquidising Blade
13. Chutney Blade
14. Chutney Jar Big (Available with GX400 only)
15. Chutney Jar Lid (Available with GX400 only)

1. Main Unit
2. Speed / Incher Selector Knob
3. Liquidising Jar
4. Dome for Liquidising Jar
5. Dome cap for Liquidising Jar
6. Jar Handle
7. Lid for Dry/ Wet Grinding Jar
8. Dry/ Wet Grinding Jar
9. Jar Base
10. Chutney Jar Lid
11. Chutney Jar
12. Dry / Wet Grinding Blade
13. Liquidising Blade
14. Cord Winder
15. Chutney Blade

1. Main Unit
2. Speed / Incher Selector Knob
3. Liquidising Jar
4. Dome for Liquidising Jar
5. Dome cap for Liquidising Jar
6. Lid Clamp
7. Jar Handle
8. Flat Lid for Dry / Wet Grinding Jar
9. Dry/ Wet Grinding Jar
10. Jar Base
11. Chutney Jar Lid
12. Chutney Jar
13. Spatula
14. Chutney Blade
15. Liquidising Blade
16. Mincing Blade
17. Dry Grinding Blade

1. Main Unit
2. Speed / Incher Selector Knob
3. Liquidising Jar
4. Lid for Liquidising Jar
5. Lid cap for Liquidising Jar
6. Lid Clamp
7. Jar Handle
8. Lid for Dry / Wet Grinding Jar
9. Dry / Wet Grinding Jar
10. Jar Base
11. Chutney Jar Lid
12. Chutney Jar
13. Liquidising Blade
14. Dry Grinding Blade
15. Cord Winder
16. Chutney Blade

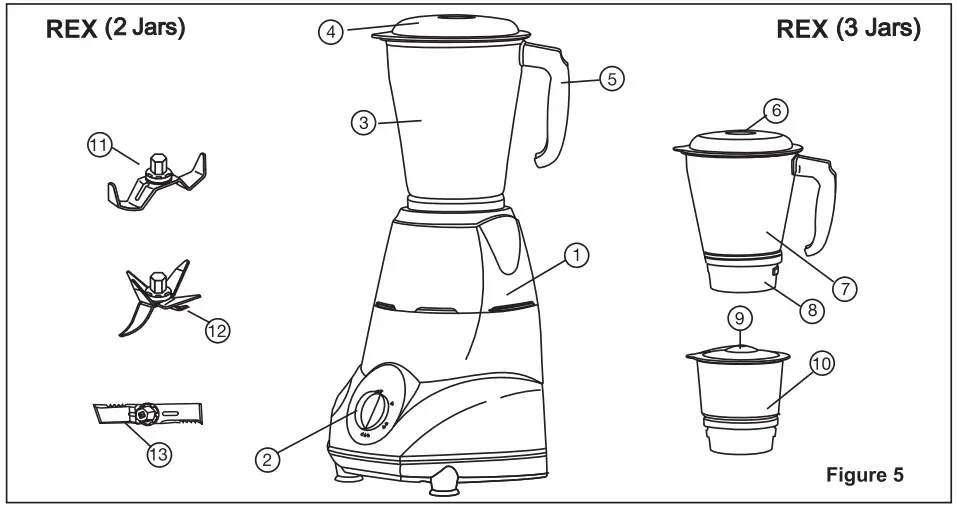

1. Main Unit
2. Speed / Incher Selector Knob
3. Liquidising Jar
4. Lid for Liquidising Jar
5. Jar Handle
6. Lid for Dry / Wet Grinding Jar (only with REX 3 Jar)
7. Dry/ Wet Grinding Jar ( only with REX 3 Jar)
8. Jar Base
9. Chutney Jar Lid
10. Chutney Jar
11. Multi-function Blade
12. Liquidising Blade
13. Chutney Blade

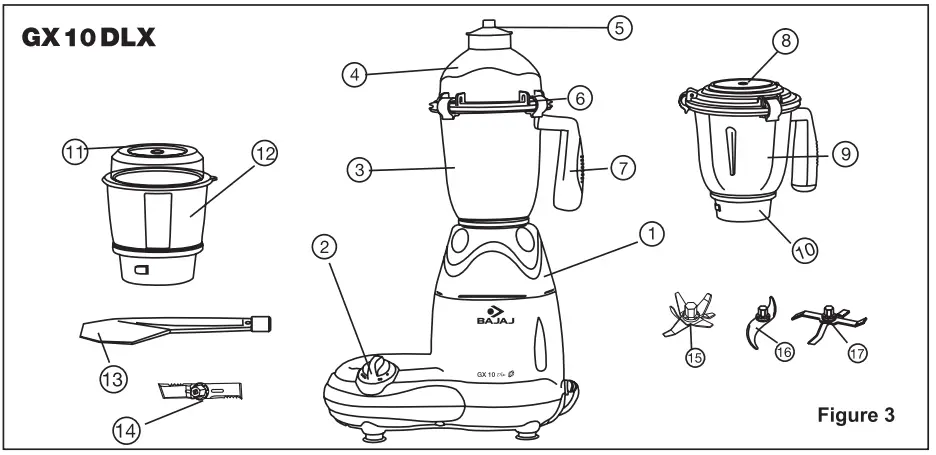

1. Main Unit
2. Speed / Incher Selector Knob
3. Liquidising Jar tliolyrimo(Fano
4. Dome for Liquidising Jarottion.swoon
5. Dome cap for Liquidising Jar tilollonalerFrutY)
6. Lid Clamp
7. Jar Handle
8. Flat Lid for Dry/ Wet Grinding Jar
9. Dry/ Wet Grinding Jar
10. Jar Base
11. Chutney Jar Lid
12. Chutney Jar
13. Spatula (for Twister 4 jars & Twister 3 Jars )
14. Chutney Blade
15. Liquidising Blade
16. Mincing Blade mit tor Twister Rudy & Servers )
17. 4-Leaf Multifunctional blade
18. Lid for Transparent Liquidising Jar(Not for Twister 3 Jars & Swish )
19. Transparent Liquidising Jar (Not for Twister 3 Jars & Swish )

1. Main Unit
2. Speed / Incher Selector Knob
3. Liquidising Jar
4. Lid/Dome for Liquidising
5. Jar Handle
6. Flat Lid for Dry / Wet Grinding Jar
7. Dry / Wet Grinding Jar
8. Jar Base
9. Chutney Jar
10. Liquidising Blade
11. Multi-function Blade
12. Chutney Blade

PRECAUTIONS

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE MIXER GRINDER

• Keep the Mixer Grinder at least 6″ (150mm) away from the wall and on the flat level surface.
• Have sufficient place around the Mixer Grinder to keep the various items and ingredients required.
• Do not touch moving parts & blades when the Mixer Grinder is in operation.
• To protect against electrical hazards, do not immerse any part of the Mixer Grinder like the base, plug, or cord in water or any other liquids.
• Keep the Mixer Grinder away from direct heat or sun, gas stove, or any electrical heating appliances.
• Never operate your Mixer Grinder without lid and lid cap.
• Never operate your Mixer Grinder unless there is a load in the jar.
• Do not pull the cord to disconnect instead grasp the plug and pull to disconnect.
• Always disconnect the plug from the power outlet before cleaning, while emptying and when not in use.
• Do not let the power cord hang over the edge of the table/counter or touch any hot surface. If the plug or cord is damaged or the unit malfunctions, do not use it, contact the Bajaj consumer care center for repairs.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the Mixer Grinder out of reach of children at all times. Close supervision is necessary when used near children.
• In the event of any failure of your Mixer Grinder or cord damage, do not attempt to repair it at home or allow any unauthorized person to do so. Ensure repairs are carried out only at an authorized Bajaj Consumer care center.
  NOTE:
• Parts Illustrated In this use and care manual are indicative only.
• This mixer Grinder is intended for household use only.
• Specifications are subject to change without notice.

INSTRUCTIONS TO USE YOUR BAJAJ MIXER GRINDER

Before you start the mixer grinder for the first time or after a long period of non-usage :

• After unpacking the mixer grinder, wash the jars and blades with mild detergent and dry it throughly.

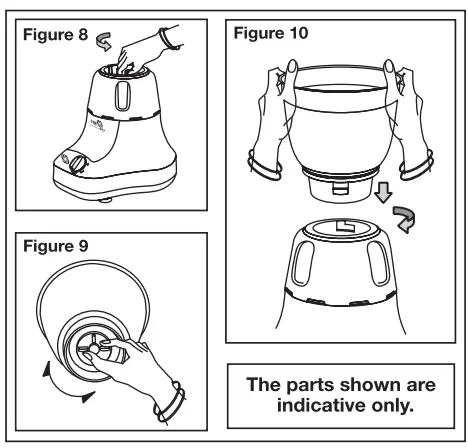

• Rotate the motor shaft by hand to ensure that it turns freely & smoothly (Fig. 8). Make sure the unit is not connected to the electric supply source
• Before fixing the jar to the main unit, rotate the jar coupler to ensure that it turns freely (Fig. 9)
• Each jar comes fitted onto an aluminum/ plastic base that has to be fitted onto the main unit. Hold the base and rest it on the main unit (Fig 10)
• Plug the power cord in the electric supply socket & switch the power ON.
• The Speed of operations is marked as 1/2/3 or N1/N2/N3 in increasing order of speeds. Incher shall be used for momentary operation.
• Do not touch the jars with bare hands immediately after using the mixer.

WARNING: Do not run the mixer grinder unless the lid is in place and held firmly with your hand.

INSTRUCTIONS TO USE CHUTNEY JAR

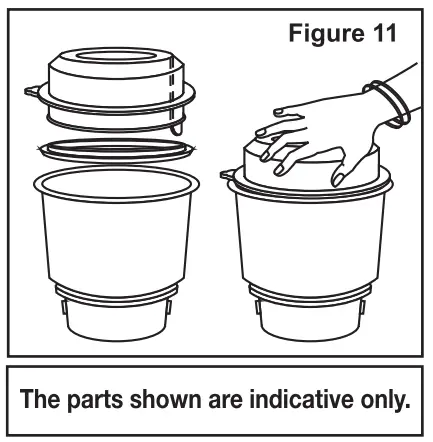

This jar (Fig.11) can be used to grind small quantities of jeera, dhania, coconut, green chili, pepper, garam masala, etc.

• The substance to be ground should not be too large. Cut/break ingredients into smaller pieces.
• Put the ingredients to the ground in the chutney jar.
• Put the flat lid on top of the jar and fit it onto the main unit.
• Place the chutney jar on the main unit through the jar base.
• While using, hold the lid with your hand and press it down firmly on the jar, ensuring that the lid has locked securely from all sides.
  NOTE:
• Do not add too much water while using this jar.
• Do not run the mixer continously as it tends to rob the ingredients of their flavor – thus short spurts would be preferable.
• While dry grinding, friction may heat up the jar, this is not abnormal.

INSTRUCTIONS TO USE DRY & WET GRINDING JAR

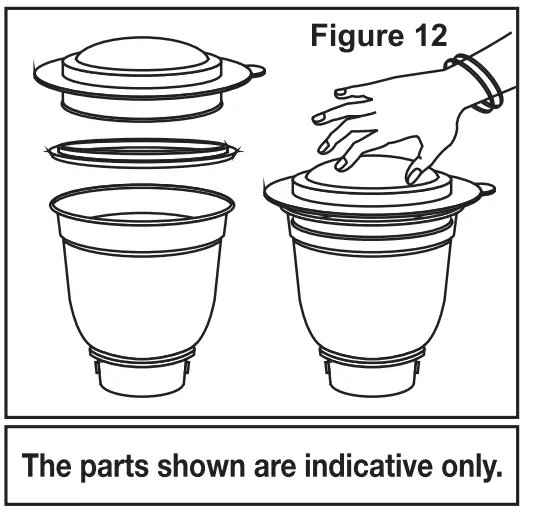

This jar ( Fig. 12) can be used for grinding items like Coffee beans, coconut chutney, groundnut, red chilli, sugar, palak, etc

• Fill the jar with the ingredients, up to 2/3 of the capacity of the jar, and add some water as per the desired quantity.
• Put the lid on the top of the jar and fit it onto the main unit.
• While using, hold the lid with your hand and press it down firmly on the jar, ensuring that lid has locked securely from all sides.
• Grind at a low speed for about 15 sec. And then move to higher Keep adding water till you achieve desired consistency.
  NOTE:
• Always ensure lid is in place before starting.
• Please add the water as and when required.
• Start from the lowest speed and increase gradually.

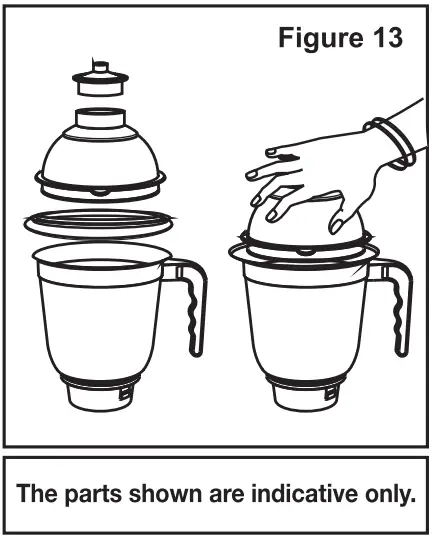

INSTRUCTIONS TO USE BLENDING, LIQUIDIZING AND OPTIONAL JAR

This jar (fig. 13) can be used to perform all type of blending, liquidizing & wet grinding operations such as the preparation of lassi, milkshakes, purees, juices, Idli & Dosa batter etc.

• Fill the jar with the solids to be liquidized such as tomatoes or watermelon and fit the jar onto the main unit.
• Put the Dome Assembly onto the jar. Put the Dome Cap into place.
• If needed more water can be added by removing Dome Cap.
• While using ensure that the dome/lid has securely locked from all sides.
• While using, hold the lid with your hand and press it down firmly on the jar, ensuring that the lid has locked securely from all sides.
• Now switch on the mixer for under a minute and you will get finely blended juices and purees.
  Note:
• Always ensure Dome Lid and Dome Cap are in place before starting
• Use incher button for better results.
• Use the handle of the jar for pouring out the contents.

HOW TO CARE FOR YOUR BAJAJ MIXER GRINDER

CLEANING AFTER USE
Warning: Be sure to switch off your Mixer Grinder after use. Wait until! the blades come to a halt before removing the cover.

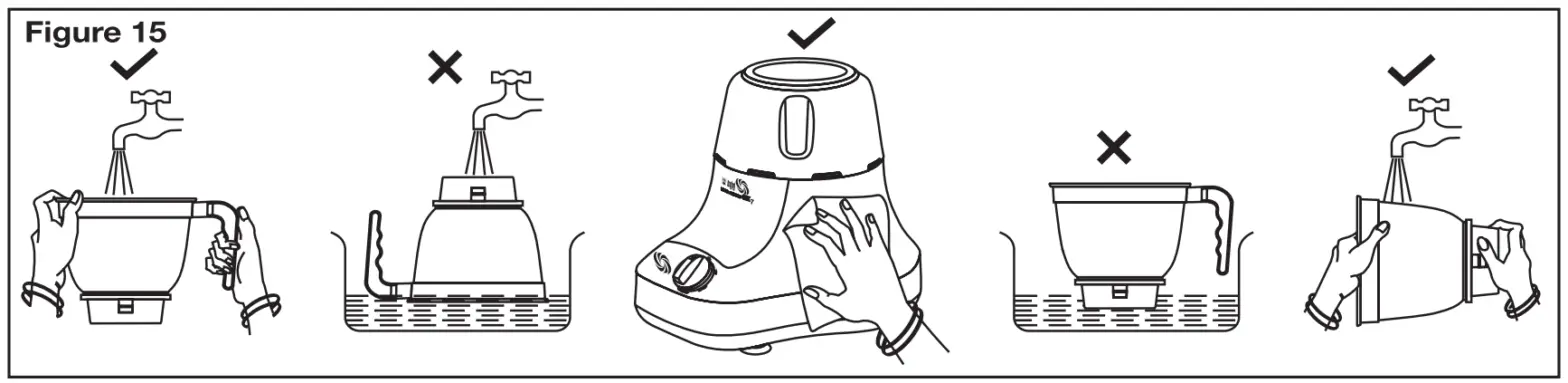

• After each use, it is highly desirable to wash and thoroughly clean the jar’s blades and the lids.
• Firstly remove the power plug from the electric supply socket. Gently detach the jar from the main unit
• Open the lid and empty the contents.

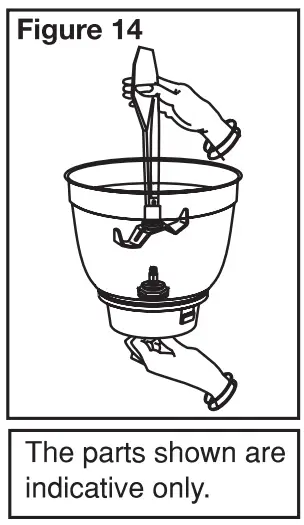

• To remove the blade assembly, use a spoon to stop the blade from rotating and use a Spatula to gently loosen/unscrew the plastic dome nut of the blade assembly in a clockwise direction (Fig 14, only for GX10 DLX & Twister 3 Jar, 4 Jar)
• The jars can be cleaned using some warm soapy water. Then rinse with clean water & wipe dry with a soft damp cloth. Do not keep the jars immersed in water.
• Do not immerse the main unit in water. The main unit can be cleaned using a damp cloth.
• Cleaning is easy & best done immediately after use.
• Do not Operate or touch the unit when smoke/burnt smell is observed. Contact the authorized Bajaj Consumer Care Centre.

NOTE: Parts illustrated in this use and care manual are indicative only, parts provided with the product may differ with the illustrations.

OVERLOAD PROTECTOR (OLP)

• The OLP is designed to protect your motor from burning.
• When the jar is filled more than what is specified or the liquid is too viscous the OLP trips and the motor stops automatically.
• When this happens, reduce the quantity of material being grounded or add some water,

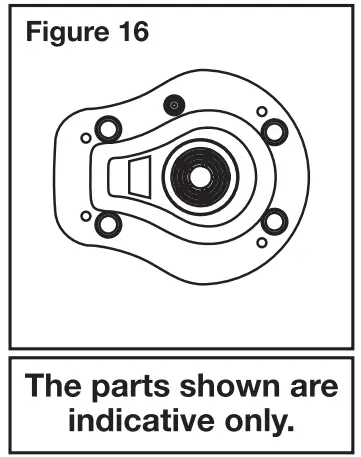

• To restart wait for a while and press the OLP button located at the bottom of the mixer base (Fig.16).
• Wait for a while and then start your Mixer Grinder again.

NUTRI PRO

Tested for Sodium, Potassium, Calcium, Copper, Iron, Manganese, Phosphorous, Zinc, Vit A, Vit B3, Vit B5, Vit B9, Vit C. This is based on RPD (relative percentage difference) of less than 15%”

TROUBLESHOOTING GUIDE

Note: In case the following measures do not work, please take the Mixer Grinder to the nearest Bajaj authorized consumer care center

CONSUMER CARE NO. 022-41280000
WWW.bajajelectricals.com
