Orient MGAC75G4 Mixer Grinder User Manual
OPERATIONAL INSTRUCTIONS
- Rotate the motor shaft by hands to ensure that it rotates freely and smoothly.
- Hold the jar in one hand and check through coupler that the blades rotate freely (Fig.1).
- Place the ingredients in the jar; properly cover the jar with the lid. Place the jar on the power unit, press gently and rotate clockwise to lock (Fig. 2).
- Plug the power cord into the electric supply socket.
- For unlocking the jar, press it downwards and then turn anti-clockwise and lift the jar from the basic unit.
- Place the mixer grinder on a flat stable surface and at a
convenient height so that you can operate easily. - You should be able to look at the attachments to check circulation of the ingredients.
- Make some empty space around the unit to keep the various items required while operating the mixer grinder.
- Ensure that the lid is securely & tightly fitted to the jar before running the mixer grinder.
- For dry/wet jar and chutney jar grinding, use speeds “Low” & “Med” for 30 seconds each, thereafter use speed “High” to finish grinding.
- The mixer grinder is protected against overloading of the motor.
- The overload could be due to excess ingredients in the jar or overheating of motor.
- The automatic tripping mechanism (called OLP) cuts off the motor in the event of motor overloading. If this happens, allow the motor to cool for 2 to 3 minutes and remove the excess ingredient and reset OLP provided at the bottom of the main unit to restart operation (the thin red button).
Method for fixing the blade in the jar
Place the blade on the threaded shaft inside the jar with your hand
Hold the jar coupler at the bottom
Tighten the blade knob (black) with the spatula (anti-clockwise direction)
CLEANING AND CARE
- Do not wash the unit under direct running water. Instead, use wet cloth to wipe dust and stains.
The unit should be in OFF condition and unplugged while cleaning. - Do not use harsh cleaners and abrasive materials.
- Clean the lid, jars and spatula in water containing a mild detergent.
STANDARD RECIPES
| Jar Type | Recipes | Quantity | Time |
| Liquidizing/ Wet Grinding Jar | Black Gram | 1.5L capacity : 300 g + 675 ml water soaked for 12 hrs. As and when needed 135 ml water can be added. For upto 1.2 L capacity: 200 g + 450 ml water soaked for 12 hrs. As and when needed 90 ml water can be added. | 3 min |
| Parboiled Rice | For 1.5 L capacity: 300g + 338 ml water soaked for 12 hrs. As and when needed 65 ml water can be added. For upto 1.2 L capacity: 200 g + 225 ml water soaked for 12 hrs. As and when needed 45 ml water can be added. | 3 min | |
| Banana Shake | For 1.5L capacity: 3 pcs banana + 50 g Ice cream (optional) + 500 ml milk (sugar as per taste). For upto 1.2 L capacity: 2 pcs banana + 50 g Ice cream (optional) + 300 ml milk (sugar as per taste). | 3 min | |
| Lassi | For 1.5 L & lesser jar capacities 300 g curd + salt / sugar (as per taste). | 1 min | |
| Tomato puree | For 1.5 L & lesser jar capacities 250 g medium sized tomatoes cut in 4 pieces. | 2 min | |
| Dry Grinding Jar | Turmeric | For 1.0 L capacity: 250g of assorted spices roasted and cooled. For 0.8 L capacity: 200 g of assorted spices roasted and cooled. | 3 min |
| Chutney Jar | Ginger Garlic Paste | For 0.3 L & 0.4 L : 80 g ginger + 80g garlic | 2 min |
| Wet masala | For 0.3 L & 0.4 L : 100 g onion + 60g tomato | 2 min |
For initial any of the above operation used speed ‘I’ & speed ‘II’ for 15 seconds, thereafter use speed ‘III’ till you finish grinding. Remove the plug from the socket after use.
Recommended quantities for blending with fruit filter
Qty. Fruit
250 g : Tomatoes (cut fruits into small pieces and start blending after adding 50 ml of water)
250 g: Grapes
250 g: Water melon/ sweet lime/ orange (cut into small pieces)
Instructions:
- The appliance shall only be connected to single phase AC Power source.
- After every use of food- mixer, pour little hot water into the bowl to remove the left over material, specially sticky substances, so that the cutter will rotate freely during the subsequent use.
- Switch off the appliance immediately when the motor stalls or emanates from the appliance.
SAFETY INFORMATION
This product is designed and intended for household use only
- Read all the instructions carefully.
- Always connect the mixer grinder to a 3-pin, 6-Amp, properly earthedpower supply socket.
- Keep the mixer grinder away from heat sources like gas or electric stove.
- Keep the mixer grinder out of reach of children.
- Do not bend or put excessive pressure on the power cord. Do not let the power cord hang over the edge of the table or worktop or touch any hot surface.
- Do not operate the appliance if it malfunctions or is damaged in any manner.
- Ensure proper matching of blades and jar assembly. Guide for jar and blade connection has been provided separately in this manual. Please go through it carefully.
- Blades are sharp. Handle them carefully to avoid injury.
- Do not use any attachment other than those supplied. This may cause fire, electric shock or damage the product.
- Spatula may be used to stir the ingredients only when the machine is switched OFF.
- Keep hands and utensils away from moving parts to prevent personal injury and/or damage to the mixer grinder.
- Do not move the mixer grinder during operation.
- Never leave the mixer grinder unattended, while switched “ON”.
- Do not overfill the jars as this can damage the motor.
- Ensure that the mixer grinder is switched off/unplugged after each use. Do not pull the cord. Use the plug grip to unplug.
ORIENT MIXER GRINDER
Thank you for choosing Orient Mixer Grinder. A mixer grinder is a kitchen appliance that uses a motor-driven mechanism to automate the repetitive tasks of stirring, grinding or whisking. Orient offers you a wide range of mixer grinders to match your daily household needs without breaking a sweat.
KNOW YOUR MIXER GRINDER

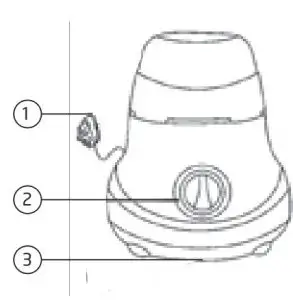

- Basic Unit
- Liquidising/ Blending Jar
- Dry/Wet Grinding Jar
- Chutney Jar
- PC Jar
- Power Cord
- Rotary Switch with Incher
- Overload Switch

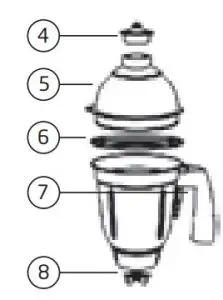

- Liquidising Jar Dome Cap
- Liquidising Jar Dome Lid
- Liquidising Jar Lid Gasket
- Liquidising Jar Handle
- Coupler
- Grinding Jar Lid Cap
- Grinding Jar Lid
- Grinding Jar Lid Gasket
- Chutney Jar Lid Cap
- Chutney Jar Lid
- Chutney Jar Lid Gasket
- PC Jar Lid Cap
- PC Jar Lid
- Fruit Filter
- PC Liquidising Jar
- Dry Grinding Blade
- Wet Grinding Blade
- Chutney Blade
- Spatula
| Jar | Blade | Usage |
| Liquidising / Blending Jar | Wet / Multipurpose Grinding Blade | All type of blending/liquidising operations like preparation of lassi, milk shakes, purees, juices, etc |
| Mincing Blade | Meat mincing, grating of coconut, onion, carrot, etc | |
| Whisking / Whipping Blade | Butter churning, beating soaked daal, egg beating, etc | |
| Dry / Wet Grinding Jar | Dry / Wet Grinding Blade | Grinding of idli and dosa batter, raw rice, coconut chutney, groundnut, red chilli, sugar, palak, roasted coffee, etc |
| Chutney Jar | Chutney Blade | Grinding of small quantities of jeera, dhania, coconut, green chilli, pepper, garam masala, etc |
| PC Jar | Blending Blade | All types of blending Shake, Lassi, etc. |
FEATURES
- High performance durable motor
- Specially designed nickel blades for superfine grinding
- Flow breakers in jars for fast and effective grinding
- High-gloss plastic
- 3-speed control with incher
- Overload protection for motor
TECHNICAL SPECIFICATION
| Model No. | ACCORD | ACCORD | KITCHEN KRAFT | KITCHEN KRAFT | MIRACLE | GLINT | ADELE | MERCURY | KK SUPER |
| Model Code | MGAC75G4 | MGAC75G3 | MGKK75B3 | MGKK75B4 | MGMR75S3 | MGGT75S3 | MGAD75G3 | MGME75B3 | MGKKS75L3 |
| Power Consumption | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W | 750 W |
| Product Color | White-Grey | White-Grey | White-Blue | White-Blue | Silver-Black | Silver-Black | White-Brown | White-Blue | Lavendor-White |
| No. of Jars | 4 | 3 | 3 | 4 | 3 | 3 | 3 | 3 | 3 |
| Pc Jar Capacity | 1.5 L PC | NA | NA | 1.5 L PC | NA | NA | NA | NA | NA |
| Liquidizing Jar Capacity | 1.5 L SS | 1.5 L SS | 1.5 L SS | 1.5 L SS | 1.5 L SS | 1.5 L SS | 1.5 L SS | 1.5 L SS | 1.5 L SS |
| Dry/wet Jar Capacity | 1.0 L SS | 1.0 L SS | 1.0 L SS | 1.0 L SS | 1.0 L SS | 1.0 L SS | 1.0 L SS | 1.0 L SS | 1.0 L SS |
| Chutney Jar Capacity | 0.5 L SS | 0.5 L SS | 0.4 L SS | 0.4 L SS | 0.5 L SS | 0.5 L SS | 0.4 L SS | 0.4 L SS | 0.4 L SS |
| Accessories | Spatula Fruit Filter | Spatula | Spatula | Spatula | Spatula 2 Storage Jars | Spatula | Spatula | Spatula | Spatula |
| Overload Protection | 3.2A | 3.2A | 3.2 A | 3.2A | 3.2A | 3.2A | 3.2A | 3.2 A | 3.2A |
| Power Cord Length | 3 Pin, 1.5 m | 3 Pin, 1.5 m | 3 Pin, 1.5 m | 3 Pin, 1.5 m | 3 Pin, 1.5 m | 3 Pin, 1.5 m | 3 Pin, 1.5 m | 3 Pin, 1.5 m | 3 Pin, 1.2 m |
| Motor Warranty# | 5 Years* | 5 Years* | 5 Years* | 5 Years* | 5 Years* | 5 Years* | 5 Years* | 5 Years* | 2 Years* |
| Product Warranty# | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years |
As product upgradation is a continuous process, design and specifications are subject to change without prior notice.
#Applicable in India only. *Copper Motor
Power Supply – 230V AC – 50Hz
| Model No. | AMAZE | KITCHEN KRAFT | AQUILLA | AQUILLA | ELITE SUPER | BOLT SUPER | SPRINT+ | KITCHEN MAGIC | MERCURY | BLAZE |
| Model Code | MGAM60G3 | MGKK50B3 | MGAQ50G3 | MGAQ55G3 | MGES50G3 | MGBS50C3 | MGSP50G3 | MGKM50G3 | MGME50B3 | MGBL50TG3 |
| Power Consumption | 600 W | 500 W | 500 W | 550 W | 500 W | 500 W | 500 W | 500 W | 500 W | 500 W |
| Product Color | White-Grey | White-Blue | White-Grey | White-Grey | White-Grey | Cherry | White-Grey | White-Grey | White-Blue | White-Green |
| No. of Jars | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Pc Jar Capacity | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Liquidizing Jar Capacity | 1.5 L SS | 1.0 L SS | 1.5 L SS | 1.5 L SS | 1.0 L SS | 1.0 L SS | 1.2 L SS | 1.0 L SS | 1.5 L SS | 1.2 L SS |
| Dry/wet Jar Capacity | 1.0 L SS | 0.8 L SS | 1.0 L SS | 1.0 L SS | 0.8 L SS | 0.8 L SS | 0.8 L SS | 0.8 L SS | 1.0 L SS | 0.7 L SS |
| Chutney Jar Capacity | 0.5 L SS | 0.3 L SS | 0.4 L SS | 0.4 L SS | 0.3 L SS | 0.3 L SS | 0.4 L SS | 0.3 L SS | 0.4 L SS | 0.3 L SS |
| Accessories | Spatula | NA | Spatula | Spatula | NA | NA | NA | NA | Spatula | NA |
| Overload Protection | 2.6A | 2.2A | 2.2A | 2.4A | 2.2A | 2.2A | 2.2A | 2.2A | 2.2A | 2.2A |
| Power Cord Length | 3 Pin, 1.5 m | 2 Pin, 1.2 m | 2 Pin, 1.2 m | 2 Pin, 1.2 m | 2 Pin, 1.2 m | 2 Pin, 1.2 m | 2 Pin, 1.2 m | 2 Pin, 1.2 m | 2 Pin, 1.5 m | 2 Pin, 1 m |
| Motor Warranty# | 5 Years* | 2 Years | 2 Years | 2 Years | 5 Years | 2 Years | 2 Years | 2 Years | 5 Years* | 2 Years |
| Product Warranty# | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years |
TROUBLE SHOOTING
| S. No. | Problem | Possible Cause | Remedy |
| 1. | Unit does not start | No power supply | Check for power supply or try plugging the unit in a different power socket |
| Overload switch has tripped | Wait for 2-3 min. and press the red button provided at bottom | ||
| 2 | Unit starts but stops suddenly while operating | Overload switch has tripped | Switch OFF the unit. Remove the excess contents from the jar. Wait for 2-3 min. and press the red button provided at the bottom of the main unit to restart the operations. |
| Excess load in the jar | Same as above | ||
| Obstruction for the blade to rotate in the jar | Check the ingredients and use spatula for stirring the contents | ||
| No power supply | Check for power supply or try plugging the unit in a different power socket. | ||
| 3 | Abnormal nolse while using | Jar is not engaged properly | Fix the jar lock properly |
| During wet grinding, the blade rorates without grinding the ingredients | Switch OFF the unit, stir the contents with the spatula and add some water then restart | ||
| Jar coupler is loose | Tighten the coupoler and use | ||
| Blade shaft jar bush worn out | Contact the toll-free Orient Helpline Number for assistance | ||
| 4 | Jar overflows | Lid and lid ring not fitted properly | Fit the lid and the lid ring properly if required, replace the lid ring |
| Excess liquid | Remove the excess liquid | ||
| 5. | Jar leakage at the coupler | Blade shaft jar bush worn out | Contact the foll-free Orient Helpline Number for assistance |
| 6. | Overheating of unit | Low voltage | Operate in the rated voltage 230V AC-50Hz |
| Overloading | Avoid adding excess material to the jar | ||
| Ventilation blocked | Clear the vents using a dry brush | ||
| External heat source | Place the unit away from any heat source | ||
| 7. | Unit smeels | Motor burnt | Contact the toll-free Orient Helpline Number for assistance |
| 8. | Problems not listed | Contact the toll-free Orient Helpline Number for assistance |
NOTE
- Initial running of the jars will throw some oil impregnated in bushes. Slight smoke might also generate due to burning of the oil. Hence, it is advised to clean the jars thoroughly before use.
- First few runs of the motor may generate a mild burning smell. This is a common phenomenon which should not be a cause of worry.
WARRANTY
Orient Electric Limited (the Company) warrants to the customer/purchaser of this product that from the date of purchase, the Company will repair or replace free of charge any part of the product, should the Company be fully satisfied in its sole discretion that the defect/s is/are due to faulty material or defective workmanship only. The warranty will be subject to the following clauses:
- For warranty details, please refer the technical specification table for more clarity.
- The warranty is valid only if this warranty card is duly signed and stamped by our authorised dealer and is produced along with the original customer’s invoice copy.
- Warranty starts from the date of purchase from our authorised dealers/retailers only.
- The Company or its authorised service agent/dealer will repair/replace all parts failing due to faulty material or defective workmanship pertaining to the product.
- Only the Company’s authorised service agents/dealers can service/repair/attend to/install/reinstall the product.
- All expenses incurred in collecting the units or parts thereof from the Company’s authorised service stations or the dealer of the Company as well as expenses incurred in connection with deputing of service personnel/technicians towards to and fro travel conveyance and other incidentals, etc., will be borne by the customer/purchaser.
- The warranty extended herein is in lieu of all implied conditions and warranties under the law, and is confined to the repair or replacement of defective part and does not cover any consequential or resulting liability, damage or loss, whether direct or indirect, arising from such defects. Furthermore, the warranty, in no case shall extend to payment or any monetary consideration whatsoever for the replacement or return of the product.
- This warranty does not cover corrosion, replacement of plastic or glass components which add decorative value to the product.
- The decision of the Company is final and binding on all matters arising out of this warranty.
- The warranty is issued at Delhi, and the courts of Delhi shall have exclusive jurisdiction over the matters in this warranty.
- The warranty stands null and void in case the product is struck by a force majeure event, which shall include but not be limited to acts of God, including flood, earthquakes, any other natural calamity, accidents, war, fire, or any act of government or other competent authority.
- This warranty is applicable only in India.
In addition to the terms and conditions stated above, this warranty is not valid in case of any of the following events:
- The machine is not used according to the instructions given in the instruction/user manual.
- The warranty specifically excludes any problems arising out of mishandling, wilful damage, improper storage of the product/its parts.
- The electrical power supply voltages are not within the stipulated norms (supply voltage 230V AC – 50Hz).
- Any repair work/installation carried out by a person other than an Orient Electric Authorised Service Centre/Service Agent.
- Normal wear and tear of the product.
- Damage due to chipping, peeling of plating, denting.
- The serial number is deleted, defaced or altered.
- The original purchase receipt/invoice is not available.
Warranty card
(Please retain for your personal record)
Serial no_____________________________
Product flame and Model no_______________________________
Name and Address of Customer___________________________
Ph no______________________________
Email id___________________________
Name and Address of Dealer_____________________
Ph no_________________________
(Stamp here)_________________
Bill No_____________________
Date of Purchase____________________
BRANCH OFFICES
NORTH REGION
- Delhi: 62, Okhla Industrial Estate, Phase III, New Delhi-110020
- Chandigarh: 840, 1st Floor, NAC Manimajara, UT Chandigarh-160101
- Rajasthan: C-179, Road No. 9, VKIA, Jaipur-302014
- Uttar Pradesh: 607, 6th Floor, Ratan Squire, Vidhan Sabha Marg,
- Lucknow-226001
- Noida: C-130, Sector 63, Noida-201301
EAST REGION
- Assam: Saraf Building, 1st Floor, A.T. Road, Guwahati-781001
- Bihar: 4th Floor, Sai Tower, Beside Hotel Utsav, New Dak Bunglow Road,
- Jharkhand: Modi Heights, Phase-1, 4th Floor, Office No-401, Ratu Road, Near Durga Mandir Ranchi-834001
- Odisha: Plot-263, 1st Floor, Annapurna Complex, Bapujinagar, Cuttack, Bhubaneswar-751009
- West Bengal: 6, Ghore Bibi Lane, Behind Swabhumi, Kolkata-700054
WEST REGION
- Chhattisgarh: Harshit Corporate, 5th Floor, Office No. 512, Beside Amanaka Flyover, Amanaka, Raipur-492001
- Gujarat: 201, Arth Complex, B/h.L.G.Show Room, Mithakhali Six Road, Navrangpura, Ahmedabad-380009
- Madhya Pradesh: Unit No. 212 & 214, 2nd Floor, Dhan Trident, Block No. 3, Scheme No 54, PU-4, Vijay Nagar, Indore-452010
- Maharashtra: 604, 6th Floor, Dev Corpora, Cadbury Junction, Eastern Express Highway, Thane (West), Mumbai-400601 Karan Vitoria, No. 201-A & 201 B-1, 3rd Floor, Goodluck Chowk, Behind Café Goodluck, Deccan Gymkhana, Pune-411004 402, 4th floor, Shriyash Heights, Plot No 95, Lendra West Precinct, Ramdas Peth. Nagpur-440010
SOUTH REGION
- Karnataka: 309-310, 3rd Floor, Mota Chamber, Miller Road, Bangalore-560052
- Kerala: Kollamkuzhi Business Square, 5th Floor, NH bypass, Vytila, Cochin-682019
- Tamil Nadu: ‘Heavitree’ 2nd Floor, Unit–B, No-47, Spur Tank Road, Chetpet, Chennai–600031
- Telangana: 6-3-1090/C, R K Plaza, 2nd Floor, Hyderabad-500082
FANS | HOME APPLIANCES | LIGHTING | SWITCHGEAR
Orient Electric Limited
(a CK Birla Group company)
240, Okhla Industrial Estate, Phase III
New Delhi-110020
Orient Helpline no.: 1800 103 7574 (Toll Free)
Email: [email protected]
Website: www.orientelectric.com
Follow us on:
Orient Electric - Best Rated Ceiling Fans, Home Appliances, Lighting & Switchgear
