juice pack access
Compatible with iPhone Xs, iPhone Xs Max,
iPhone Xr, IPhone X
USER MANUAL
Welcome
Thank you for purchasing the mophie® juice pack access™ battery case made for iPhone Xs, iPhone Xs Max, iPhone Xr, or iPhone X. Your mophie juice pack access battery case’s lithium-polymer battery supplies hours of extra battery whenever
you need it, all while providing the protection of a hard-shell case and complete access to your phone’s Lightning connector. With wireless input and output, recharging your juice pack case and phone couldn’t be any quicker or easier — simply place the juice pack access case on just about any wireless charging base to immediately begin recharging your juice pack case and iPhone together.
Package contains
- mophie juice pack access battery case made for iPhone Xs, iPhone Xs Max, iPhone XR, or iPhone X.
- USB-C to USB-A cable
- Quick-start guide
Features
Here are just some of the reasons why your juice pack access case is so great:
- The new juice pack access case design provides full access to your phone’s Lightning port while it’s inside the case.
Wireless input and output charging — you can simply place the juice pack access case on a wireless charging base to immediately begin wirelessly recharging the phone and case together. - (Take a breath) Ergonomic, form-fitting, fully protective impact-resistant case-and-battery in-one made for iPhone Xs, iPhone Xs Max, iPhone Xr, or iPhone X.
- High-impact protection: Built to protect your phone against drops and hard falls.
- A 3-second press of the status button lets you charge your phone whenever it needs it. However, even in standby mode your phone still has high-impact protection.
- Priority+ charging provides power to your phone first before the juice pack case starts to recharge.
- Track battery power at a glance with the integrated four-light LED status indicator. You can keep tabs on charging status and current battery life. Know before you go!
- Built-in short-circuit, over-charge, and temperature protection, so you can charge with confidence. Safety first!
Compatibility
- The mophie juice pack access battery cases compatible with iPhone Xs, iPhone Xs Max, iPhone Xr, and iPhone X are designed and intended solely for the Apple iPhone Xs, iPhone Xs Max, iPhone Xr, and iPhone X smartphones, respectively. Please do not attempt to use them with any other device.
- The mophie juice pack access battery cases will charge wirelessly from any mophie wireless charging base (not included) or from any Qi-compatible wireless charger and are also compatible with other wireless charging technologies, such as those used at coffee houses, on airline flights, in furniture products with wireless charging, and in consumer vehicles that support wireless charging.

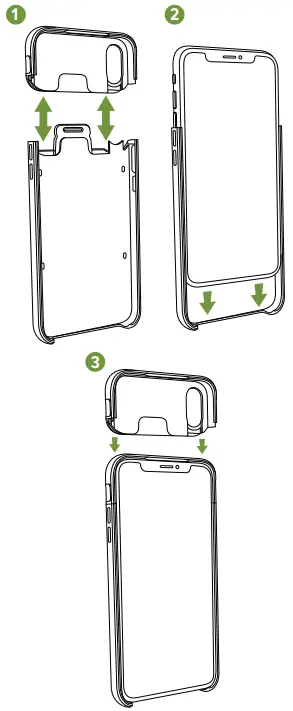

Installing your juice pack access case
- Separate the juice pack access case sections.
- Slide your phone all the way into the bottom section of the juice pack access case
- Slide the top section of the juice pack access case all the way over the exposed top of the phone so that it snaps into the bottom section of the case.
Wirelessly charging your phone using your juice pack access case

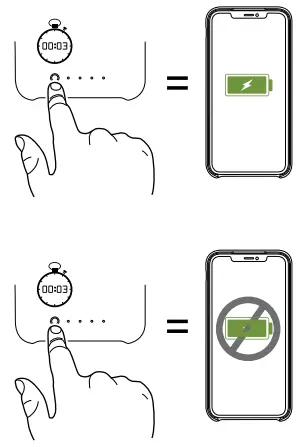

IMPORTANT: Before using your juice pack access case for the first time, fully charge it (so that pressing the charge status button lights all 4 LEDs). To begin charging your phone, press the status button for 3 seconds. To stop charging your phone, press the status button again for 3 seconds.

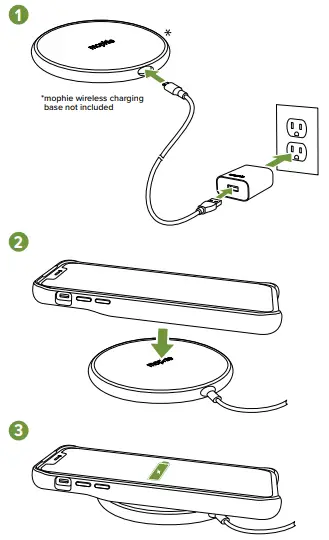

Charging your juice pack access case (wireless)
Your juice pack access case will charge wirelessly from any mophie wireless charging base (not included) and from all Qi-compatible wireless charging bases. It is also compatible with other wireless charging technologies, such as those used at coffee houses,
on airline flights, in furniture products with wireless charging, and in consumer vehicles that support wireless charging.
- If you’re using a mophie wireless charging base (not included), connect its AC wall adapter to the charging base and to a wall outlet.
- Place the juice pack access case on the wireless charging base or another charger with the case centered on the charger.
- Charging will begin on contact. Priority+ pass-through charging provides power to the installed iPhone first, before the juice pack access battery starts to recharge.
Charging your juice pack access case (wired)
Use the supplied USB-C to USB-A cable to charge your juice pack access case by connecting it to the wall adapter included with your phone. Priority+ pass-through charging provides wireless power to the installed iPhone first, before the juice pack access battery starts to recharge.
Checking your juice pack access battery’s charge status
Momentarily press the status button on your juice pack access case and the status LEDs will indicate its charge level. Four LEDs mean that the case is fully charged, while one LED means that it’s almost empty. Know before you go!
Taking care of your juice pack access battery case
- Keep your juice pack access case dry and away from moisture and corrosive materials.
- Do not clean your juice pack access case with harsh chemicals, soaps, or detergents. Just wipe it with a soft, water-dampened cloth.
- Make sure the case’s USB-C port does not become contaminated with lint or other debris. Use a canned-air type of product periodically to ensure that the port opening is clear.
- Recharge your juice pack access case once every three months when not in use. If you plan on putting it away, charge it for one hour first.
Warranty
At mophie, we are dedicated to making the best quality products. To back this up, this product is warranted for 2 years. This warranty does not affect any statutory rights that you may be entitled to. Keep a copy of your purchase receipt as proof of purchase.
Be sure to register your product at mophie.com. For full details regarding warranty terms and exclusions, please visit mophie.com/warranty.
Exclusions & limitations
Except for the limited warranty expressly set forth or to the extent restricted or prohibited by applicable law, mophie expressly disclaims any and all other warranties express or implied, including any warranty of quality, merchantability, or fitness for a
particular purpose, and you specifically agree that mophie shall not be liable for any special, incidental, indirect, punitive, or consequential damages of any type on any mophie product. In addition to and without limiting the generality of the foregoing
disclaimers, the limited warranty does not, under any circumstances, cover the replacement or cost of any electronic device or personal property inside or outside of the mophie product.
You may have additional warranty rights depending on your country, state, or province. Further, some countries, states, and provinces do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitations on the duration of implied warranties, so the above may not apply to you. If any provision of the warranty is found unlawful, void, or unenforceable, that provision shall be deemed severable and shall not affect any remaining provision.
Customer service
Telephone: 1-888-8mophie (1-888-866-7443)
International: +1 (269) 743-1340
Web: www.mophie.com/cs
IMPORTANT SAFETY INFORMATION
Warning
Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire, or explosion, for which damages you (“Purchaser”), and not mophie LLC (“Manufacturer”) are responsible.
- Before using your juice pack access case for the first time, fully charge it (so that pressing the charge status button lights all 4 LEDs).
- Do not store the device in a high-temperature environment, including heat caused by intense sunlight or other forms of heat. Do not place the device in fire or other excessively hot environments. Exposure to fire or temperature above 212°F (100°C) may cause an explosion.
- Be cautious of drops, bumps, abrasions, or other impacts to this device. If there is any damage to the device such as dents, punctures, tears, deformities, or corrosion due to any cause, discontinue use. Contact Manufacturer or dispose of it in an appropriate manner at your local battery-recycling center.
- Do not expose the battery case to rain or snow.
- Do not use the battery case in excess of its output rating. Overloading outputs above rating may result in a risk of fire or injury to persons.
- Do not disassemble this device or attempt to re-purpose or modify it in any manner.
- Do not attempt to replace any part of this device.
- For questions or instructions for the various ways to charge this device refer to the Charging your juice pack access case sections of this manual.
- Use of a power supply or charger not recommended by mophie may result in a risk of fire or injury to persons.
- If this device is accessible to or may be used by a minor, purchasing adult agrees to be solely responsible for providing supervision, instruction, and warnings. Purchaser agrees to defend, indemnify, and hold Manufacturer harmless for any claims or damages arising from unintended use or misuse by a minor.
- All products have gone through a thorough quality assurance inspection. If you find that your device is excessively hot, is
emitting odor is deformed, abraded, cut, or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact the Manufacturer. - Before storing your battery for an extended period of time, charge it for one hour.
- Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful to understate and federal environmental laws and regulations. Always take used batteries to your local battery recycling center.
- Switch off the battery case when not in use.
- To comply with FCC RF exposure compliance requirements, the wireless charging battery case must be used with a separation distance of at least 20cm from all persons.
SAVE THESE INSTRUCTIONS
Legal
This product is meant for use only in conjunction with the appropriate device. Please consult your device packaging to determine whether this product is compatible with your particular device. The manufacturer is not responsible for any damages to any device incurred through the use of this product. The manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or airport other than the appropriate device for which this product is designed. The manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this product as outlined above. Purchaser agrees to defend, indemnify, and hold Manufacturer harmless for any claims or damages arising from unintended use or misuse, including use with an unintended device.
mophie, juice pack access, Priority+, Stay Powerful, mophie loves you, the five-circles design, and the mophie logo is trademarks of mophie inc. iPhone and Lightning are trademarks of Apple Inc. The trademark “iPhone” is used in Japan with a license from Aiphone K.K. Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the
Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this airport with an Apple product may affect wireless performance. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium. All rights reserved.
Patents: mophie.com/patents.
This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced technician for help.
CAUTION: To comply with the limits of Class B digital devices, pursuant to Part 15 of the FCC Rules, this device must be used with certified peripherals and shielded cables. All peripherals must be shielded and grounded. Operation with noncertified peripherals or non-shielded cables may result in interference to radio or reception.
MODIFICATION: Any changes or modifications of this device could void the warranty.
THIS DEVICE CONFORMS TO UL STD 60950.
- CERTIFIED TO CSA STD C22.2 NO. 60950-1.
CONFORMS TO UL SUBJECT 2056.
STATEMENT OF COMPLIANCE
Hereby, ZAGG International declares that the radio equipment wireless charging base is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.mophie.com/cert_red
WEEE DECLARATION
All of our products are marked with the WEEE symbol; this indicates that this product must NOT be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste electrical and electronic equipment by handing it over to an approved re-processor, or by returning it to mophie, inc. for reprocessing. For more information about where you can send your waste equipment for recycling, please contact mophie, inc. or one of your local distributors.
CRE-0689-A
