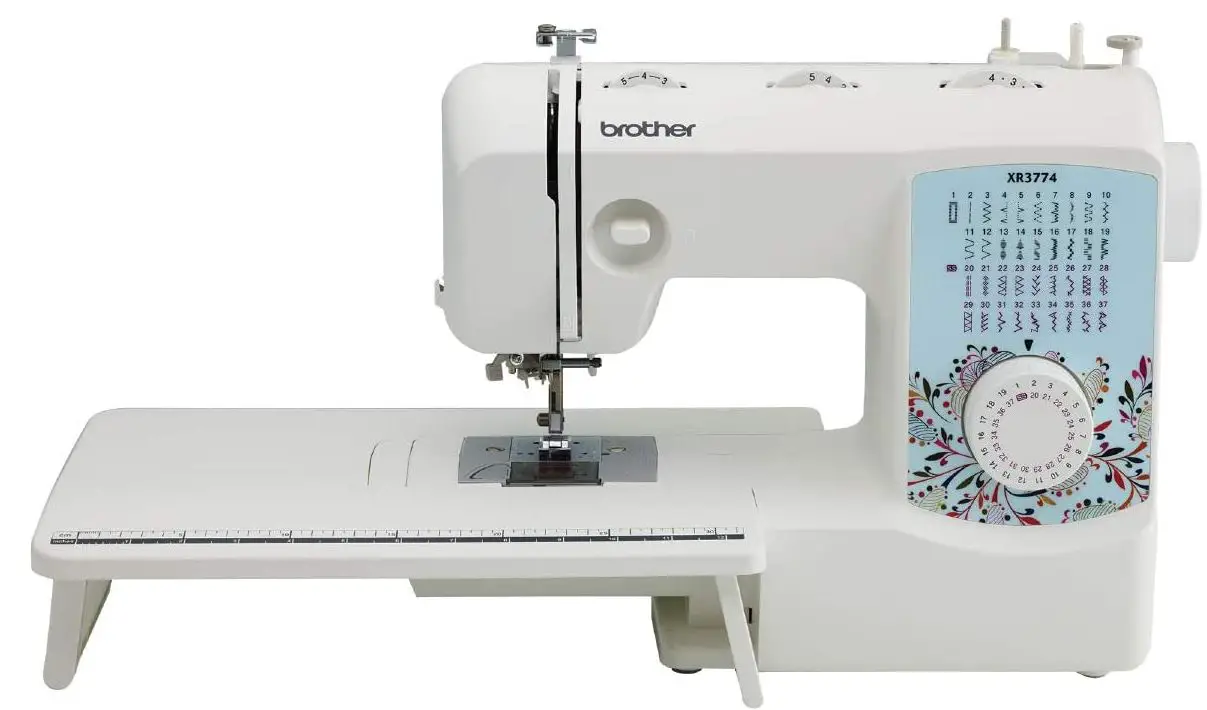

Brother XR3774 Sewing and Quilting Machine
Specifications
- Brand: Brother
- Color: Wide Table
- Material: Metal
- Product Dimensions: 8″D x 15.3″W x 12″H
- Item Weight: 87 Pounds
- Power Source: Corded Electric
- Is Electric: Yes
- Item Model Number: XR3774
Description
The Brother XR3774 comes with 37 built-in stitches, including a 1-step buttonhole, decorative and quilting stitches, and blind hems. This sewing and quilting machine has a handy drop-in top bobbin that resists jamming and an automated needle threader that correctly puts the thread through the needle. A broad table, 8 sewing feet, an instructional DVD, and other accessories are included with the XR3774 quilting and sewing machine. The Brother XR3774 is ideal for a variety of regular sewing and quilting jobs, as well as for users at all skill levels. Any other usage or sale of this device nullifies the warranty because it is only designed for sale in the US at 120 volts.
Lower Threading

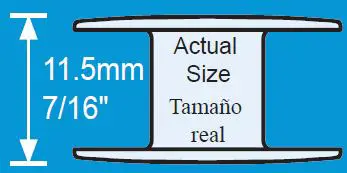

- Be sure to use the correct bobbin.
- Please read “IMPORTANT SAFETY INSTRUCTIONS” and the detailed instructions in the Operation Manual.

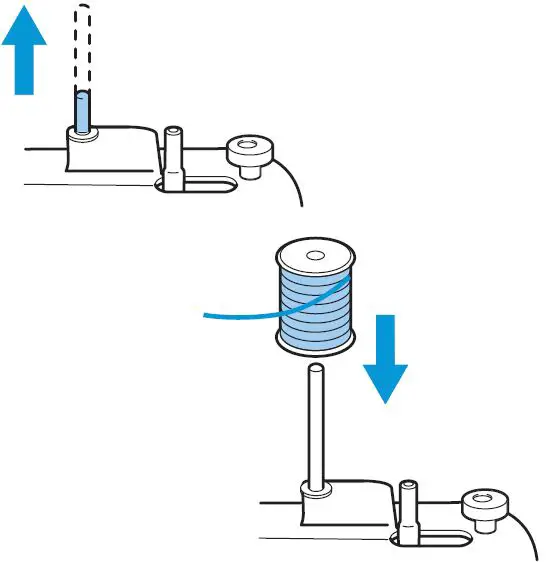

- Pull up the spool pin completely

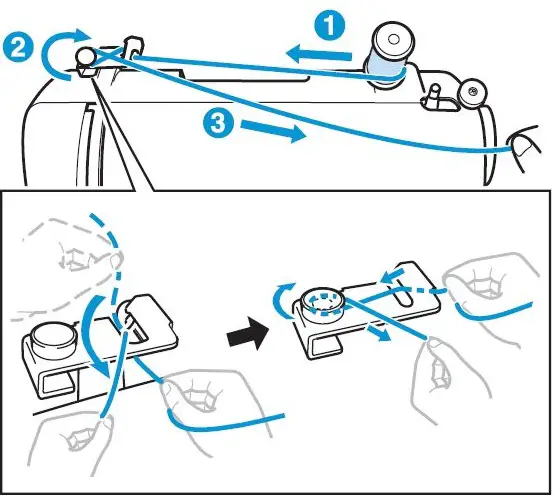

- Pull the thread completely

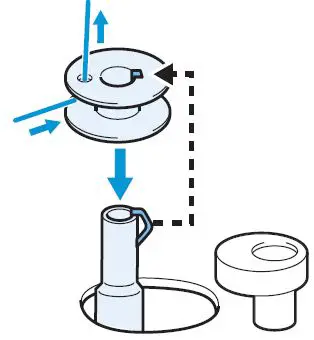

- Align the notch to the spring on the shaft
- 7 – 10 cm (2-3/4 – 3-15/16 inches)
- 7 – 10 cm (2-3/4 – 3-15/16 inches)
- Hold the end of the thread
- Gently press down

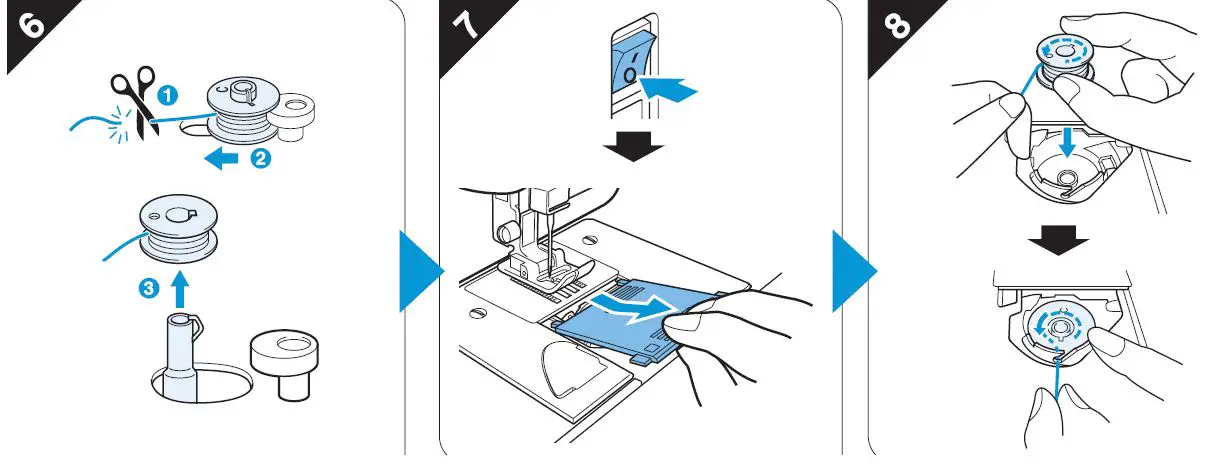

- Wind the thread a few times around the bobbin
- When the bobbin is full, the bobbin will spin slowly

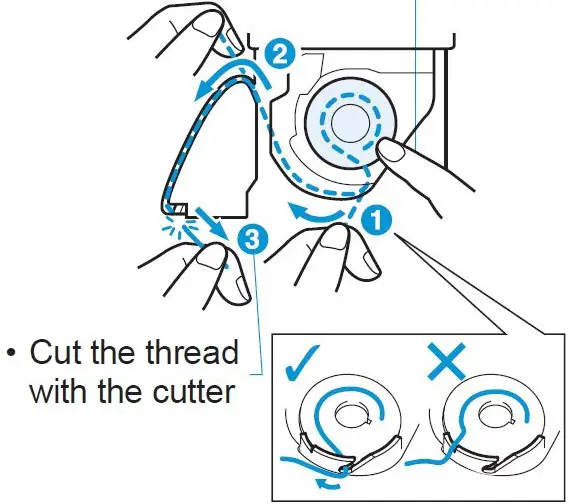

- Push the bobbin down

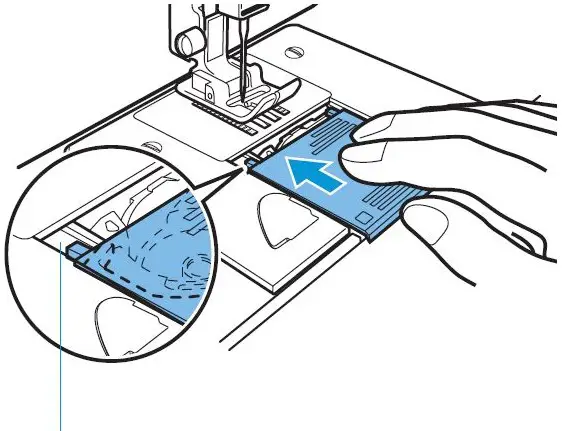

Put the projection into the groove

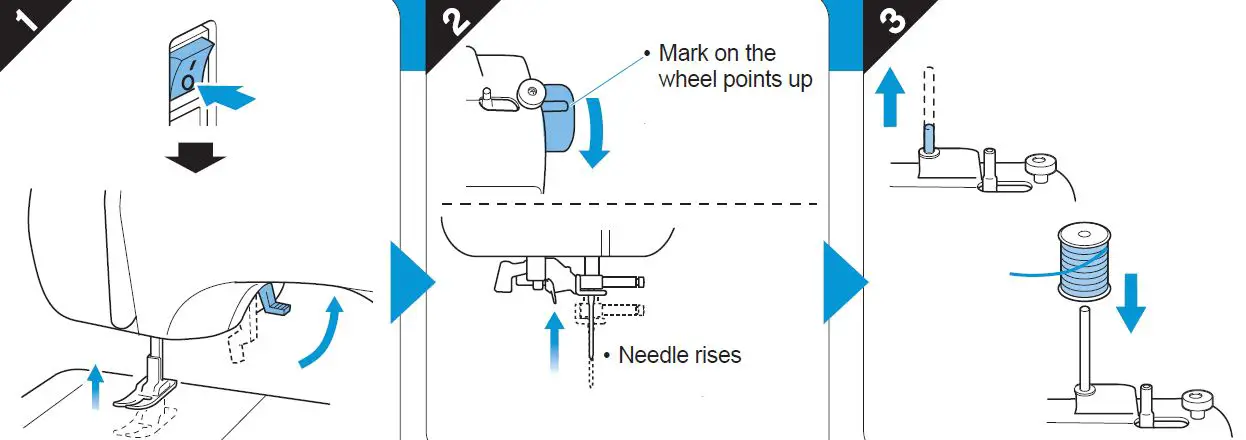

Upper Threading
Please read “IMPORTANT SAFETY INSTRUCTIONS” and the detailed instructions in the Operation Manual.
Pull up the spool pin completely

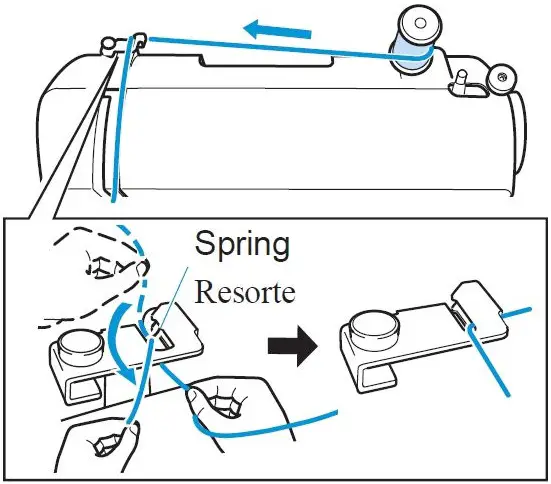

Make sure that the spring in the groove catches the thread

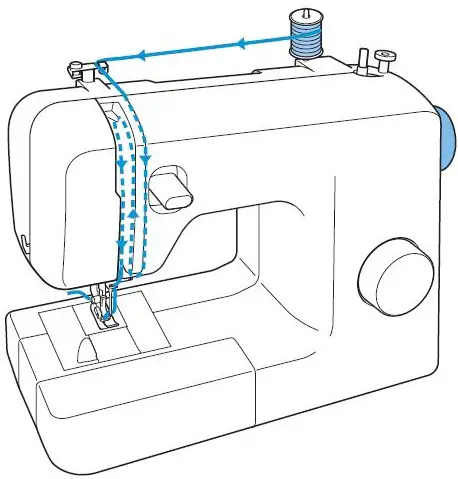

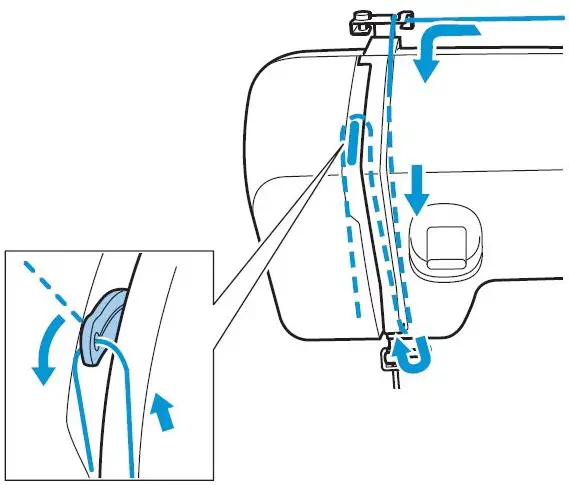

Guide the thread from right to left

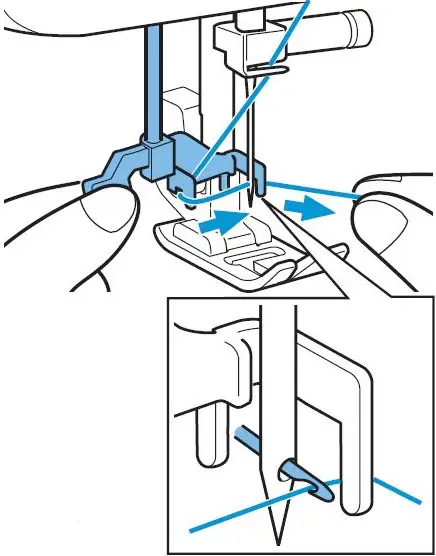

Holding the thread

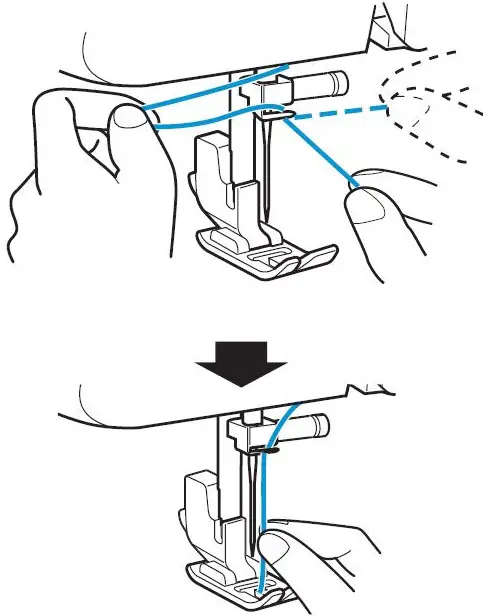

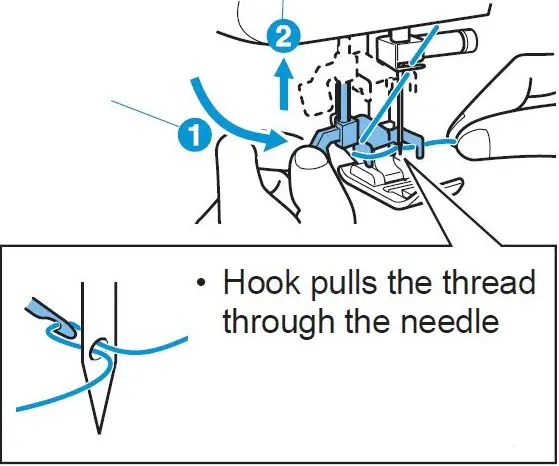

Pass the thread under the hook that has passed through the eye of the needle
Pull the lever down completely

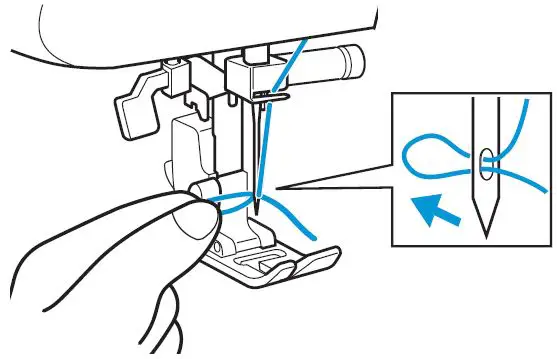

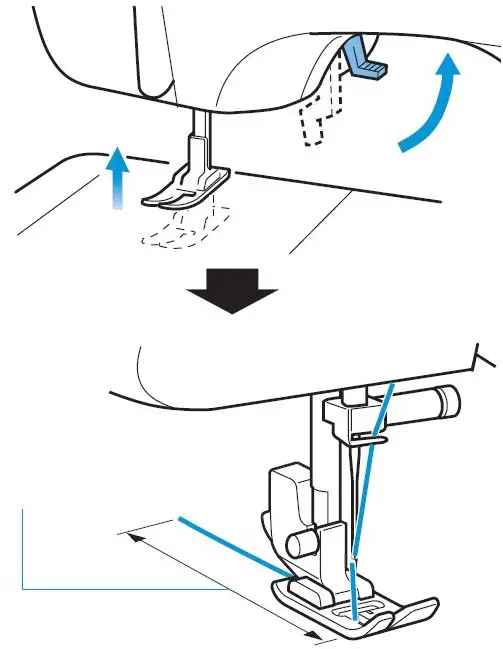

Pull thread loop to finish the threading process
Pass the thread under the hook that has passed through the eye of the needle.
Pull thread loop to finish the threading process
FAQ’s
The product dimensions of the Brother XR3774 Sewing and Quilting Machine are 8″D x 15.3″ W x 12″H.
The Brother XR3774 Sewing and Quilting Machine comes with 37 built-in stitches, including a 1-step buttonhole, decorative and quilting stitches, and blind hems.
Be sure to use the correct bobbin for the Brother XR3774 Sewing and Quilting Machine. Please read “IMPORTANT SAFETY INSTRUCTIONS” and the detailed instructions in the Operation Manual.
To thread the lower part of the Brother XR3774 Sewing and Quilting Machine, pull up the spool pin completely, pull the thread completely, align the notch to the spring on the shaft, hold the end of the thread, gently press down, wind the thread a few times around the bobbin, when the bobbin is full, the bobbin will spin slowly, push the bobbin down, put the projection into the groove.
To thread the upper part of the Brother XR3774 Sewing and Quilting Machine, pull up the spool pin completely, make sure that the spring in the groove catches the thread, guide the thread from right to left, holding the thread, pass the thread under the hook that has passed through the eye of the needle, pull the lever down completely, pull thread loop to finish the threading process, pass the thread under the hook that has passed through the eye of the needle, pull thread loop to finish the threading process.
The Brother XR3774 Sewing and Quilting Machine comes with a broad table, 8 sewing feet, an instructional DVD, and other accessories.
No, any other usage or sale of this device nullifies the warranty because it is only designed for sale in the US at 120 volts.
The measuring range of the OXO 11168300 Digital Instant Thermometer is -40°F to 302°F (-40°C to 150°C).
The OXO 11168300 Digital Instant Thermometer provides temperature readings within 4 to 6 seconds.
Yes, the OXO 11168300 Digital Instant Thermometer features a backlit display, making it easy to read temperatures in low-light conditions.
No, the OXO 11168300 Digital Instant Thermometer cannot be recalibrated. It is factory-calibrated and designed to maintain accuracy over time.
Yes, the OXO 11168300 Digital Instant Thermometer is water-resistant. However, it is not fully waterproof, so it should not be submerged in water.
Yes, the OXO 11168300 Digital Instant Thermometer has a temperature hold function that allows you to lock the temperature reading on the display.
The OXO 11168300 Digital Instant Thermometer uses a single AAA battery, which is included with the thermometer.
Yes, the OXO 11168300 Digital Instant Thermometer can be used to measure the temperature of both food and liquids.
Download this PDF Link: Brother XR3774 Sewing and Quilting Machine User Manual
