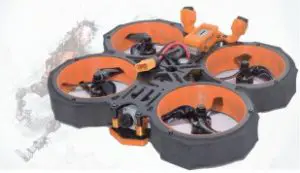

MAMFU PDFDJI HD Ducted FPV Racing Instruction Manual
Instructions:
Brand Name | AURORA RC |
| Fight Controller | F722 BT DUAL (Upgrade firmware version: JHEF7DUAL.hex) |
| Motor | T-Motor F1507 2700KV |
| Camera & VTX | DJI Air Unit HD VTX Camera |
| Drone Name | MAMFU |
| ESC | BLHELI S 40A 4IN1 |
| Propeller | Gemfan 75MM 3-Bladed |
| Recommend Battery: | 4-6S 800-1300mah Lipo XT60 (not included) |
Flight Controller F722 BT DUAL:
| Size | 36.5 x 36.5 mm |
| Wight | 8.2 g |
| Hole distance | 30.5 x 30.5 mm |
| Processor | STM32F722RET6 216MHz |
| Gyroscope | MPU6000 & DUAL ICM20689 (32K) |
| Barometer | BMP280 |
| OSD Chip | AT7456E |
| Black Box | 16MB |
| BEC1 | 5V-2A |
| BEC2 | 9V-3A (Camera and VTX Power supply, can be turned on and off through USER2) |
| Input voltage | 2-6S lipo (7.4V-26V) |
| Dual camera input | V IN 1 and V IN 2 dual signals, default V IN 1 (Switch through USER1) |
| Serial control port | 6 Channels |

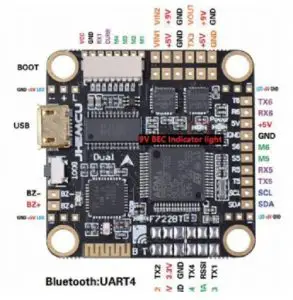

| Bluetooth | Support Bluetooth (port UART4, baud rate 115200, name JHEMCU) |
| Flight control firmware | Betaflight JHEF7AUALI.hex |
| Serial digital receiver port | SBUS/IBUS/DSM for UART2 (DJI Air Unit DJI HDL is SBUS) |
As mentioned above, FC supports V1 and V2 two cameras, turning ON or OFF 9V BEC (Camera & VTX power).
The default configuration is as follows to make V1 and 9V BEC normally open.
If necessary, you can configure your usual AUX channel to control their ON or OFF.
How to Use Bluetooth APP
Equipped with Bluetooth module, it is directly connected with the mobile phone APP, and can set the flight control anytime and anywhere.
Software download address: www.speedybee.com/speedy-bee-app/

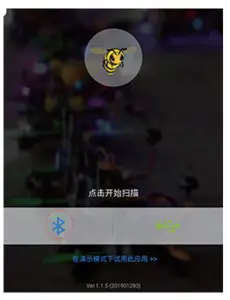

- Turn on your phone Bluetooth, open APP and Click Bluetooth.

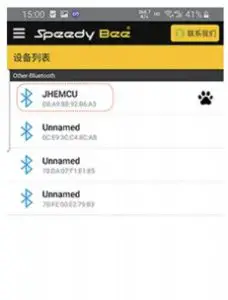

- Click the searched JHEM, CU to connect to flight control.

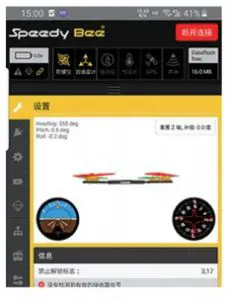

- Now you can set flight control parameters with your phone.
How to Match the DJI Unit?
For Instructions on DJI AIR UNIT, please refer to the attached manual.
We wish you have fun with it.
