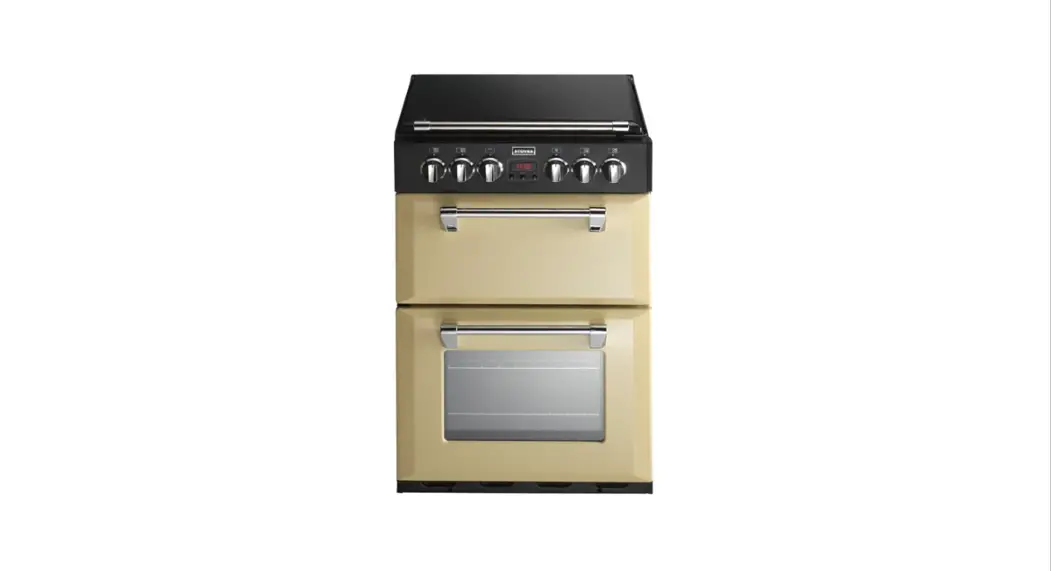

Richmond 550E Electric Mini Range Cooker
User Guide

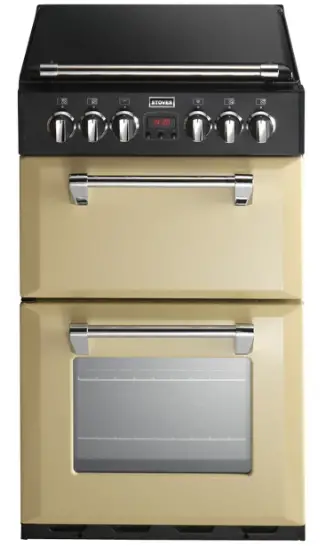

Richmond 550E Electric Mini Range Cooker,
| Specification sheet | Product Details | |||
| Brand and Model | ||||
| Brand | Stoves | Stoves | ||
| Sub-brand | Mini Range | Mini Range | ||
| Model | Richmond 55DF UK | Richmond 55E UK | ||
| Summary | ||||
| Product description | 55cm Dual Fuel Cooker | 55cm Electric Ceramic Cooker | ||
| Long product description | 60cm Dual fuel Cooker With A 4 burner gas Hob including 4kw wok, Conventional top oven & Grill, Fanned Main Oven | 55cm Electric ceramic Cooker With A 4 element hob, Conventional top oven & Grill, Fanned Main Oven | ||
| Product Overview | The Stoves Richmond Mini Range Cooker gives you a traditional style 55cm cooker with a contemporary edge. This model features an LED Clock/Programmer, 4 burner gas hob with 4kw wok, a small conventional oven with a dual circuit grill, and a fanned main oven | The Stoves Richmond Mini Range Cooker gives you a traditional style 55cm cooker with a contemporary edge. This model features an LED Clock/Programmer, 4 elemet ceramic hob, a small conventional oven with a dual circuit grill, and a fanned main oven | ||
| Key Product Benefits | ||||
| Benefit 1 | 4 Burner gas hob | 4 Zone Ceramic Hob | ||
| Benefit 2 | Cast Iron Pan Supports | Easy Clean Glass Surface | ||
| Benefit 3 | Programmable Timer | Programmable Timer | ||
| Benefit 4 | Dual Circuit Variable Grill | Dual Circuit Variable Grill | ||
| Benefit 5 | Fanned Main Oven | Fanned Main Oven | ||
| Benefit 6 | Easy Clean Enamel | Easy Clean Enamel | ||
| Benefit 7 | Grill Pan | Grill Pan | ||
| Benefit 8 | Grill Pan Handle | Grill Pan Handle | ||
| Benefit 9 | Made In Britain | Made In Britain | ||
| Benefit 10 | 4kw wok burner | |||
| Product Type | ||||
| Integrated or freestanding | Freestanding | Freestanding | ||
| Fuel | Dual Fuel | Electric | ||
| Number of ovens | 2 | 2 | ||
| Warranty period | ||||
| International market | ||||
| Hob layout | ||||
| (diagram to be assigned) |  | | ||
| Cavity layout | ||||
| (diagram to be assigned) |  | | ||
| Hob | ||||
| Hob summary | 4 Gas Burners | 4 Ceramic Zones | ||
| No of burners/elements | 4 | 4 | ||
| Hotplate type | Pressed metal | Glass/pressed metal surround | ||
| Controls position | Fascia | Fascia | ||
| Gas hob | ||||
| Burner 1 (kW) | Small (1.0) | |||
| Burner 2 (kW) | Medium (2.0) | |||
| Burner 3 (kW) | Wok (4.0) | |||
| Burner 4 (kW) | Medium (2.0) | |||
| Burner 5 (kW) | ||||
| Burner 6 (kW) | ||||
| Burner 7 (kW) | ||||
| Burner 8 (kW) | ||||
| Enamel pan supports | ||||
| Cast iron pan supports | Yes | |||
| Brass burner caps | ||||
| Enamel burner caps | Yes | |||
| Matte burner caps | ||||
| Flat burner caps | ||||
| Profiled burner caps | Yes | |||
| Enamel Clamp plates | ||||
| Matte clamp plates | ||||
| Push button ignition (battery) | ||||
| Push button ignition (mains) | Yes | |||
| Automatic ignition | ||||
| Thermocouples (Flame safety device) | Yes | |||
| Lid with auto shut off | Yes | Yes | ||
| Lid / Type | Cast | Cast | ||
| Lid Handle / Front Trim | Yes | Yes | ||
| Lid auto shut off | Yes | Yes | ||
| Lid soft close | Yes | Yes | ||
| Electric hob | ||||
| Element 1 (kW) | Small Ceramic1.2 | |||
| Element 2 (kW) | Large Ceramic1.7 | |||
| Element 3 (kW) | Large Ceramic 1.7 | |||
| Element 4 (kW) | Small Ceramic1.2 | |||
| Element 5 (kW) | ||||
| Element 6 (kW) | ||||
| Element 7 (kW) | ||||
| Central on/off key | ||||
| Hot hob light | ||||
| Individual residual Heat Indicators | ||||
| Control type (rotary or touch) | ||||
| Digital power display | ||||
| Power levels | ||||
| Keep warm function | ||||
| Pan detection | ||||
| Pan overheat detection | ||||
| Child lock | ||||
| Boost function | ||||
| Presets | ||||
| Auto heat up | ||||
| Auto stand by | ||||
| Minute minder | ||||
| Timer Function | ||||
| Bridge Function / Griddle Zone | ||||
| Easy clean ceramic glass surface | Yes | |||
| Cavity 1 | | |||
| Position | Top | Top | ||
| Main/second/third/fourth oven | Second | Second | ||
| Function | Conventional Oven & Grill | Conventional Oven & Grill | ||
| Fuel | Electric | Electric | ||
| No. of functions | 1 | 1 | ||
| Programmable oven | ||||
| Gas oven/grill | ||||
| Fixed rate gas grill | ||||
| Variable rate gas grill | ||||
| Conventional gas oven | ||||
| Automatic ignition | ||||
| Flame safety device | ||||
| Electric oven/grill | ||||
| Fixed rate electric grill | ||||
| Fixed rate dual circuit electric grill | ||||
| Variable rate electric grill | ||||
| Variable rate dual circuit electric grill | Yes | Yes | ||
| Conventional electric oven | Yes | Yes | ||
| Fanned electric oven | ||||
| Defrost | ||||
| Intensive bake (top, bottom & fan) | ||||
| Top heat only | ||||
| Base heat only | ||||
| Base heat with fan | ||||
| Grill with fan | ||||
| Light only | ||||
| Slow cook | ||||
| Pizza function | ||||
| Keep warm/plate warm function | ||||
| Bread proving | ||||
| Pie setting | ||||
| Meat probe | ||||
| Rapid heat | ||||
| Pyrolytic function | ||||
| Pre-set oven setting | ||||
| Energy rating | A | A | ||
| Cavity features | ||||
| Actual capacity (litres) | 41 | 41 | ||
| Usable capacity (litres) | 37 | 37 | ||
| Usable Cavity dimensions (HxWxD mm) | 180 x 470 x 430 | 180 x 470 x 430 | ||
| Power (kW) | Grill (2.7) | Grill (2.7) | ||
| Energy consumption (Kwh) | 0.66 | 0.66 | ||
| No of shelves | 1 | 1 | ||
| No of shelf positions | 5 | 5 | ||
| Telescopic shelves – Fixed | ||||
| Telescopic shelves – Removable/adjustable | ||||
| No of telescopic fixing positions | ||||
| Usable area of shelves (WxD mm) | 457mm x 307mm | 457mm x 307mm | ||
| Oven light / Type | ||||
| Interior finish / colour | Easy clean enamel / Black | Easy clean enamel / Black | ||
| Door | ||||
| Door type | Metal | Metal | ||
| Door opening | Drop-down | Drop-down | ||
| Hinge type | ||||
| Arrest position | Yes | Yes | ||
| Viewing window | ||||
| Door glazing number(inc. outer if applicable) | ||||
| Door colour | Description colour | Description colour | ||
| Handle style / Colour | Metal, chrome | Metal, chrome | ||
| Door outer glass | ||||
| Inner glass | ||||
| Cladding type | ||||
| Cladding style / Colour | ||||
| Door features | ||||
| Screened branding | ||||
| Badge brand | Stoves | Stoves | ||
| Cavity 2 |  | |||
| Position | Bottom | Bottom | ||
| Main/second/third/fourth oven | Main | Main | ||
| Function | Fanned Oven | Fanned Oven | ||
| Fuel | Electric | Electric | ||
| No. of functions | 2 | 2 | ||
| Programmable oven | Yes | Yes | ||
| Gas oven/grill | ||||
| Fixed rate gas grill | ||||
| Variable rate gas grill | ||||
| Conventional gas oven | ||||
| Automatic ignition | ||||
| Flame safety device | ||||
| Electric oven/grill | ||||
| Fixed rate electric grill | ||||
| Fixed rate dual circuit electric grill | ||||
| Variable rate electric grill | ||||
| Variable rate dual circuit electric grill | ||||
| Conventional electric oven | ||||
| Fanned electric oven | Yes | Yes | ||
| Defrost | Yes | Yes | ||
| Intensive bake (top, bottom & fan) | ||||
| Top heat only | ||||
| Base heat only | ||||
| Base heat with fan | ||||
| Grill with fan | ||||
| Light only | ||||
| Slow cook | ||||
| Pizza function | ||||
| Keep warm/plate warm function | ||||
| Bread proving | ||||
| Pie setting | ||||
| Meat probe | ||||
| Rapid heat | ||||
| Pyrolytic function | ||||
| Pre-set oven setting | ||||
| Energy rating | A | A | ||
| Cavity features | ||||
| Actual capacity (litres) | 71 | 71 | ||
| Usable capacity (litres) | 64 | 64 | ||
| Usable Cavity dimensions (HxWxD mm) | 350 x 470 x 395 | 350 x 470 x 395 | ||
| Power (kW) | 2.0 | 2.0 | ||
| Energy consumption (Kwh) | 0.82Kwh | 0.82Kwh | ||
| No of shelves | 2 | 2 | ||
| No of shelf positions | 12 | 12 | ||
| Telescopic shelves – Fixed | ||||
| Telescopic shelves – Removable/adjustable | ||||
| No of telescopic fixing positions | ||||
| Usable area of shelves (WxD mm) | 467mm x 307mm | 467mm x 307mm | ||
| Oven light / Type | Yes, halogen | Yes, halogen | ||
| Interior finish / colour | Easy clean enamel / Black | Easy clean enamel / Black | ||
| Door | ||||
| Door type | Metal | Metal | ||
| Door opening | Side opening | Side opening | ||
| Hinge type | ||||
| Arrest position | ||||
| Viewing window | Yes | Yes | ||
| Door glazing number(inc. outer if applicable) | 2 | 2 | ||
| Door colour | Description colour | Description colour | ||
| Handle style / Colour | Metal, chrome | Metal, chrome | ||
| Door outer glass | Yes x 1 | Yes x 1 | ||
| Inner glass | Yes x 1 | Yes x 1 | ||
| Cladding type | ||||
| Cladding style / Colour | ||||
| Door features | ||||
| Screened branding | ||||
| Badge brand | ||||
| Fascia | ||||
| Fascia features | ||||
| Number of knobs | 6 | 6 | ||
| Style of knob – colour & type | Black plastic body, chrome plastic cap | Black plastic body, chrome plastic cap | ||
| Bezel – colour & type | Chrome plastic | Chrome plastic | ||
| Oven/Grill markings location (knob, bezel,facia) | Black print, on bezel | Black print, on bezel | ||
| Fascia material | Metal pressing | Metal pressing | ||
| Fascia colour | Matt Black | Matt Black | ||
| Cladding type | ||||
| Cladding style/colour | ||||
| Fascia cooling system | Yes | Yes | ||
| Screened Branding or Model Name | ||||
| Badge / Brand | ||||
| Timer | ||||
| Mechanical timer (pinger) | ||||
| Analogue clock/programmer | ||||
| LED clock/minute minder – cavity, size and colour | ||||
| LED clock/programmer – cavity, size and colour | ||||
| LED clock/programmer cook to off – cavity, size and | ||||
| Touch control clock/programmer – cavity, size and colour | Cavity 2, Small, Red | Cavity 2, Small, Red | ||
| Touch control clock/programmer ‘Cook To Off’ – cavity,size and colour | ||||
| Connectivity / Bluetooth | ||||
| Electronic clock / programmer | ||||
| Special aesthetic appearance (eg Sterling) | ||||
| Features | ||||
| Warming drawer/cavity | ||||
| Integrated splashback | ||||
| Rotisserie | ||||
| ProFlex | ||||
| Roll-out grill | ||||
| Adjustable feet | Yes | Yes | ||
| Retractable control knobs | ||||
| Rear wheels | ||||
| Accessories (included) | ||||
| Removable cast griddle plate | ||||
| Wok cradle | ||||
| Grillpan/trivet | Yes | Yes | ||
| Grillpan handle – metal | Yes | Yes | ||
| Roasting tin | ||||
| Full width oven pan – shallow | ||||
| Full width oven pan – deep | ||||
| Full width oven pan – reversible trivet | ||||
| Oven pan handle | ||||
| Cast iron pot | ||||
| Grill rack | ||||
| Turntable | ||||
| Browning plate | ||||
| Steam & Infuse | ||||
| LPG Conversion kit (available separately) | Yes | |||
| Removable Parts (for cleaning) | ||||
| Hob burners | ||||
| Pan supports | ||||
| Inner door glass | ||||
| Shelves | Yes | Yes | ||
| Telescopic shelves – Fixed | ||||
| Telescopic shelves – Removable/adjustable | ||||
| Shelf guides | Yes | Yes | ||
| Grill rack | ||||
| Turntable | ||||
| Browning plate | ||||
| Installation | ||||
| Gas type | ||||
| Gas inlet type | ||||
| Gas inlet position | ||||
| LPG convertible | ||||
| Hard wired | ||||
| Lead length | ||||
| Terminal block position (looking at the front) | Rear Right | Rear Right | ||
| Electrical connection | Yes | Yes | ||
| Supply voltage | 240V | 240V | ||
| Supply frequency | 50Hz | 50Hz | ||
| Phase (single or 3) | Single/3 Phase | Single/3 Phase | ||
| Maximum rating | ||||
| Total electrical power load (kW) | 4.02kw | 8.88-10.58kw | ||
| Total gas power load (kW) | 9.0kw | |||
| Fuse size (A) | 32 | 32 | ||
| Fitted 3 pin plug | ||||
| Literature | ||||
| Handbook | ||||
| Full handbook / brand – in pack | Yes | Yes | ||
| Full handbook / brand – online | ||||
| Quick start guide & installation instruction | ||||
| Languages | UK/EI | UK/EI | ||
| Warranty | ||||
| Warranty card / brand | Yes – Stoves | Yes – Stoves | ||
| D&G Guaratee label / brand | Yes – Stoves | Yes – Stoves | ||
| Labels | ||||
| Made In Britain Label | ||||
| OEM Warranty Label | ||||
| Register My Appliance Label | ||||
| Wiring Diagram Label (dependant on country of | ||||
| Any specific labelling requirements | ||||
| Dimensions | ||||
| Packed | ||||
| Height (mm) | 1025 | 1025 | ||
| Width (mm) | 665 | 665 | ||
| Depth (mm) | 715 | 715 | ||
| Weight (kg) | 53.3 | 54 | ||
| Product | ||||
| Height (mm) | 900-915 | 900-915 | ||
| Width (mm) | 552 | 552 | ||
| Depth (mm) | 600 | 600 | ||
| Weight (kg) | 52.8 | 49.9 | ||
| Product Supply Information | ||||
| Country of origin | UK | UK | ||
| Palette quantity | 4 | 4 | ||
| Layer quantity | 4 | 4 | ||
| No. layers | 1 | 1 | ||
| Other requirements | ||||
| Countries of destination | UK/EU | UK/EU | ||
| Conversion kit (supplied) | No | No | ||
| Web Handbooks | ||||
| Inlet Adaptor | ||||
| Matching BI Hob new requirement | ||||
| Finishes & codes | ||||
| Colour 1 | Black | Black | ||
| SKU code | 444442896 | 444449014 | ||
| EAN code | 5052263028968 | 5034648490140 | ||
| AS400/Aurora model description | ST RICH 550DFW Blk | ST RICH 550E Blk | ||
| Exclusive | ||||
| Colour 2 | Champagne | Champagne | ||
| SKU code | 444442895 | 444441979 | ||
| EAN code | 5052263028951 | 5052263019799 | ||
| AS400/Aurora model description | ST RICH 550DFW Cha | ST RICH 550E Cha | ||
| Exclusive | ||||
| Colour 3 | Hot Jalapeno | Hot Jalapeno | ||
| SKU code | 444442900 | 444449013 | ||
| EAN code | 5052263029002 | 5034648490133 | ||
| AS400/Aurora model description | ST RICH 550DFW Hja | ST RICH 550E Jal | ||
| Exclusive | ||||
| COMMENTS | ||||
