QUICK REFERENCE GUIDE > OR36SCI6B1
Induction Range, 36″, 5 Zones
with SmartZone, Self-cleaning
Series 9 | Classic
Black

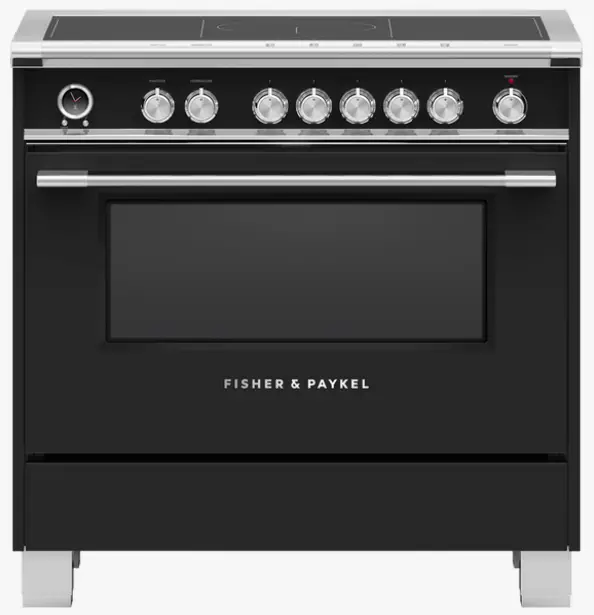

OR36SCI6B1 36 Inch 5 Zones with SmartZone Induction Range
Heritage styling meets modern performance, including an induction cooktop with the ability to pair zones to create a large cook zone.
- Five induction cooking zones that can be bridged to form two “SmartZones”
- Convection oven with 4.9 cu ft total capacity and nine oven functions including Roast and Aero™Pastry
- Self-cleaning function breaks down food residue for an easy clean
- Non-tip full-extension shelves for safe removal of hot dishes
DIMENSIONS
| Height | 35 3/4 – 37 1/4″ |
| Width | 35 7/8″ |
| Depth | 25 1/4″ |
FEATURES & BENEFITS
OUTSTANDING PERFORMANCE
Discover the flexibility to get creative in the kitchen with nine oven functions including Bake, Roast, and Aero™ Pastry with Pizza Bake. The AeroTech™ system circulates air evenly throughout the entire oven, perfect for multi-shelf cooking.
POWER & CONTROL
The induction cooktop provides instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
QUALITY AND DURABILITY
Every detail has been carefully crafted, from the heritage design cues, to the solid, perfectly balanced soft-close door, and to the chromed cast zinc dials. They all add up to an exceptional, premium range.
LARGE CAPACITY
The large 4.9 cu ft total capacity for this range gives you plenty of space to cook multiple dishes at the same time.
EASY TO CLEAN
The self-clean function reduces grease and food residue to an easily removable light ash and the cooktop simply needs a quick wipe to keep it looking good as new. The oven door and runners can also be removed for easy cleaning.
SAFE AND SOUND
Designed for your safety and convenience, this range features full extension telescopic sliding shelves, a quadruple-glazed CoolTouch door, and a child lock. Induction cooktops heat only the cookware, not the elements, so they are much safer in family kitchens.
SPECIFICATIONS
Accessories
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Broil rack | • |
| Full Extension Telescopic | 2 sets (part 578744) |
| Full extension sliding shelves | 2 sets (part 578755) |
| Kick strip, black (optional) | KICKOR36B1 |
Capacity
| Shelf positions | 7 |
Cleaning
| Acid resistant graphite enamel | • |
| Drop down grill element | • |
| Flat easy clean glass surface | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Toughened fused glass | • |
| Turned stainless steel clock | • |
| Turned stainless steel clock | • |
Oven features
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Bright chromed, cast zinc dials | • |
| Concealed element | • |
| Convection | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Soft open/close door | • |
| Twin cavity fans | • |
| Warming drawer | • |
Oven functions
| Aero Bake | • |
| Aero Broil | • |
| Aero™ Pastry with Pizza mode | • |
| Bake | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| Self-clean | • |
| True Aero | • |
Oven performance
| Broil power | 4300W |
| CoolTouch door | Quadruple glazed |
| Warming drawer power | 220W |
Power requirements
| Amperage | 65A |
| Supply frequency | 60Hz |
Product dimensions
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 1/4″ |
| Width | 35 7/8″ |
Rangetop features
| Auto heat reduce | • |
| Dual zones | • |
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| SmartZone | 1 |
| Zone bridging | • |
Rangetop Performance
| Centre | 2600W |
| Number of cooking zones | 5 |
| PowerBoost | • |
Safety
| ADA compliant | • |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Child lock | • |
| CoolTouch door | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Pan detection system | • |
| Safety time out | • |
| Spill containment | 3/8 gallon |
| Spillage auto off | • |
| Surface hot indicators | • |
| SKU | 81966 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
